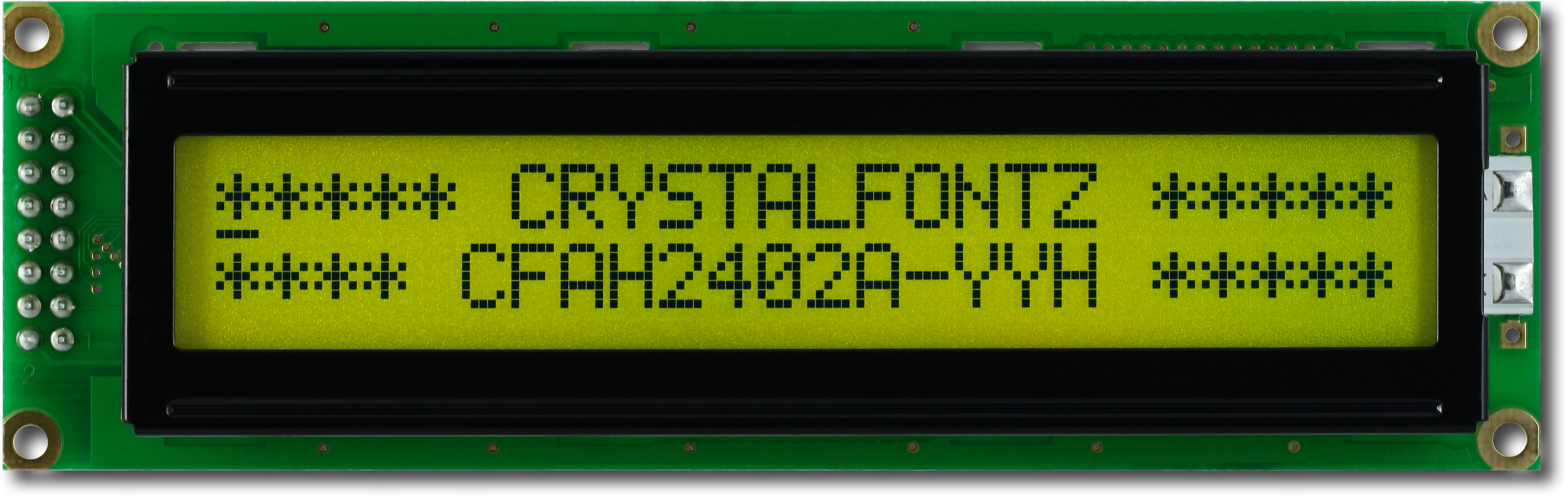

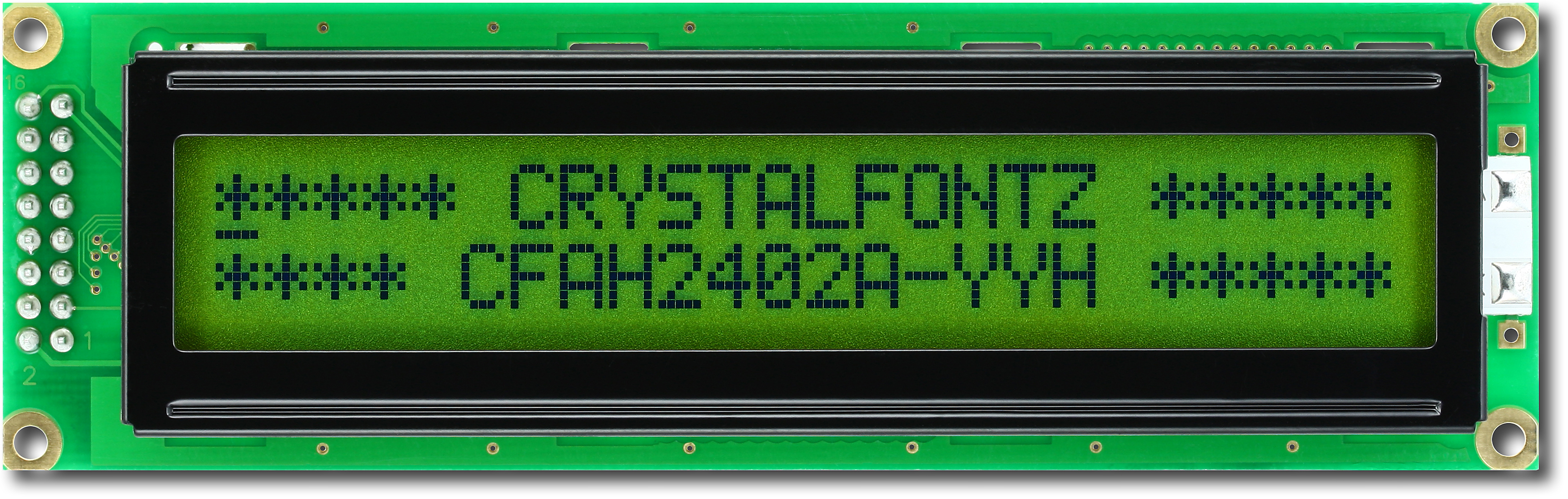

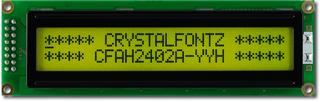

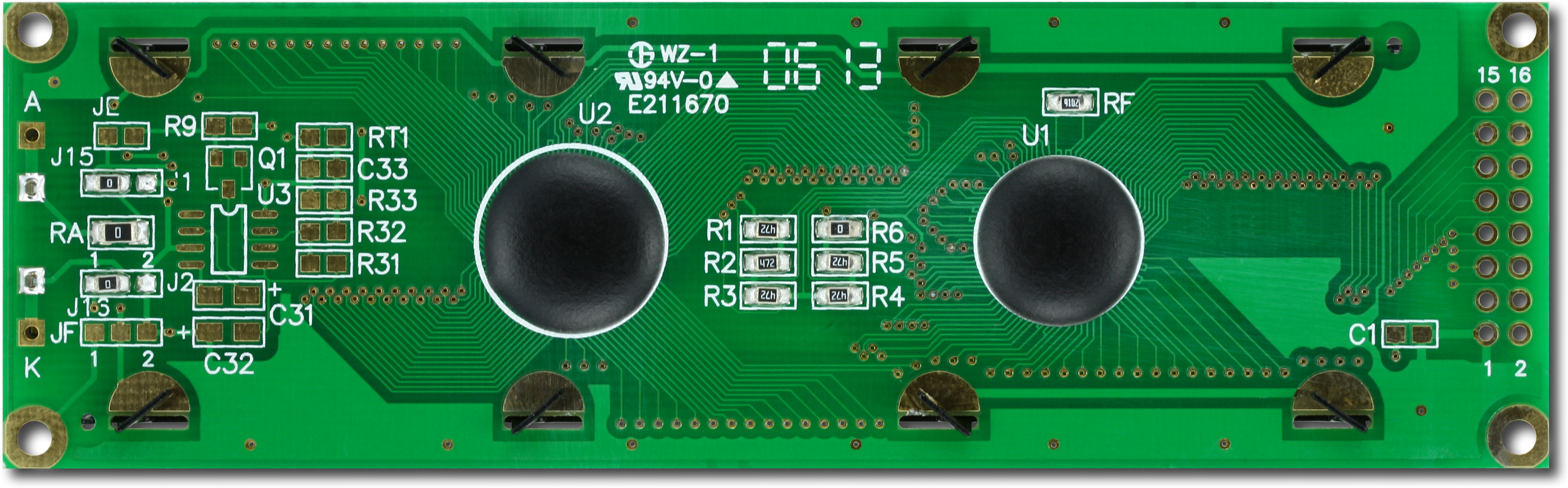

[EOL] Yellow 24x2 Parallel Character LCD

Part Number: CFAH2402A-YYH-JP

Parallel Character LCD24x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00

• Available in several variations of backlight and polarizer (minimum order may be required)
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

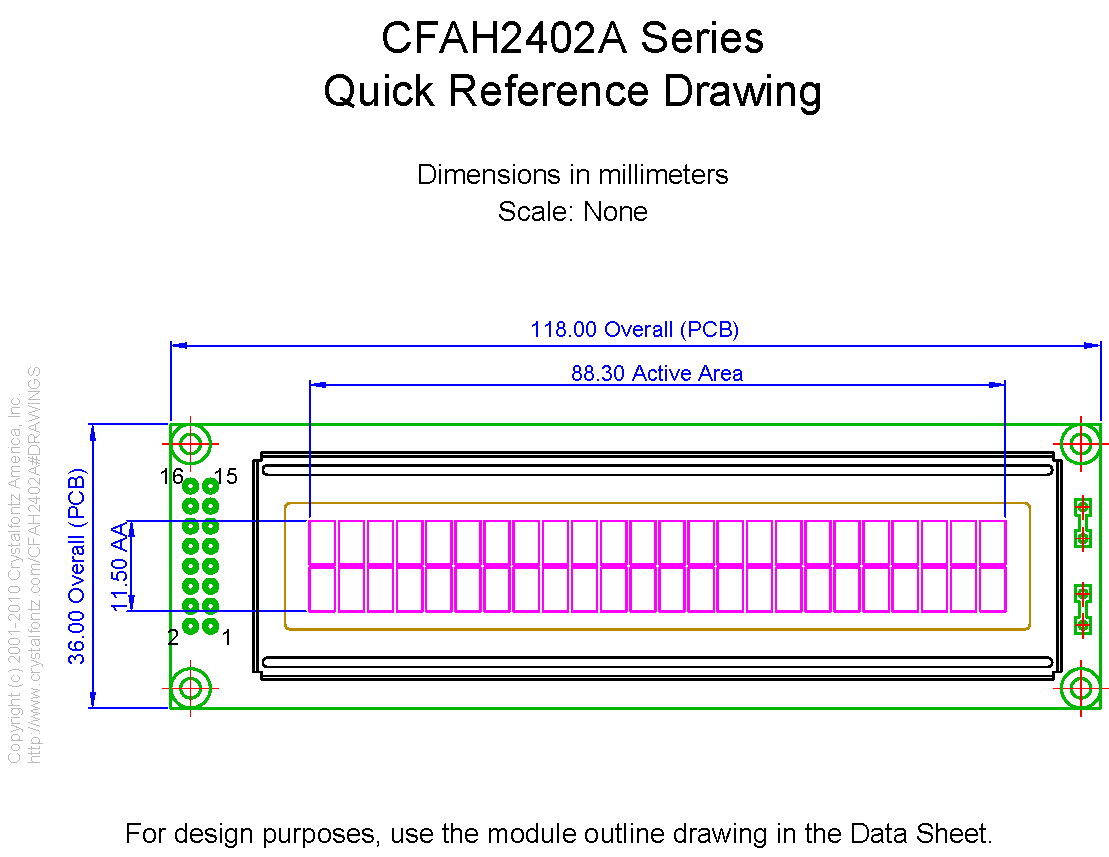

  Physical Characteristics

  Characters x Lines

  24 x 2

  Module Overall	width	height	depth
  millimeters	118	36	13.6
  inches	4.646	1.417	0.535

  PCB Outline	width	height	depth
  millimeters	118	36	13.6
  inches	4.646	1.417	0.535

  Viewing Area	Width	Height
  millimeters	94.5	16
  inches	3.720	0.630

  Active Area	Width	Height
  millimeters	88.3	11.5
  inches	3.476	0.453

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.6	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight

  58g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Yellow-Green
  Polarizer	Transflective
  View Direction	6 o'clock
  Sunlight Readable	Yes

  Backlight Color	Yellow-Green
  Backlight Type	LED
  Mode	Positive
  Foreground Color	Dark
  Background Color	Yellow-Green

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Hitachi HD44780 HD44780U (LCD-II) (Dot Matrix Liquid Crystal Display Controller/Driver) Hitachi HD44780 1985: HD44780 Historical Data Sheet
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH2402AYYHJT Datasheet



  picture_as_pdf

  CFAH2402AYYHJP.pdf


• download Files and Downloads
  folder_zip CAD Export - CFAH2402A 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH2402A 1 TO 1.PDF
