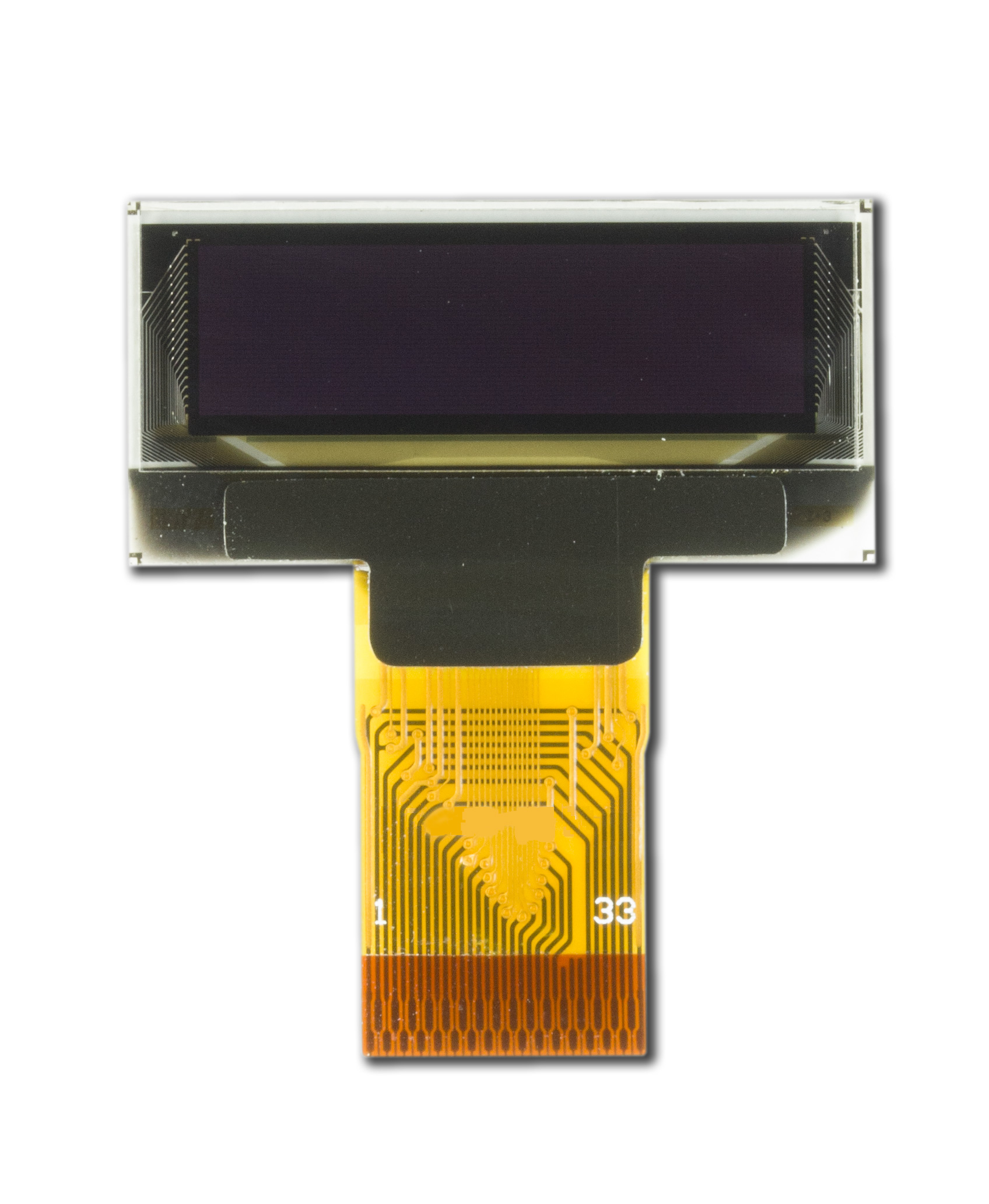

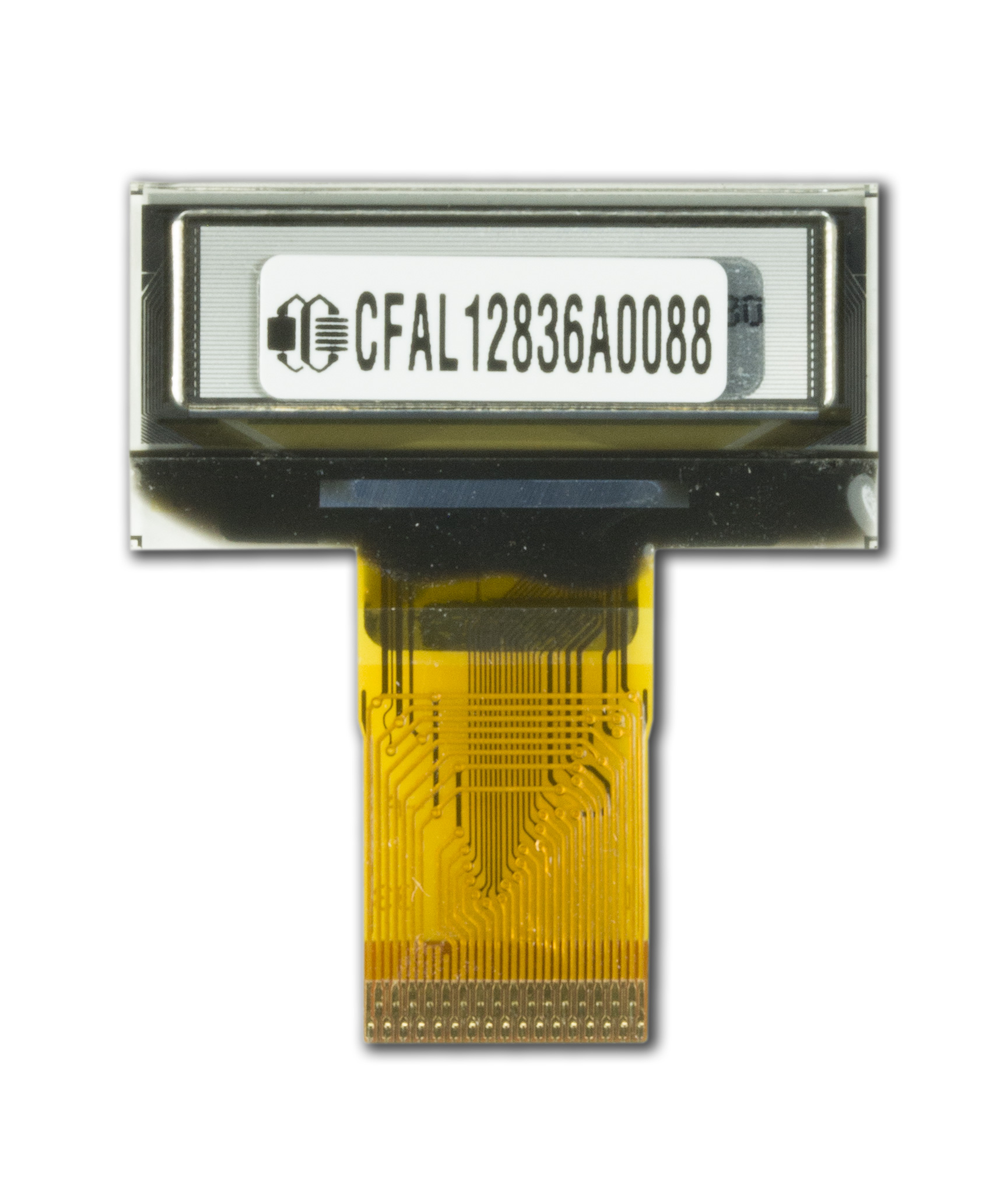

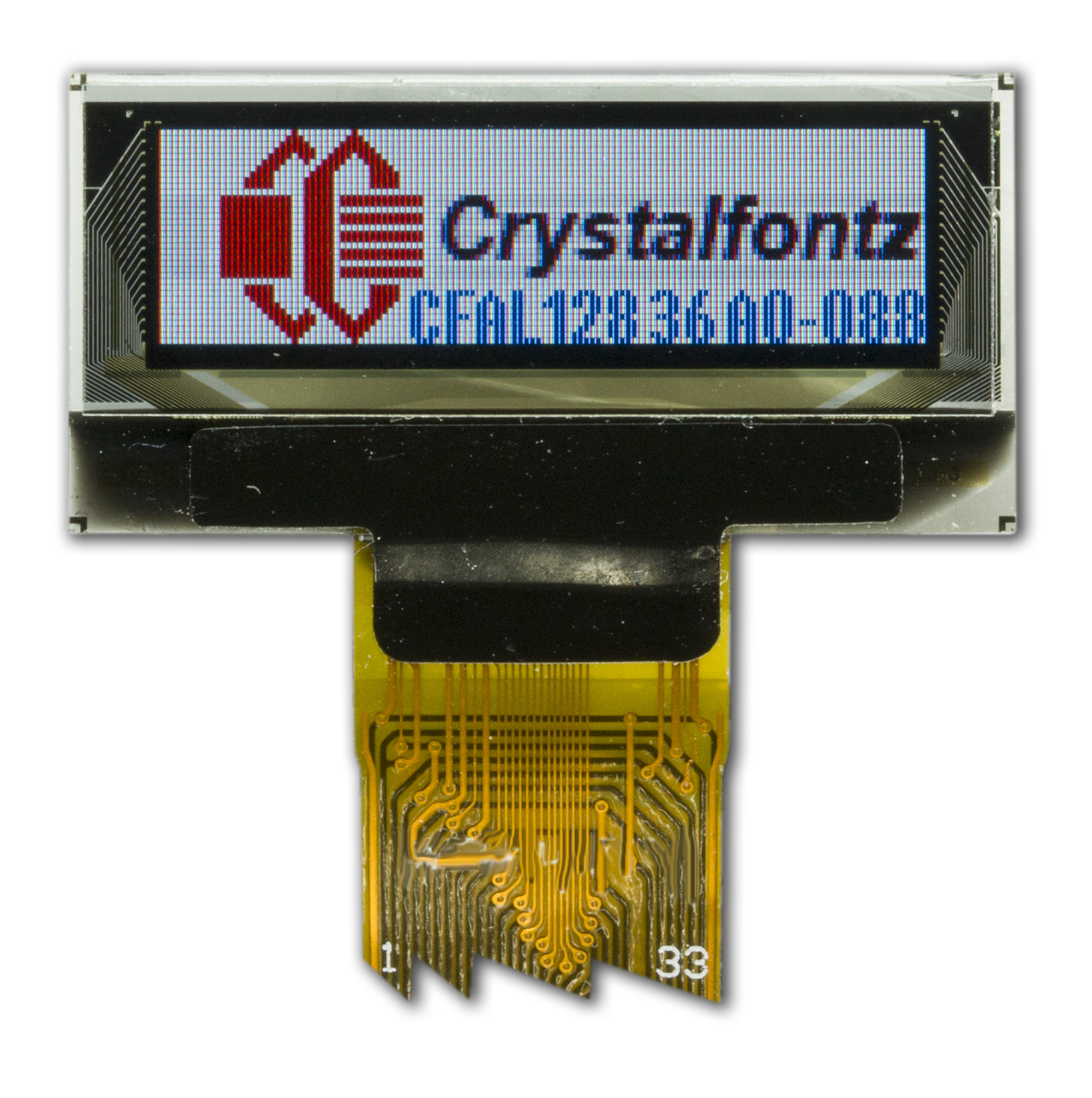

128x36 Color OLED Display Module

Part Number: CFAL12836A0-088

This is a small, full-color OLED display module with 128x36 dot matrix. This OLED display has high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, a wide temperature range, and super-low power consumption.

Features:
  • 65k Full Color!
  • 128x36 pixel
  • LDT LD7138 (SP9230) Integrated Controller
  • 8-bit 8080, Serial Interface (SPI)
  • Wide Temperature Range: -40°C to 70°C

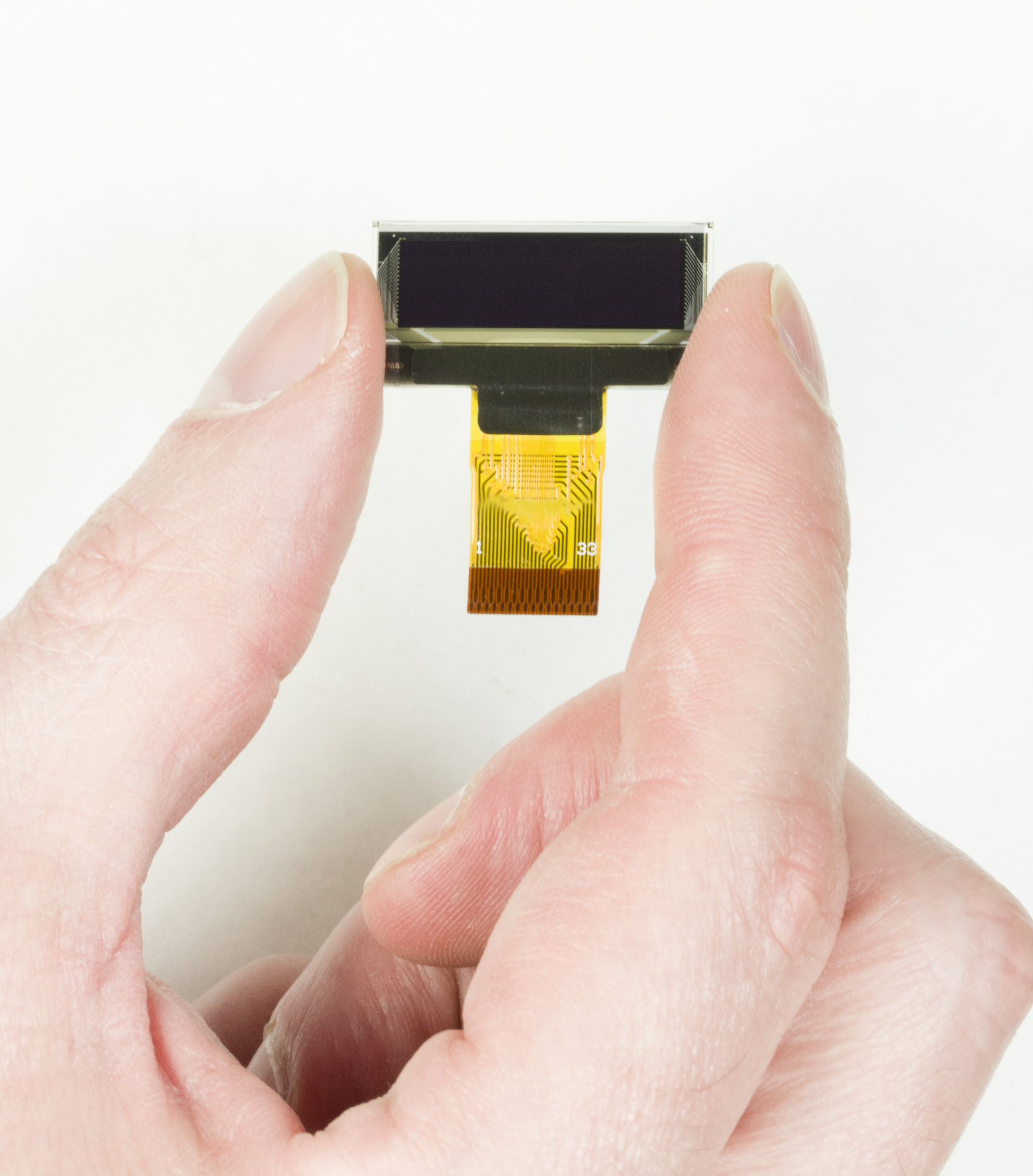

  • Super Small! only 26.59mm (W) x 13mm (H)
  • Compatible connector 33 Position, 0.3mm Pitch

If you're looking for a high contrast, pixel dense small oled display, this is perfect for your project or application.

Qty:
Quantity Price
1 $10.50
10 $9.13
20 $8.81
50 $8.49
100 $8.35
200 $8.22
300 $8.14
500 $8.08
1000 * $8.03
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4624 33 Position, 0.3mm Pitch, Gold, ZIF FFC FPC connector
Add 5 ZIF Connectors $1.32 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFAL12836A0088 Datasheet
(Datasheet V 1.0)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12836A0-088 or RSS RSS feed for changes to CFAL12836A0-088 for CFAL12836A0-088

Video Demonstrations

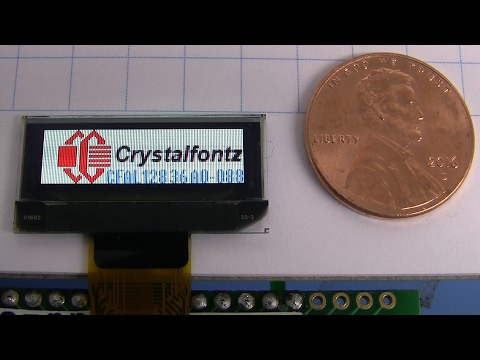

128x36 full color OLED demonstration

TECHNICAL SPECS

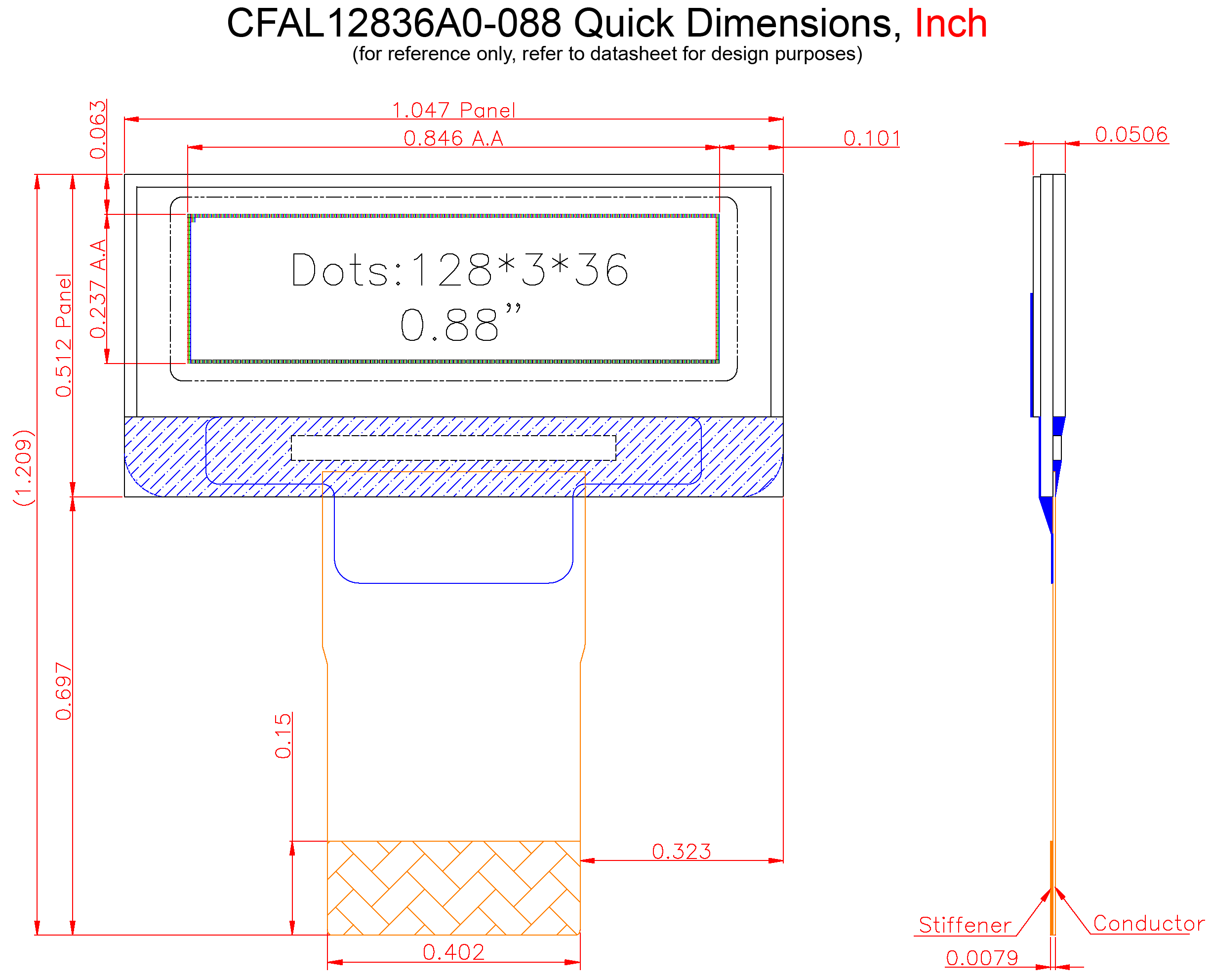

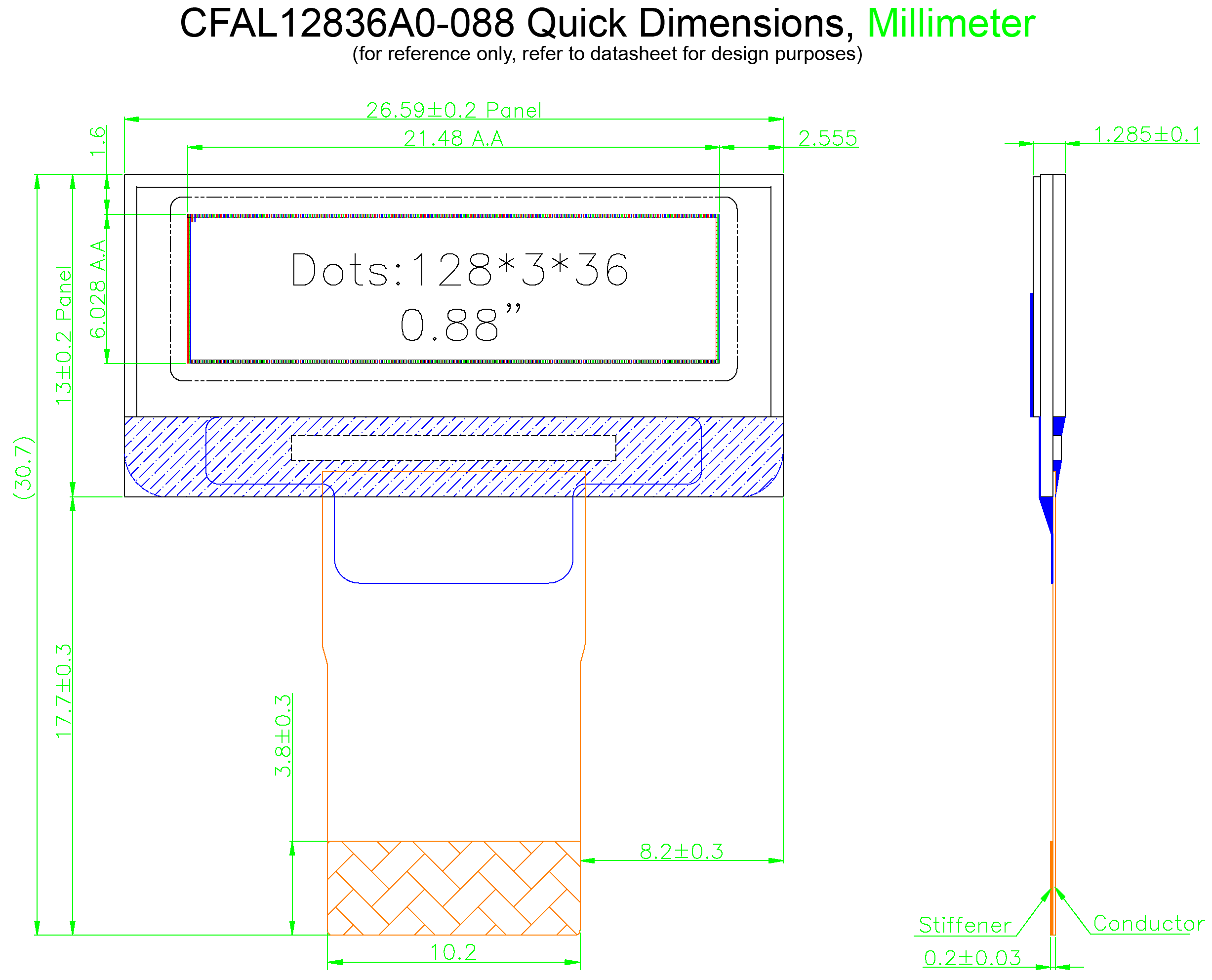

Physical Characteristics

Column Dots x Row Dots 128 x 36
Module Overall width height depth
millimeters 26.59 13 1.285
inches 1.047 0.512 0.0506
*width / height does not include Foldable Tab
Diagonal Dimension 0.88"
Viewing Area width height
millimeters 22.88 7.428
inches 0.901 0.2924
Active Area width height
millimeters 21.48 6.028
inches 0.846 0.2373
Dot Size width height
millimeters 0.032 0.148
inches 0.0013 0.0058
Dot Pitch width height
millimeters 0.056 0.168
inches 0.0022 0.0066
Optional Connectors CS030Z33GA0
Flexible Cable (FFC/FPC) length
millimeters 17
inches 0.669
Weight 0.9g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 1.65V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 2.8V
Supply Voltage for Driving Panel Typical 14V

Environmental

Operating Temperatures min max
Celsius -40° 70°
Fahrenheit -40° 158°
Storage Temperatures min max
Celsius -40° 85°
Fahrenheit -40° 185°

Electronics

Controller Documents LDT LD7138
OLED Display Controller And Driver IC
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Quickly demonstrate this display with our development bundles.

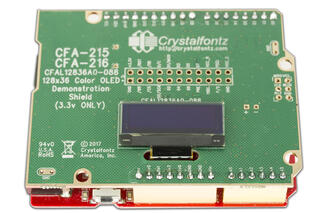

CFAL12836A0-088 OLED display mounted on a CFA-10082 carrier board plugged into a Seeeduino v4.2

128x36 OLED Seeeduino Development Kit
Part Number: CFA216

This OLED development kit includes our 128x36 Color OLED display module mounted on a CFA-10082 demonstration shield plugged into a Seeeduino v4.2. (Arduino UNO Clone with switchable 3.3/5v power).


The Demonstration shield includes:
MicrosSD card
Backlight Driver
Jumpable for multiple configuration options
Same physical outline as a Seeeduino/Arduino
Only 3.3v

Details
Quantity 1 10 20 50 100 200 * 500 * 1000 *
Price $86.04 $78.23 $69.38 $68.80 $68.26 $67.69 $67.13 $66.75
Quantity:

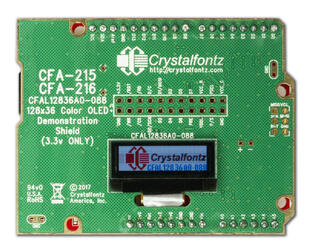

128x36 Full Color OLED with carrier board.
Part Number: CFA215

This OLED development kit consists of our 128x36 Color OLED Display Module mounted on a CFA-10082 Arduino shield.

The Demonstration shield includes:
MicrosSD card
Backlight Driver
Jumpable for multiple configuration options
Same physical outline as a Seeeduino/Arduino
Only 3.3v

Details
Quantity 1 10 20 50 100 200 * 500 * 1000 *
Price $29.35 $26.68 $20.60 $20.42 $20.25 $20.09 $19.92 $19.76
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12836A0-088 or RSS RSS feed for changes to CFAL12836A0-088

Product Update #10843: (New Product) CFAL12836A0-088

New Product: CFAL12836A0-088
Date Issued: February 24, 2017
Summary: (New Product) CFAL12836A0-088
Description: OLED Modules: This is a small, full-color OLED display module with 128x36 dot matrix.

This OLED display has high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, a wide temperature range, and super-low power consumption.

Features:
65k Full Color!
128x36 pixel
SP9230 Integrated Controller
8-bit 8080, Serial Interface
Wide Temperature Range: -40°C to 70°C
Super Small! only 26.59mm (W) x 13mm (H)

If you're looking for a high contrast, pixel dense small OLED display, this is perfect for your project or application.
For reference only. For design purposes, please use the specifications in the datasheet.
