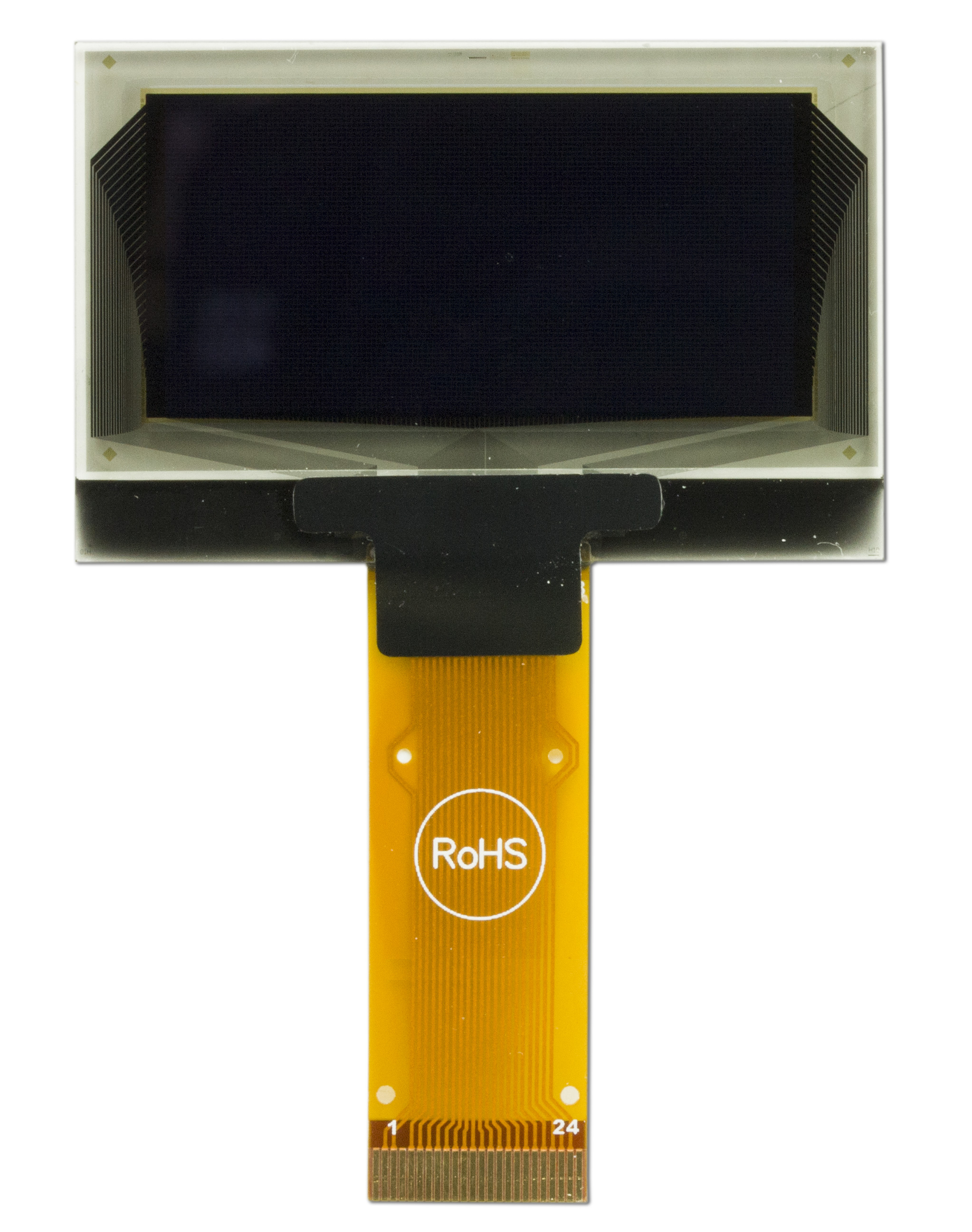

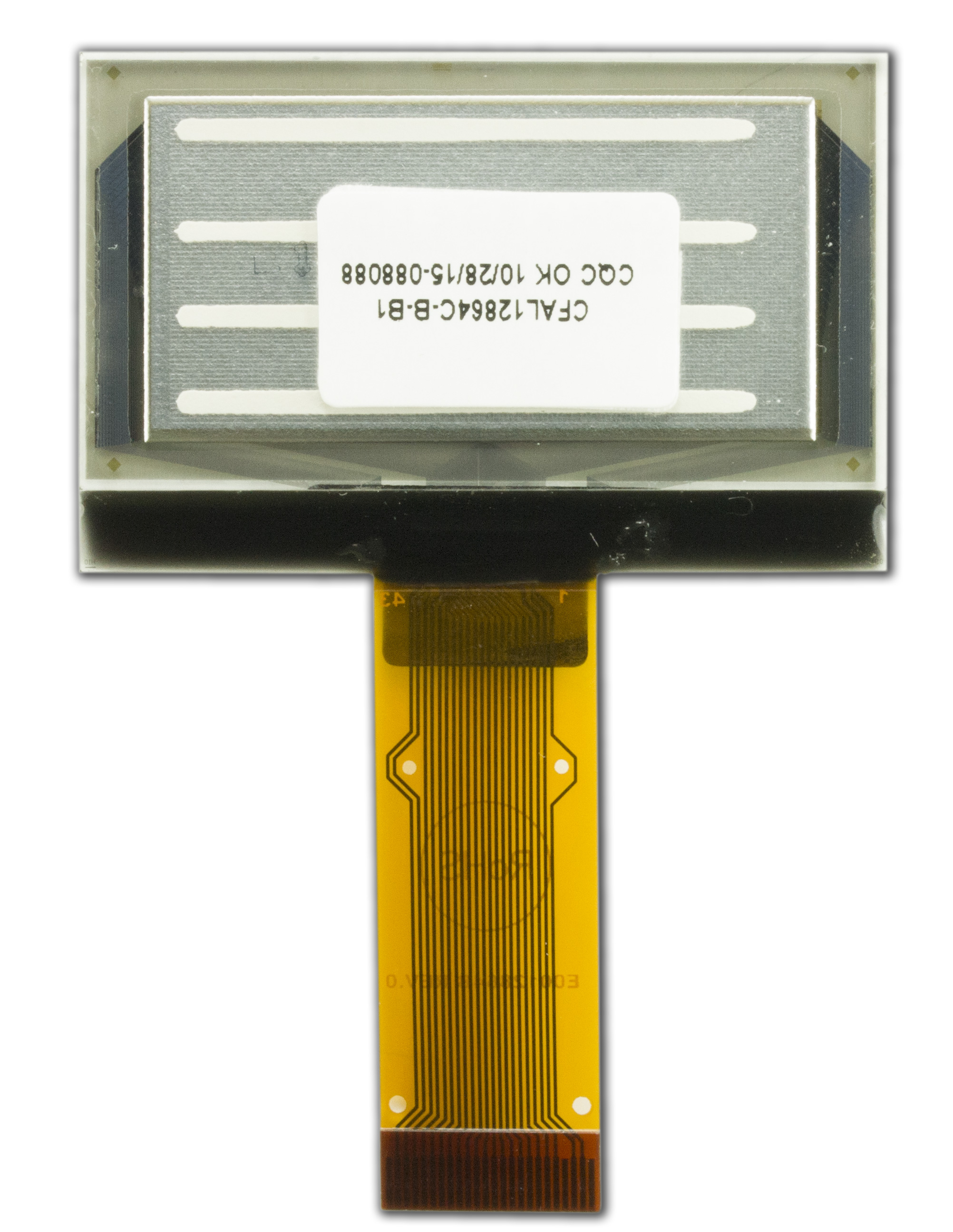

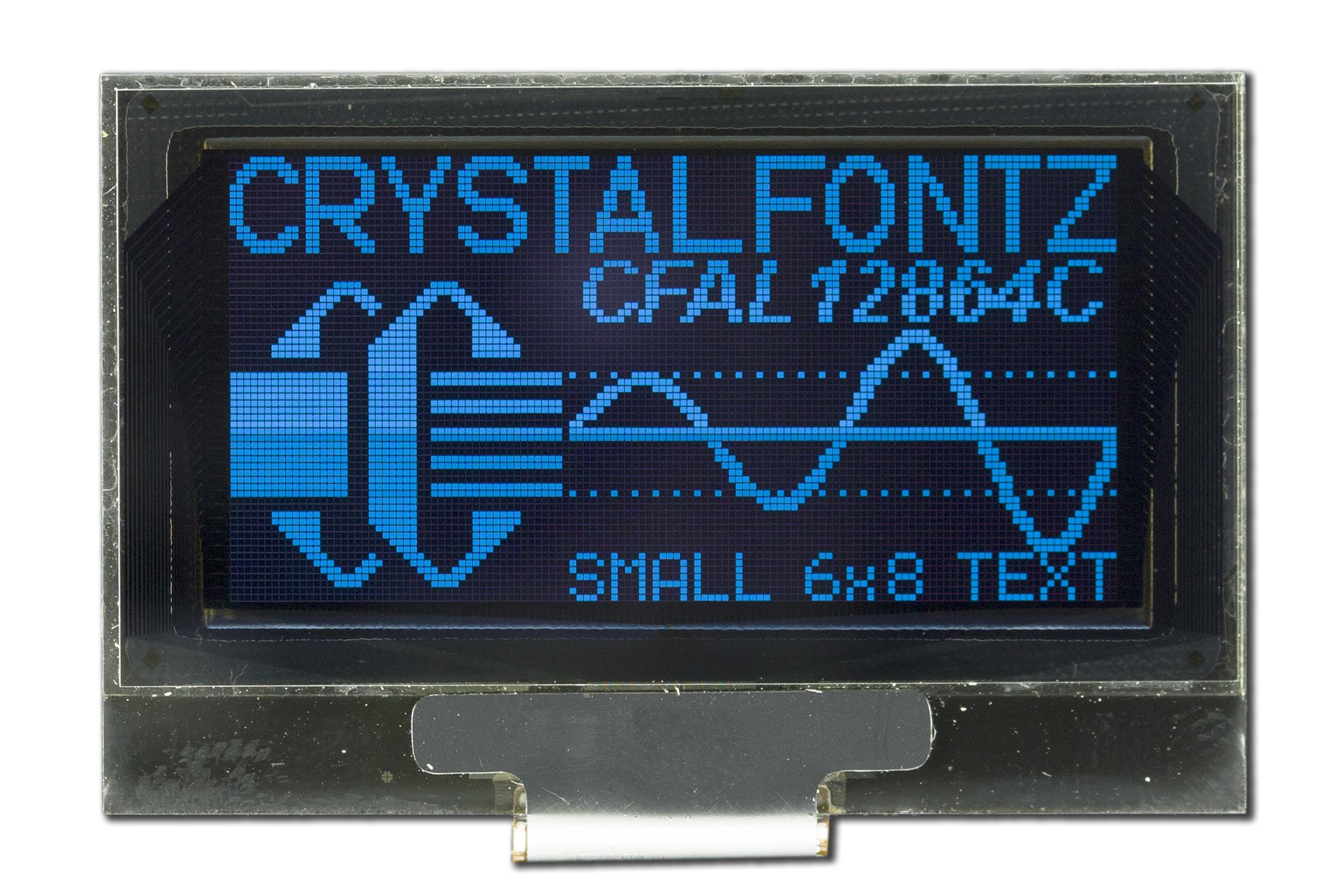

128x64 1.54-inch Blue OLEDPart Number: CFAL12864CB-B1
         128x64 1.54-inch Blue OLEDSSD1305 Controller
Easy to use 24-pin zif connector
Low power requirements (3.3V)
SPI,I2C, 8080 & 8060 interfaces
Product Variations

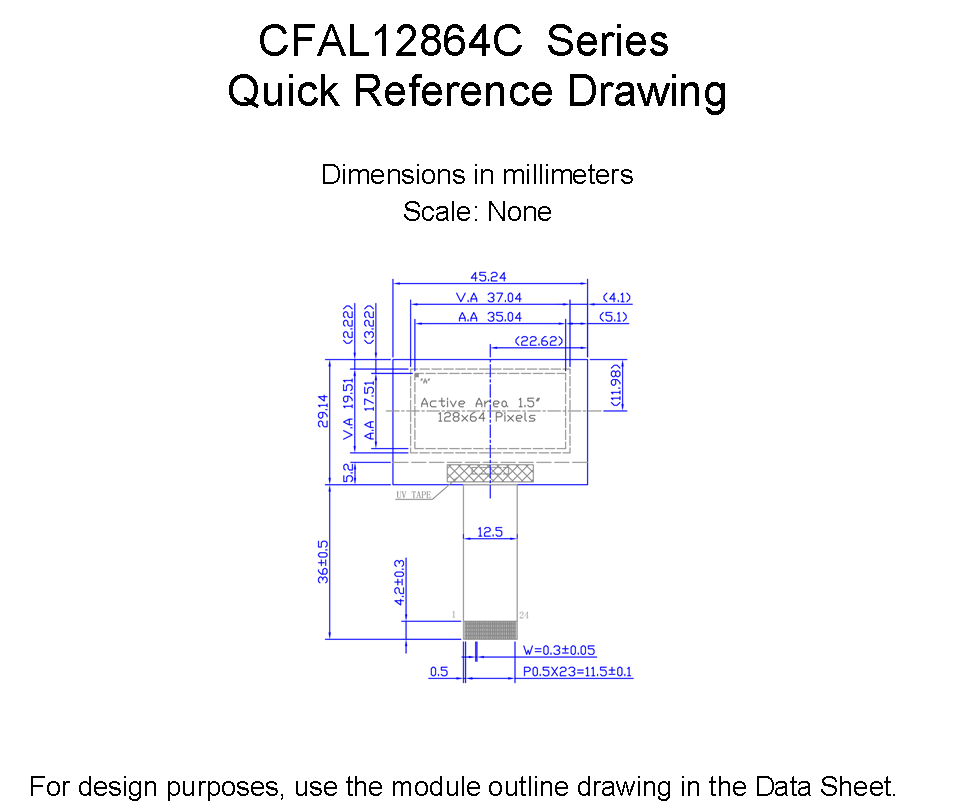

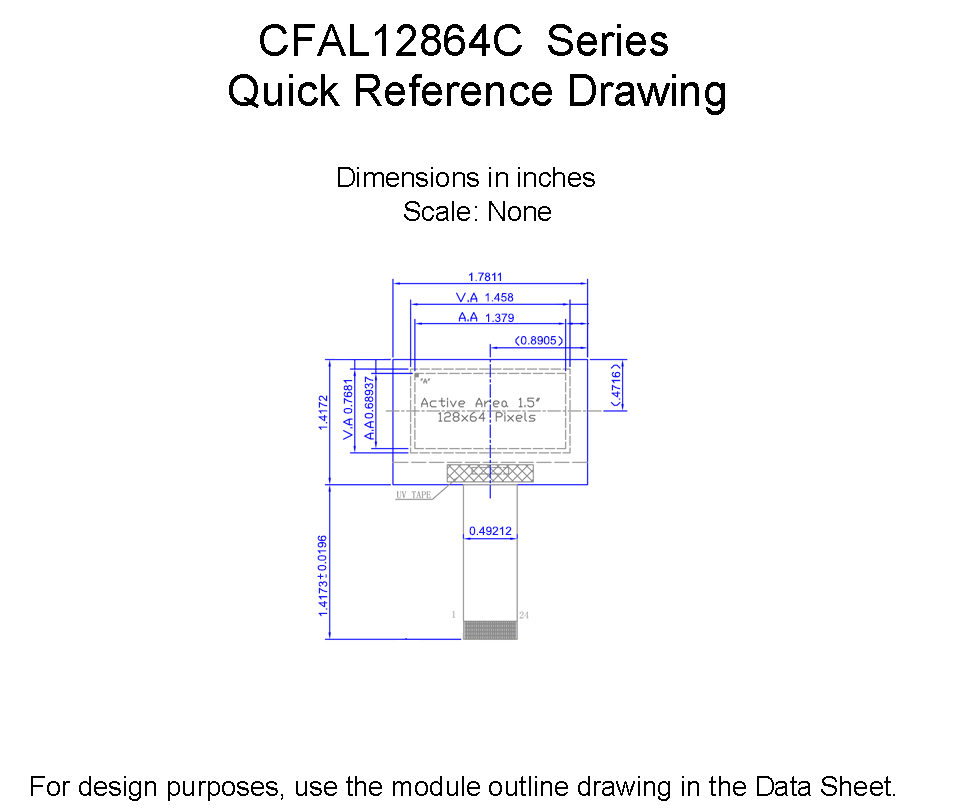

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        45.24
        29.14
        2.2

        inches
        1.78
        1.15
        0.09

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.54"

    Viewing Area        Width
        Height

        millimeters
        37.04
        19.51

        inches
        1.46
        0.77

    Active Area        Width
        Height

        millimeters
        35.04
        17.51

        inches
        1.38
        0.69

    Dot Size        Width
        Height

        millimeters
        0.24
        0.24

        inches
        0.009
        0.009

    Dot Pitch        Width
        Height

        millimeters
        0.27
        0.27

        inches
        0.011
        0.011

        Weight
            6g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Mode
            Positive
Foreground Color
            Blue
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            12:00V

        Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864CB-B1 Datasheet

 download Files and Downloads
folder_zip Software Source - 8080 ATmega2561 Demonstration Code
picture_as_pdf 1 to 1 Template
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $17.10

            10
            $14.87

            20
            $14.33

            50
            $13.81

            100 *
            $13.00

            200 *
            $12.79

            300 *
            $12.10

            500 *
            $12.01

            1000 *
            $10.75

64 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height	depth
millimeters	45.24	29.14	2.2
inches	1.78	1.15	0.09
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	37.04	19.51
inches	1.46	0.77

Active Area	Width	Height
millimeters	35.04	17.51
inches	1.38	0.69

Dot Size	Width	Height
millimeters	0.24	0.24
inches	0.009	0.009

Dot Pitch	Width	Height
millimeters	0.27	0.27
inches	0.011	0.011

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$17.10
10	$14.87
20	$14.33
50	$13.81
100 *	$13.00
200 *	$12.79
300 *	$12.10
500 *	$12.01
1000 *	$10.75

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10854: (New Product) CFAL12864CB-B1

New Product:	CFAL12864CB-B1
Date Issued:	May 22, 2017
Summary:	(New Product) CFAL12864CB-B1
Description:	OLED Modules: 128x64 2.2 inch Blue OLED SSD1305 Controller Easy to use 24-pin zif connector Low power requirements (3.3V) SPI, 8080 & 8060 interfaces See Details: https://www.crystalfontz.com/product/cfal12864cbb1-128x64-small-blue-oled-display
