This product has reached end of life

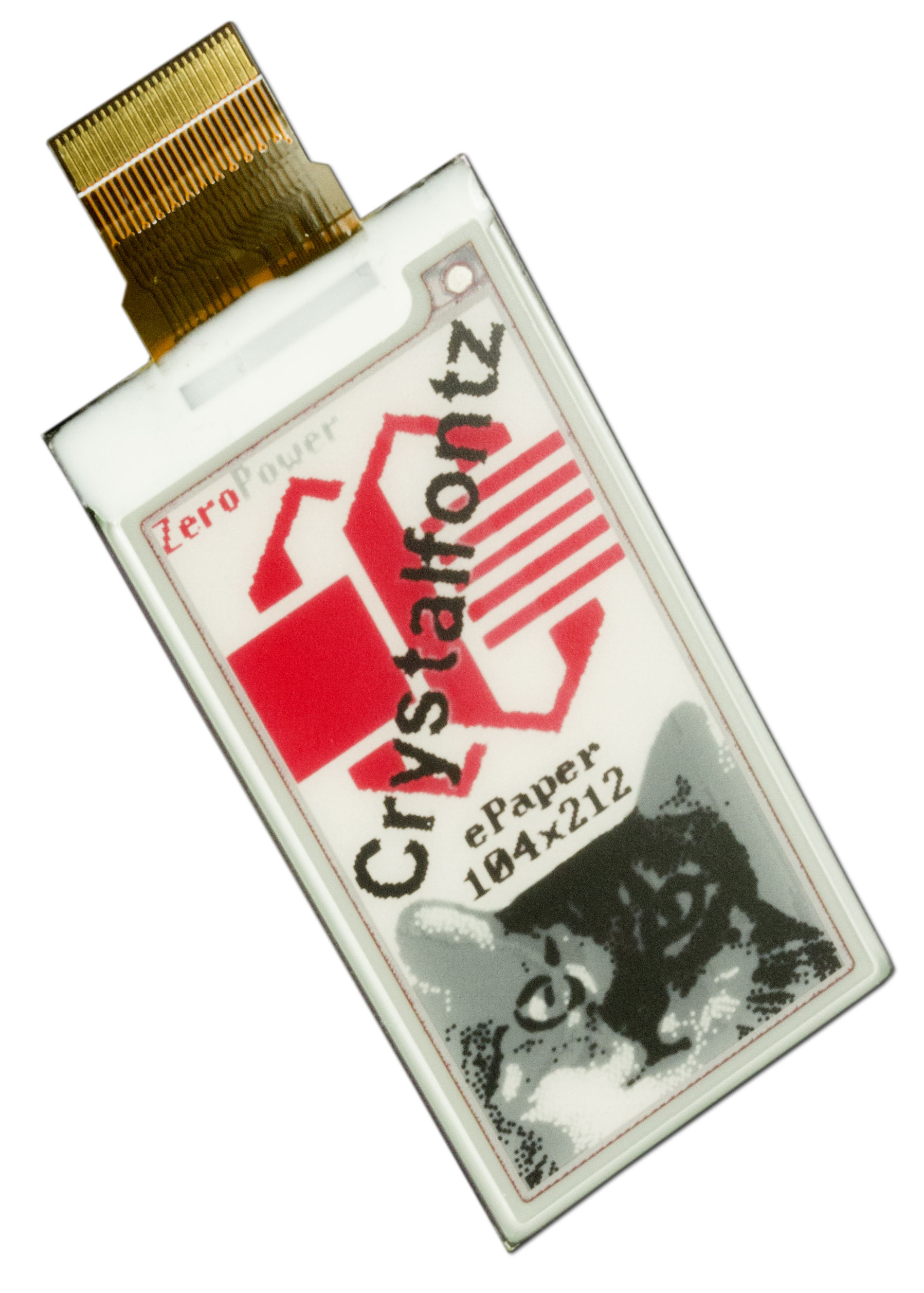

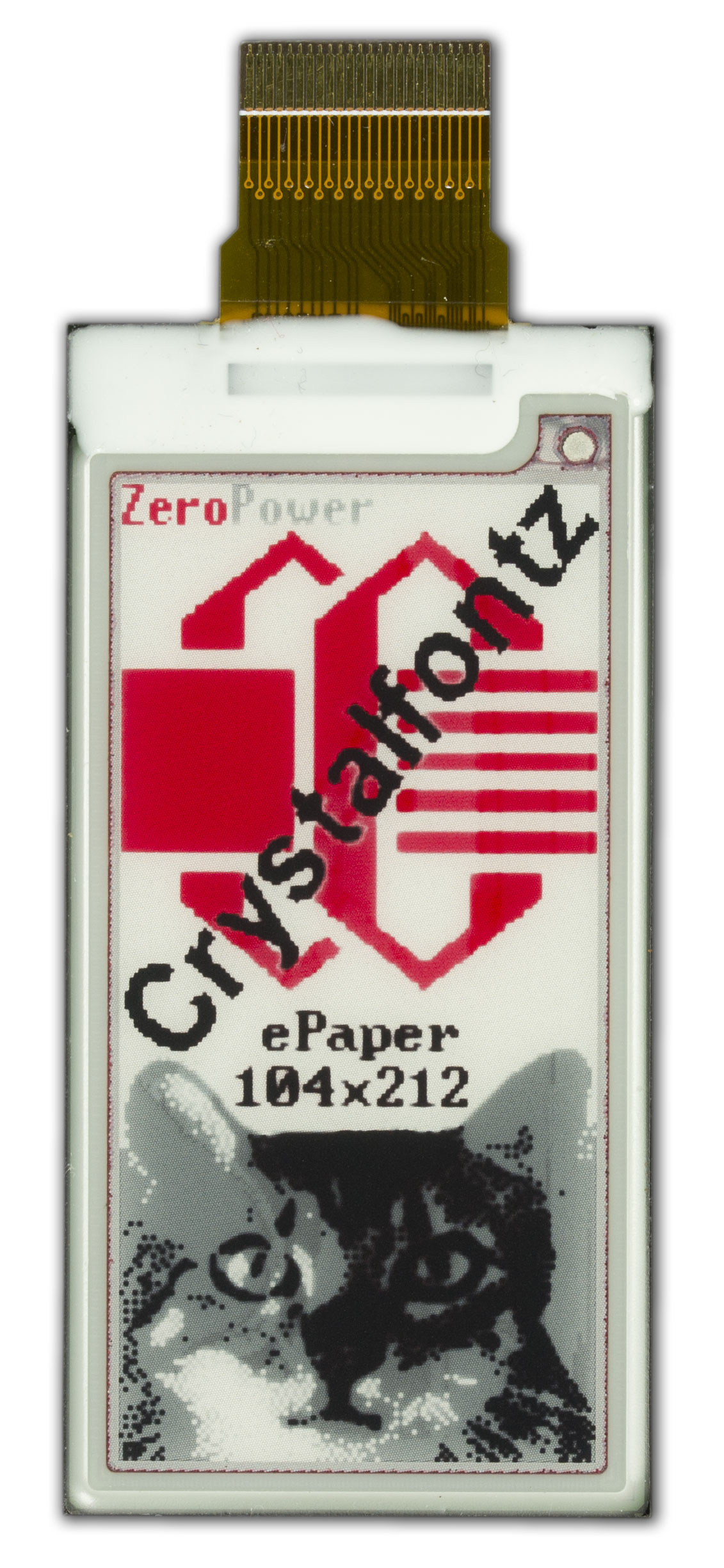

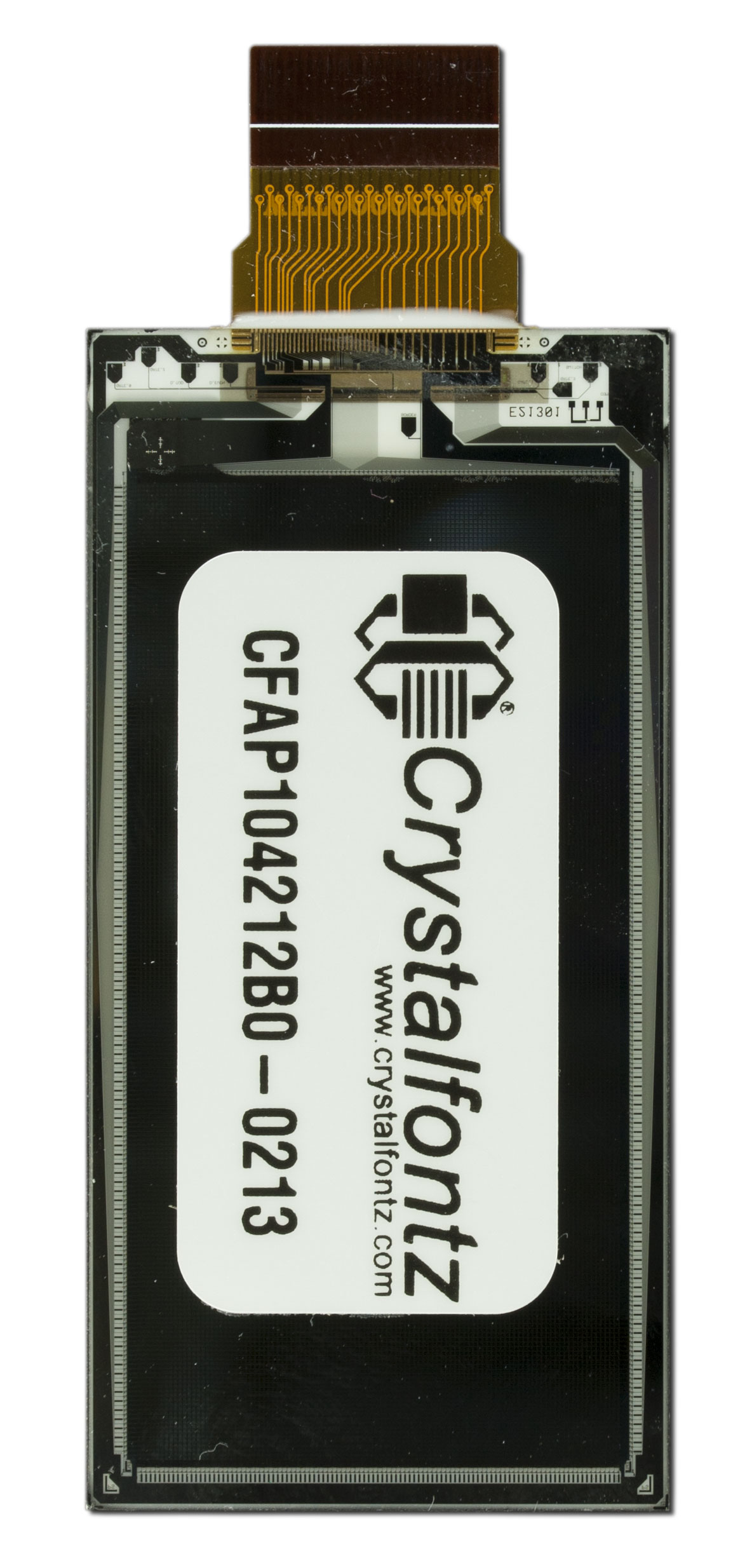

ePaper Display - 2.13", 3-Level Grayscale + Red

Part Number: CFAP104212B0-0213

This 104x212 resolution epaper graphic display module is an excellent choice for applications where power is severely constrained. Once the image is shown on this EPD (Electronic Paper Display), it will remain visible using zero power.The 3-level grayscale + red eink glass allows clean rendering of small fonts and fine detail.

Built-in voltage generation requires only a few external components. Ultra thin with a depth of .98mm and weight of only 3.3g, epaper has an obvious advantage over other display technologies for small handheld battery operated devices, such as devices powered by a small solar cell. Epaper displays are rapidly growing in popularity for store shelf labels and can be scanned by a barcode reader.

  • The wide, symmetrical viewing angle allows landscape or portrait mode.
  • Supports 4 wire SPI for communications
  • The high contrast reflective mode is easy to read in bright sunlight.
  • Bi-stable image saves power. Power is used only to refresh the display when content changes.
  • Long lifetime: ~5 years / ~1M updates.

For a fast start, use our sample code on the Datasheets & Files tab to display your own images. Our clean, open-source demonstration code runs directly on a low cost Seeeduino v4.2 (3.3v Arduino clone) .

TECHNICAL SPECS

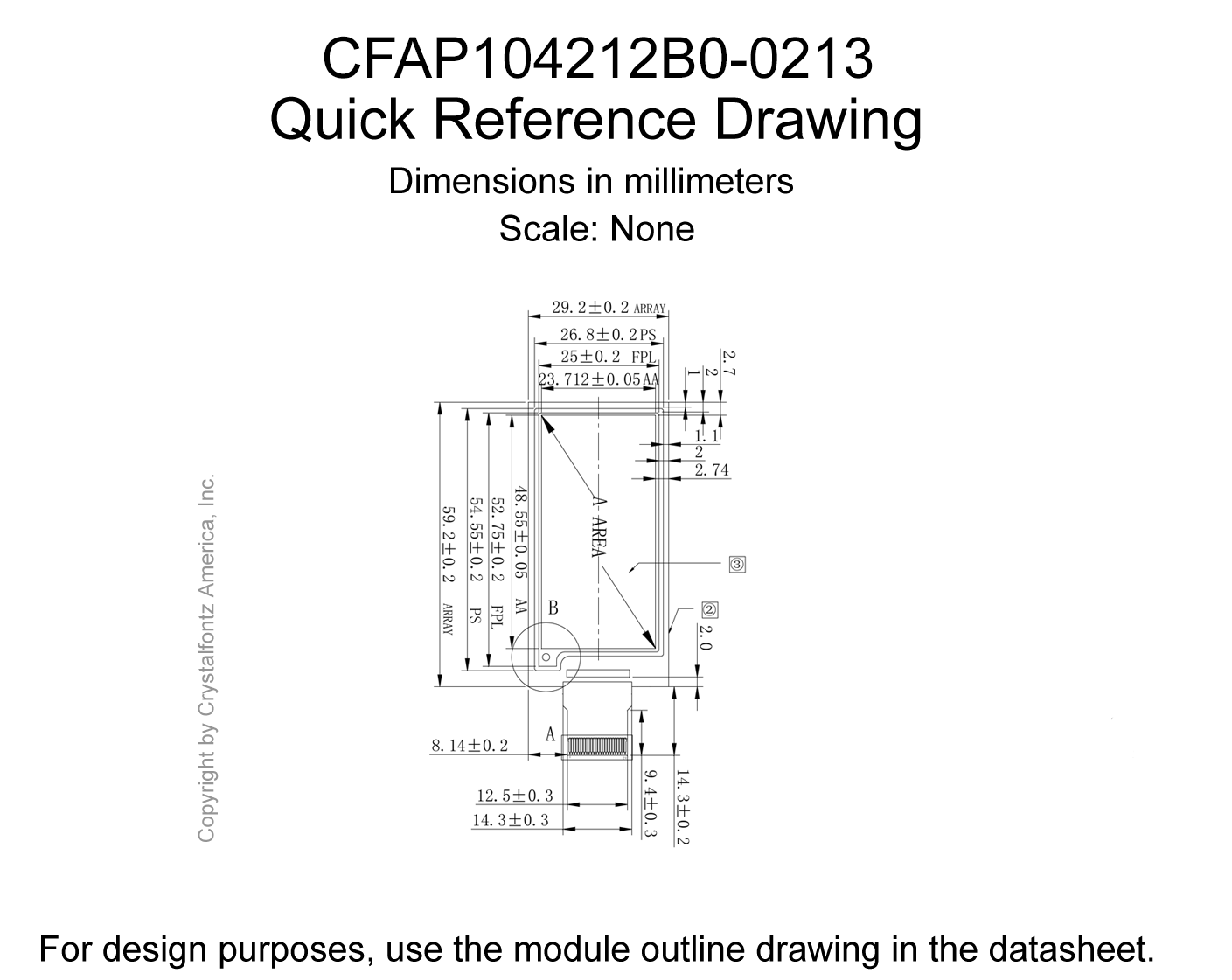

Physical Characteristics

Column Dots x Row Dots 104 x 212
Module Overall width height depth
millimeters 29.2 59.2 0.98
inches 1.150 2.331 0.039
*width / height does not include Foldable Tab
Diagonal Dimension 2.13"
Active Area width height
millimeters 23.712 48.55
inches 0.9335 1.911
Dot Size width height
millimeters 0.228 0.229
inches 0.0090 0.0090
Dot Pitch width height
millimeters 0.228 0.229
inches 0.0090 0.0090
Optional Connectors CS050Z24GA0
Weight 3.36g

Optical Characteristics

Glass Type e ink
Polarizer Reflective
Sunlight Readable Yes
Foreground Color 3-level grayscale + red
Background Color white

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius 40°
Fahrenheit 32° 104°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP104212B0-0213 or RSS RSS feed for changes to CFAP104212B0-0213

Product Update #10868: CFAP104212B0-0213 End Of Life Notification

Product Affected: CFAP104212B0-0213
Date Issued: July 28, 2017
Summary: CFAP104212B0-0213 End Of Life Notification
Description: This product has been marked as end-of-life and is no longer available.
Impact: This display is not recommended for new designs. A suitable replacement has not been selected.
Availability: Current stock only
Price Change: None

Product Update #10705: (New Product) CFAP104212B0-0213

New Product: CFAP104212B0-0213
Date Issued: June 24, 2016
Summary: (New Product) CFAP104212B0-0213
Description: ePaper: ePaper 2.13" Graphic Display, 104x212, 3-Level Grayscale + Red
For reference only. For design purposes, please use the specifications in the datasheet.
