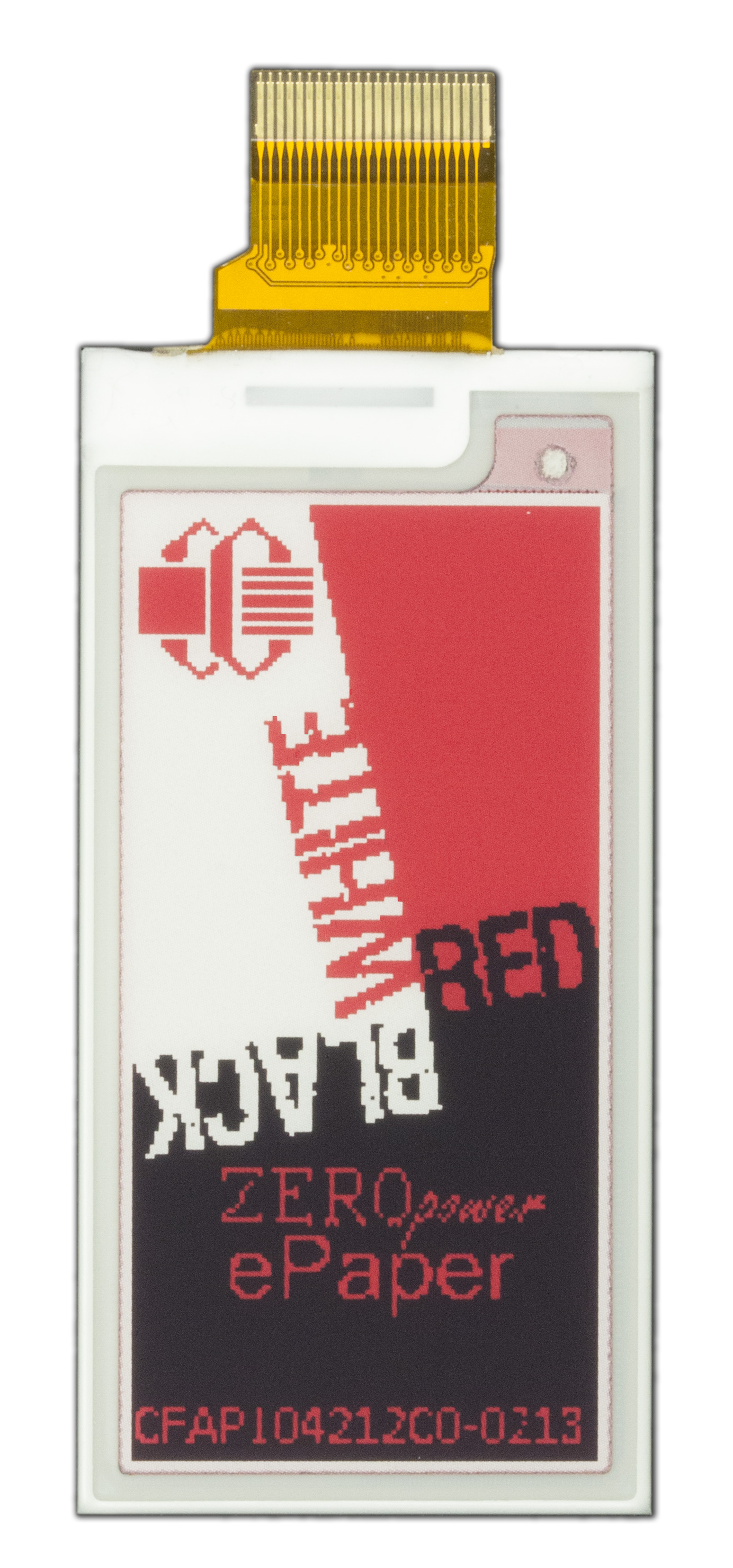

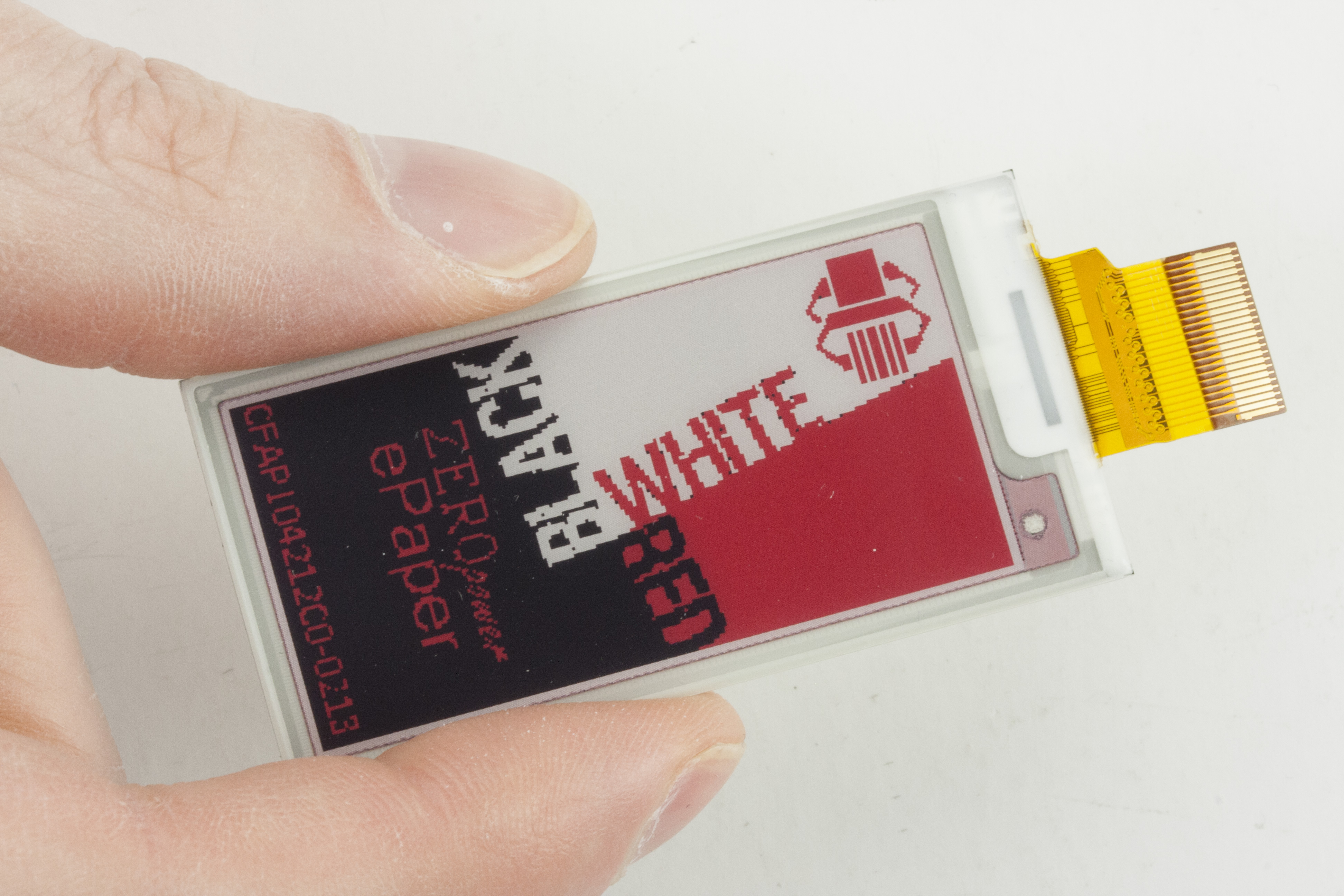

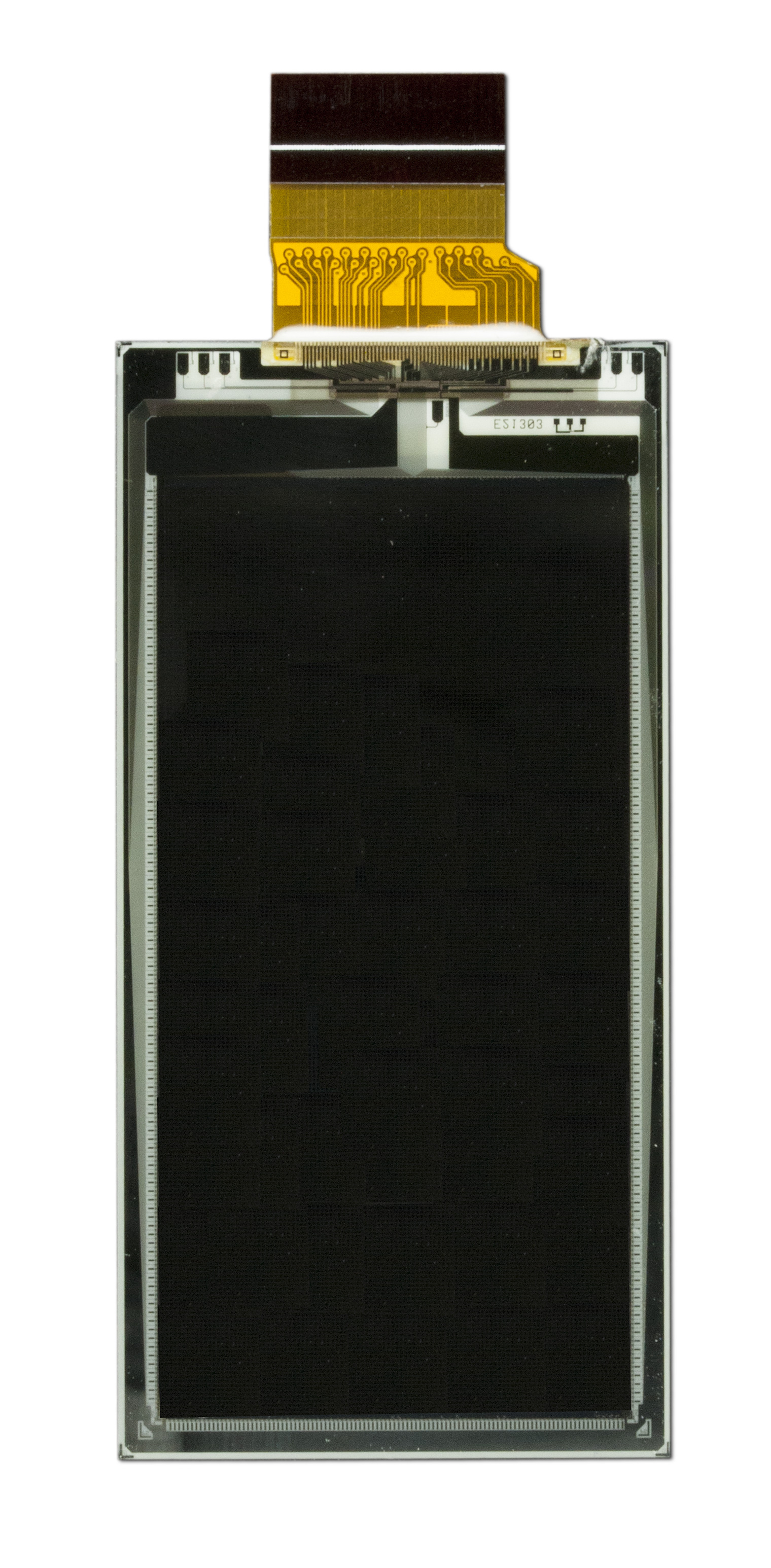

2.13 Inch 3-Color ePaper Display
Part Number: CFAP104212C0-0213
Ready to start developing with the latest display technology? ePaper / eInk is the latest in low-power display solutions to hit the market. Once updated these displays literally need zero power to maintain an image. It's like a digital etch-a-sketch. Coupled with an adapter board and an Arduino / Seeeduino and you can quickly demonstrate the functionality of this high contrast, ultra-low-powered display.
This 2.13" active area contains 212x104 pixels and has 1-bit white/black and 1-bit red full display capabilities. An integrated circuit contains a gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border.
Use our free ePaper software to prepare your bitmap image for this display.
Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.
This 2.13" active area contains 212x104 pixels and has 1-bit white/black and 1-bit red full display capabilities. An integrated circuit contains a gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border.
Use our free ePaper software to prepare your bitmap image for this display.
Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.
Datasheet
TECHNICAL SPECS

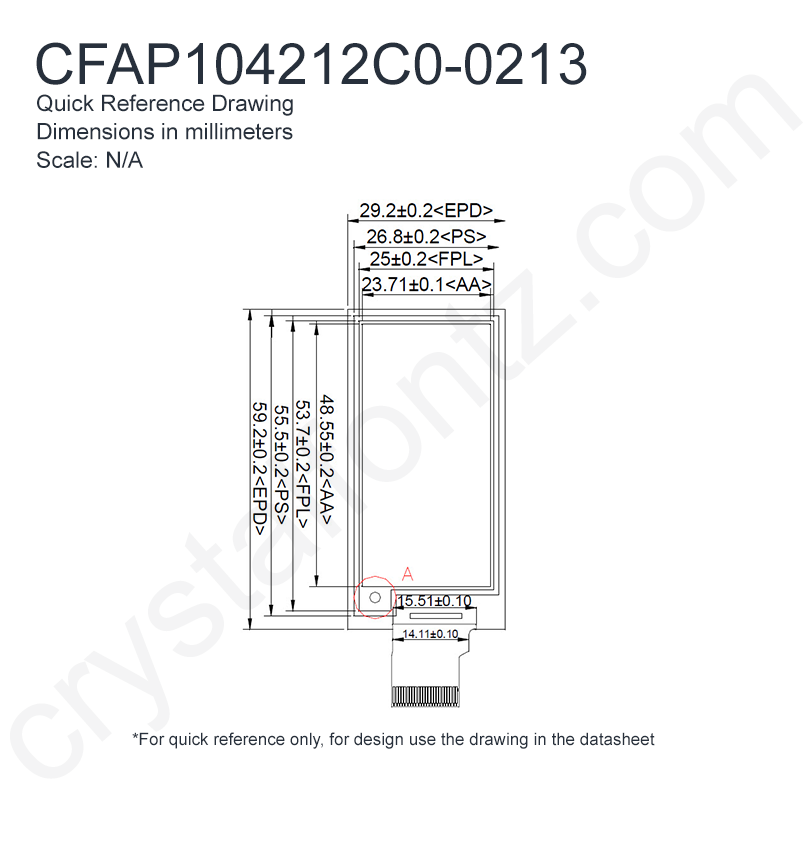

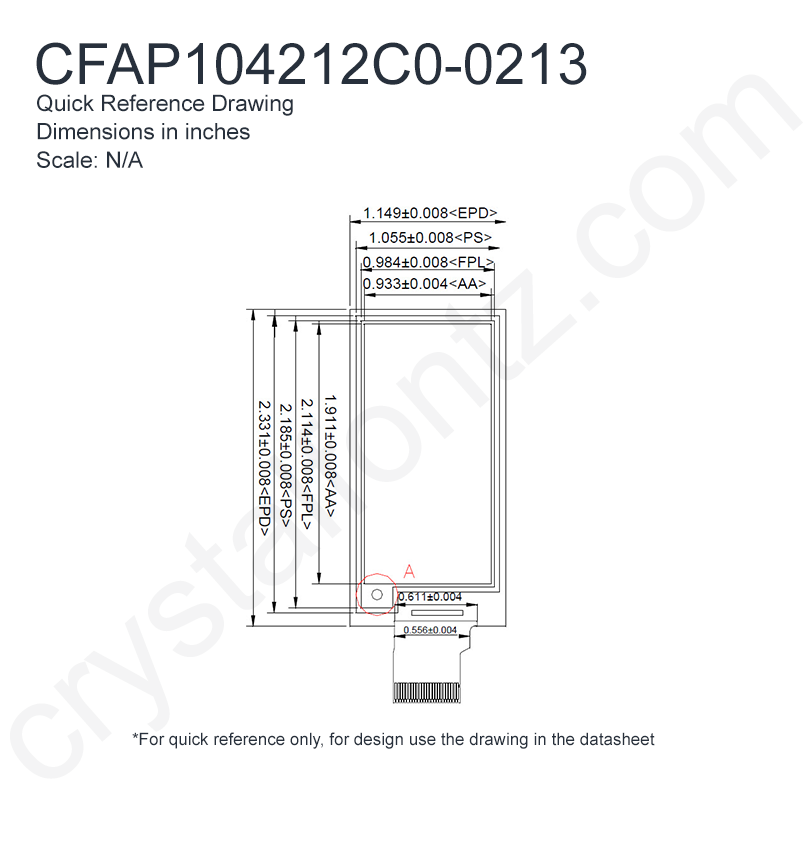

Physical Characteristics
| Column Dots x Row Dots | 104 x 212 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 29.2 | 59.2 | 0.98 |
| inches | 1.150 | 2.331 | 0.039 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 2.13" |
| Active Area | width | height |
|---|---|---|
| millimeters | 23.71 | 48.55 |
| inches | 0.933 | 1.911 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.228 | 0.229 |
| inches | 0.0090 | 0.0090 |
| Optional Connectors | CS050Z24GA0 |
| Flexible Cable (FFC/FPC) | length |
|---|---|
| millimeters | 14.3 |
| inches | 0.563 |
| Weight | 3.2g |
| Pin Count | 24 |
Optical Characteristics
| Glass Type | ePaper |
| View Angle | > 160° |
| Foreground Color | Red / Black |
| Background Color | White |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.3V |
| Supply Voltage for Logic Maximum | 3.6V |
| Supply Voltage for Logic Typical | 3.3V |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | 0° | 40° |
| Fahrenheit | 32° | 104° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -25° | 60° |
| Fahrenheit | -13° | 140° |
Electronics
| Interface | SPI |
Miscellaneous
| Foldable Tab | Yes |
| Full Screen Update Time | 16s |
| Time Between Updates | 180s |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #11084: Red ePaper End-of-Life notice.
| Products Affected: | CFAP128296D0-0290, CFAP176264A0-0270, CFAP104212C0-0213, CFAP152152A0-0154, CFAP176264A0-E2-1, CFAP176264A0-E2-2, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP128296D0-E2-1, CFAP128296D0-E2-2 |
| Date Issued: | April 28, 2021 |
| Summary: | Red ePaper End-of-Life notice. |
| Description: | These products will no longer be stocked at our facility or offered for sale on our website. |
| Reason: | Due to quality issues with the red ink during storage, we have determined that we will no longer offer this line of products to our customers. |
Product Update #10924: (New Product) ePaper Display: CFAP104212C0-0213
| New Product: | CFAP104212C0-0213 |
| Date Issued: | January 31, 2018 |
| Summary: | (New Product) ePaper Display: CFAP104212C0-0213 |
| Description: | Ready to start developing with the latest display technology? ePaper / eInk is the latest in low-power display solutions to hit the market. Once updated these displays literally need zero power to maintain an image. Coupled with an adapter board and an Arduino / Seeeduino and you can quickly demonstrate the functionality of this high contrast, ultra-low-powered display. ePaper: 3-color ePaper/eink display module. 2.13 inch, black, red, white colors. Arduino/Seeeduino Development kits and adapter boards are also available! Get started today! https://www.crystalfontz.com/product/cfap104212c00213-epaper-eink-color-display |
