1.54" Square ePaper Display

Part Number: CFAP200200A3-0154

Pricing

Quantity Price ea.
1 $10.85
10 $8.83
20 $8.54
50 $8.26
100 $8.15
200 $8.09
300 $8.04
500 $7.98
1000 $7.93
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP200200A3-0154 or RSS RSS feed for changes to CFAP200200A3-0154 for CFAP200200A3-0154

Description

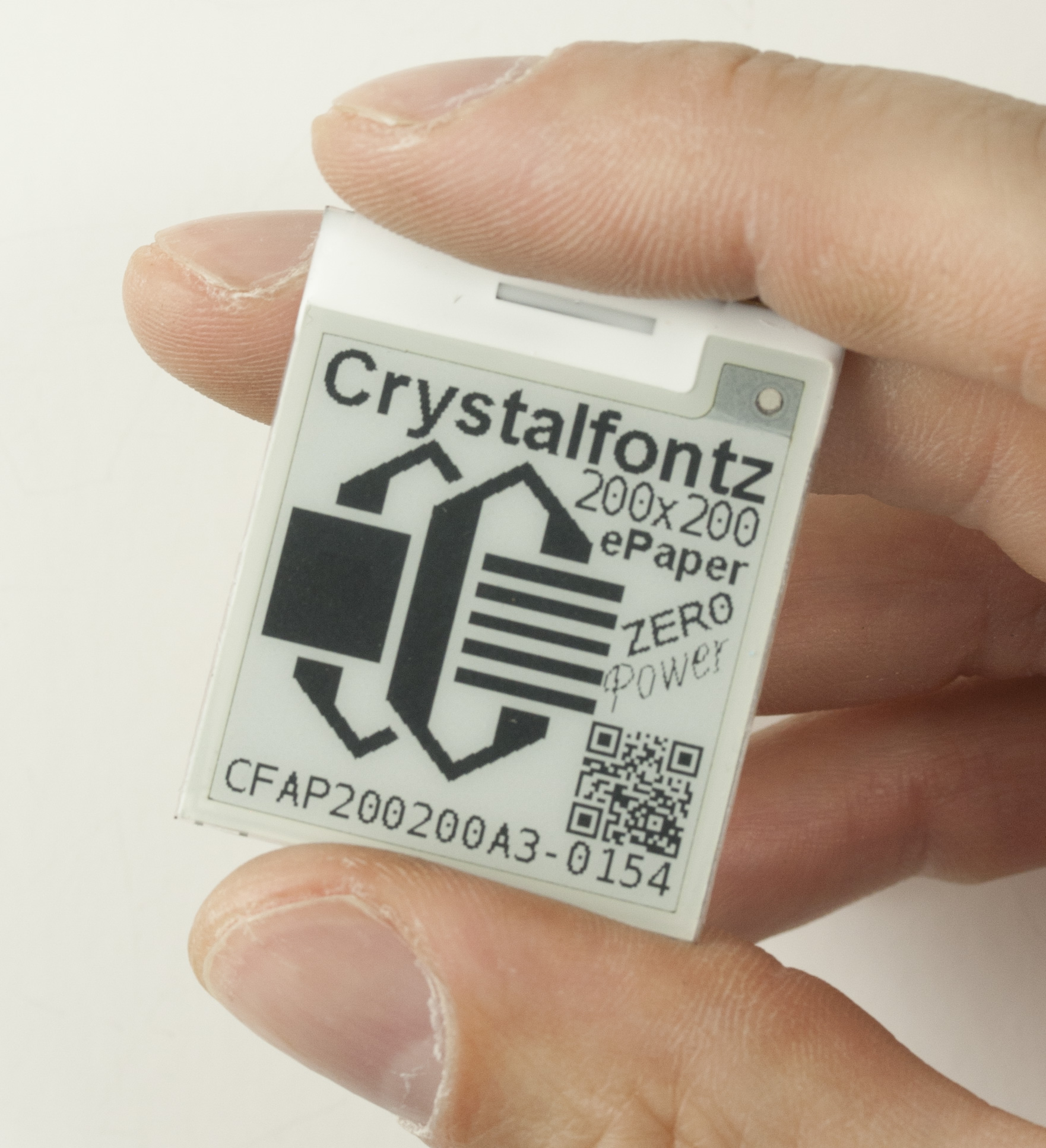

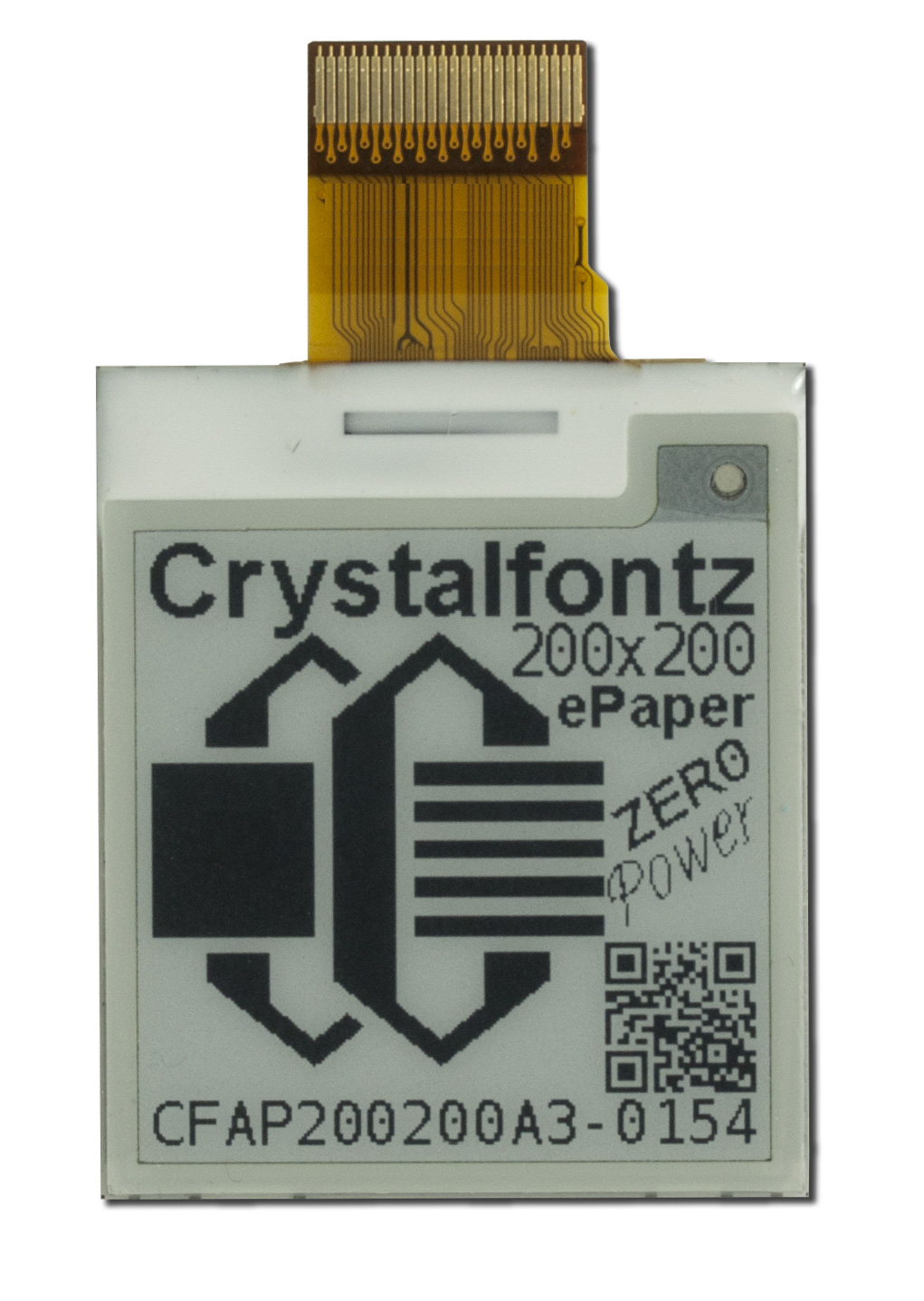

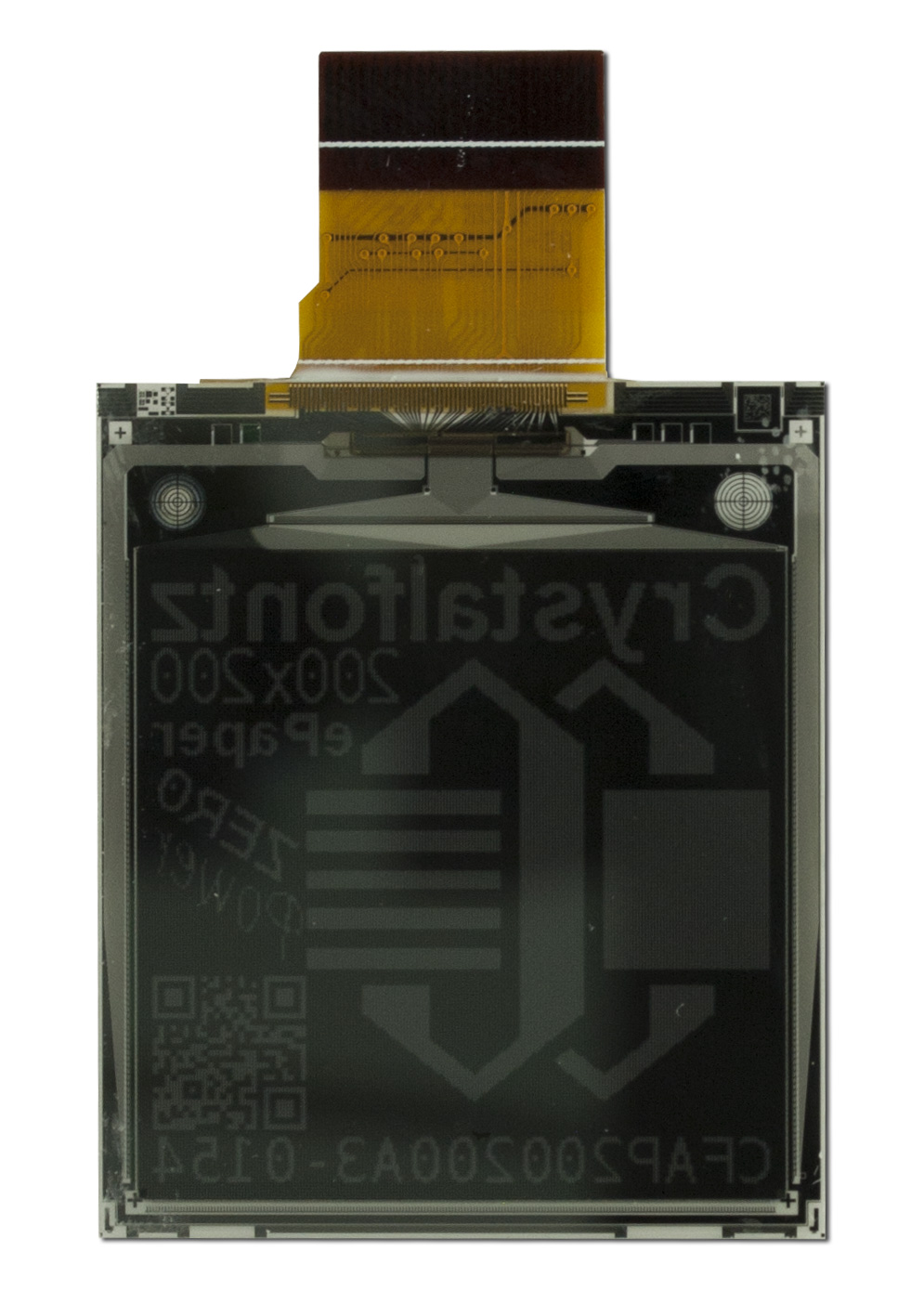

This black and white square 200x200 pixel ePaper display module is a perfect size for small, low power electronic shelf labels. EPD/ePaper displays are bi-stable, meaning once an image is displayed on the ePaper, it remains visible even when the display is disconnected from power.

This display module includes built-in voltage generation, requiring only a few external components, or check out our ePaper Adapter Board that handles the external components.

Ultra thin, with a depth of 1.05mm and weight of only 2.2 grams, ePaper has a clear advantage over other display technologies for small handheld battery-operated devices or devices powered by solar. Epaper displays are growing rapidly in popularity and can be scanned by barcode readers. That makes this square display a great choice for displaying a QR code or the like.

  • Wide viewing angle makes the display easily readable from all directions.
  • Supports 3 or 4 wire SPI for communications
  • Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.
  • Bi-stable image displays without any flickering.
  • Supports partial screen updates
  • Long lifetime: ~5 years / ~1M updates.
  • Very fast updates ~2sec for a full screen update
The ZIF connector you need is a standard 24-position 0.5mm pitch.

Use our sample code in the files section to display your own images. Our open-source demonstration code runs directly on a low-cost Seeeduino v4.2 (3.3v Arduino clone) .

Use our free ePaper software to prepare your bitmap image for this display.

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 200 x 200

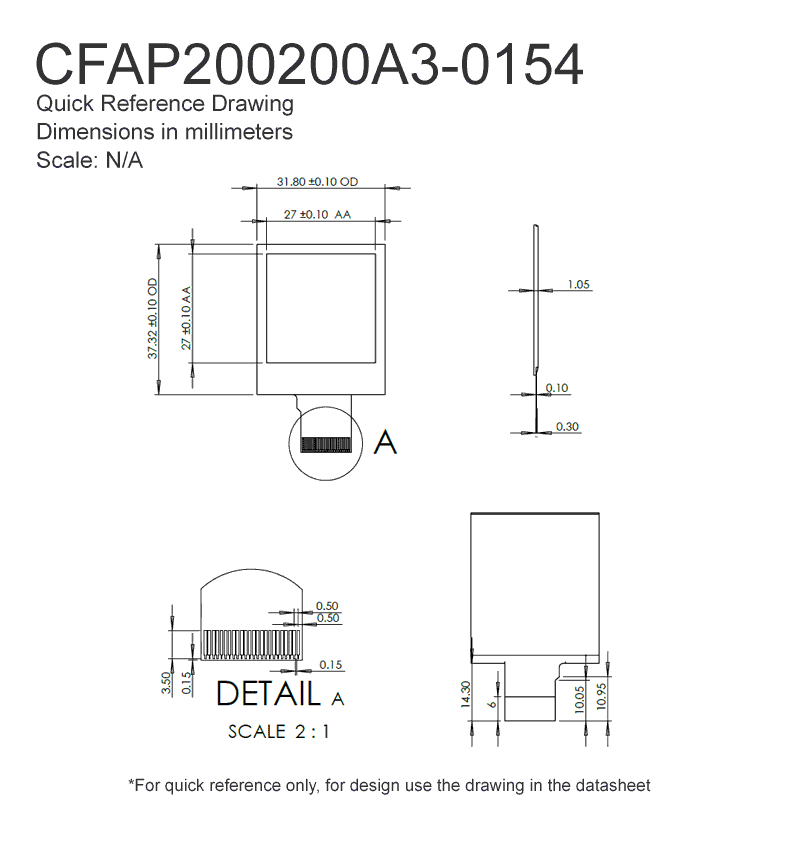

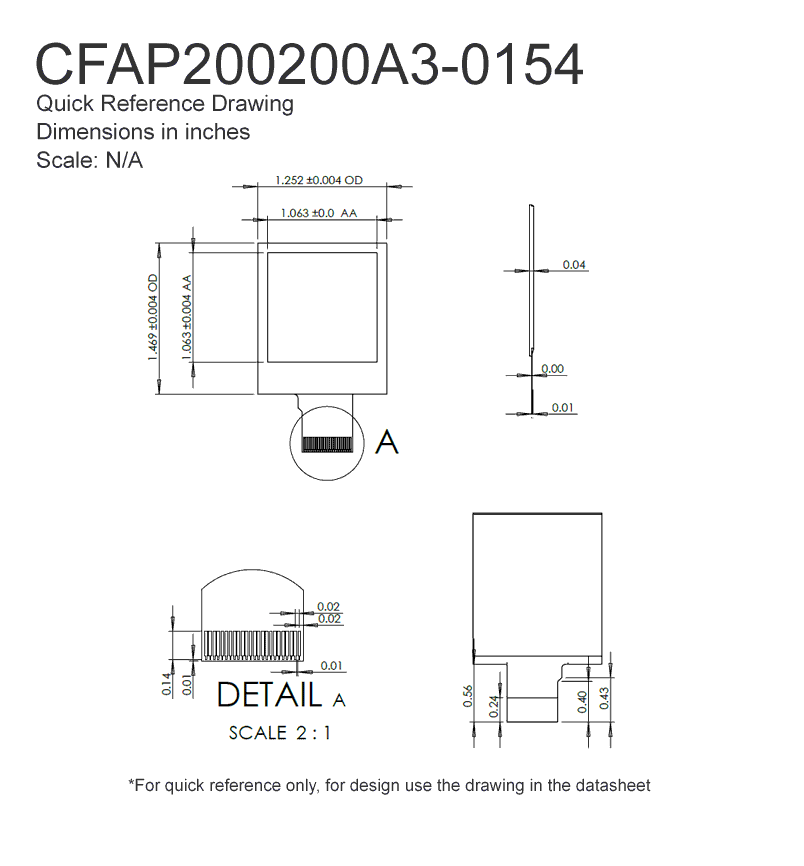

Module Overall width height depth
millimeters 31.8 37.32 1.05
inches 1.252 1.469 0.041
*width / height does not include Foldable Tab
Diagonal Dimension 1.540"
Active Area width height
millimeters 27.0 27.0
inches 1.063 1.063
Dot Pitch width height
millimeters 0.135 0.135
inches 0.0053 0.0053
Optional Connectors CS050Z24GA0
Weight 2.1g
Pin Count 24

Optical Characteristics

Glass Type ePaper
Sunlight Readable Yes
Foreground Color black
Background Color white

Electrical Specifications

Supply Voltage for Logic Minimum 2.2V
Supply Voltage for Logic Maximum 3.7V
Supply Voltage for Logic Typical 3.3V

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 2s
Time Between Updates 180s

Additional Options

Add a ePaper adapter board or a complete demo kit for quick prototyping.

1.54" ePaper Development Kit
Part Number: CFAP200200A3-E2-2

Need to get to development fast? This is a full and working demo kit for the 1.54" Square ePaper Display. The 1.54" black and white display is connected to the ePaper adapter board and wired to a Seeeduino running demonstration code so you can have a functioning demo in your hands as fast as possible.

The kit includes:

  • Seeeduino
  • CFA10084
  • CFAP200200A3-0154
  • USB cable
  • All necessary wires and headers to connect them together
We can also provide just the ePaper and adapter board.

Details
Quantity 1
Price $50.62
Quantity:
200x200 ePaper with Adapter Board
Part Number: CFAP200200A3-E2-1

Easily integrate this 1.54" black and white ePaper display into your product. This ePaper module takes care of all the circuitry required to operate the display so only the COM and power lines need to be supplied.

This kit comprises a 200x200 1.54" ePaper display and the CFA10084 ePaper adapter board mounted on the back of the display.

A full 1.54" black and white ePaper demonstration kit is also available.

  • ePaper reflects light like paper, meaning it's sunlight-readable and can be viewed from wide angles
  • Supports 3 or 4 wire SPI for communications
  • Bi-stable image displays without flickering
  • Supports partial screen updates
  • ~5 years / ~1M updates
  • ~2sec for a full screen update

Details
Quantity 1 10 20 50 100 200 300 500 * 1000 *
Price $21.91 $18.72 $18.45 $18.32 $18.18 $18.05 $17.92 $17.78 $16.30
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
