This display is not recommended for new designs. Once stock is depleted it will no longer be available.

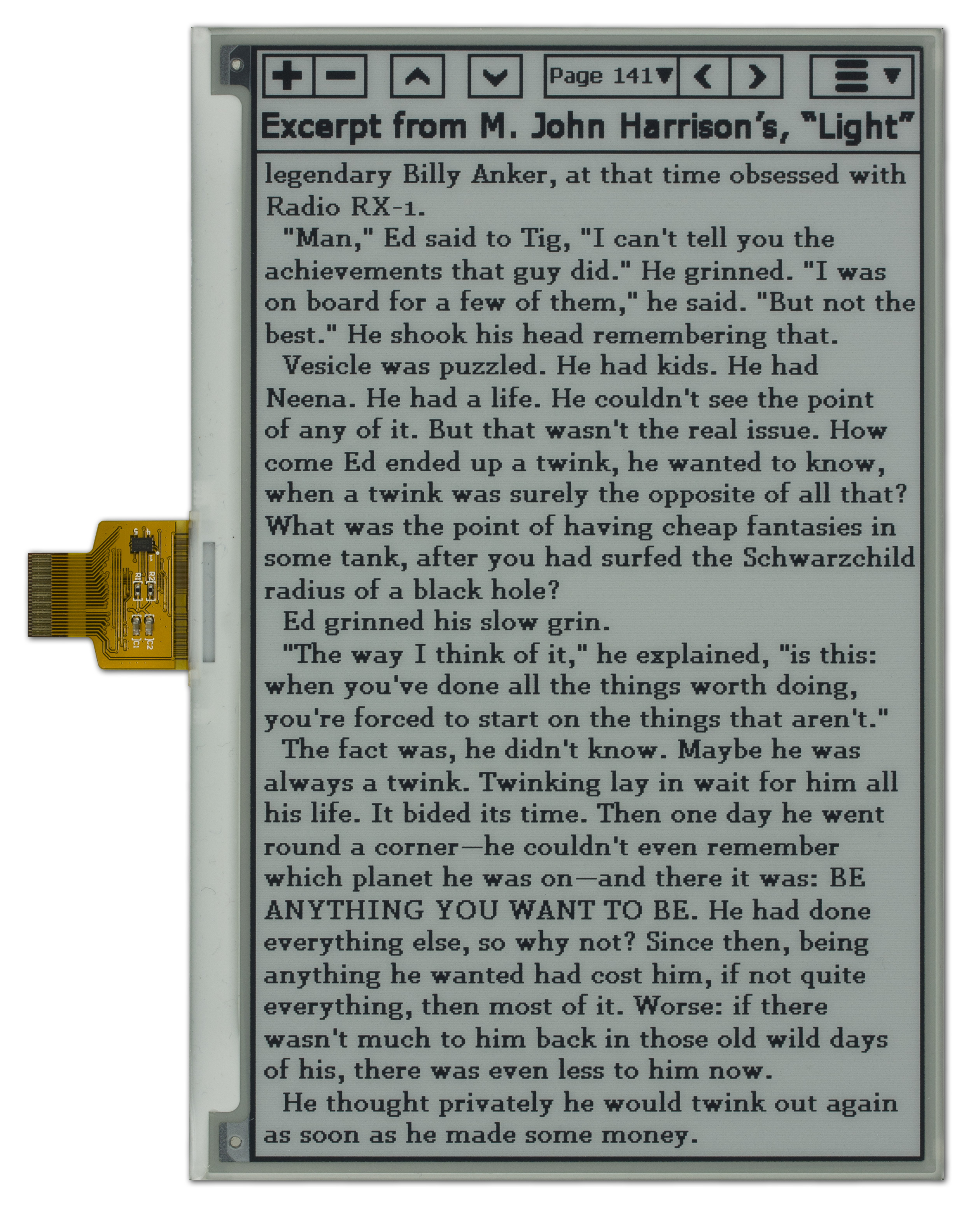

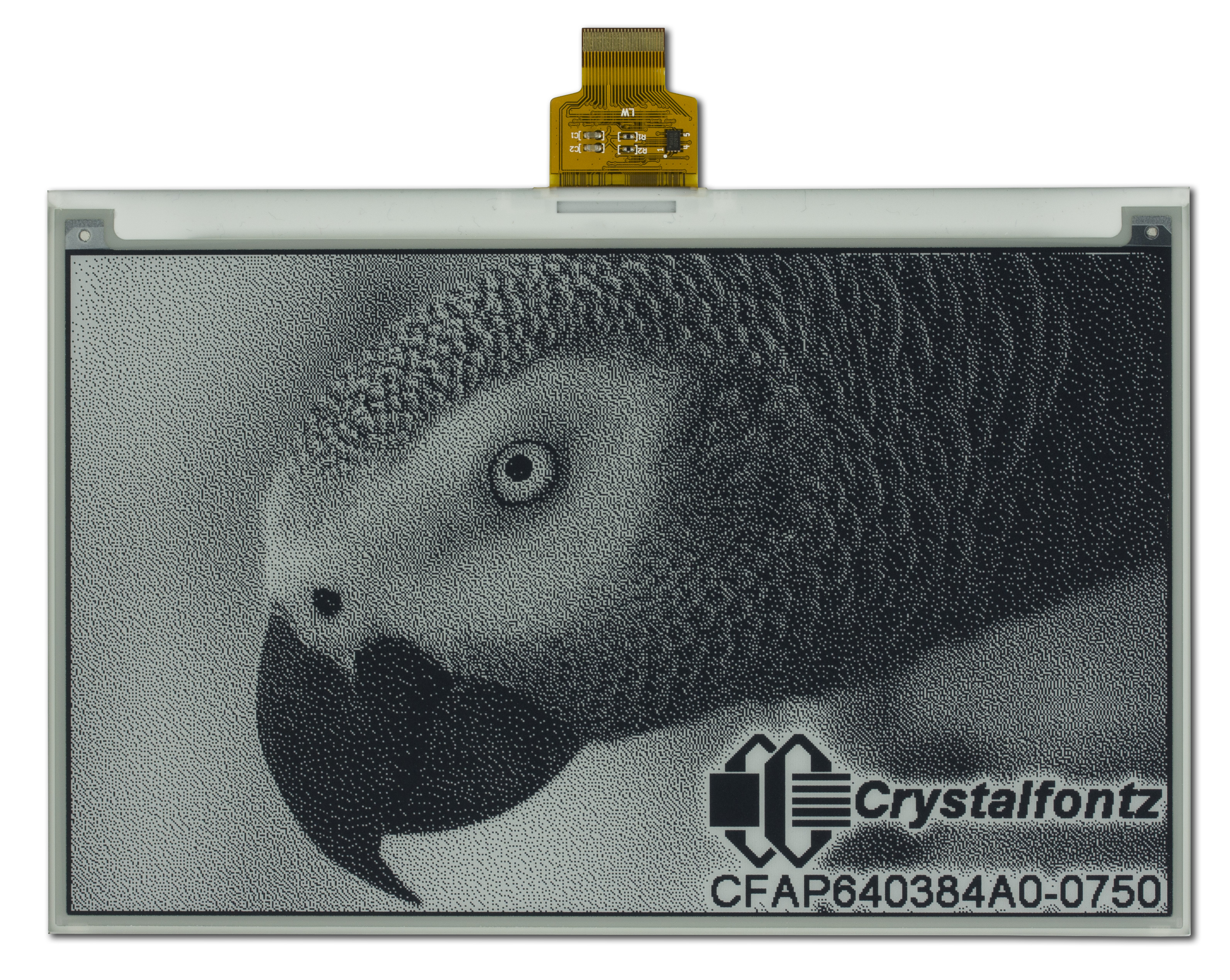

7.5" Black & White ePaper Display Module

Part Number: CFAP640384A0-0750

This 7.5" Black and White ePaper Display Module is the latest low-power technology. It offers a crisp, hi-contrast, easily readable display with the lowest power requirements around. Once you update the display, you can literally remove all power/connections and it will keep whatever is on the screen indefinitely.

The EPD screens are perfect for shelf labels. They don't update very quickly so they're ideal for mostly static applications that require updating infrequently such as signage, or electronic labels or tags.

*This module does not support partial updates

Use our free ePaper software to prepare your bitmap image for this display.

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.
Qty:
Quantity Price
1 $80.56
10 $70.05
20 * $67.45
50 * $64.86
100 * $64.33
200 * $63.81
500 * $63.31
1000 * $58.67
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4518 ePaper Adapter Board
Faster development $11.68 ea.
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP640384A0-0750 or RSS RSS feed for changes to CFAP640384A0-0750 for CFAP640384A0-0750

TECHNICAL SPECS

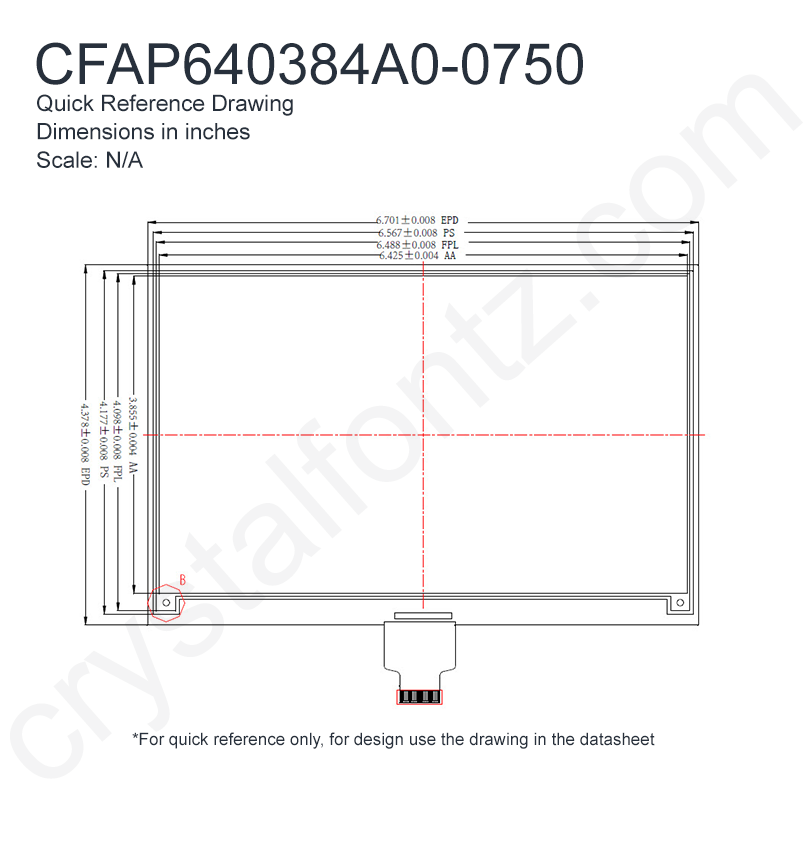

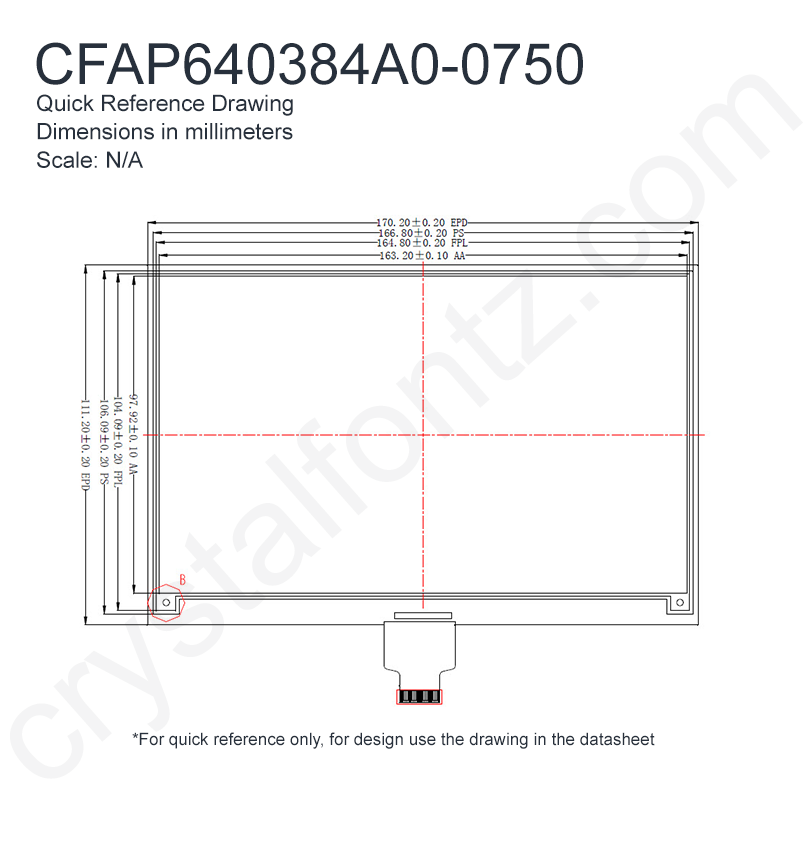

Physical Characteristics

Column Dots x Row Dots 640 x 384
Module Overall width height depth
millimeters 170.2 111.2 1.18
inches 6.701 4.378 0.046
*width / height does not include Foldable Tab
Diagonal Dimension 7.49"
Active Area width height
millimeters 163.2 97.92
inches 6.425 3.855
Dot Pitch width height
millimeters 0.255 0.255
inches 0.0100 0.0100
Optional Connectors CS050Z24GA0
Flexible Cable (FFC/FPC) length
millimeters 24
inches 0.945
Weight 43g
Pin Count 24

Optical Characteristics

View Angle Ultra-Wide°
Foreground Color Black
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 2.3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Current Maximum 15mA
Supply Current Typical 2mA
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 70°
Fahrenheit -13° 158°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 4s
Time Between Updates 180s

Additional Options

Quickly demonstrate your ePaper Arduino project by purchasing them together in an Arduino ePaper development kit.

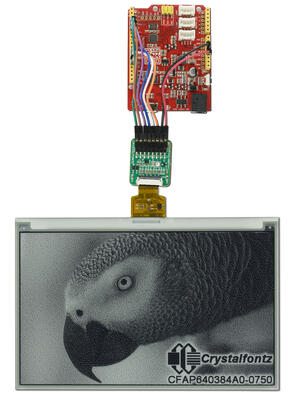

7.5 inch ePaper Arduino Kit
Part Number: CFAP640384A0-E2-2

Purchase this large 7.5" ePaper with an ePaper adapter board and an Arduino based controller board for quickly prototyping and demonstrating your ePaper product. This ePaper Arduino development kit includes everything you need and comes fully assembled.

*To display high resolution images like the one above, you'll need to add an SDCard and Reader to the Seeeduino since it does not have enough memory for complex images.

Details
Quantity 1
Price $128.60
Quantity:

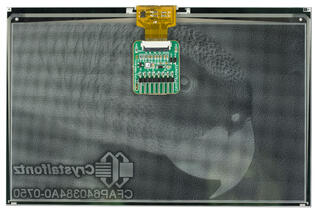

Large ePaper with Adapter Board
Part Number: CFAP640384A0-E2-1

Large 7.5" ePaper display with an ePaper adapter board for quickly prototyping with Arduino. ePaper is perfect for low power environments where the screen content is mostly static. Once the display is updated it will hold its content while being completely disconnected from power. Perfect for electronic labeling, name tags, shelf-labels. Some places are using ePaper as license plates!

Details
Quantity 1 10 20 * 50 * 100 * 200 * 500 * 1000 *
Price $99.18 $86.23 $85.55 $84.86 $84.17 $83.48 $82.78 $82.58
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP640384A0-0750 or RSS RSS feed for changes to CFAP640384A0-0750

Part Change Notice #11073: End-of-life Notification

Product Affected: CFAP640384A0-0750
Date Issued: January 15, 2021
Summary: End-of-life Notification
Description: This part is going EOL and will no longer be offered.
Reason: It is no longer being offered by our partner factory.
Availability: There are no plans to release a replacement part. For more information, please contact support.
For reference only. For design purposes, please use the specifications in the datasheet.
