This product is discontinued and has been replaced by CFAX12864T1-TFH

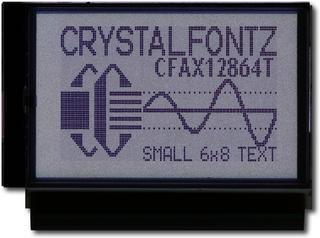

128x64 Parallel Graphic LCD
Part Number: CFAX12864T1-WFH
Description

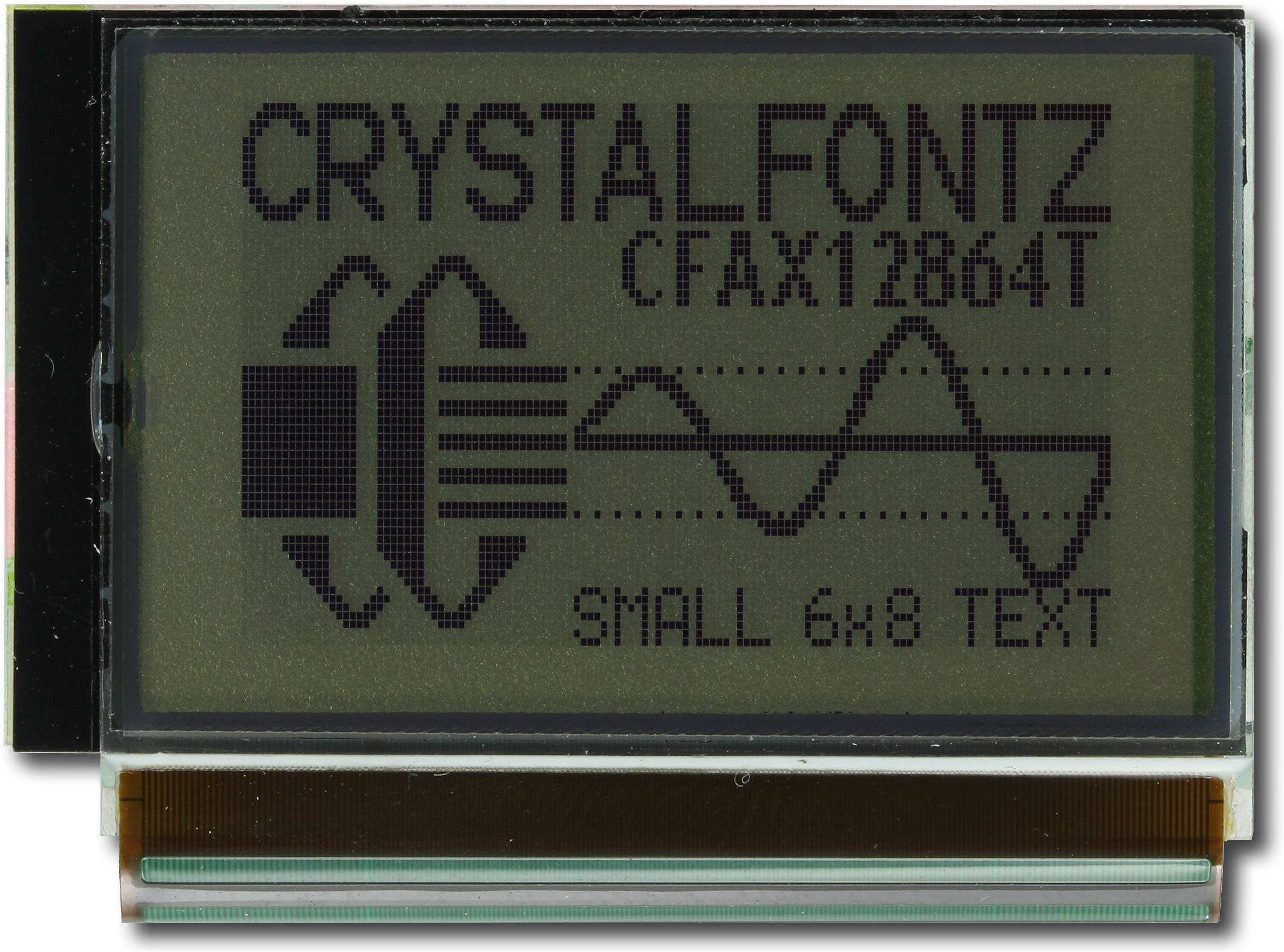

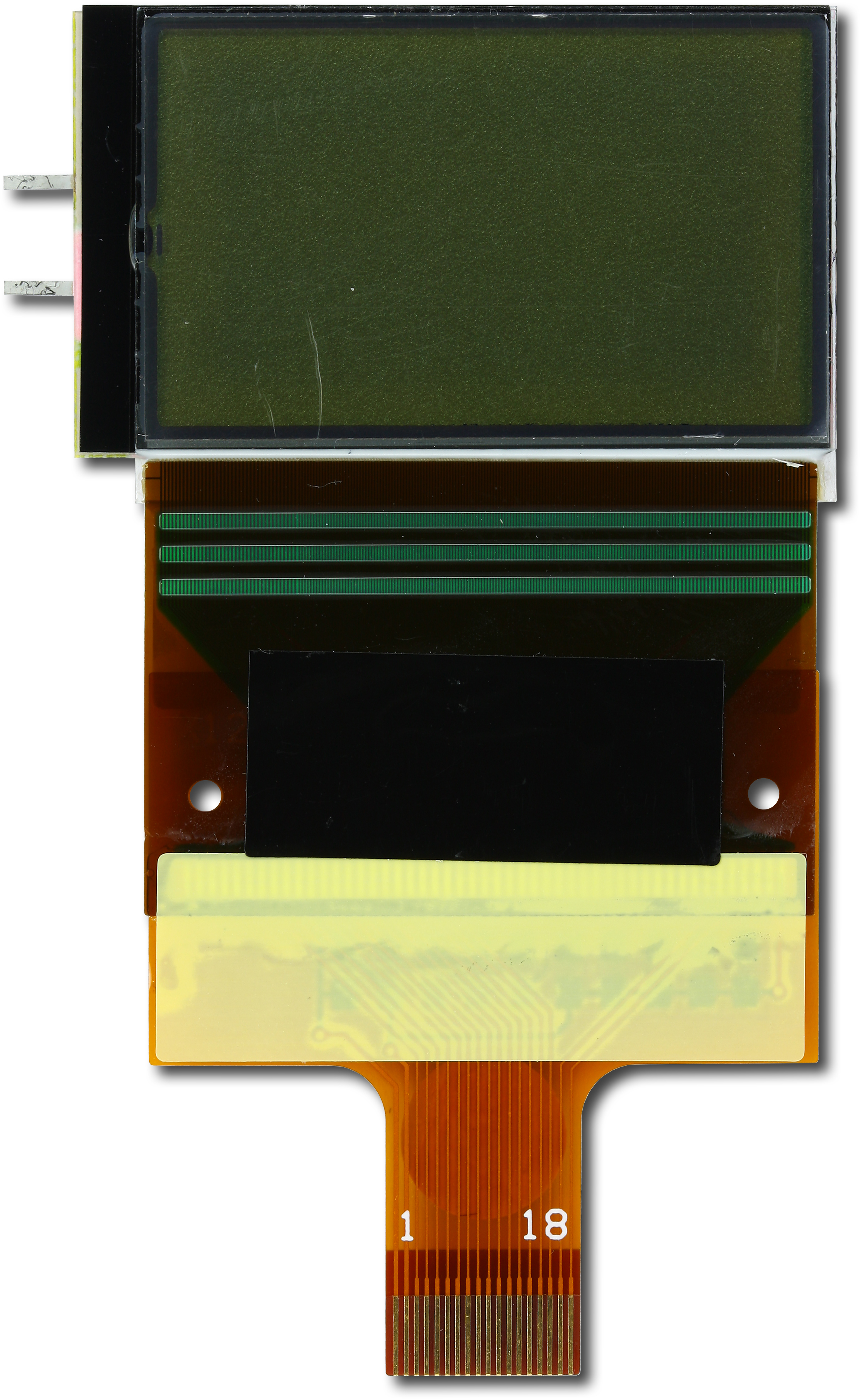

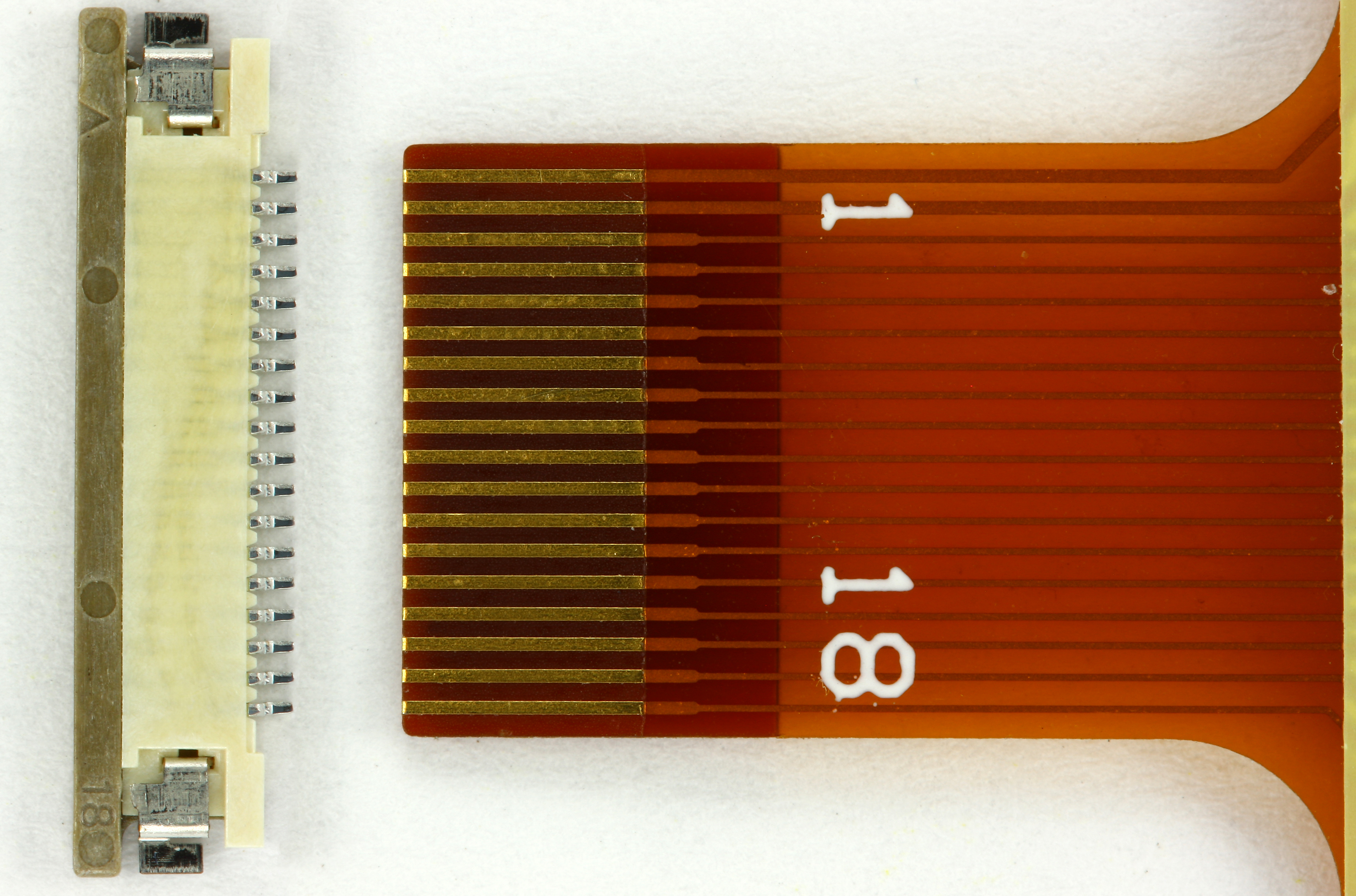

This is a thin, extremely low-power 128x64 graphic LCD display module with integrated white EL backlight for illumination in low-light conditions. This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display. It has an integrated controller and the tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).

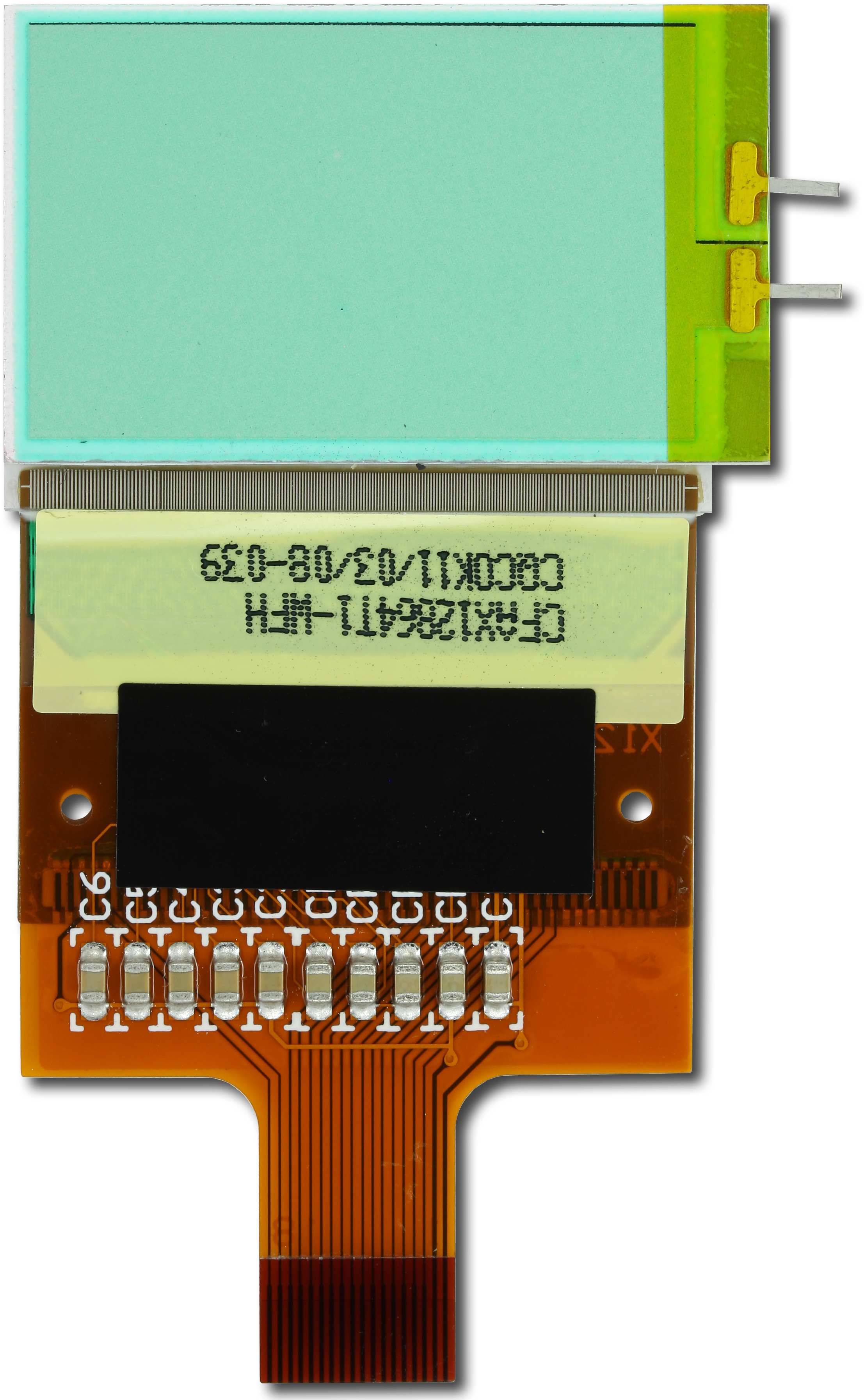

- Ultra thin and light TAB construction
- Form, and Function compatible with CFAX12864AP1 series of LCD modules
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- Built-in Novatek NT7534 controller
- Demonstration board available here: CFAXZIFDEMO
- Great for handheld instruments, cell phones, PDAs, etc
- Ultra low power consumption
- RoHS Compliant
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.

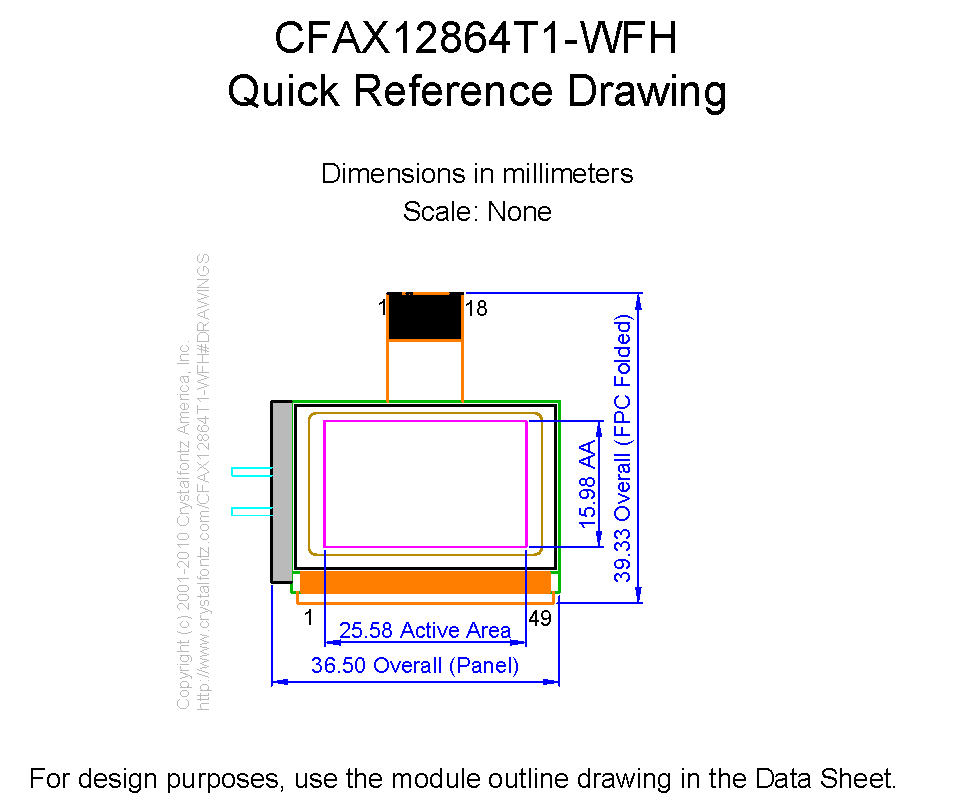

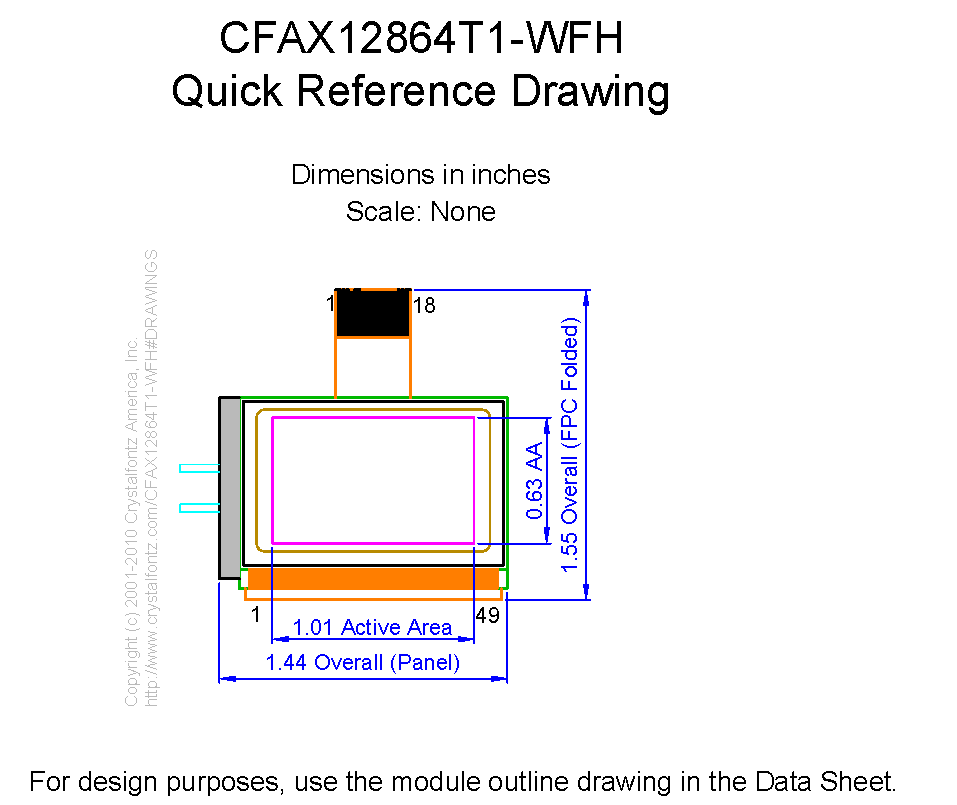

Physical Characteristics
| Column Dots x Row Dots | 128 x 64 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 41.49 | 39.33 | 3.6 |
| inches | 1.633 | 1.548 | 0.142 |
| *width / height does not include Foldable Tab | |||
| Viewing Area | width | height |
|---|---|---|
| millimeters | 29.58 | 17.98 |
| inches | 1.165 | 0.708 |
| Active Area | width | height |
|---|---|---|
| millimeters | 25.58 | 15.98 |
| inches | 1.007 | 0.629 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.18 | 0.23 |
| inches | 0.007 | 0.009 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.2 | 0.25 |
| inches | 0.008 | 0.010 |
| Weight | 4g |
Optical Characteristics
| Glass Type/Glass Color | FSTN/Light Gray |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | EL White |
| Backlight Type | EL |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | White |
Electrical Specifications
| Supply Current Minimum | 0.18mA |
| Supply Current Maximum | 0.18mA |
| Supply Current Typical | 0.18mA |
| Module Connector Pitch | 0.5mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Novatek NT7534 NT7534 132 X 65 RAM-Map STN LCD Controller/Driver (This controller is a possible replacement for the EOL Samsung S6B1713) |
| Interface | 8-bit Parallel, SPI |
Miscellaneous
| Foldable Tab | Yes |
*Suggest a Correction
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #10644: (New Product) CFAX12864T1-WFH
| New Product: | CFAX12864T1-WFH |
| Date Issued: | February 19, 2015 |
| Summary: | (New Product) CFAX12864T1-WFH |
| Description: | Standard Graphic Modules: (EOL)128x64 Compact Graphic LCD display module with EL backlight |
Product Update #10592: EL and CCFL backlight display modules End of Life
| Products Affected: | CFAG12864B-WGH-N, CFAG12864B-WGH-V, CFAG320240CX-FMI-T, CFAG24064A-FMI-TZ, CFAG24064A-FTI-TZ, CFAX12864U1-WFH, CFAX12864T1-WFH, CFAX12864T-WFH, CFAX12864U-WFH |
| Date Issued: | June 13, 2014 |
| Summary: | EL and CCFL backlight display modules End of Life |
| Last revision: | Varies |
| Description: | EL and CCFL backlight display module are going End Of Life 2014-06-31. |
| Reason: | Market trends and new product development have reduced demand for EL and CCFL backlights with a move to longer life and less expensive LED backlights. Backlight inverters that support EL and CCFL backlights are also EOL: https://www.crystalfontz.com/news/pcn.php?id=10591 |
| Impact: | EL and CCFL backlight display modules will no longer be available. |
| Recommendation: | It is recommended that customers currently using EL or CCFL based modules to transition to an LED based counterpart. This will re |
| Availability: | Last orders must be received no later than 2014-06-31. Last shipments will be late September of 2014. Current inventory at Crystalfontz America will not be replenished and sold until exhausted. |
| Price Change: | No price change. |

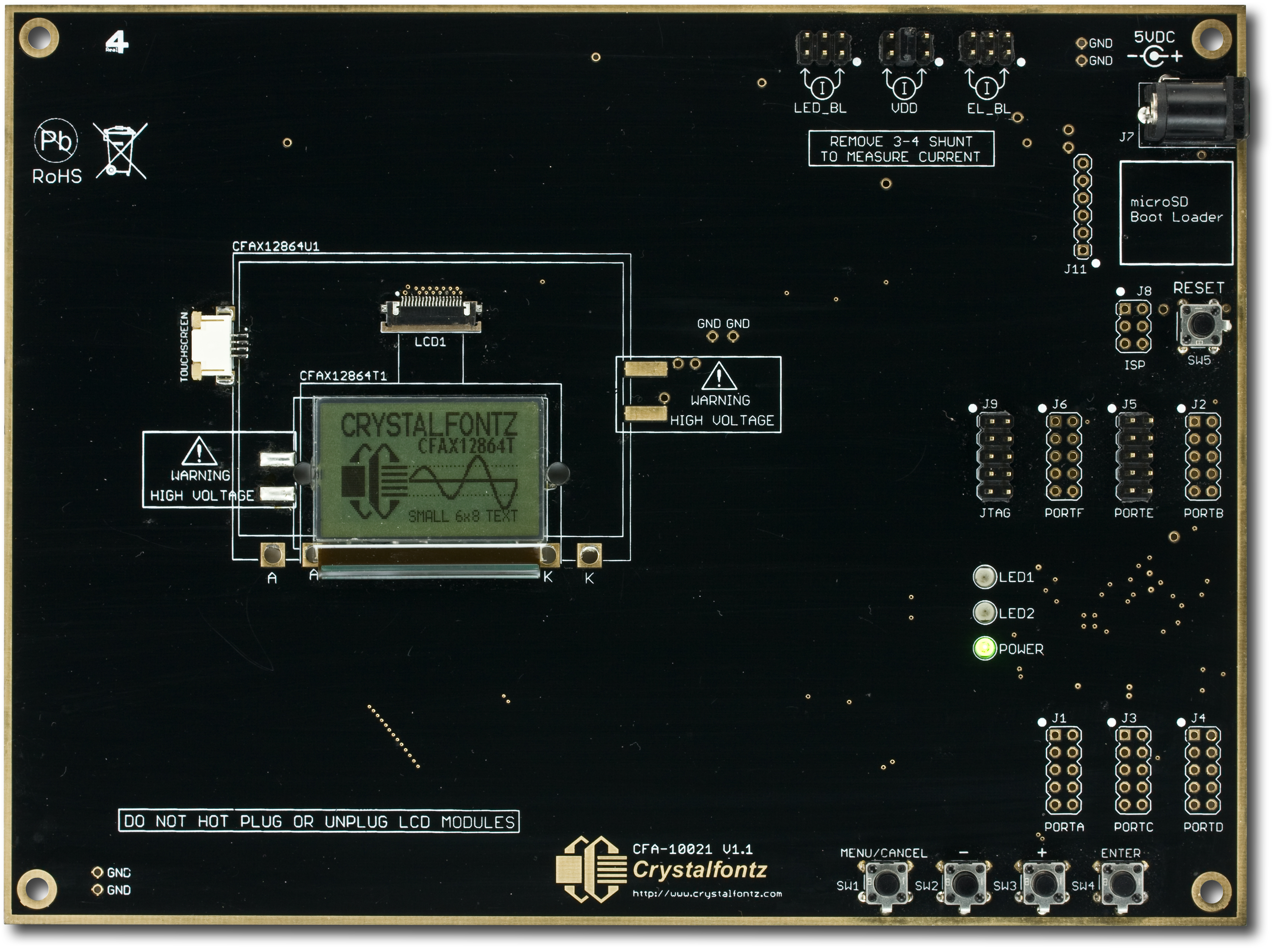

We can connect to a CFAXZIF-DEMO demo board.
For reference only. For design purposes, please use the specifications in the datasheet.
