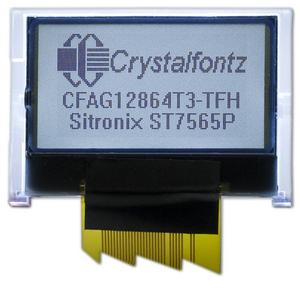

Small Backlit Sunlight Readable LCD

Part Number: CFAG12864T3-TFH

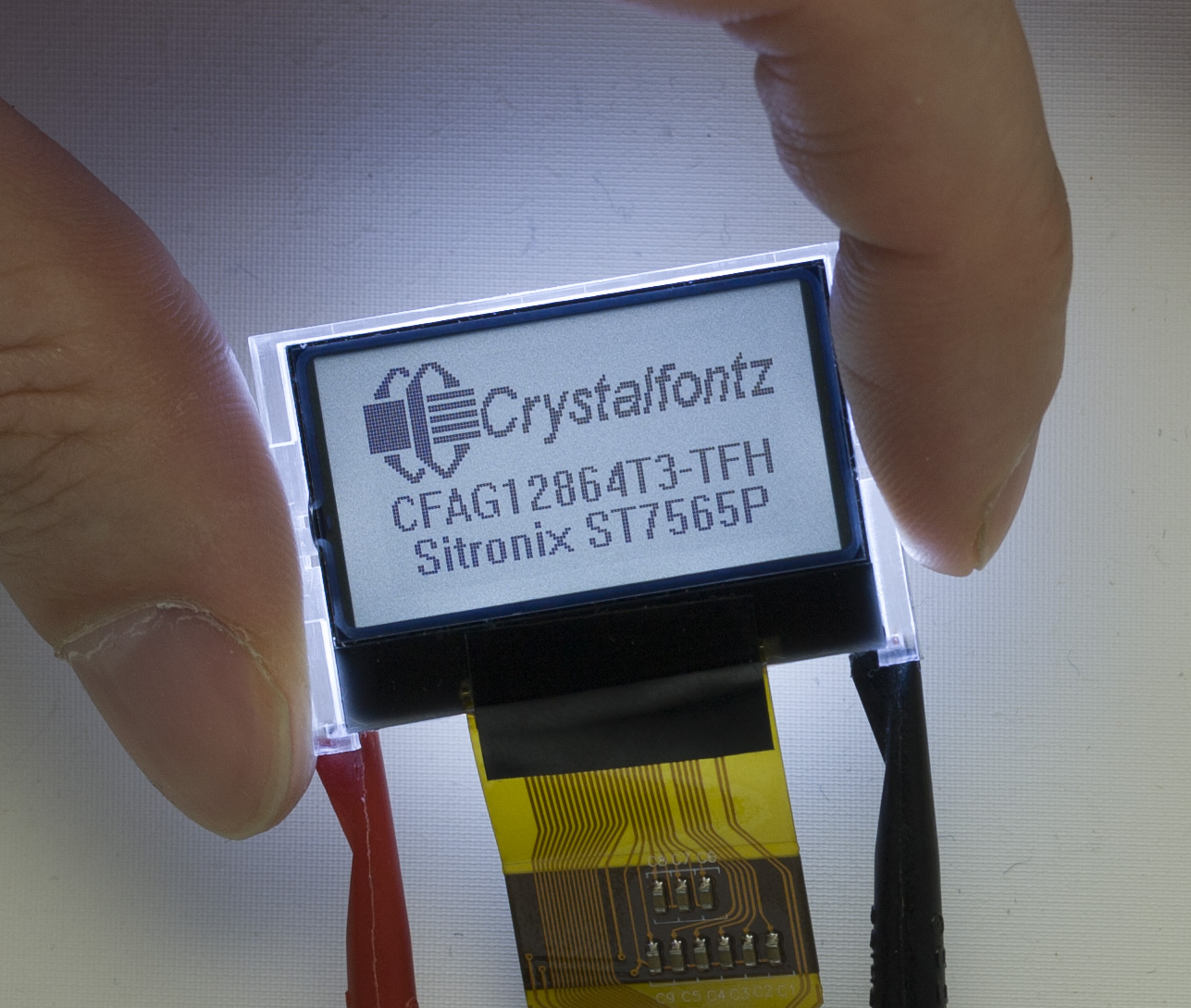

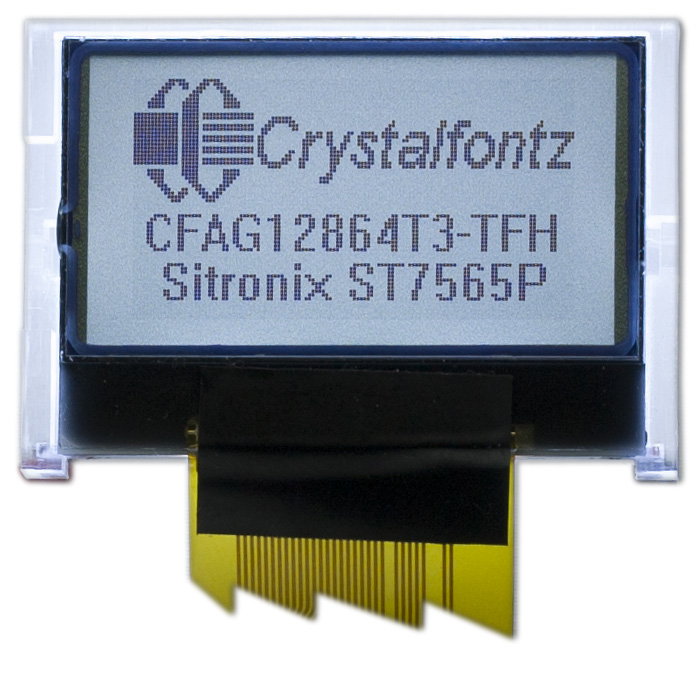

This 128x64 graphic LCD display module (CFAG12864T3-TFH) is thin, light, low-power, and LED backlit. This display is visible in all lighting situations, from darkness, normal office lighting, and even bright sunlight, making it an excellent sunlight/daylight readable LCD solution.

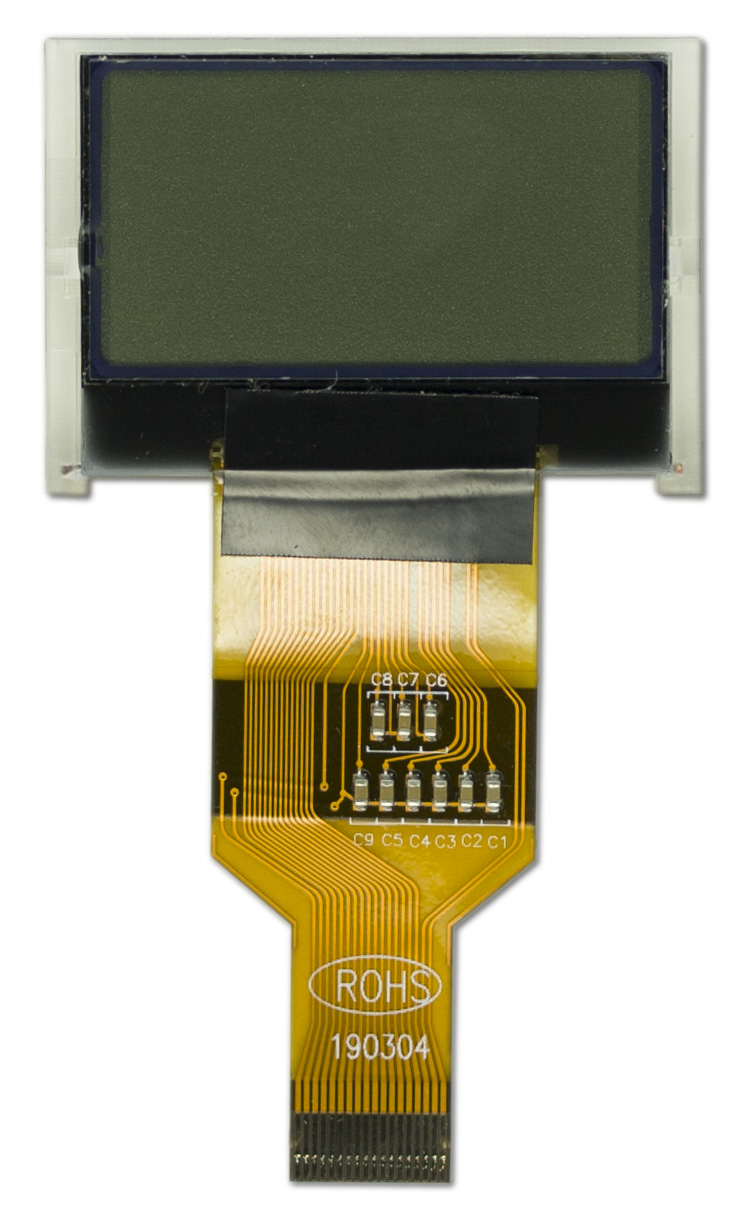

This graphic LCD is a transflective, positive-mode display, the backlight may be turned off when there is sufficient ambient light to read the display. Turning the backlight off will further reduce the already super-low power consumption. This display is well suited for compact hand-held devices, or any application where a lot of display in a very small area is needed.

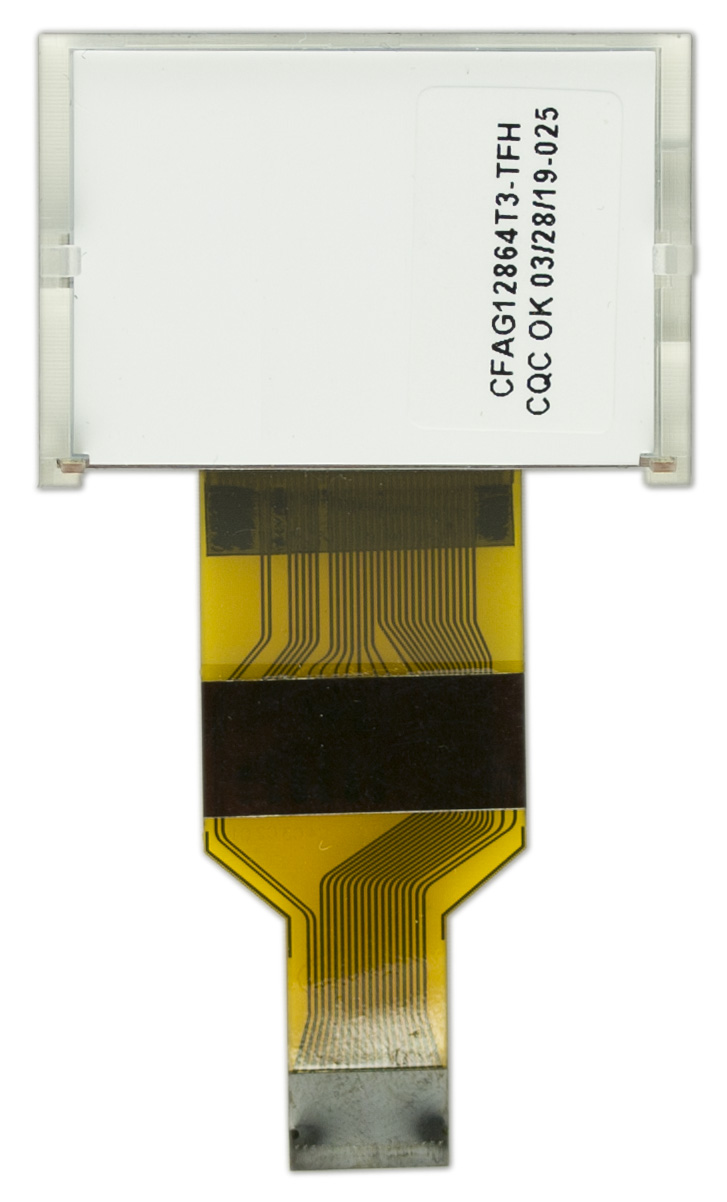

This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector:

This monochrome graphic LCD display is also available in a non-backlit version (CFAG12864T3-NFH).

  • Thin and light TAB construction with white LED backlight
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Sitronix ST7565P controller
  • Ultra-Low power consumption
  • Perfect for handheld, battery operated devices
  • Simple 4-wire, 8-bit SPI or 8-bit parallel interface

This display is the recommended replacement for the CFAG12864T2-TFH which are no longer in production. It is not an exact replacement, please consider ordering a sample to determine if it will work for you.

Qty:
Quantity Price
1 $10.58
5 $9.75
10 $8.60
20 $8.31
50 $8.03
100 $7.90
200 $7.84
300 $7.44
500 $7.38
1000 $6.83
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4633 18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.79 ea.
4690 LCD Breakout Board
Add a Breakout Board? $8.60 ea.
4823 18-Position ZIF Breakout Board
Add an 18-pin ZIF Breakout Board? $6.15 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG12864T3-TFH or RSS RSS feed for changes to CFAG12864T3-TFH for CFAG12864T3-TFH

Video Demonstrations

Here's a video showing this LCD display in action as well as the non-backlit version. These displays are available with a carrier board and a complete development kit.

TECHNICAL SPECS

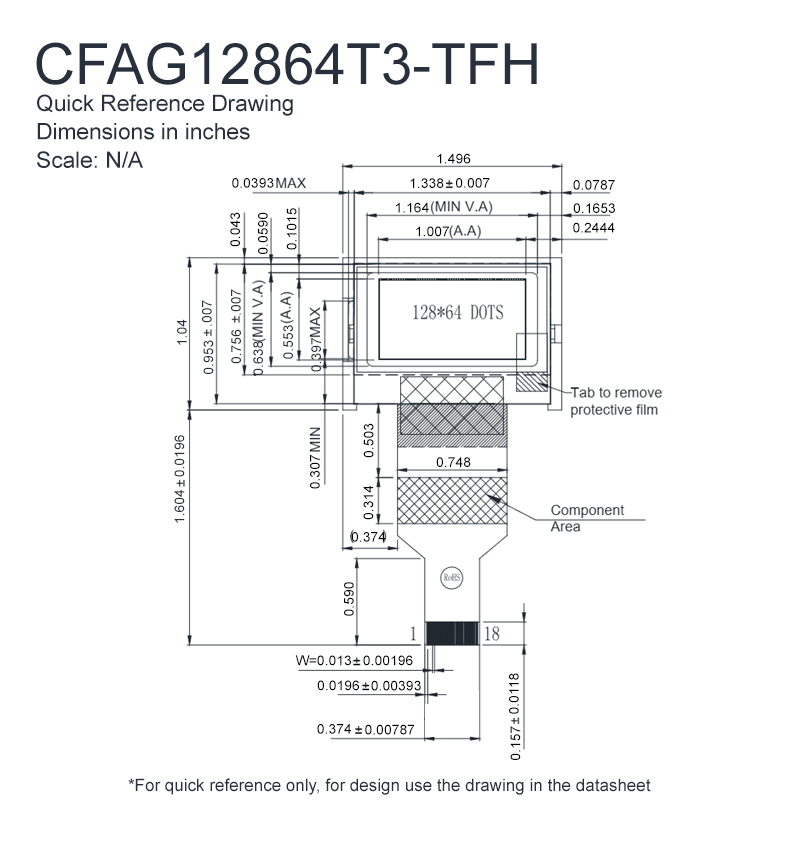

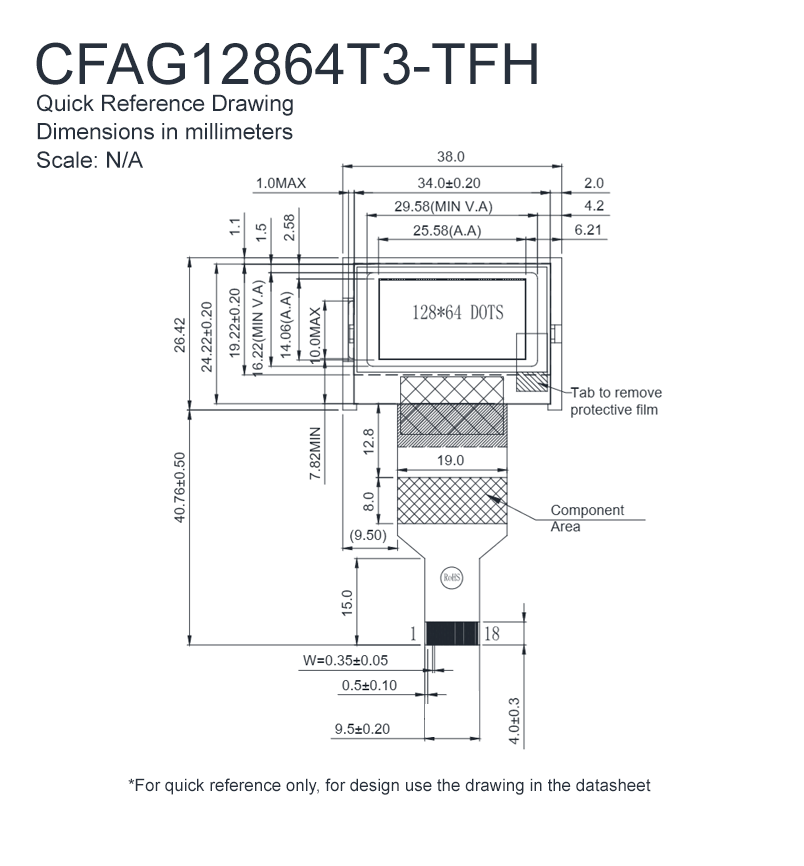

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 38 26.42 8.8
inches 1.496 1.040 0.346
*width / height does not include Foldable Tab
Diagonal Dimension 1.15"
Viewing Area width height
millimeters 29.58 16.22
inches 1.165 0.639
Active Area width height
millimeters 25.58 14.06
inches 1.007 0.554
Dot Pitch width height
millimeters 0.2 0.22
inches 0.008 0.009
Optional Connectors CS050Z18GA0
Flexible Cable (FFC/FPC) length
millimeters 40.76
inches 1.605
Weight 5.3g
Pin Count 18

Optical Characteristics

Glass Type/Glass Color FSTN/Light-Gray
Polarizer Transflective
View Direction 6 o'clock
View Angle 60°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Light Gray

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.3V
Supply Current Typical 2mA

Backlight Electrical Specifications

Forward Voltage Typical 3.5V
Forward Current Minimum 24mA
Forward Current Maximum 40mA
Forward Current Typical 32mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Add this display to a breakout board or purchase a complete development kit to speed up prototyping.

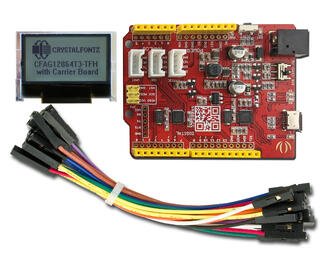

Small Backlit Monochrome LCD Dev Kit
Part Number: CFAG12864T3-TFH-E1-2

A development kit for this small backlit sunlight readable LCD display which includes an adapter board wired to a Seeeduino running a demonstration. All that's needed to see the display working is to plug the Seeeduino into a power supply using the included USB cable.

The CFAG12864T3-TFH is a small, monochrome, graphic LCD with an external backlight frame. The display is extremely low power and only requires the backlight when viewed in the dark. The adapter board breaks the display's ZIF tail out to a 0.1" header which makes integrating this display easy without any required soldering.

This kit makes it easy for to evaluate the CFAG12864T3-TFH and/or the CFAG12864T3-TFH-E1-1 for your product, or provides a great jumping off point for creating a project with this display.

Kit Contents:

Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1
Price $44.74
Quantity:

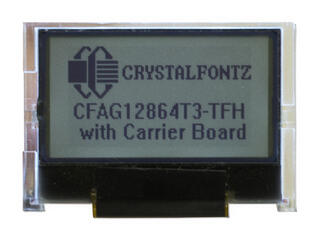

128x64 Backlit Transflective LCD with Breakout Board
Part Number: CFAG12864T3-TFH-E1-1

Grab this LCD display module to quickly and easily start using this small monochrome LCD. The included adapter board breaks the display's ZIF tail out into a 16 pin 0.1" header.

The adapter board fits inside the backlight frame, making this a neat way to handle interfacing with the display. Use this display module to validate the CFAG12864T3-TFH, or integrated it into your final design. The adapter board also includes two 2-56 threaded standoffs to simplify mounting the display module in your final enclosure design.

The included CFAG12864T3-TFH thin, light, and low power. The LED backlight only needs to be used when the display needs to be read in dim or dark environments. Because this is an STN display, the graphics clearly readable in sunlight. This display is well suited for compact hand-held devices and other low-power applications.

This transflective monochrome graphic LCD display module is also available in a non-backlit version (CFAG12864T3-NFH-E1-1).

Features of this Display Module

  • Ultra-Low power consumption
  • White LED backlight
  • 0.1" header (2.54 mm) for easy connections
  • 2x 2-56 threaded mounting standoffs
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Sitronix ST7565P controller
  • Perfect for handheld, battery operated devices
  • Simple 4-wire, 8-bit SPI or 8-bit parallel interface
Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1 10 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Price $18.89 $14.89 $14.41 $13.93 $13.73 $13.67 $13.55 $13.44 $13.35
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
