Home » Products » Accessories » ZIF Connectors

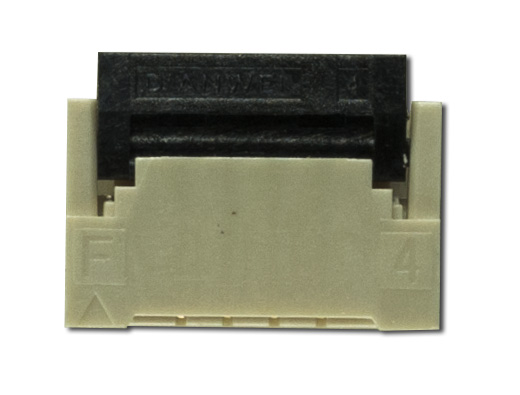

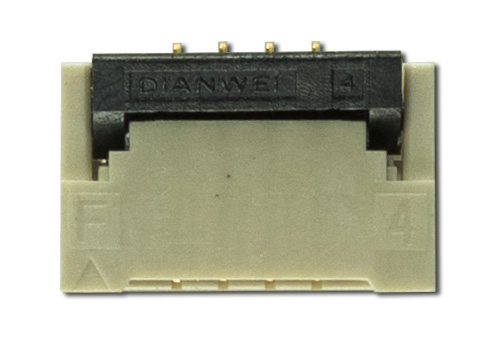

4 Position, 1.0mm Pitch, Gold, FCC FPC ZIF Connector

Part Number: CS100Z04G-A0

  • 1.0mm pitch
  • 4 position
  • Gold plated
  • Top/bottom contacts
4 Position, 1.0mm Pitch, Gold, FCC FPC ZIF Connector (CS100Z04G-A0)
Qty:
Quantity Price
5 $0.53
100 $0.31
1500 $0.26
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS100Z04G-A0 or RSS RSS feed for changes to CS100Z04G-A0 for CS100Z04G-A0

Compliance Documents

TECHNICAL SPECS

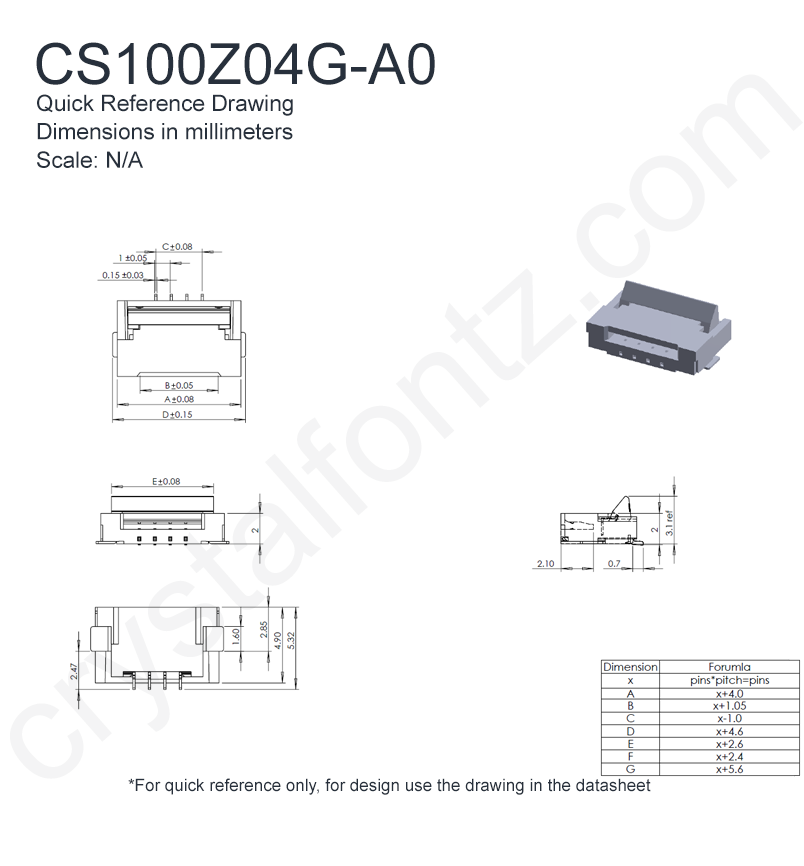

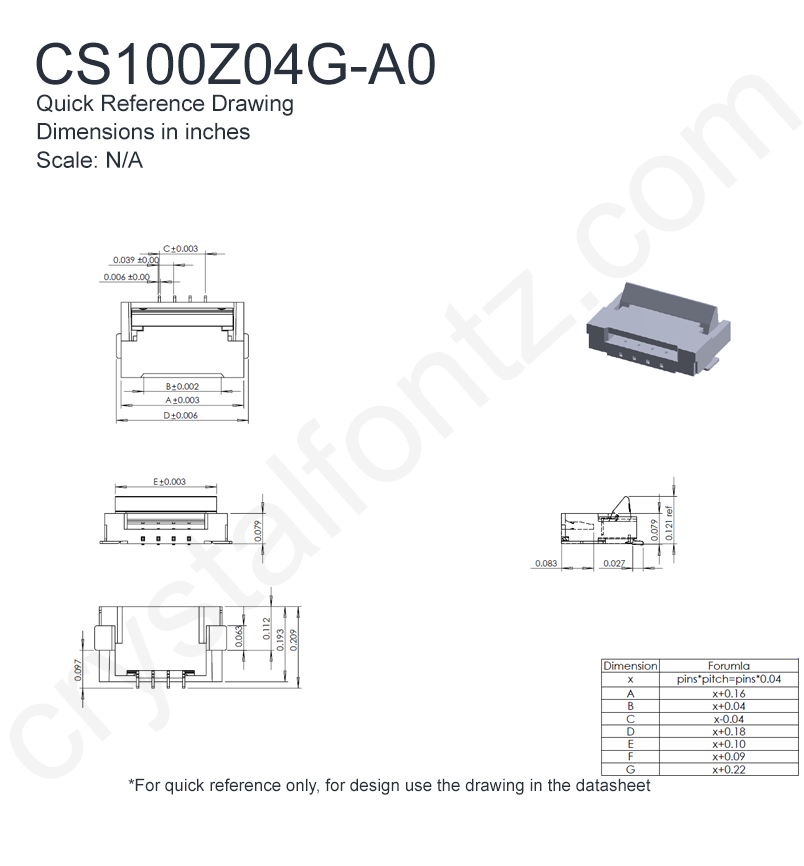

Physical Characteristics

Module Overall width height
millimeters 8 2
inches 0.315 0.079
Weight 0.39g
Pin Count 4

Electrical Specifications

Module Connector Pitch 1mm
For reference only. For design purposes, please use the specifications in the datasheet.
