Home » Products » Accessories » Cables

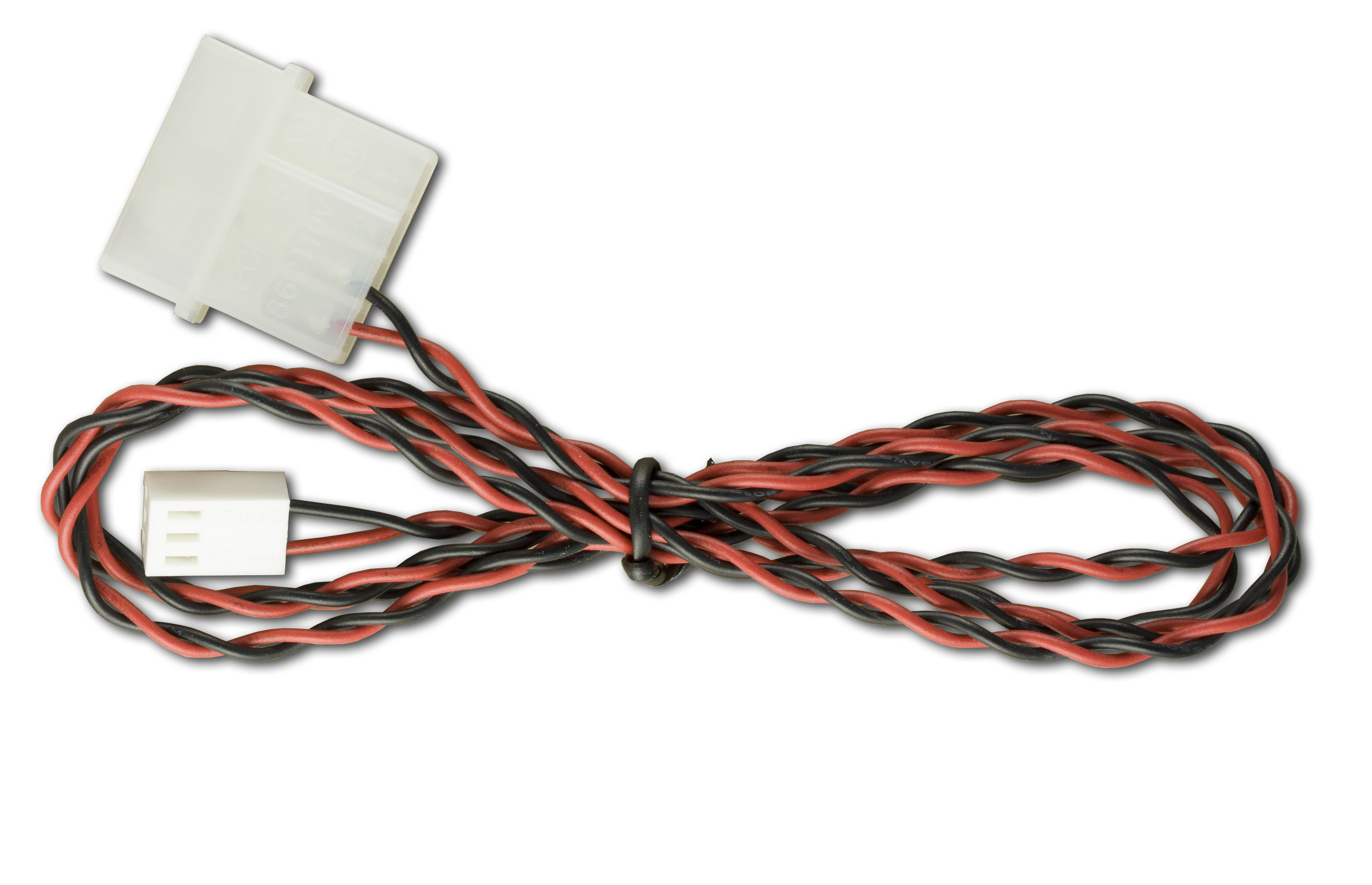

PC Power to LCD Cable

Part Number: WR-PWR-Y02

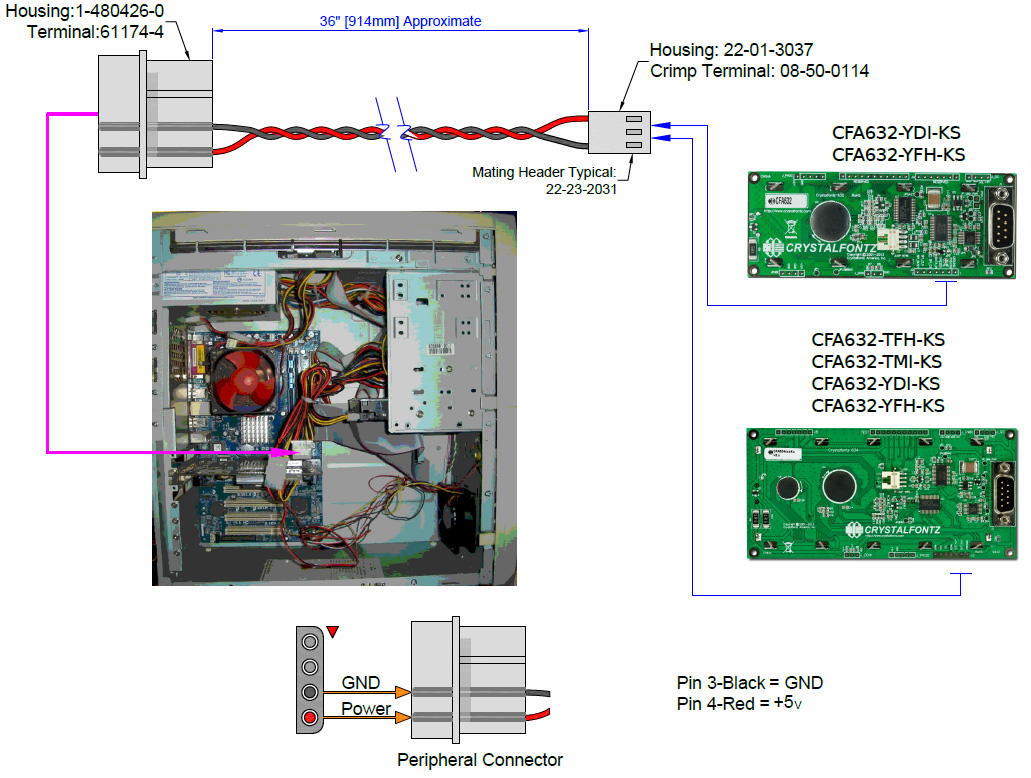

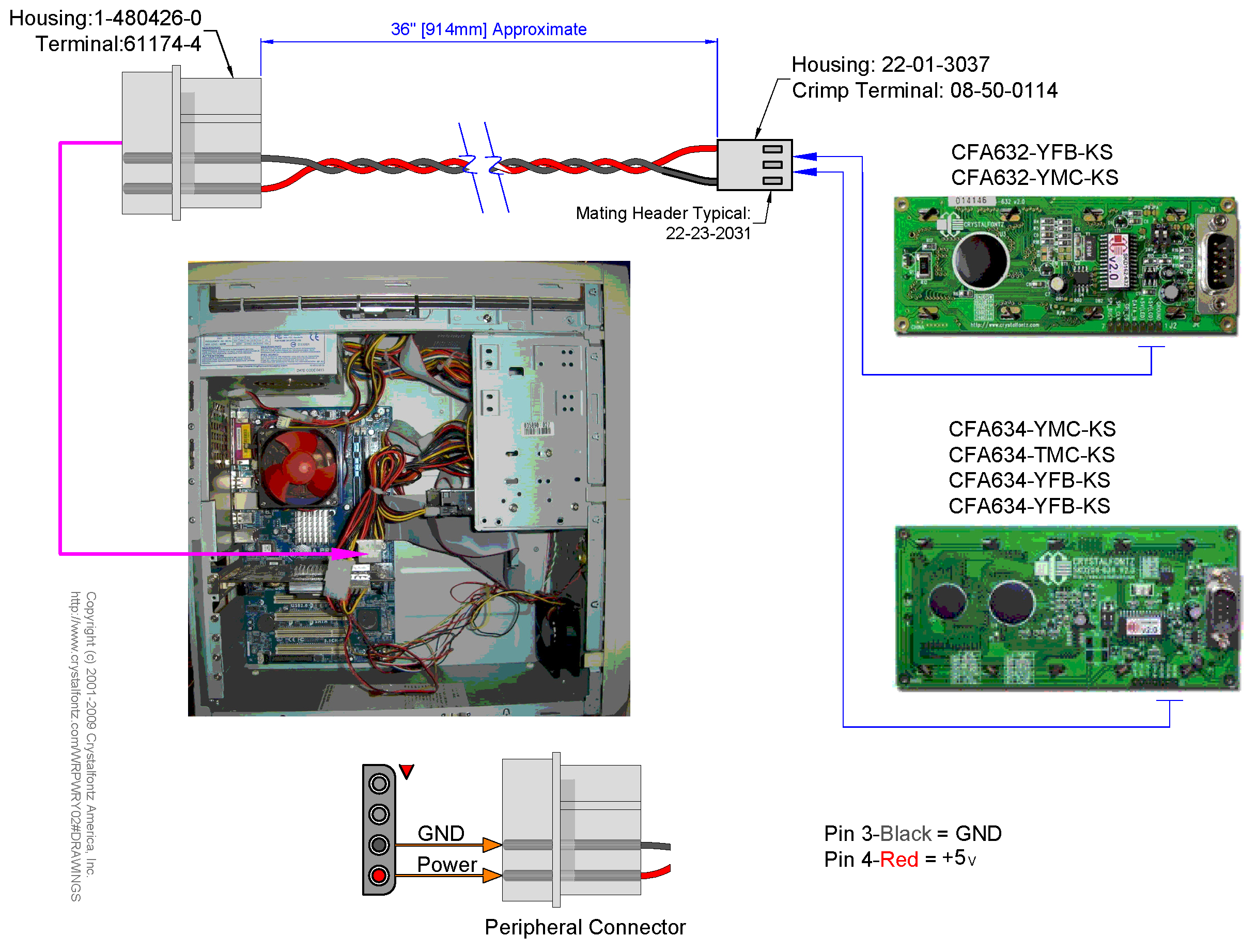

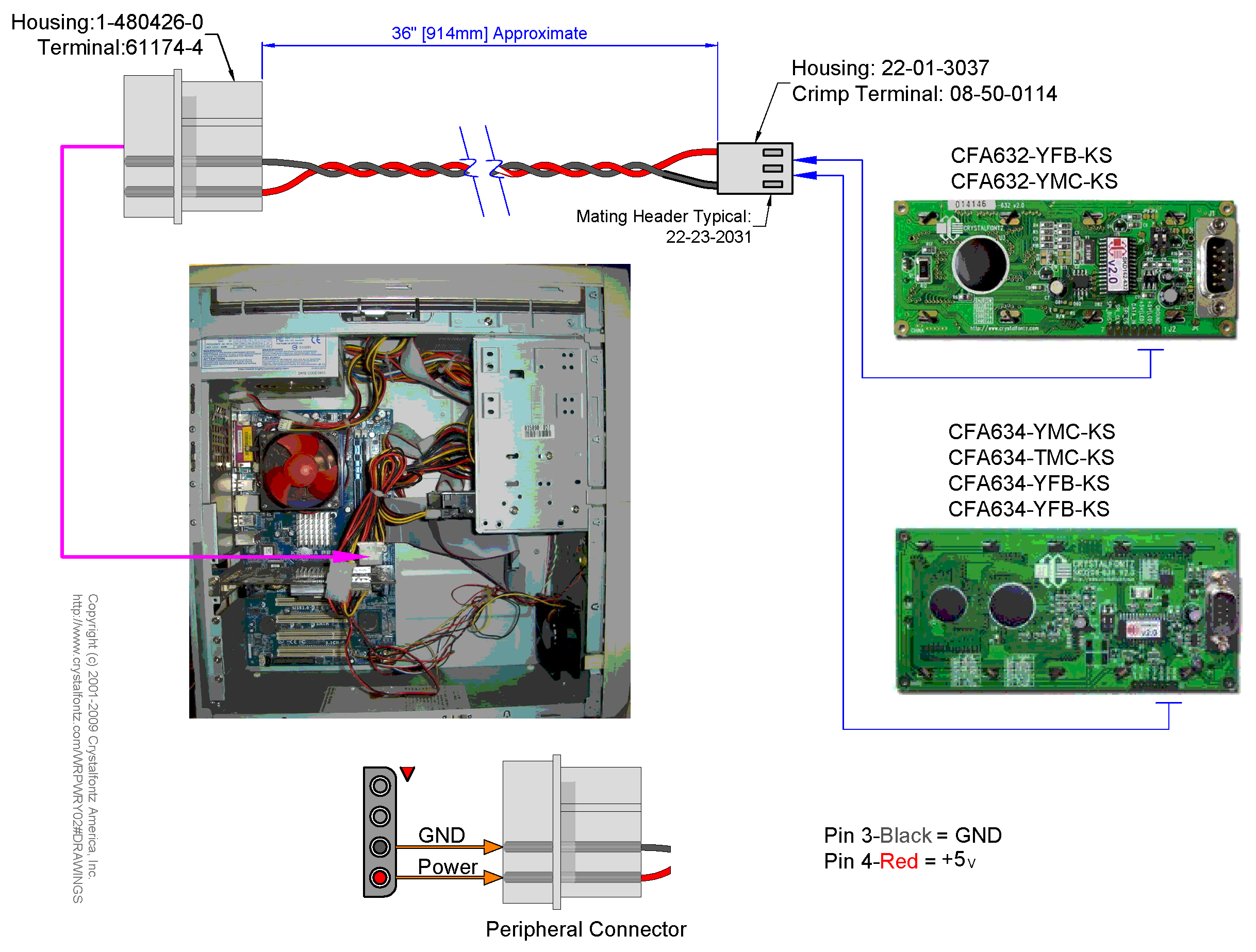

One end of this cable can be plugged into a spare power connector from your PC's power supply. The other end (with the supplied connector) plugs into our CFA-632 or CFA-634 serial LCDs.

To simplify connecting this cable, customize your CFA632 or CFA634 by having us populate the J2 header, so all you have to do is plug things together. Bulk packaged. RoHS Compliant.
PC Power to LCD Cable (WR-PWR-Y02)
Qty:
Quantity Price
1 $6.27
20 $5.01
50 $3.76
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-PWR-Y02 or RSS RSS feed for changes to WR-PWR-Y02 for WR-PWR-Y02

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 935
inches 36.811
Weight 11g

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to WR-PWR-Y02 or RSS RSS feed for changes to WR-PWR-Y02

Product Update #11095: Change of Manufacturing Facility

Product Affected: WR-PWR-Y02
Date Issued: July 27, 2021
Summary: Change of Manufacturing Facility
Description: The connector housing will be manufactured at a different facility. The specifications and drawings will not change.
Reason: New housing supplier.
Availability: Available immediately.

Part Change Notice #11048: We are no longer including the extra male connector that comes with the cable

Products Affected: WR-PWR-Y02, CFA632-YFH-KS, CFA632-YDI-KS, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS
Date Issued: June 10, 2019
Summary: We are no longer including the extra male connector that comes with the cable
Reason: To reduce waste and cost. An identical connector is already soldered to the module where the cable connects to the modules and so the additional connector is non-value added.
Impact: No impact if used as intended
Recommendation: Crystalfontz recommends to verify the connector is not used elsewhere. If the cable or connector are being used elsewhere, please contact Crystalfontz for information on obtaining the male connector.
For reference only. For design purposes, please use the specifications in the datasheet.
