ATX Power Cable
Part Number: WR-PWR-Y05
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Compliance Documents
Description

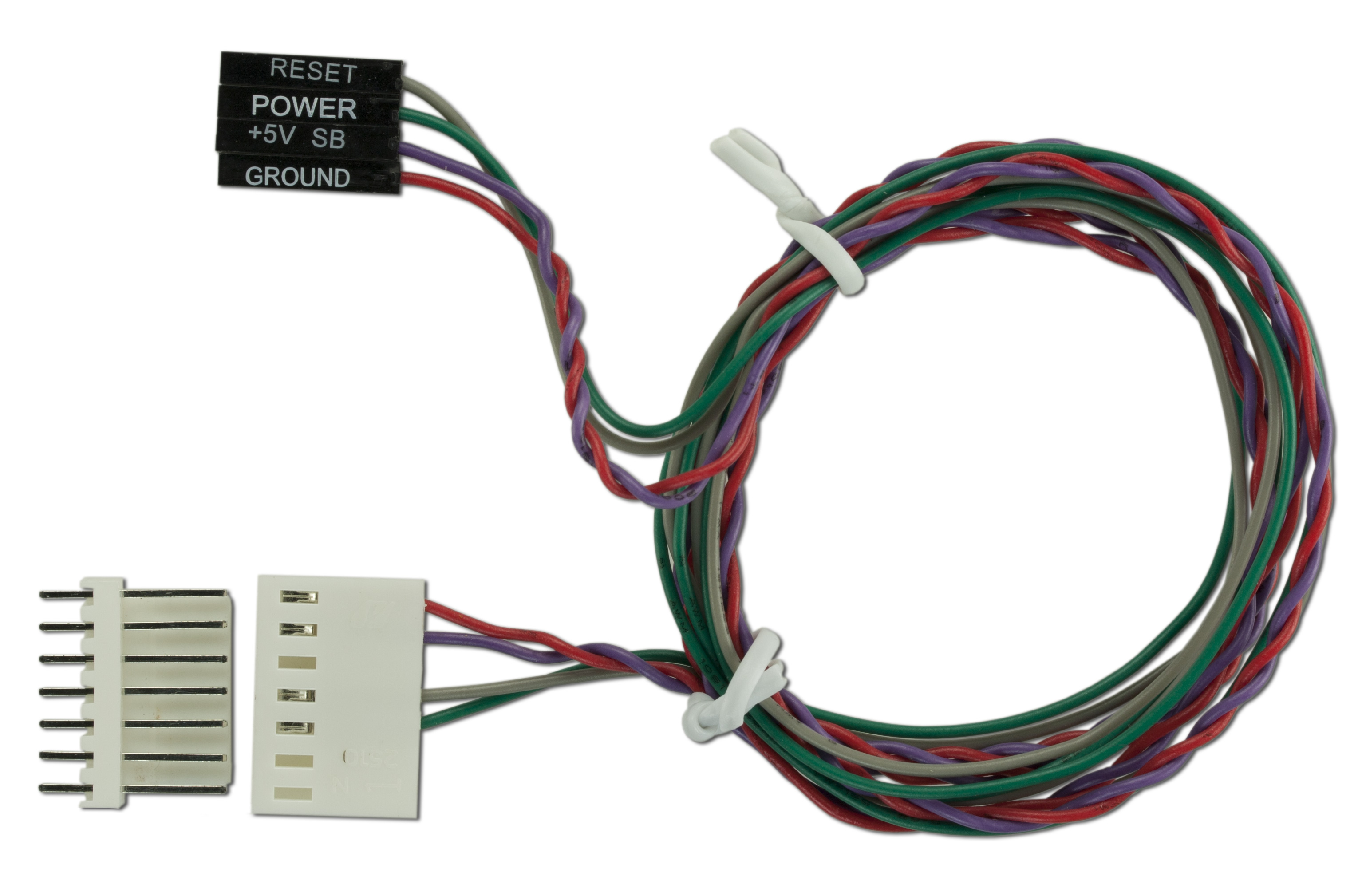

- ATX power cable for the CFA533, CFA633 serial, CFA633 USB, CFA631, CFA635 USB, CFA635 Serial LCD modules, and SCAB.
- Allows you to turn an ATX power supply on and off, or power cycle a computer through the CFA533, CFA633, or CFA631 / CFA635 +SCAB.
- RoHS Compliant.

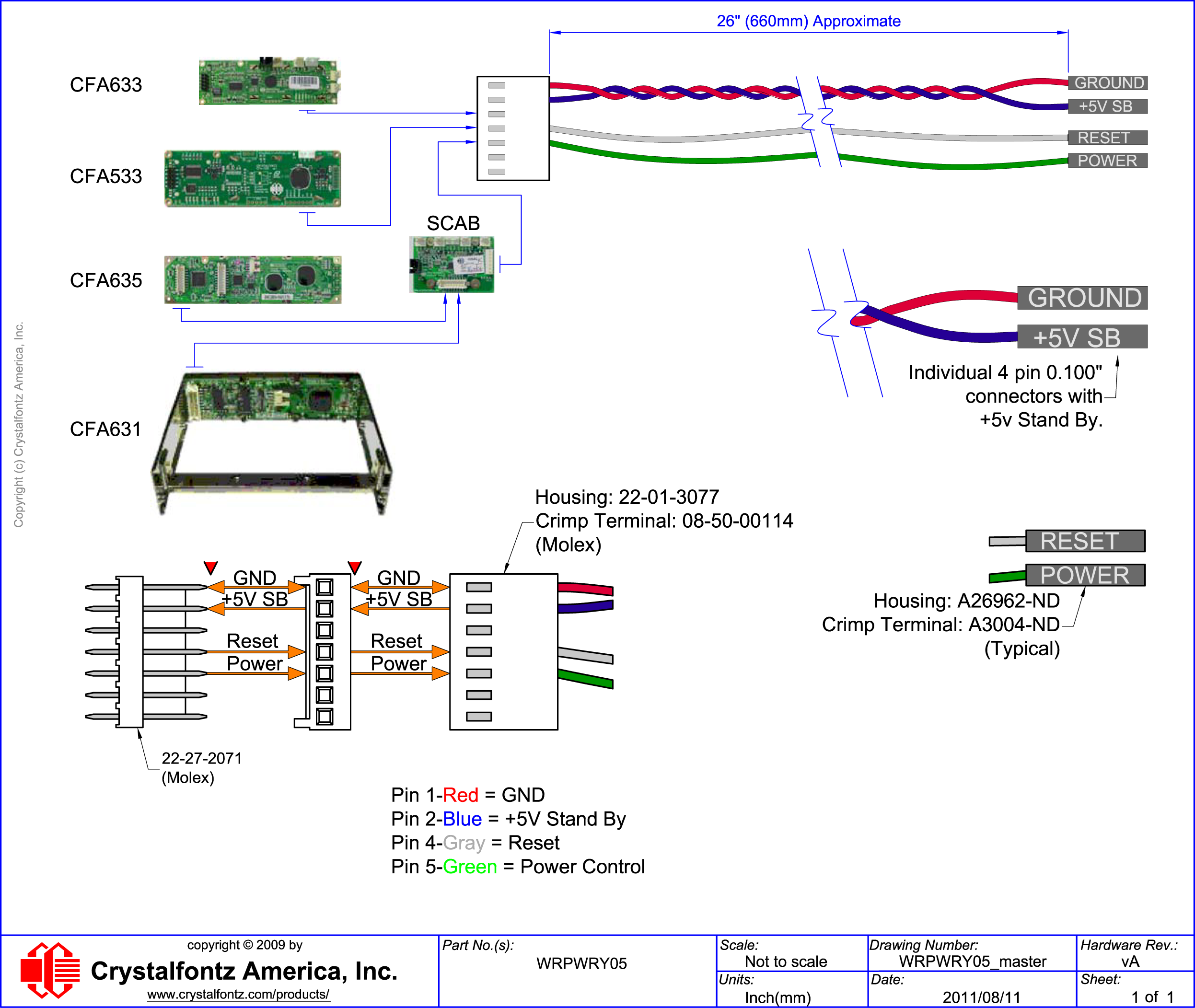

- Individual 4 pin 0.100" connectors with +5v Stand By.
- We also offer the WR-PWR-Y14 and WR-PWR-Y44, which are similar except they use the motherboard's WOL (Wake On LAN) connector to supply standby power to the module.
TECHNICAL SPECS
Physical Characteristics
| Flexible Cable (FFC/FPC) | length |
|---|---|
| millimeters | 630 |
| inches | 24.803 |
| Weight | 8g |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #10364: New Product in Cables: WR-PWR-Y05
| New Product: | WR-PWR-Y05 |
| Date Issued: | August 12, 2011 |
| Summary: | New Product in Cables: WR-PWR-Y05 |
| Description: | CFA633 to ATX power supply and control cable. |
For reference only. For design purposes, please use the specifications in the datasheet.
