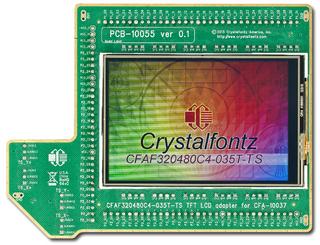

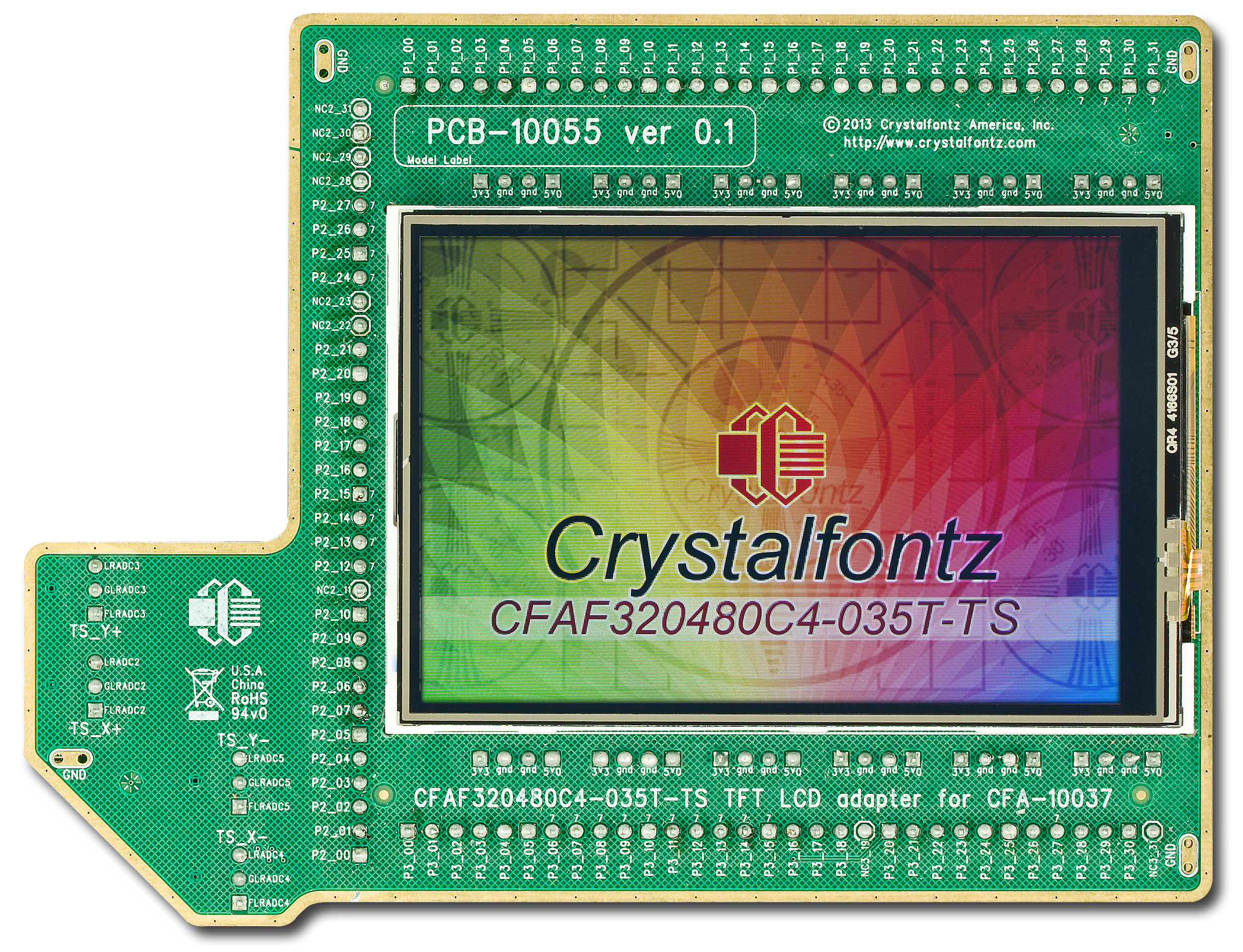

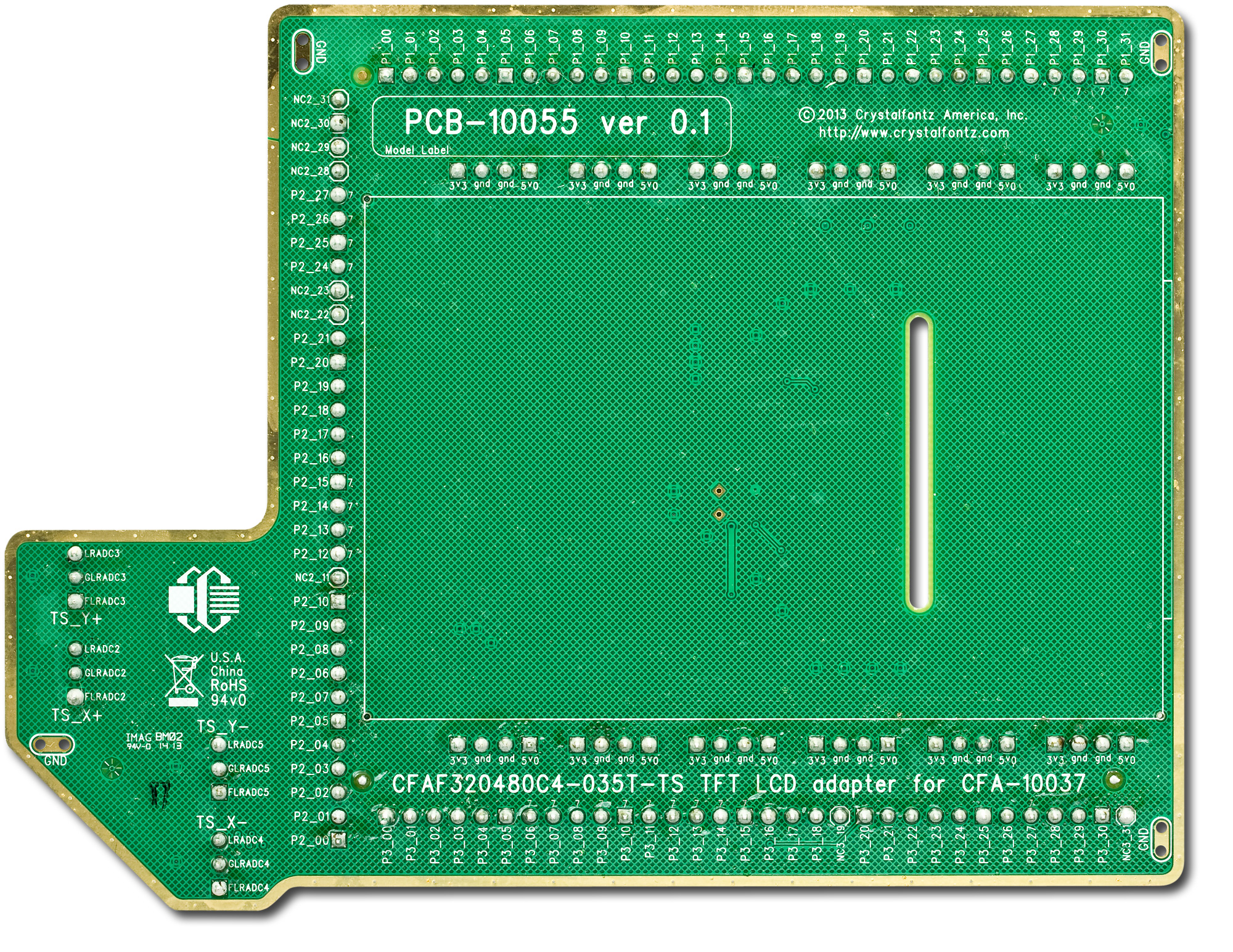

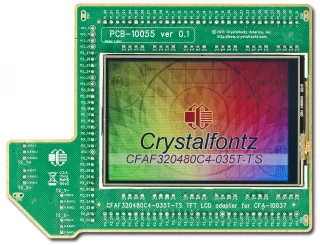

CFA100558Part Number: CFA10055-8Carrier board with attached 3.5-inch 320x480 full color TFT touchscreen display. It is intended to be used with the CFA10037 carrier board for the CFA10036 SOM.


Latest disk image releases here:
images.crystalfontz.com/releases
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 480


    Module Overall        width
        height
        depth


        millimeters
        55.55
        84.96
        3.75


        inches
        2.19
        3.35
        0.15

*width / height does not include Foldable Tab


        Diagonal Dimension
            3.47"


    Viewing Area        Width
        Height


        millimeters
        50.96
        75.44


        inches
        2.01
        2.97



    Active Area        Width
        Height


        millimeters
        48.96
        73.44


        inches
        1.93
        2.89



    Character Size        Width
        Height


        millimeters
        0.05
        0.05


        inches
        0.002
        0.002



        Weight
            70.5g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.65V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            1.8V
Supply Voltage for Driving Panel Typical
            2.8V


        Supply Current Maximum
            15mA
Supply Current Typical
            10mA
Module Connector Pitch
            0.5mm
Touchscreen Connector Pitch
            0.5mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V


        Forward Current Typical
            90mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        max


        Non-condensing
        90%


 cable Electronics
Electronics

        Controller Documents
            Himax HX8357-B
HX8357-B

320RGB x 480 dot, 262K color,

with internal GRAM,

TFT Mobile Single Chip Driver
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
Previous Versions of Datasheetspicture_as_pdfCFAF320480C4-035T Family Data Sheet Release Date 2013-05-06.pdf

picture_as_pdfCFAF320480C4-035T Family Data Sheet Release Date 2013-05-03.pdf

 download Files and Downloads
 Software Source - CFA10055/CFAF320480C4 or CFAF320480C5 memory mapped I/O example
picture_as_pdf Hardware Design - CFA10055 Schematic v0.1
folder_zip Other Document - CFA10055 CAM v0.1.zip file














Module Overall	width	height	depth
millimeters	55.55	84.96	3.75
inches	2.19	3.35	0.15
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	50.96	75.44
inches	2.01	2.97

Active Area	Width	Height
millimeters	48.96	73.44
inches	1.93	2.89

Character Size	Width	Height
millimeters	0.05	0.05
inches	0.002	0.002

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	max
Non-condensing	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10656: CFA10036, CFA10037, CFA10055, and CFA10056 parts are no longer available to be ordered separately. These parts are now bundled with an appropriate display, software to make a turn-key evaluation platform.

Products Affected:	CFA10055-8, CFA10056-4
Date Issued:	May 19, 2015
Summary:	CFA10036, CFA10037, CFA10055, and CFA10056 parts are no longer available to be ordered separately. These parts are now bundled with an appropriate display, software to make a turn-key evaluation platform.
Description:	We are releasing a set of pre-configured demonstration boards based on our CFA10036 and CFA10037 products. The new pre-configured parts are: CFA201 = CFA10055 + CFAF320480C4-035T (was CFA10055-4) CFA202 = CFA10036-1 on CFA10037 + CFA201 CFA203 = CFA10055 + CFAF320480C4-035T-TS (was CFA10055-8) CFA204 = CFA10036-1 on CFA10037 + CFA203 CFA205 = CFA10056 + CFAF480800FT2-040T (was CFA0056-4) CFA206 = CFA10036-1 on CFA10037 + CFA205 CFA207 = CFA10065 + CFAF480640A-035T CFA208 = CFA10036-1 on CFA10037 + CFA207 CFA209 = CFA10065 + CFAF480640B-035T-TS CFA210 = CFA10036-1 on CFA10037 + CFA209 As part of this roll-out, the CFA10036 and CFA10037 will no longer be available as stand-alone products. The CFA920 and CFA921, which are also based on the CFA10036 are still available and in production.
Reason:	Easier to order (no configuration necessary) and lower price for the demonstration boards for the specified displays based on the CFA10036 and CFA10037.
Impact:	CFA10036 and CFA10037 availability will be very limited beyond CFA200 series parts.
Availability:	CFA10037, CFA10055, and CFA10056 based parts will not be available for order directly as of 2015-05-20. CFA200 series parts are available immediately.
Price Change:	The 200 series bundles are priced aggressively compared to the previous price for the same products configured under the old part numbers. See display part pages bundle pricing.

Product Update #10584: The Linux SOM family has had a kernel and a build update.

Products Affected:	CFA-10036, CFA10037, CFA10055-8, CFA10056-4, CFA921-TS, CFA920-TS
Date Issued:	April 28, 2014
Summary:	The Linux SOM family has had a kernel and a build update.
Description:	Linux kernel update and build update.
Recommendation:	To access the new build please visit: http://images.crystalfontz.com/releases/

Product Update #10477: (New Product) CFA100558

New Product:	CFA10055-8
Date Issued:	April 22, 2013
Summary:	(New Product) CFA100558
Description:	Linux SOM: Carrier Board w/3.5 inch 320x480 touchscreen

CFA100558

Part Number: CFA10055-8

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10656: CFA10036, CFA10037, CFA10055, and CFA10056 parts are no longer available to be ordered separately. These parts are now bundled with an appropriate display, software to make a turn-key evaluation platform.

Product Update #10584: The Linux SOM family has had a kernel and a build update.

Product Update #10477: (New Product) CFA100558

LCD Software

User Forum

Tech Support
