This part is available with a new part number directly from the CFAF480800FT2-040T page as the CFA203 or CFA204 demonstration bundle

CFA100564

Part Number: CFA10056-4



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA10056-4 or RSS RSS feed for changes to CFA10056-4 for CFA10056-4


CFA100564 (CFA10056-4)
CFA100564
Close

Description

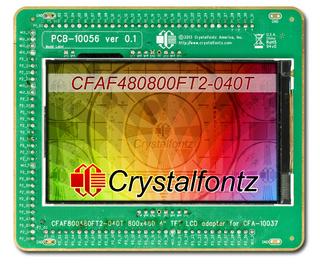

Carrier board comes with attached CFAF480800FT2-040T 4.0" diagonal 480x800 color TFT display, and was designed to be used with the CFA10037 carrier board for the CFA10036 SOM.

Latest disk image releases here: images.crystalfontz.com/releases

TECHNICAL SPECS

Physical Characteristics

Weight 64.9g

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA10056-4 or RSS RSS feed for changes to CFA10056-4

Part Change Notice #10656: CFA10036, CFA10037, CFA10055, and CFA10056 parts are no longer available to be ordered separately. These parts are now bundled with an appropriate display, software to make a turn-key evaluation platform.

Products Affected: CFA10055-8, CFA10056-4
Date Issued: May 19, 2015
Summary: CFA10036, CFA10037, CFA10055, and CFA10056 parts are no longer available to be ordered separately. These parts are now bundled with an appropriate display, software to make a turn-key evaluation platform.
Description: We are releasing a set of pre-configured demonstration boards based on our CFA10036 and CFA10037 products. The new pre-configured parts are:

CFA201 = CFA10055 + CFAF320480C4-035T (was CFA10055-4)
CFA202 = CFA10036-1 on CFA10037 + CFA201
CFA203 = CFA10055 + CFAF320480C4-035T-TS (was CFA10055-8)
CFA204 = CFA10036-1 on CFA10037 + CFA203
CFA205 = CFA10056 + CFAF480800FT2-040T (was CFA0056-4)
CFA206 = CFA10036-1 on CFA10037 + CFA205
CFA207 = CFA10065 + CFAF480640A-035T
CFA208 = CFA10036-1 on CFA10037 + CFA207
CFA209 = CFA10065 + CFAF480640B-035T-TS
CFA210 = CFA10036-1 on CFA10037 + CFA209

As part of this roll-out, the CFA10036 and CFA10037 will no longer be available as stand-alone products.

The CFA920 and CFA921, which are also based on the CFA10036 are still available and in production.
Reason: Easier to order (no configuration necessary) and lower price for the demonstration boards for the specified displays based on the CFA10036 and CFA10037.
Impact: CFA10036 and CFA10037 availability will be very limited beyond CFA200 series parts.
Availability: CFA10037, CFA10055, and CFA10056 based parts will not be available for order directly as of 2015-05-20.
CFA200 series parts are available immediately.
Price Change: The 200 series bundles are priced aggressively compared to the previous price for the same products configured under the old part numbers. See display part pages bundle pricing.

Product Update #10584: The Linux SOM family has had a kernel and a build update.

Products Affected: CFA-10036, CFA10037, CFA10055-8, CFA10056-4, CFA921-TS, CFA920-TS
Date Issued: April 28, 2014
Summary: The Linux SOM family has had a kernel and a build update.

Description: Linux kernel update and build update.
Recommendation: To access the new build please visit: http://images.crystalfontz.com/releases/

Product Update #10475: (New Product) CFA100564

New Product: CFA10056-4
Date Issued: April 22, 2013
Summary: (New Product) CFA100564
Description: Linux SOM: Carrier Board w/4 inch 480x800 Full Color TFT display
