OLED Breakout Board

Part Number: CFA10105

Pricing

Quantity Price
1 * $11.22
10 * $9.12
20 * $8.82
50 * $8.51
100 * $8.38
200 * $8.32
300 * $8.26
500 * $8.20
1000 * $7.21
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA10105 or RSS RSS feed for changes to CFA10105 for CFA10105

Description

This adapter board simplifies the process of bringing up some of our OLED displays including the transparent OLED and the 1.54" OLED in white and our 128x64 yellow OLED. With this adapter board, these OLEDs can be powered and run by a 3.3v microprocessor without a separate power supply. That means all you need is this board and a Seeeduino to run the displays - no extra components, no extra power supply.

This board supports interfacing with the display using SPI, I2C, 6800, and 8080. Two jumpers on the board control the interface. They ship open for communication using SPI but can easily be closed with solder or external wires.

There are two options for mounting an OLED to this board, and tape is included on the board for whichever option you choose. The first option is to mount the display on the goal posts - this is a score for the transparent so you don't lose any of its wow-factor. The other option is piggyback the board onto the display. This makes a nice small form factor, but unfortunately, the board itself isn't transparent, so we recommend this option for the non-transparent OLEDs only.

The back of the board is printed with a quick and handy guide for the different interfaces. We love this board and think you will too!
  • Single 3.3v required to power the OLED (usually takes 3.3v & 12.5v)
  • It has a voltage regulator for the 12.5v rail
  • configurable jumpers to change the interface between parallel / SPI / I2C
  • Two styles of mounting available, open window for the transparent and the non-transparent displays can wrap around and wear the adapter board like a backpack
  • BS1 & BS2 can be controlled by jumpers or by external wires

This breakout board was specifically designed for these OLED display modules:
128x64 White Graphic OLED
128x64 Yellow Graphic OLED
128x56 Transparent OLED Display

Video Demonstrations

OLED Breakout Board

OLED Breakout board designed specifically for our 128x56 Transparent OLED and our 128x64 Yellow and White graphic OLED.


TECHNICAL SPECS

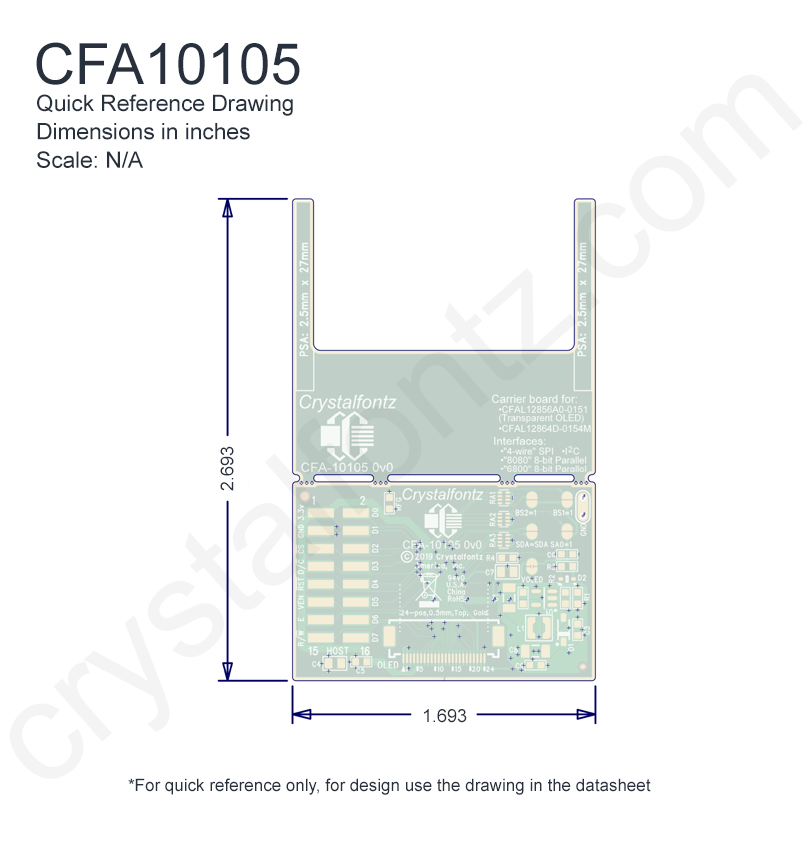

Physical Characteristics

PCB Outline width height depth
millimeters 43 68.4 0.85
inches 1.693 2.693 0.033
Weight 5g

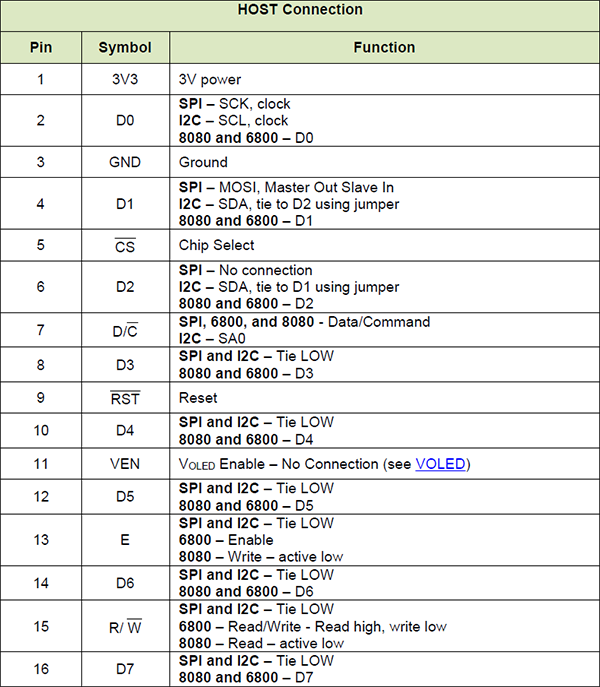

Pin Count 16

Electronics

Interface 8-bit Parallel, I2C, SPI
For reference only. For design purposes, please use the specifications in the datasheet.
