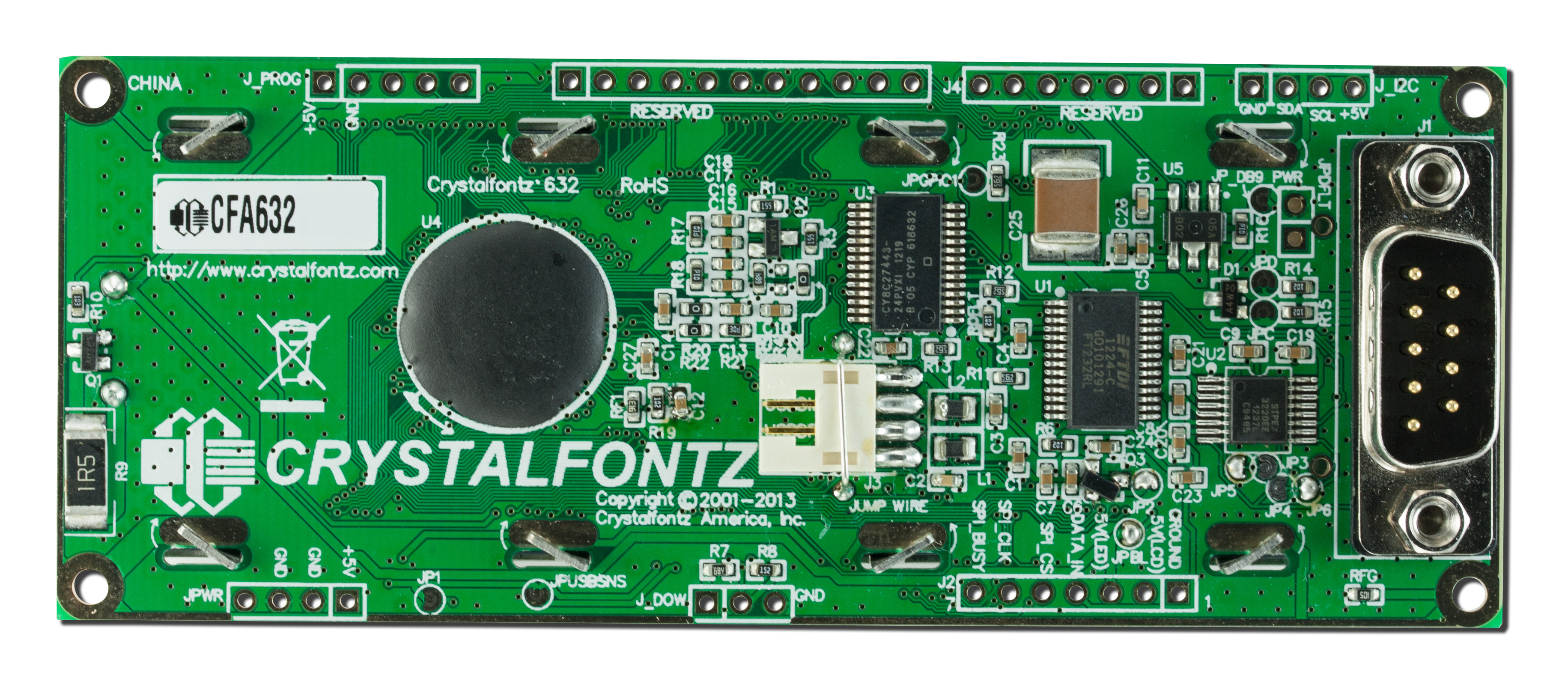

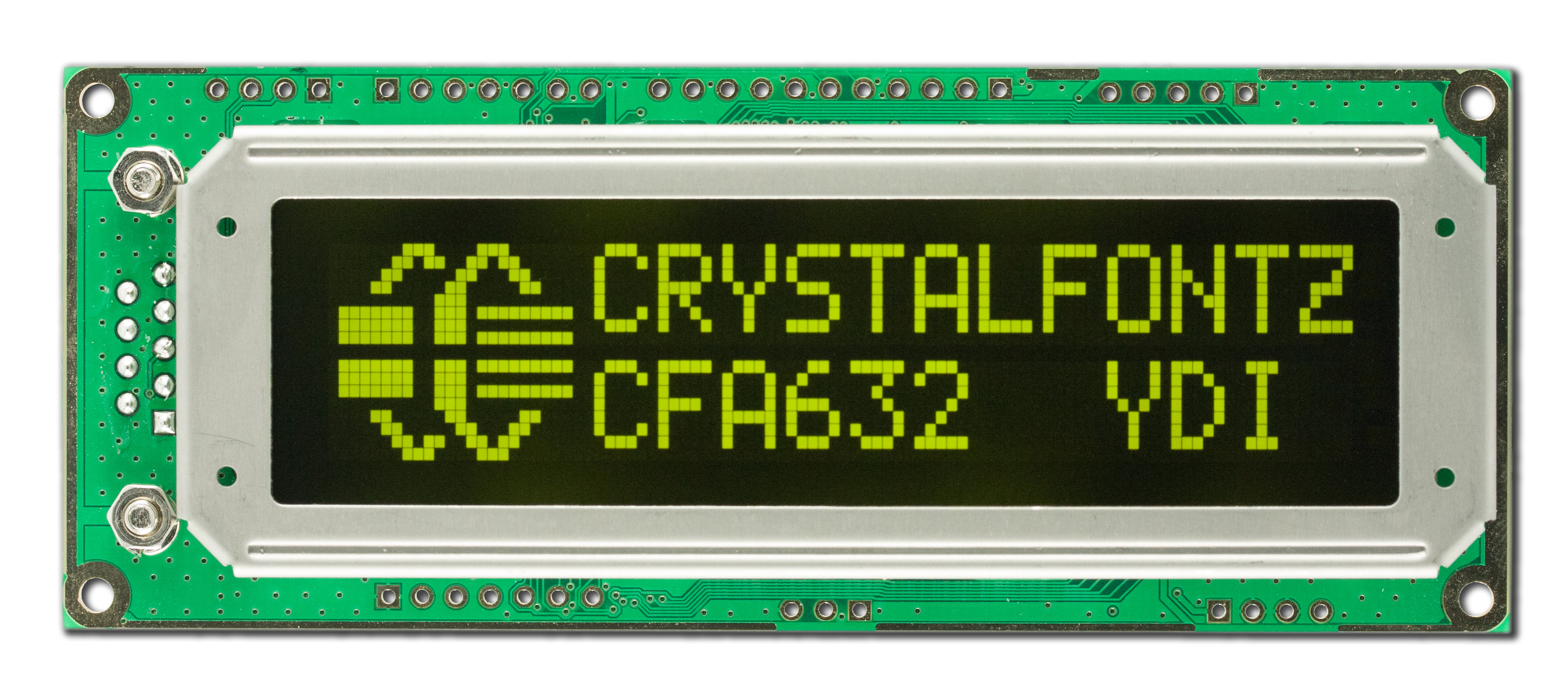

16x2 Serial Character LCD

Part Number: CFA632-YDI-KL

Pricing

Quantity Price
1 $41.30
10 $40.10
20 $38.10
50 $36.20
100 $34.10
200 * $32.20
500 * $30.20
1000 * $28.20
* Contact us about potential lead times.
Add to cart without customizations
Qty:


Datasheets

CFA632 Series Data Sheet Release Date 2015-03-30.pdf
(Sep 2015, Datasheet 2015-03-30, Hardware 3.3, Firmware 3.3)
Previous Versions of Datasheets
CFA632 Family Data Sheet Release Date 2014-02-25.pdf
(Feb 2014, Hardware 3.3, Firmware 2.2)
CFA632 Family Data Sheet Release Date 2013-07-15.pdf
(Jul 2013, Hardware 3.3, Firmware 3.2)
CFA632 Family Preliminary Data Sheet Release Date 2013-06-26.pdf
(Jul 2013, Datasheet 2013-06-26, Hardware 3.3, Firmware 3.2)




Description

Logic Level Serial, 16x2 character LCD module, RoHS / REACH Compliant, Yellow-Green LED Backlight, FFSTN Negative (Black), Transmissive -20°C to +70°C operation, 6:00 viewing angle.

Large easy-to-read LCD in a compact size can display 16 characters x 2 lines. Overall module size is 108.00 mm width x 42.00 mm height x 19.90 mm depth (4.25" x 1.65" x 0.78"). Character height is 7.30 mm (0.29").

  • The CFA632 can use any of SIX interfaces on any CFA632 module by simply changing the interface selection using a command setting and making the appropriate jumper configurations.
  • Optional PC CDROM mounting bracket with overlay for a single bay is available after adding a display module to cart. Mounting dimensions are 5.25" (W) x 1" (H).
  • Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control command.
  • Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller. Backlight is 5 volts only.
  • Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 108 42 19.9
inches 4.252 1.654 0.783
PCB Outline width height depth
millimeters 108 42 19.9
inches 4.252 1.654 0.783
Viewing Area width height
millimeters 82.3 22.5
inches 3.240 0.886
Active Area width height
millimeters 74.82 15.8
inches 2.946 0.622
Character Size width height
millimeters 3.84 7.3
inches 0.151 0.287
Character Pitch width height
millimeters 4.68 8.5
inches 0.184 0.335
Dot Size width height
millimeters 0.72 0.86
inches 0.028 0.034
Dot Pitch width height
millimeters 0.78 0.92
inches 0.031 0.036
Weight 72g

Optical Characteristics

Glass Type FFSTN
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color Yellow-Green
Backlight Type LED
Mode Negative
Foreground Color Dark
Background Color Yellow-Green

Electrical Specifications

Supply Voltage for Logic Typical 5V

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 10% 90%

Electronics

Interface Logic Level Serial

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA632-YDI-KL or RSS RSS feed for changes to CFA632-YDI-KL

Part Change Notice #10658: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.

Products Affected: CFA631-RMF-KU, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA631-TMF-KU, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TMI-KI, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU
Date Issued: July 1, 2015
Summary: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.
Description: Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs.

This change will eliminate the current "kits", but will add options not previously available such as pre-configured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED.
The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options.
To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts:
https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1
NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason: As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact: Drive bay kits in their current configuration will no longer be available.
Recommendation: Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email: sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200).
After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability: Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change: Pricing bracket / SLED configurations will reflect manufacturing costs.

Part Change Notice #10650: CFA634 Firmware update

Products Affected: CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN
Date Issued: March 25, 2015
Summary: CFA634 Firmware update
Last revision: 3.1
Description: As part of our continuous improvement process, the CFA634 firmware is being revised from 3.1 to 3.2 with the following changes:

  1. Improved cursor position control when display is sent carriage return

  2. Boot screen will reflect selected interface when using the JPDFLT jumper after module reboot

  3. Access to location \002 Extended Register Removed (command \030, 0x1E, Ctrl+=)


Updated datasheet will include details of the above changes, as well as general fixes.
Reason: Bug fixes and usability improvements.
Impact: Changes effect all CFA634 products. Firmware update is compatible with existing code, other than changes to command 30.
Recommendation: Prior to implementing the new firmware into production, it is recommended that engineering samples be ordered and tested.
Availability: Displays with new firmware will begin shipping during 2Q 2015.
Price Change: No price change is planned for this change.

Part Change Notice #10649: CFA632 Firmware update

Products Affected: CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
Date Issued: March 25, 2015
Summary: CFA632 Firmware update
Last revision: 3.2
Description: As part of our continuous improvement process, the CFA632 firmware is being revised from 3.2 to 3.3 with the following changes:

  1. Improved cursor position control when display is sent carriage return

  2. Boot screen will reflect selected interface when using the JPDFLT jumper after module reboot

  3. Access to location \002 Extended Register Removed (command \030, 0x1E, Ctrl+=)


Updated datasheet will include details of the above changes, as well as general fixes.

ECO-50
Reason: Bug fixes and usability improvements.
Impact: Changes effect all CFA632 products. Firmware update is compatible with existing code, other than changes to command 30.
Recommendation: Prior to implementing the new firmware into production, it is recommended that engineering samples be ordered and tested.
Availability: Displays with new firmware will begin shipping during 2Q 2015.
Price Change: No price change is planned for this change.

Part Change Notice #10579: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.

Products Affected: CFA632-YFB-KS, CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
Date Issued: December 20, 2013
Summary: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.
Last revision: v3.2.5
Description: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation where the SPI_BUSY line is used as a busy indicator instead of the module's unused transmit line. Firmware will migrate from v3.2.5 to v3.2.6
Reason: To maintain legacy functionality.
Impact: Impact to customers utilizing SPI functionality only.
Recommendation: For questions please contact Technical Service at 1-888-206-9720.

Product Update #10501: (New Product) CFA632-YDI-KL

New Product: CFA632-YDI-KL
Date Issued: July 9, 2013
Summary: (New Product) CFA632-YDI-KL
Description: Intelligent Serial LCD Modules: 16x2 Logic Level (TTL) serial LCD, Y/G LED Backlight, FFSTN Negative,Transmissive -20°C to +70°C, 6:00.
For reference only. For design purposes, please use the specifications in the datasheet.
