240x240 1.3" Color TFT LCD Display

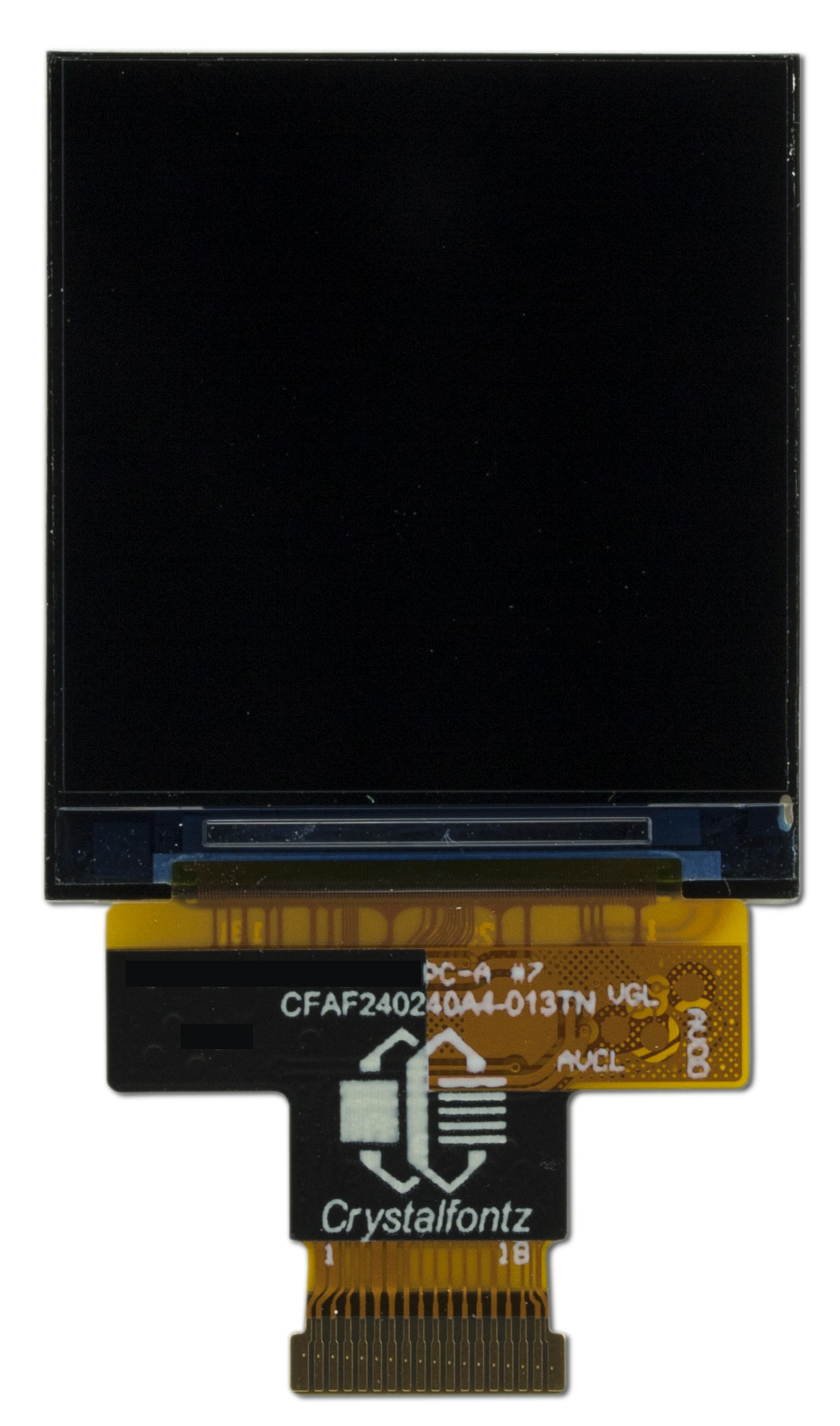

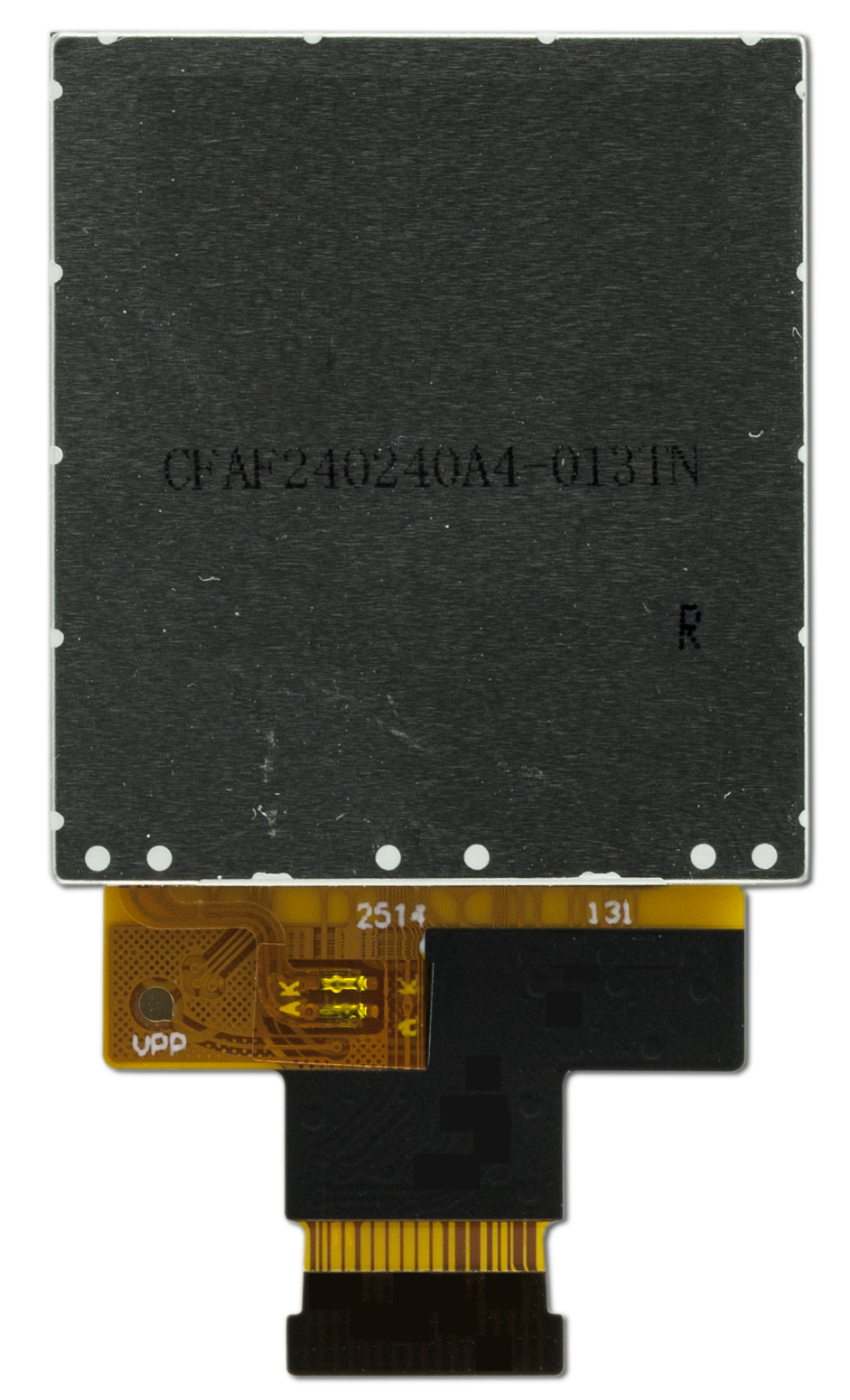

Part Number: CFAF240240A4-013TN

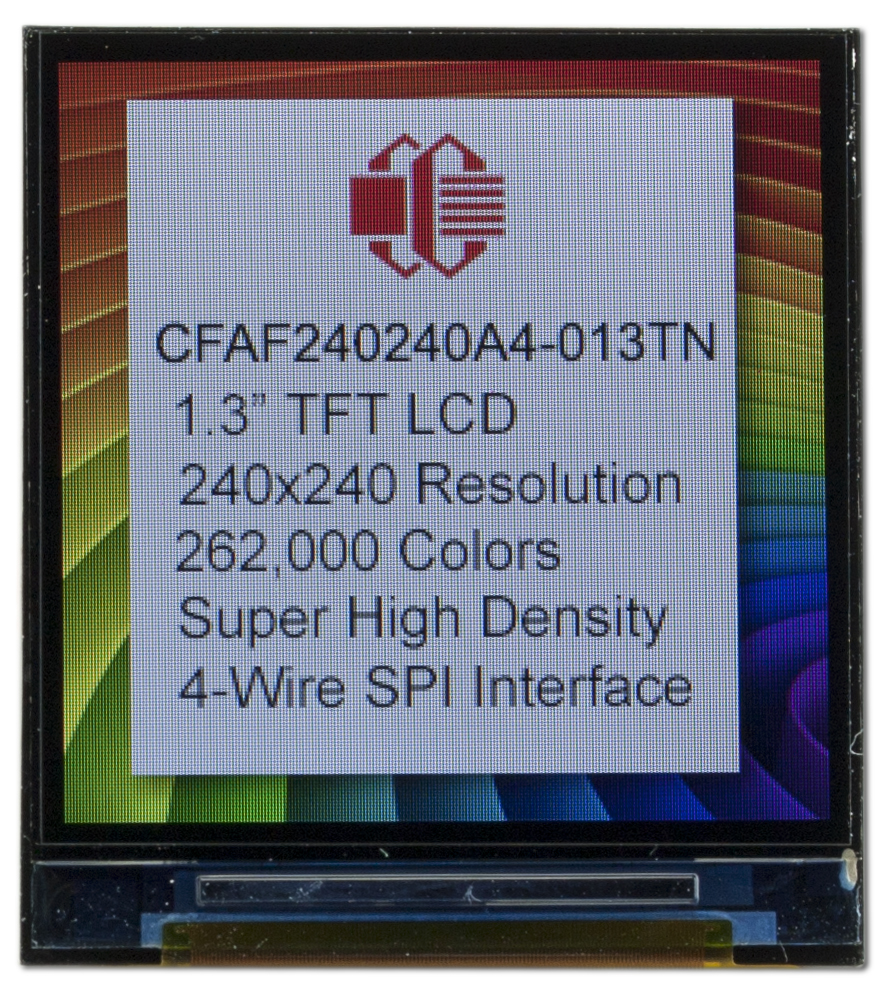

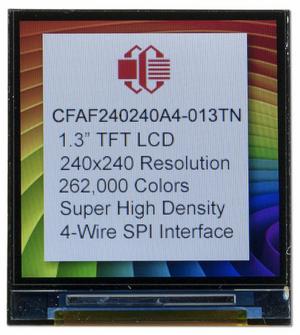

This full-color, IPS, TFT LCD module is a beautiful high-density display. It boasts crisp, bright images over a 4-wire SPI interface. And don't worry about SPI being too slow, check out the video below showing a video played on this display and the demo code on GitHub.

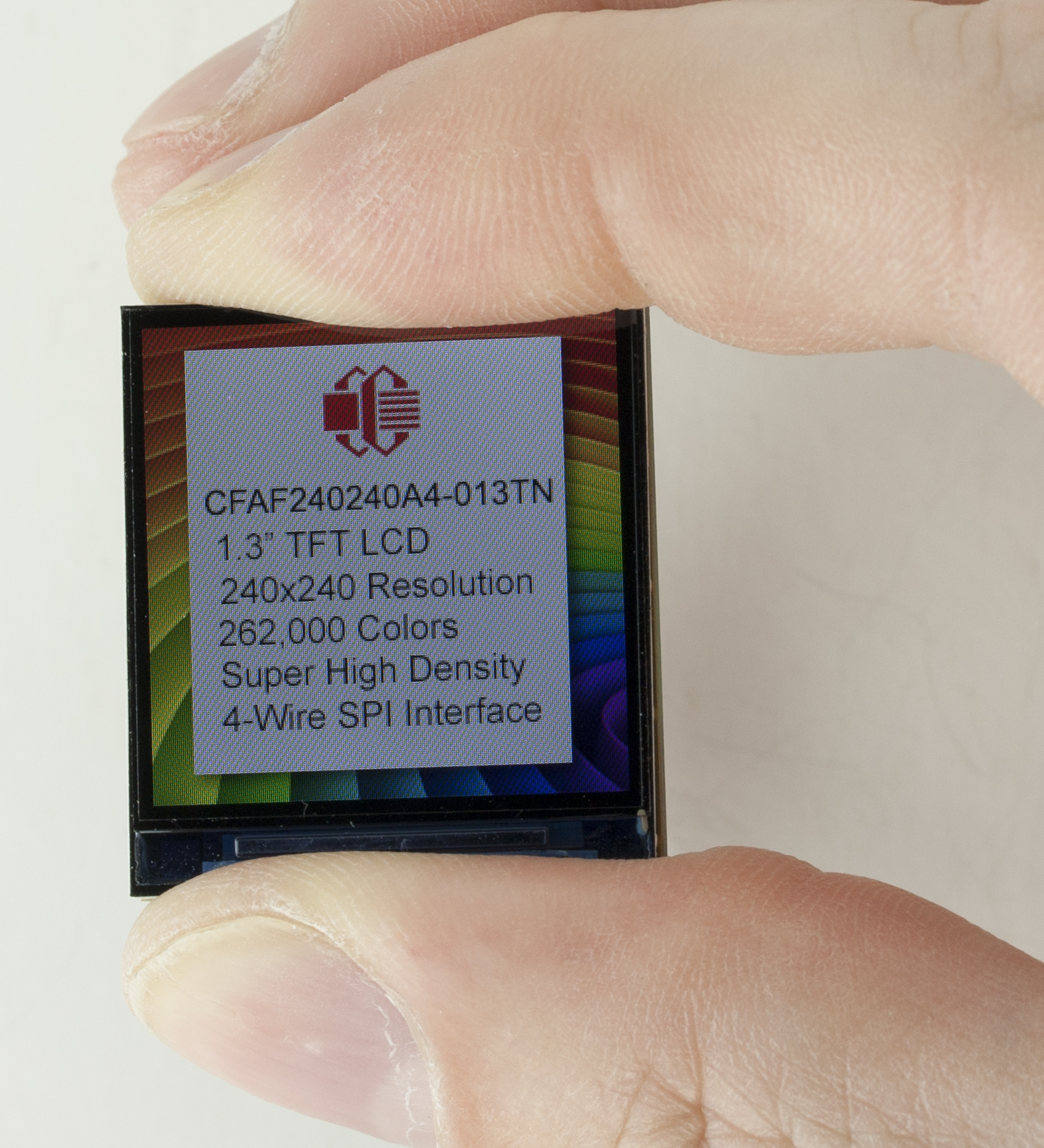

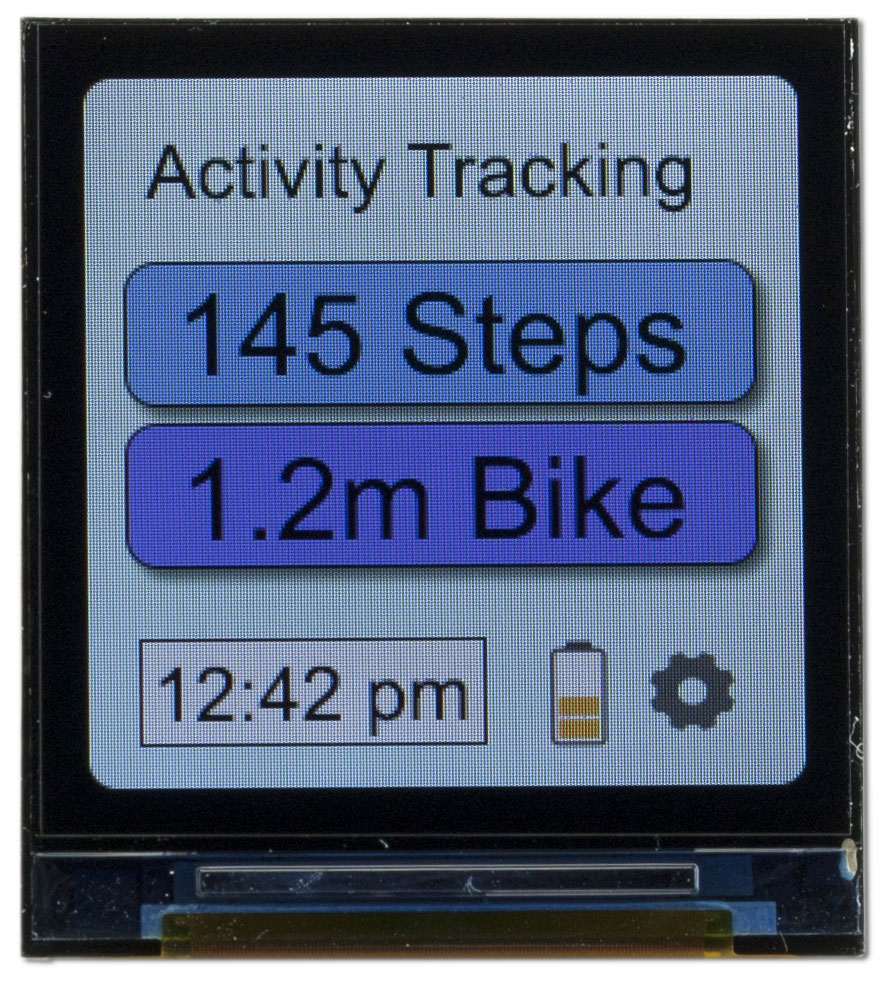

At 1.3" diagonal, this little TFT is perfect for devices that need full-color graphics in an ultra-compact form factor. This display is the ideal fit for a next-generation wearable device.

Is power a concern? The Sitronix ST7789H2 controller has Content Adaptive Backlight Control (CABC) which allows the backlight power to be automatically minimized.

Are you looking for a thin display? This TFT is just 1.5mm thick - less than 1/16 inch!

For a slightly larger wearable display, check out the 128x128 1.45" Full-Color TFT LCD Display, or check out our list of small displays.

The 18-pin ZIF connector makes connecting to a PCB as easy as mounting any other SMT component. No special soldering operation is needed. We even carry 18-position, 0.5mm pitch ZIF connectors to go with it.

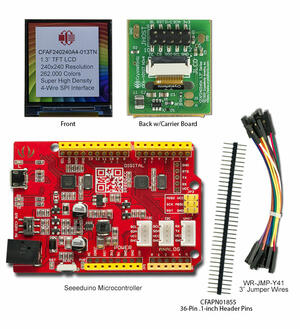

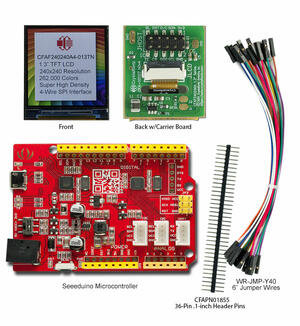

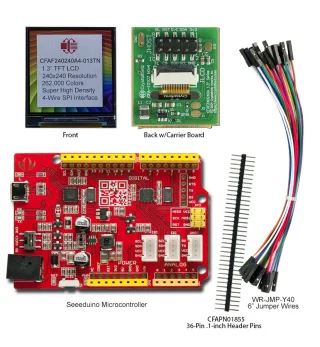

Want an even easier way to bring this display up? Get this small TFT with a breakout board module or the full Seeeduino development kit for a plug-and-play option.

This fantastic full-color TFT display requires only a single 3.3v supply for all the display functions. The backlight's anode (A,+) and cathode (K, -) pins are brought out independently to provide flexibility in the backlight driving circuit design but also uses only 3.3v.

This small, low-power, full-color, high-density display is a perfect 240x240 LCD for use with an Arduino, as wearables, or in any low-voltage or battery-powered device.

Key Features:

• Small, Full Color TFT (1.3" diagonal)
• Low voltage (3.3v for logic and backlight)
• SPI interface
• IPS (ultra-wide viewing angle)
• 18-position ZIF tail

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  240 x 240

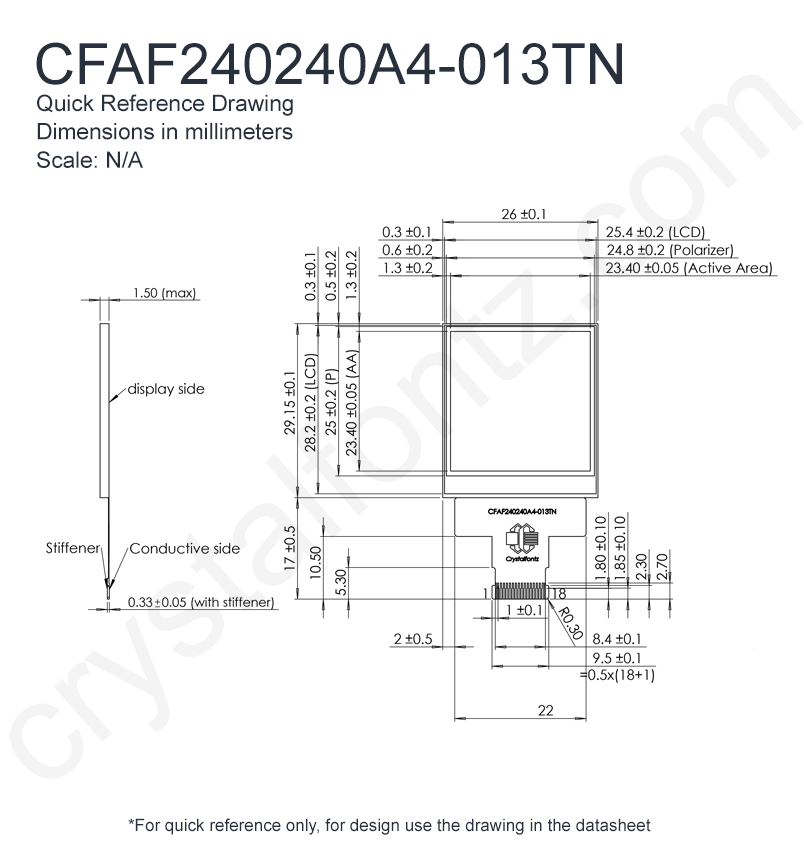

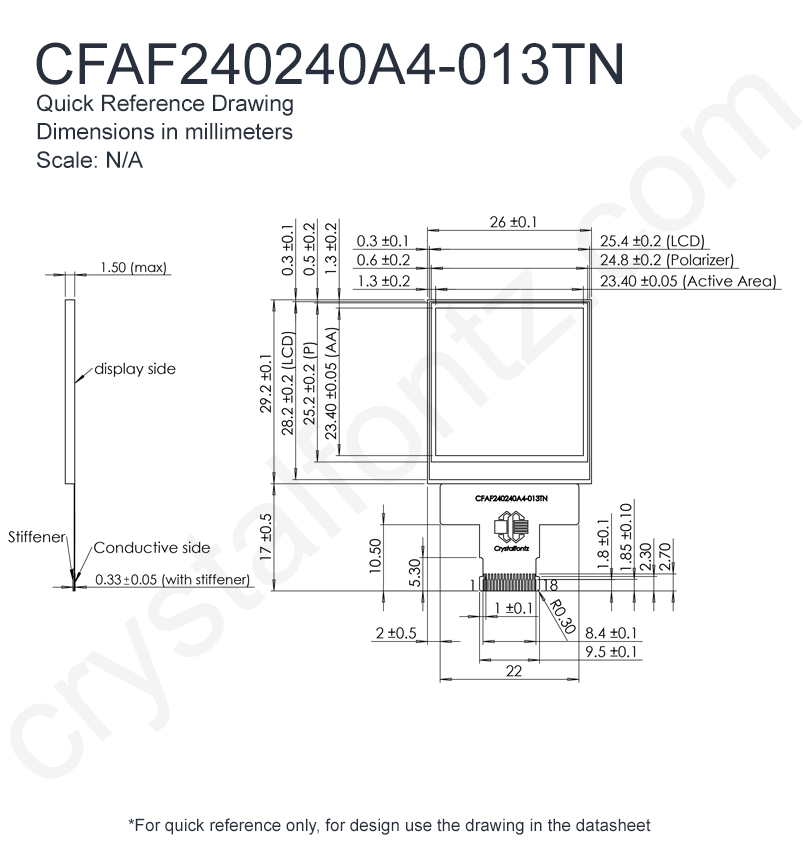

  Module Overall	width	height	depth
  millimeters	26	29.15	1.5
  inches	1.02	1.15	0.06

  Diagonal Dimension

  1.3"

  Active Area	Width	Height
  millimeters	23.4	23.4
  inches	0.92	0.92

  Weight	2g
  Pin Count	18

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transmissive
  View Angle	160°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	1.65V
  Supply Voltage for Logic Maximum	3.3V
  Supply Voltage for Logic Typical	1.8V

  Supply Voltage for Driving Panel Typical	2.8V
  Supply Current Maximum	8.9mA
  Supply Current Typical	5.9mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7789H2 The ST7789H2 is a single-chip controller/driver for 262K-color, graphic type TFT-LCD.
  Interface	SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF240240A4-013TN-E1 Datasheet




• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  folder_zip Hardware Design - Adapter Board Build Files


  link Demo Code Download on Github


  link Demo Code Repository on Github
