            240x240 1.3" TFT Display Dev Kit
            Part Number: CFAF240240A4-013TN-KIT

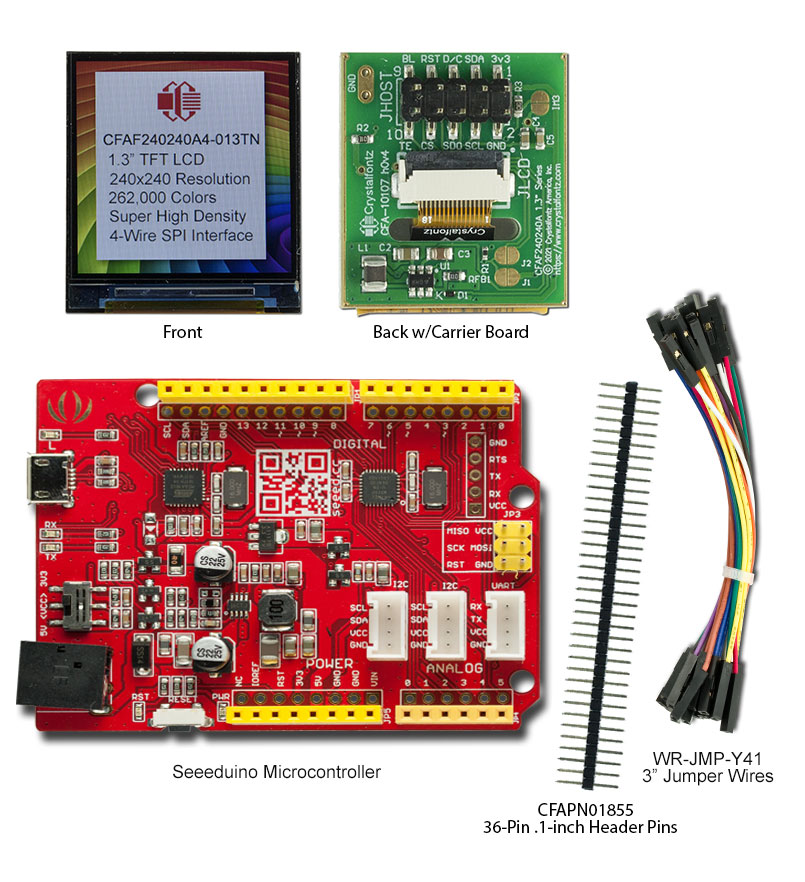

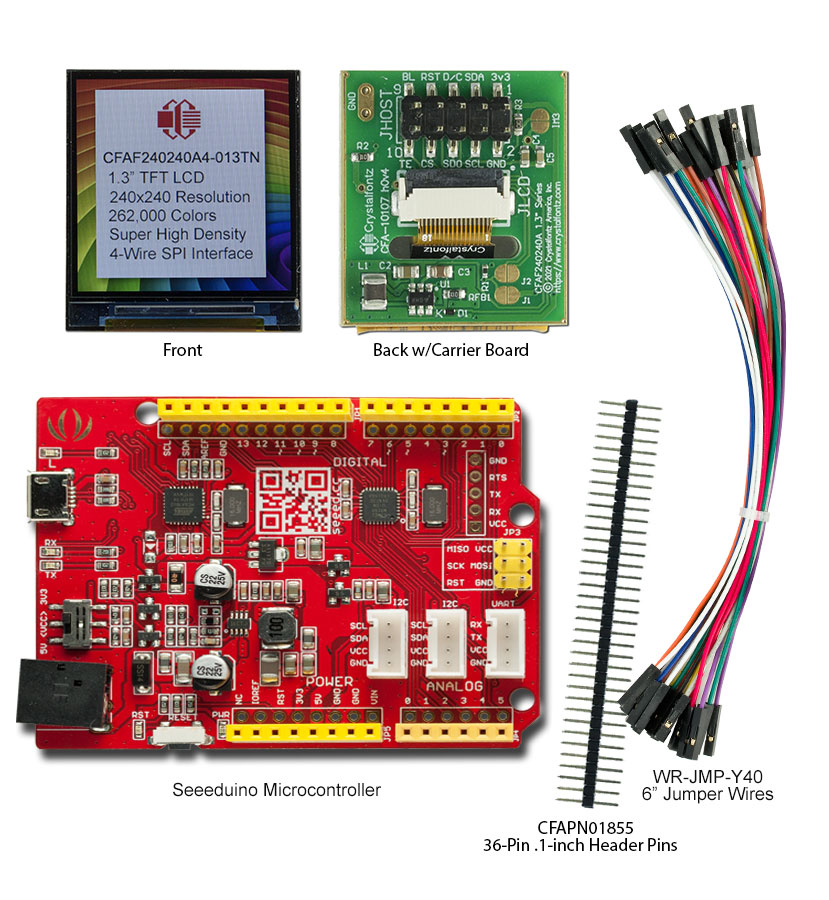

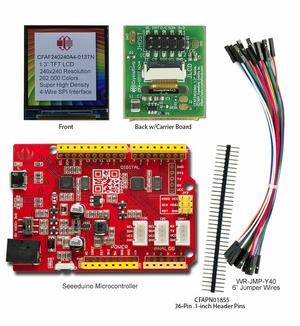

                        This is a TFT Seeeduino kit for our tiny TFT with adapter board. This kit includes the small TFT mounted to an adapter board, already connected to a Seeeduino loaded with demonstration code. That means all you need to do when the kit arrives is plug a USB cord into power to see a functioning display.

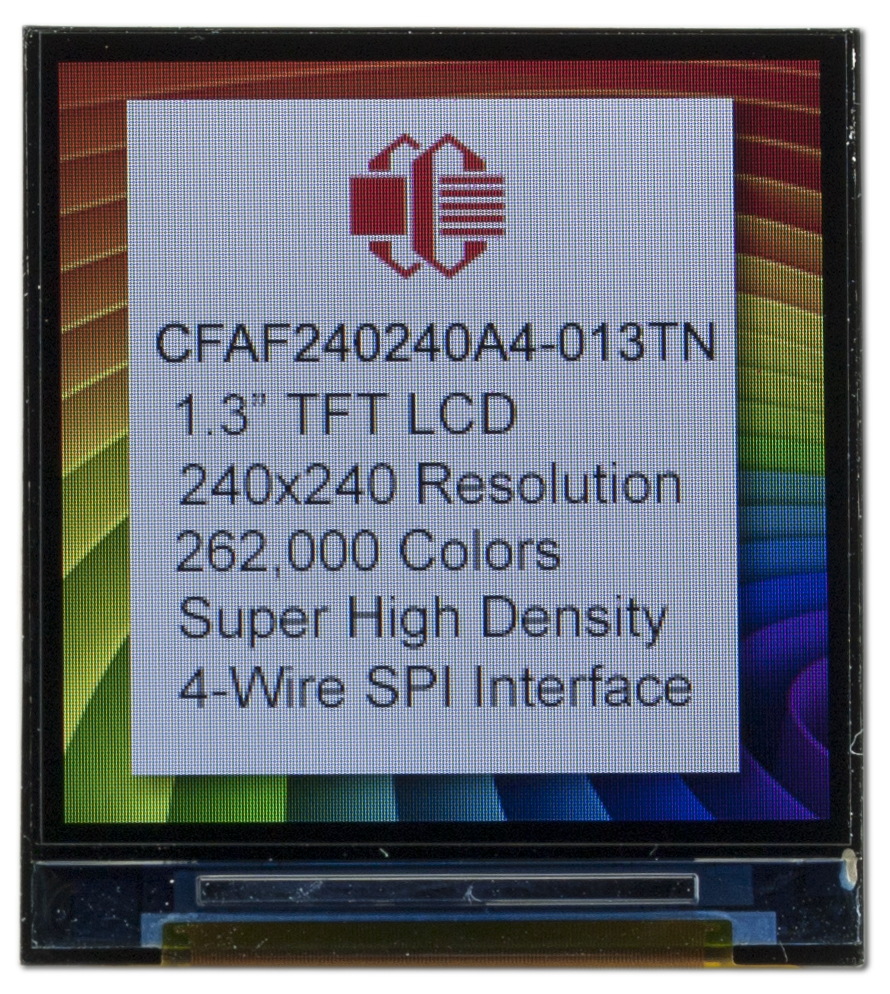

The included TFT is a crisp 1.3", full color, 240x240 IPS display. The adapter board is designed specifically for this TFT display, so there is no PCB overlap. Plus the board includes a backlight driver so the entire display, including the backlight, can be driven with a single 3.3v power input. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 240

    Module Overall        width
        height
        depth

        millimeters
        26
        29.15
        1.5

        inches
        1.02
        1.15
        0.06

        Diagonal Dimension
            1.3"

    Active Area        Width
        Height

        millimeters
        23.4
        23.4

        inches
        0.92
        0.92

        Weight
            45g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            Any o'clock
View Angle
            160°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.65V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            1.8V

        Supply Voltage for Driving Panel Typical
            2.8V
Supply Current Maximum
            8.9mA
Supply Current Typical
            5.9mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789H2
The ST7789H2 is a single-chip controller/driver for 262K-color, graphic type TFT-LCD.
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAF240240A4-013TN-E1 Datasheet

download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip Hardware Design - Adapter Board Build Files
link Demo Code Download on Github
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $53.00

107 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						Seeeduino 4.3
Add a Microcontroller? $10.00 ea.

						6-inch Female to Female Jumper Wires
Add jumper wires? $2.76 ea.

						1.3" 240x240 Full-Color LCD Display on Adapter Board
Add a display with breakout? $32.76 ea.

						MicroSD Card Reader
Add a breakout board? $8.14 ea.

Module Overall	width	height	depth
millimeters	26	29.15	1.5
inches	1.02	1.15	0.06

Active Area	Width	Height
millimeters	23.4	23.4
inches	0.92	0.92

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$53.00
