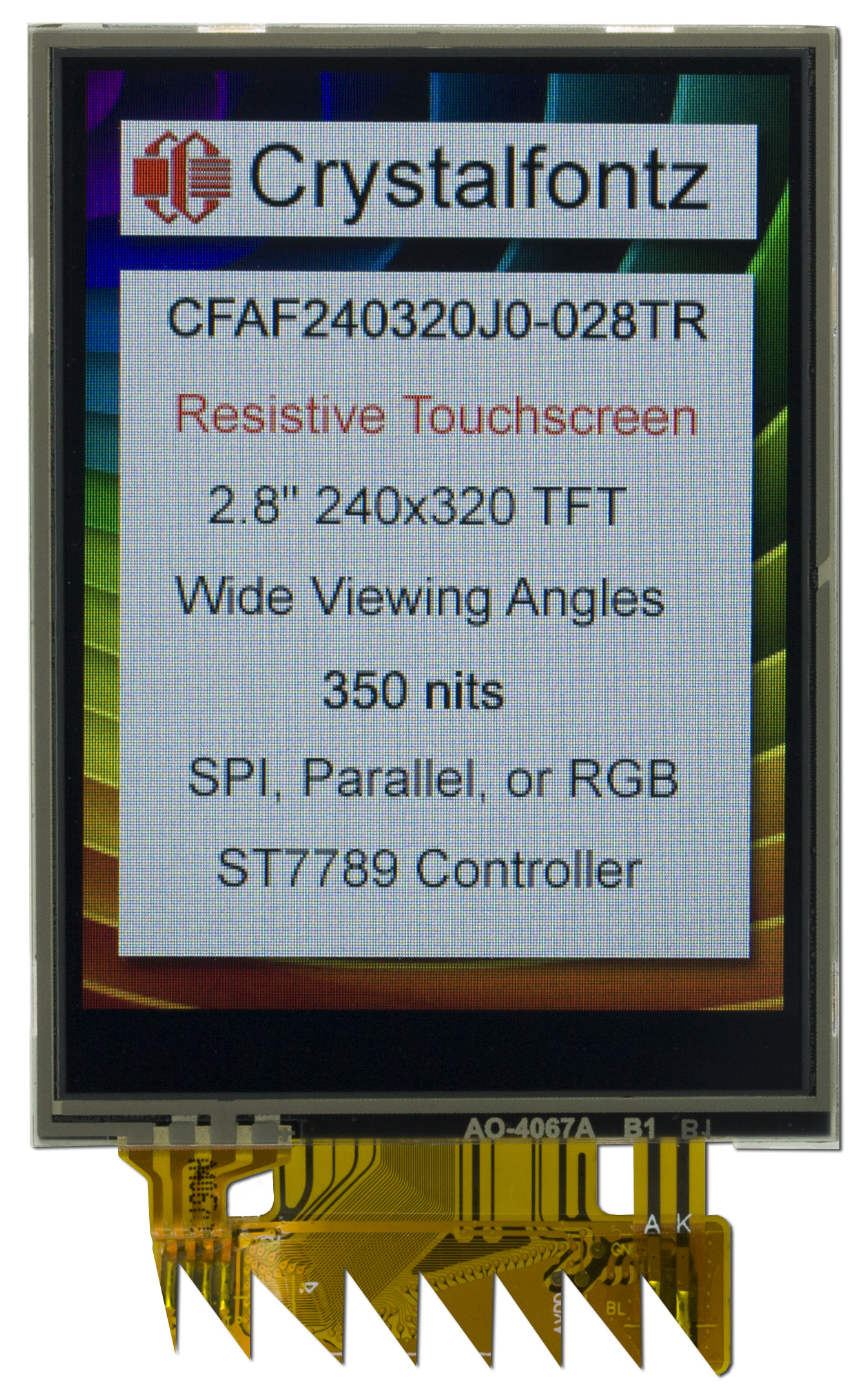

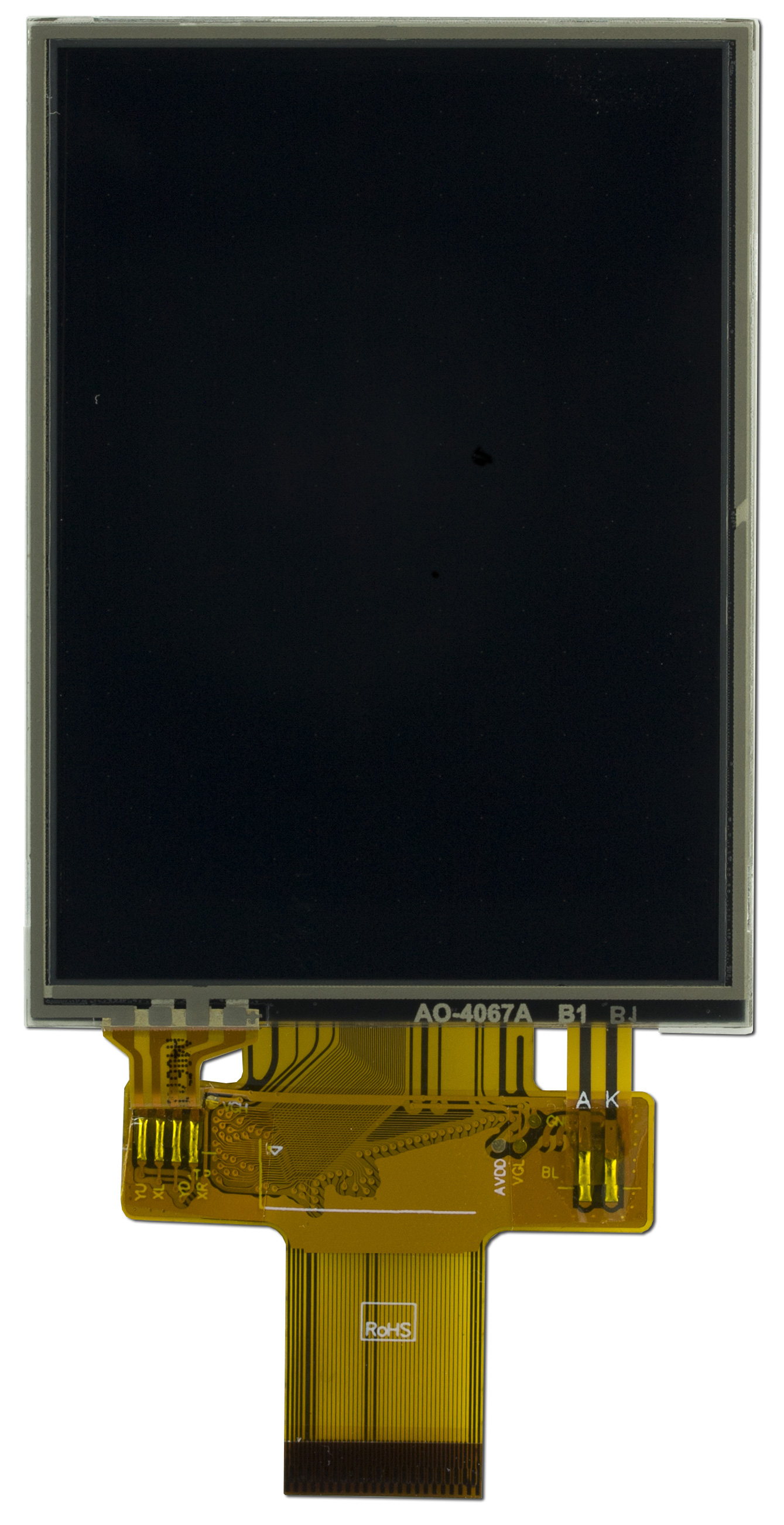

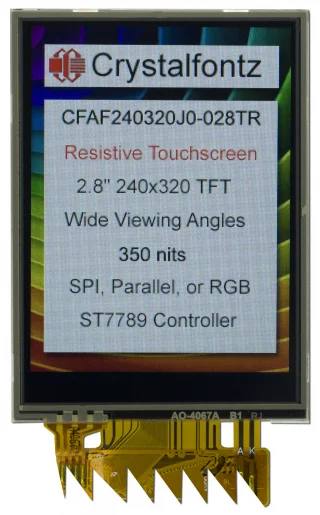

Resistive Touchscreen 2.8" 240x320 IPS TFT Display

Part Number: CFAF240320J0-028TR

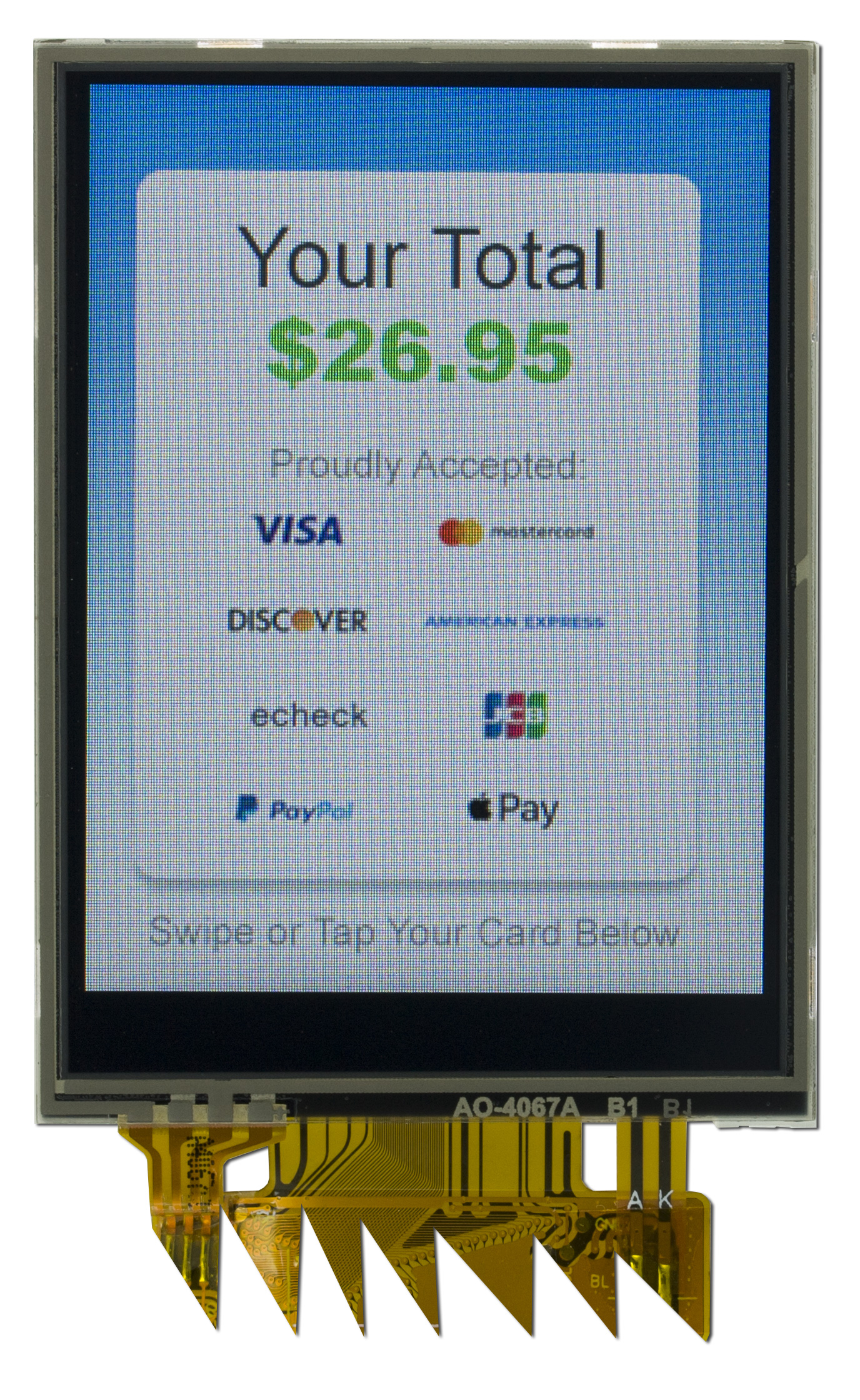

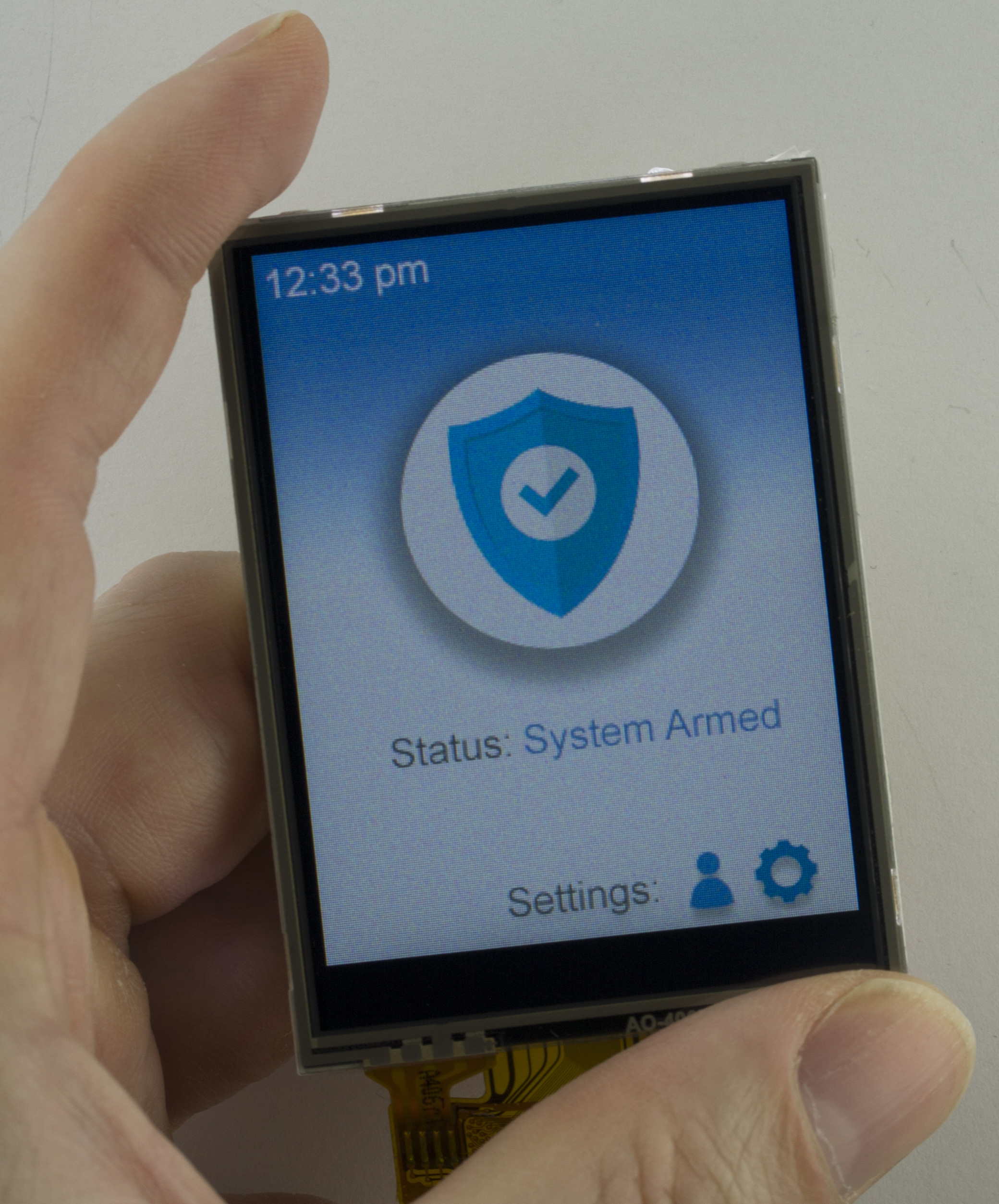

This display is a great choice for a machine interface. The resistive touchscreen and the wide viewing angles (thanks to the IPS technology) make this display a great choice for countertop appliances, handheld devices that might get exposed to water droplets during use, or any project needing a mid-sized display with a touchscreen.

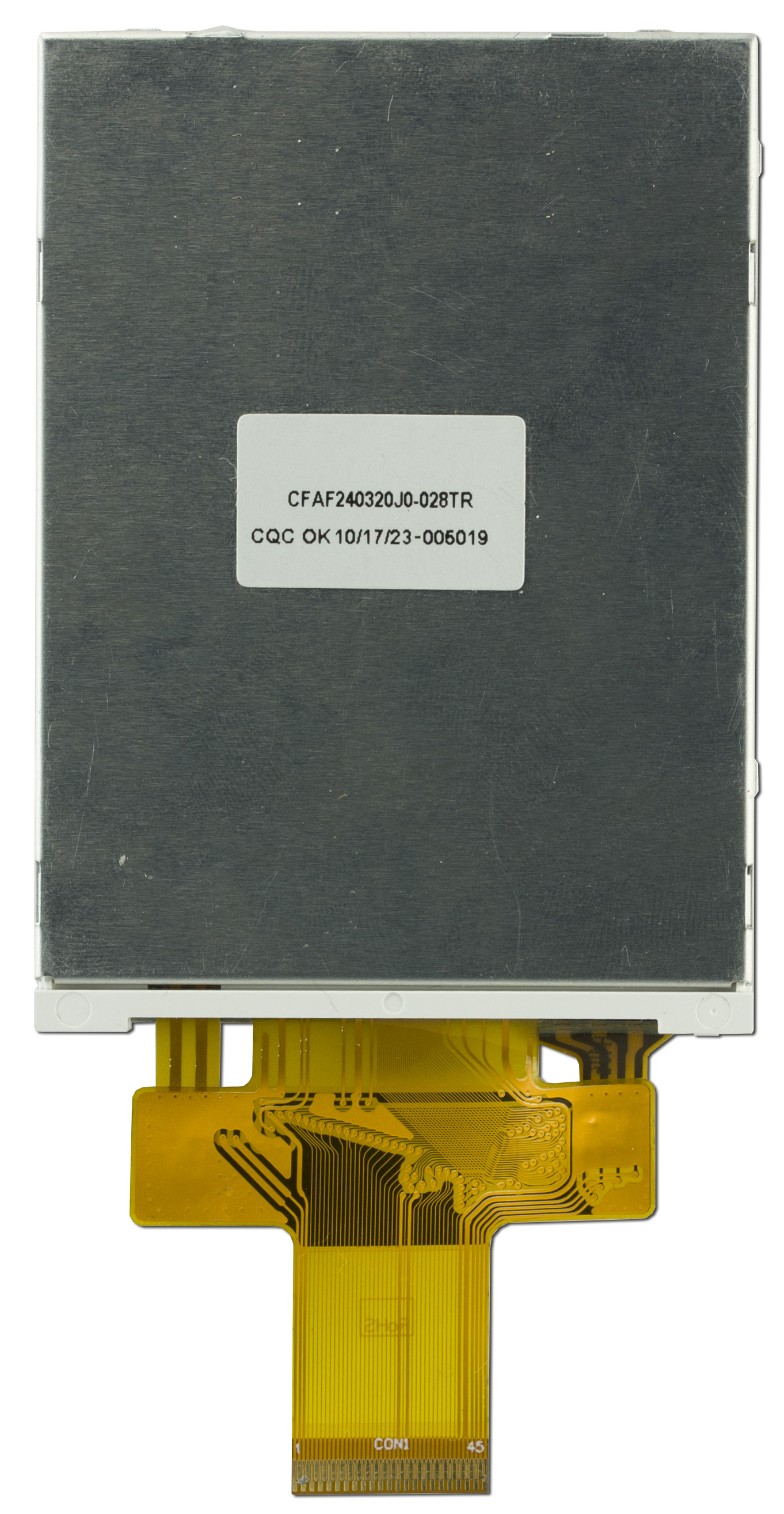

A single tail includes all of the display, backlight, and touch connections. This display can interface with either SPI or parallel.

If a capacitive touchscreen would work better for your application, reach out to us at support@crystalfontz.com. A minimum order quantity may apply, but a capacitive touchscreen is available.

Part Number:
CFA - Crystalfontz America
F - TFT
240320 - 240 x 320 pixel resolution
J0 - Family and revision
028 - 2.8" diagonal
T - Standard brightness
R - Resistive touchscreen

Product Variants

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  240 x 320

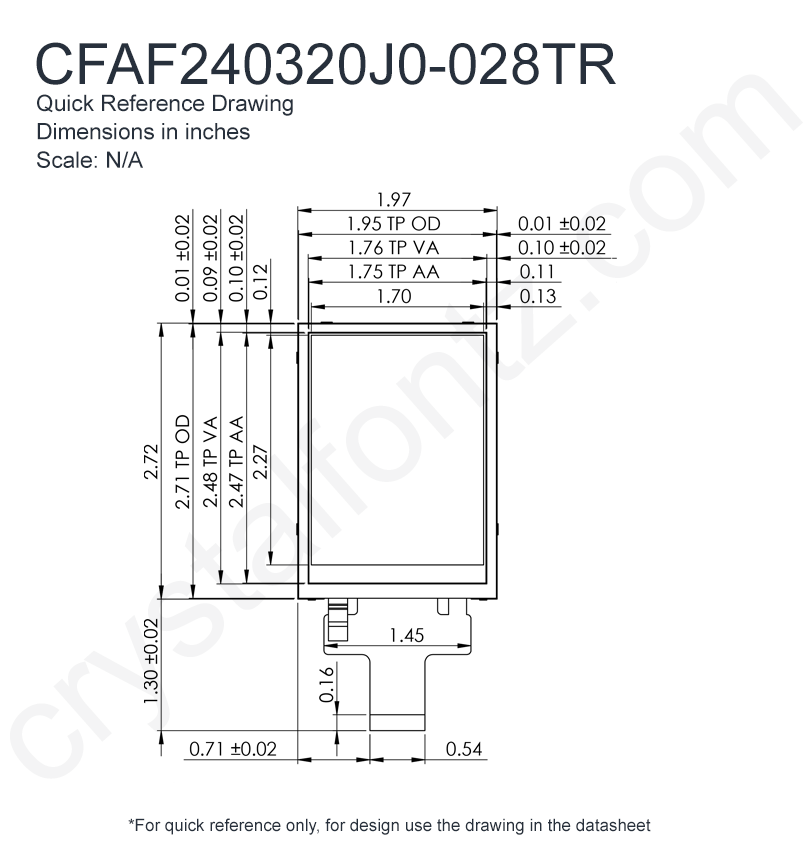

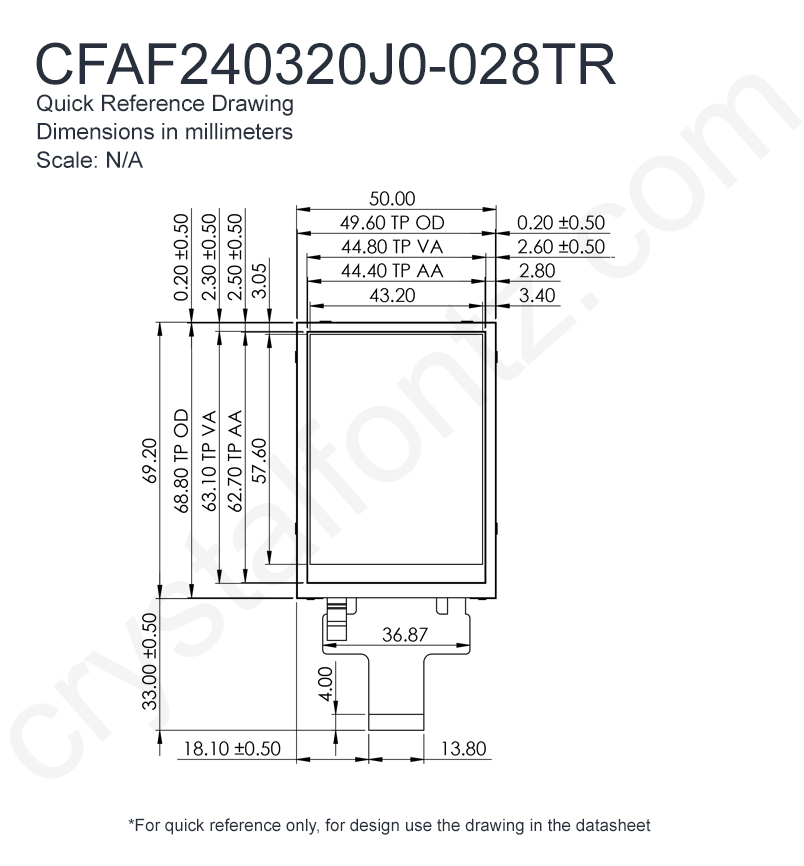

  Module Overall	width	height	depth
  millimeters	50.5	69.7	4.55
  inches	1.99	2.74	0.18

  Diagonal Dimension

  2.8"

  Active Area	Width	Height
  millimeters	43.2	57.6
  inches	1.70	2.27

  Dot Pitch	Width	Height
  millimeters	0.18	0.18
  inches	0.007	0.007

  Weight	28.5g
  Pin Count	45

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS - Transmissive
  View Angle	160°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V

  Supply Current Maximum	9.5mA
  Supply Current Typical	6.3mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	8.1V
  Forward Voltage Maximum	10.5V

  Forward Voltage Typical	9.3V
  Forward Current Typical	80mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7789V ST7789V Datasheet Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
  Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF240320J0028TR Datasheet


• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
