240x400 3" TFT LCD 8-Bit Parallel

Part Number: CFAF240400A0-030T

Pricing

Quantity Price
1 $23.79
10 $21.64
20 $21.31
50 $19.45
100 $17.78
200 $17.36
500 $16.14
1000 * $14.89
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240400A0-030T or RSS RSS feed for changes to CFAF240400A0-030T for CFAF240400A0-030T


Description

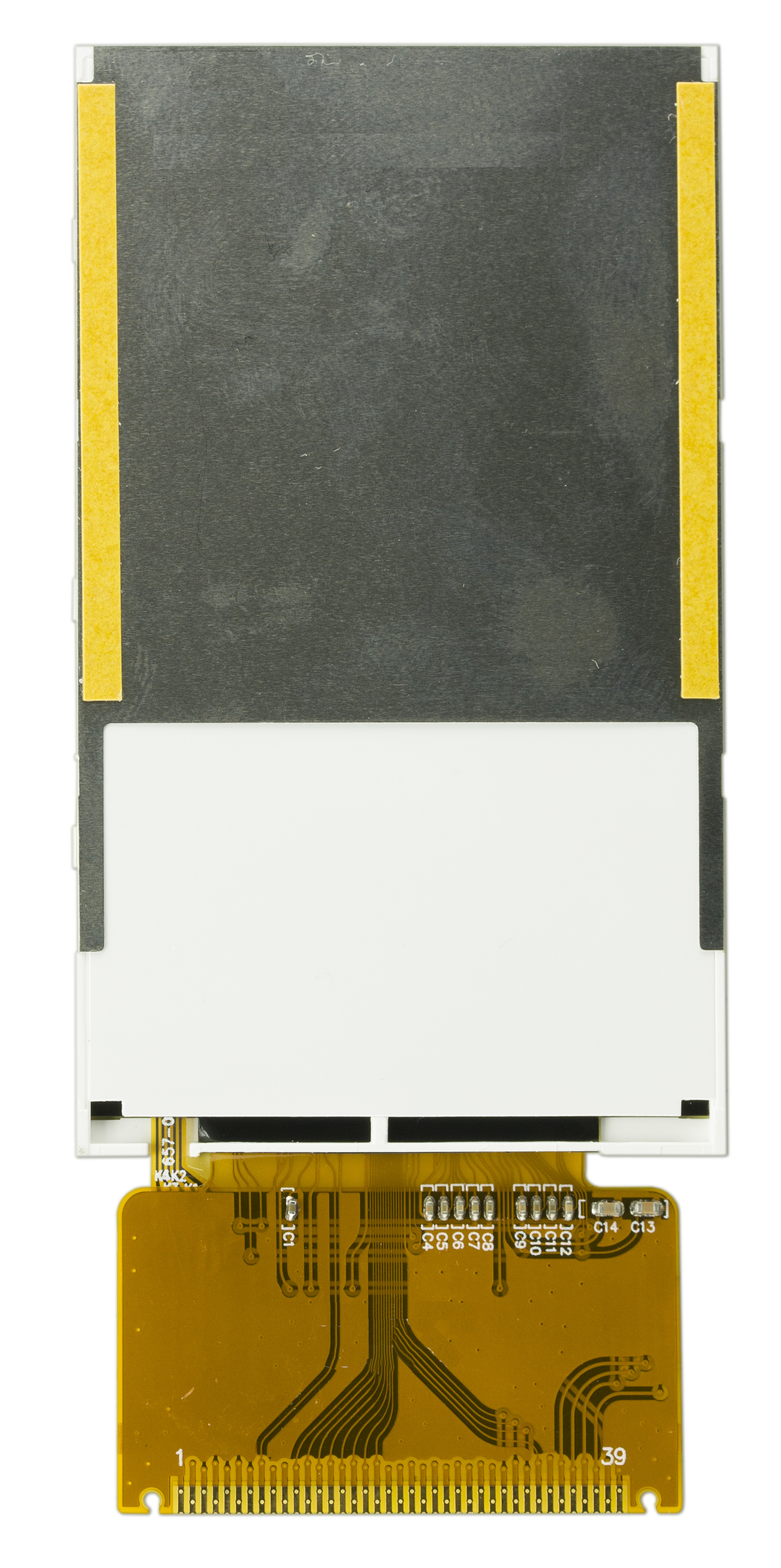

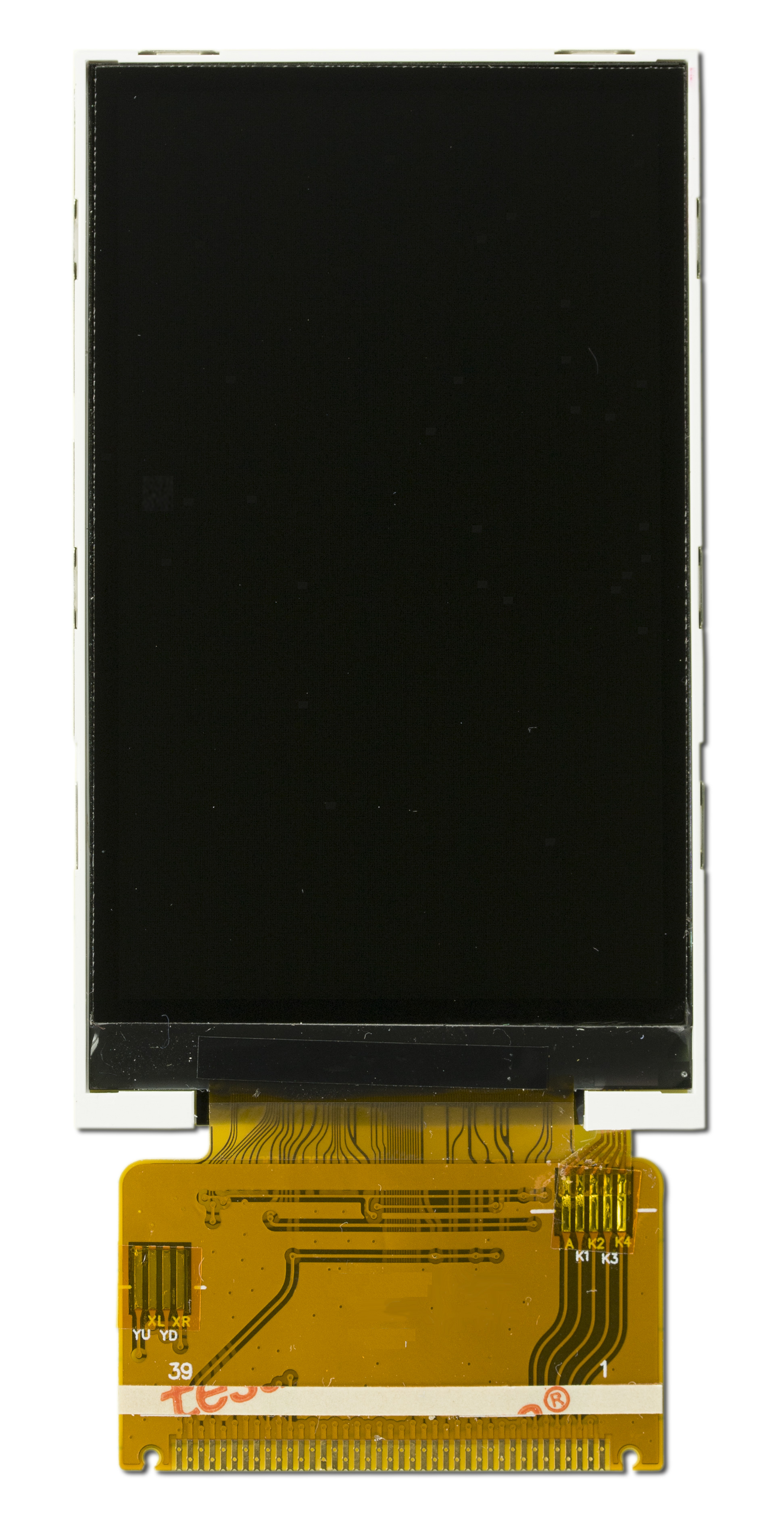

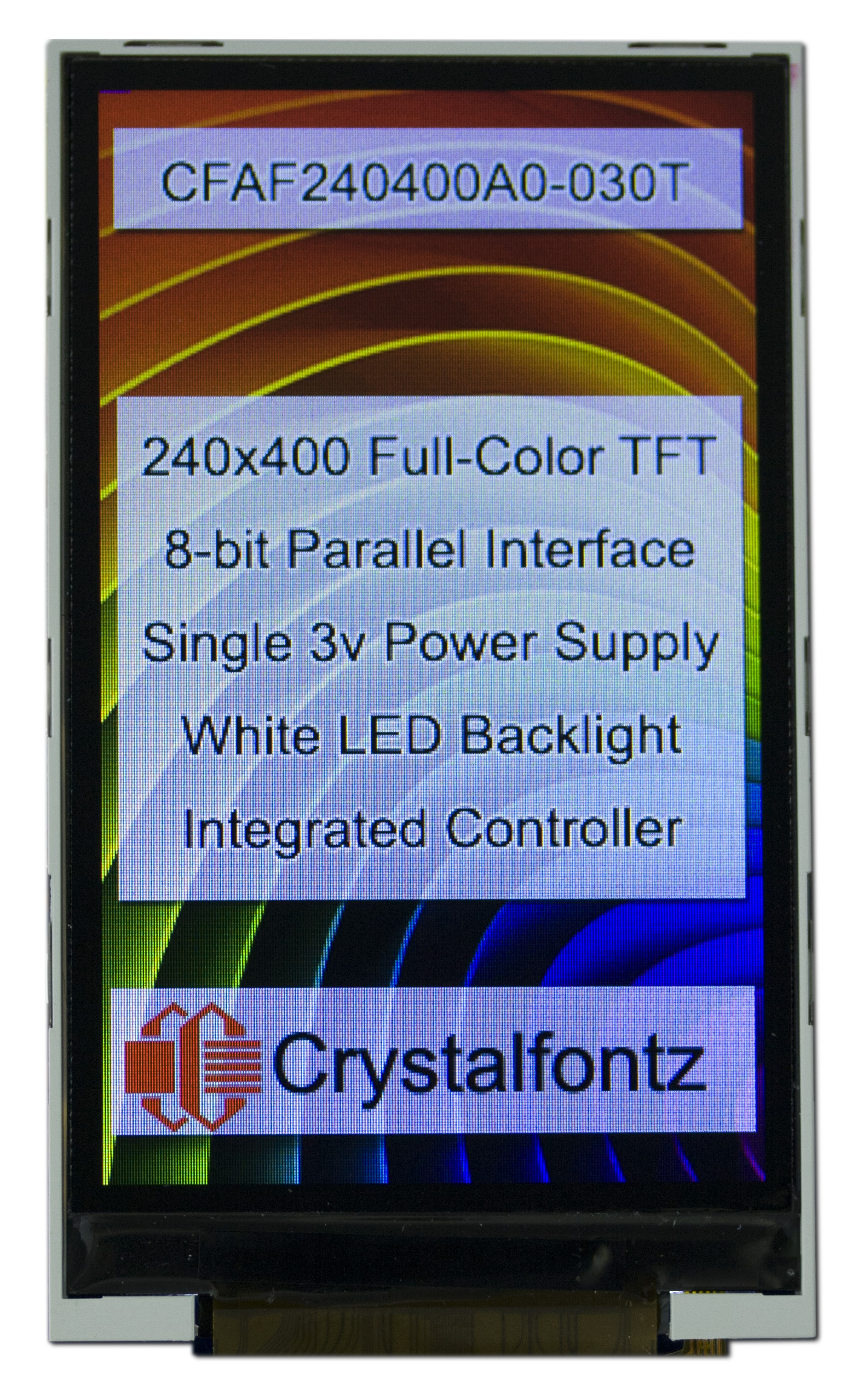

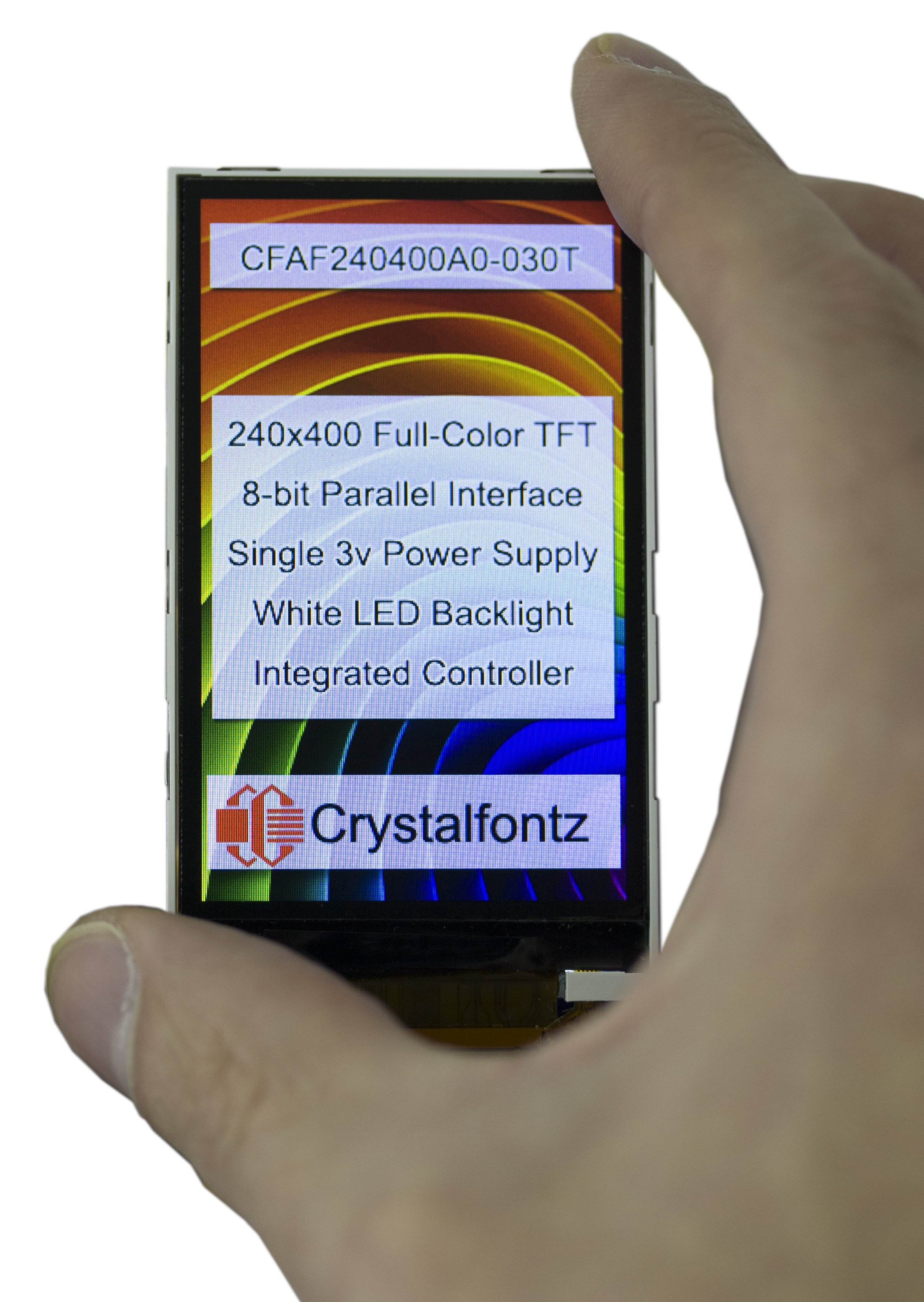

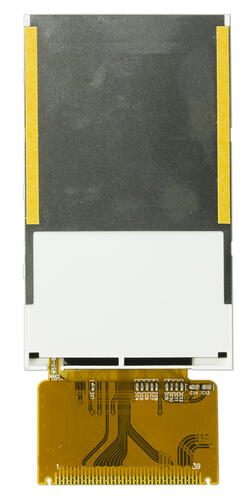

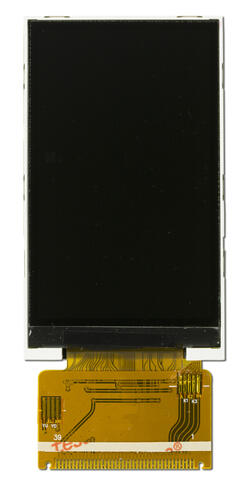

Beautiful 3" 240x400 pixel full-color TFT LCD. Bring your product to the next level with this full-color TFT display. Easily integrates into your design with a 39-pin TAB connection, perfect for using a hot-bar soldering machine.
This TFT LCD boasts:
  • 8-Bit Parallel Interface
  • Integrated Controller
  • Full-Color RGB
  • Portrait or Landscape Orientation
  • 12:00 o'clock viewing direction
Need this display in 16-bit? Here's our 16-bit TFT LCD version of this display.

Have questions about this TFT LCD? Talk to our support team.

TECHNICAL SPECS

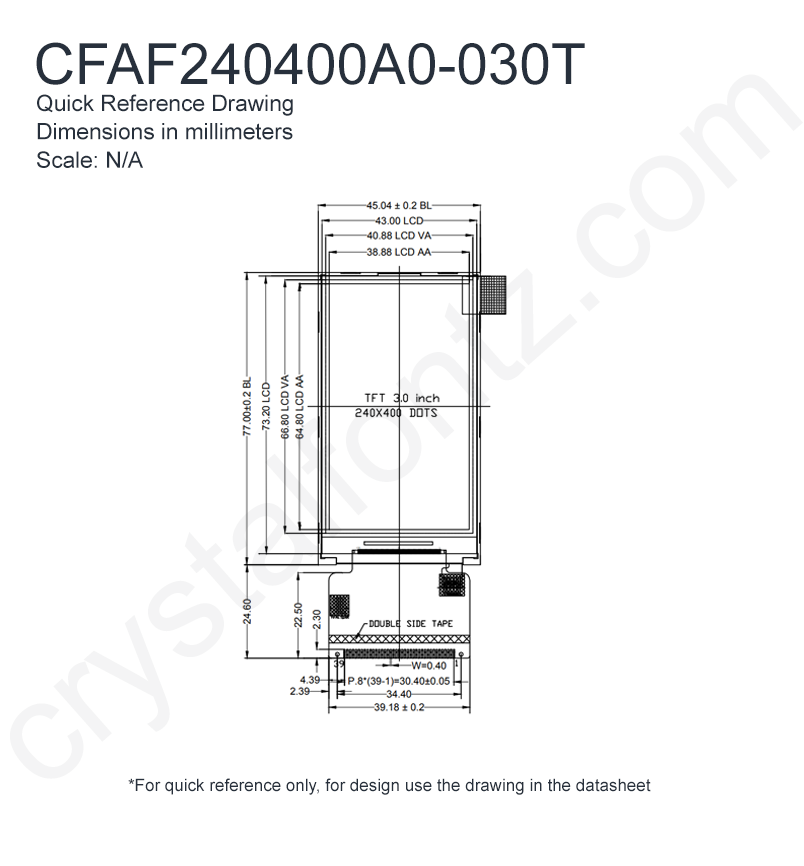

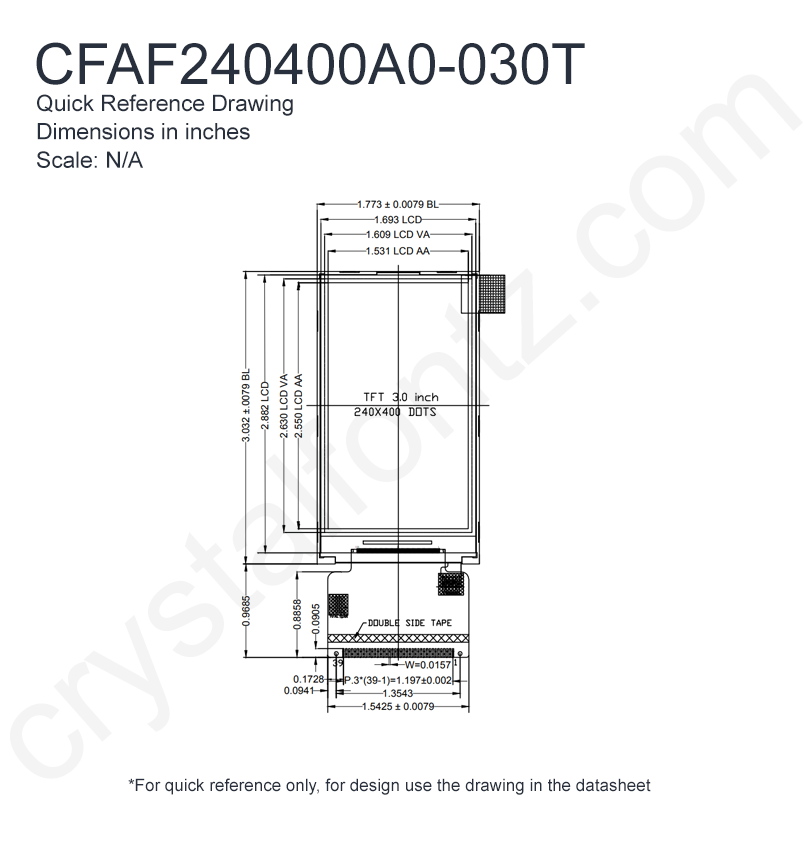

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 2.5
inches 1.773 3.031 0.098
*width / height does not include Foldable Tab
Diagonal Dimension 3.000"
Active Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Dot Pitch width height
millimeters 0.062 0.062
inches 0.0024 0.0024
Weight 15g
Pin Count 39

Optical Characteristics

Glass Type TN
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 4.2V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.8mm

Backlight Electrical Specifications

Forward Voltage Typical 3.2V
Forward Current Typical 60mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Ilitek ILI9327
Interface 8-bit Parallel

Miscellaneous

Foldable Tab Yes

*Suggest a Correction

Additional Options

Save time with testing and integrating this display into your product by purchasing a development kit.

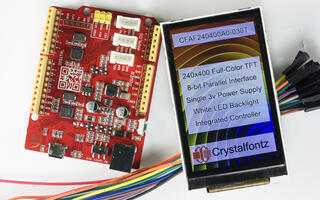

240x400 3" TFT with Carrier Board
Part Number: CFAF240400A0-E1-1

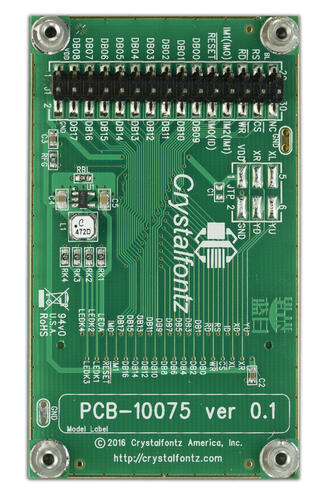

This is a TFT LCD bundle with our beautiful 3" 240x400 TFT attached to a carrier board with includes the backlight driver so you can run it off a single power-supply. This carrier board is specifically for 8-bit parallel.

Details
Quantity 1 10 20 50 * 100 * 200 * 500 * 1000 *
Price $59.83 $52.03 $50.17 $48.31 $47.57 $46.82 $46.45 $46.08
Quantity:
240x400 TFT Development Kit
Part Number: CFAF240400A0-E1-2

3" 240x400 TFT LCD mounted on a carrier board and connected to an Arduino compatible controller for a quick demonstration.

*Comes Completely Assembled

Details
Quantity 1
Price $75.00
Quantity:
3" TFT LCD Development Kit
Part Number: CFAF240400A0-E2-1

This TFT LCD development kit consists of a 8-bit 3" TFT LCD module mounted on a carrier board that includes a backlight driver. This carrier board is integrated with standoffs for easy installation into your product.

Details
Quantity 1 10 20 50 * 100 * 200 * 500 * 1000 *
Price $60.99 $53.04 $51.14 $49.25 $48.49 $47.73 $47.35 $46.97
Quantity:

For reference only. For design purposes, please use the specifications in the datasheet.
