240x400 Touchscreen EVE SPI TFT

Part Number: CFAF240400C0-030SC-A1-1

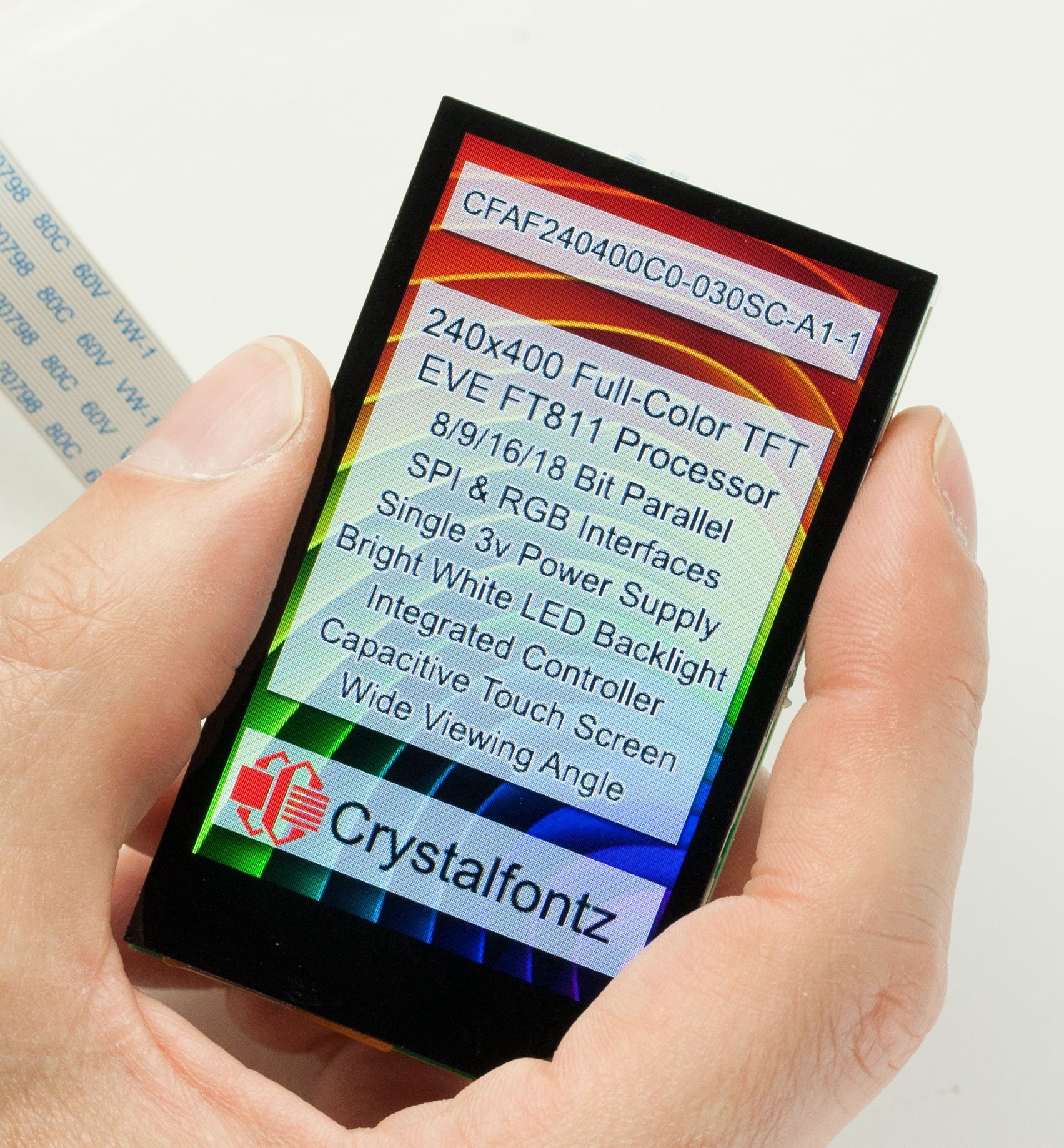

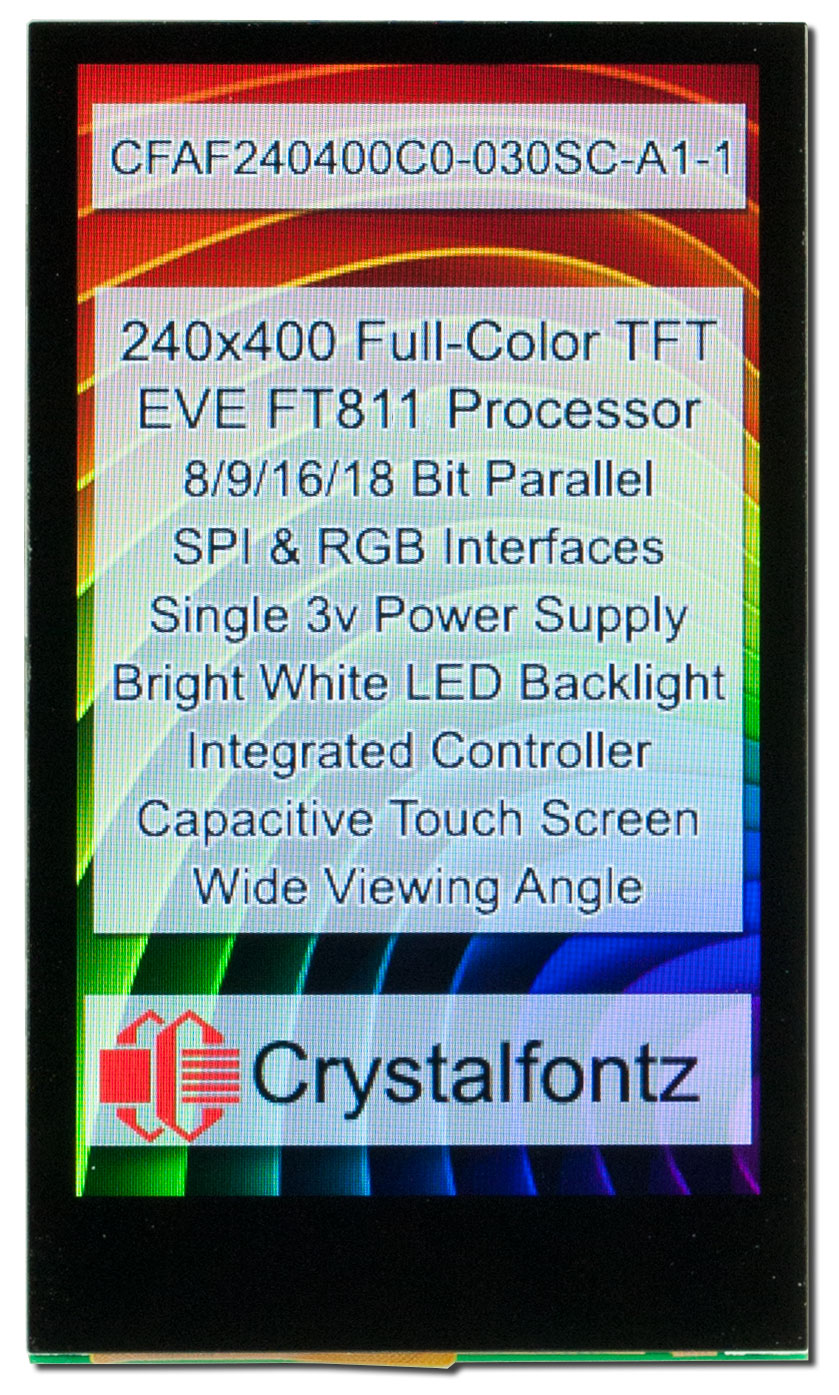

This EVE TFT Development Kit is a 3-inch, 240x400 Full-Color TFT with the EVE graphic accelerator and capacitive touchscreen. Simply plug in your controller of choice. the EVE engine uses 4-wire SPI for communication via a 30-pin FPC/ZIF connection.

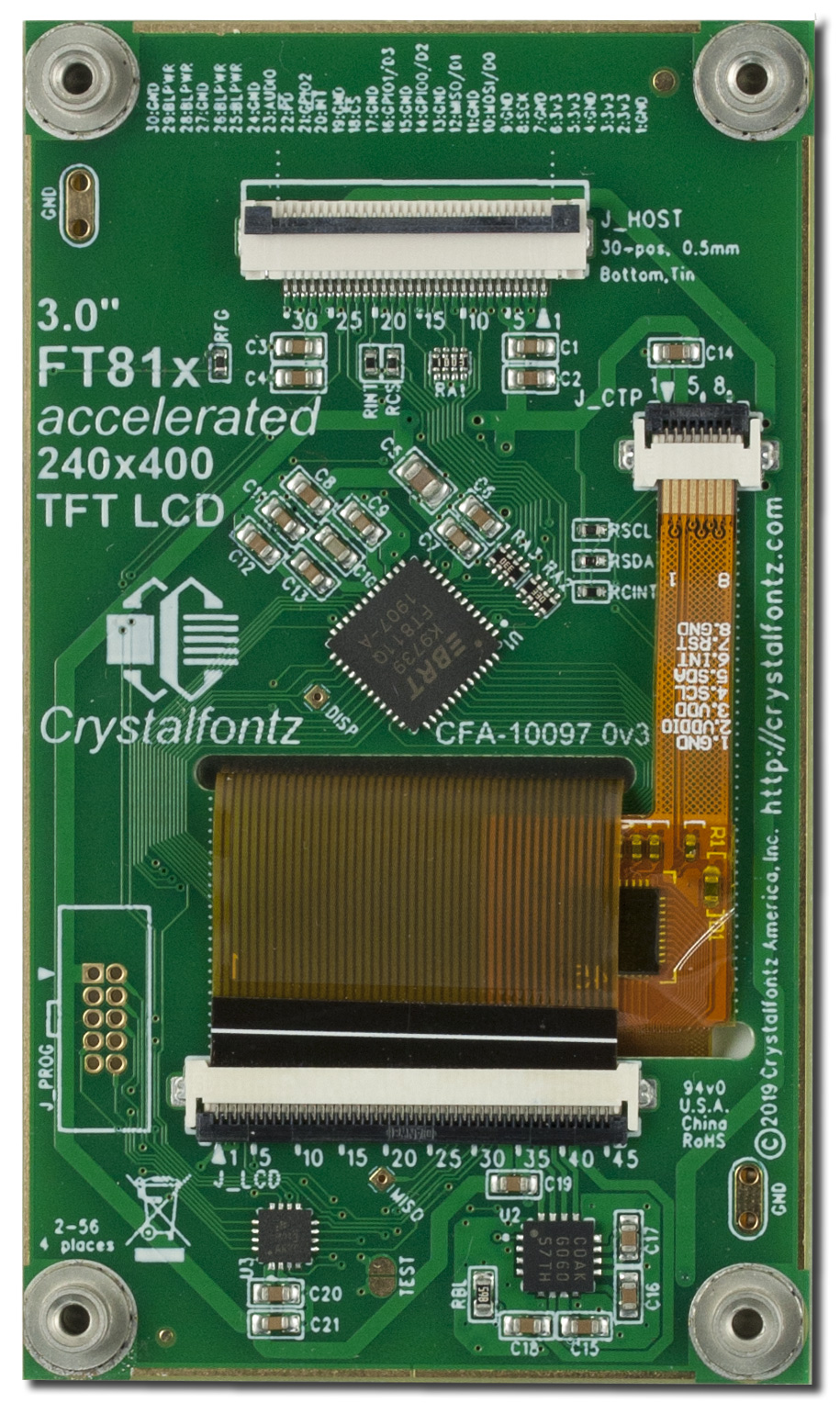

This kit is based around an FTDI/BridgeTek FT811 Embedded Video Engine (EVE). All display, touch sensing, backlight control and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data using SPI.

Need a breakout board? The EVE Breakout Board breaks out the zif connector to 0.1" headers for easy development. We also carry a 6-inch 30-pin FPC cable and a 12-inch 30-pin FPC cable.

For more info about the Embedded Video Engine, please see the FTDI FT81x Datasheet.
Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm

Product Variants

CFAF240400E0-030TN-A1-13" 240x400 EVE TFT Display

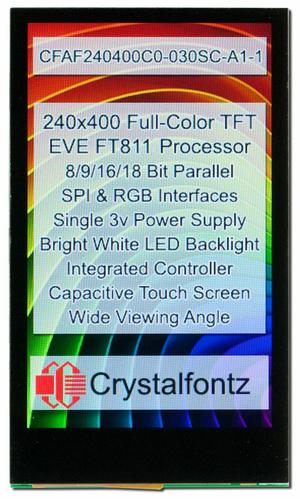

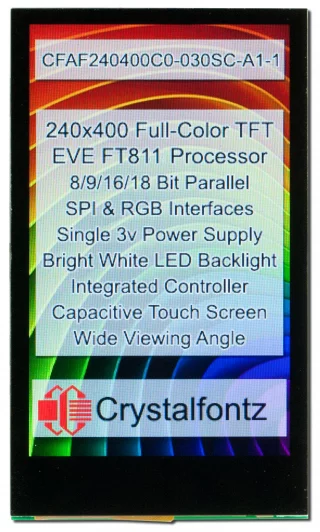

240x400 Touchscreen EVE SPI TFT (CFAF240400C0-030SC-A1-1)

Datasheet

Files

Video Demonstrations

3 inch EVE TFT Display Demo

3-inch, 240x400 Full-Color TFT with the EVE graphic accelerator and capacitive touchscreen video demonstration.


TECHNICAL SPECS

Physical Characteristics

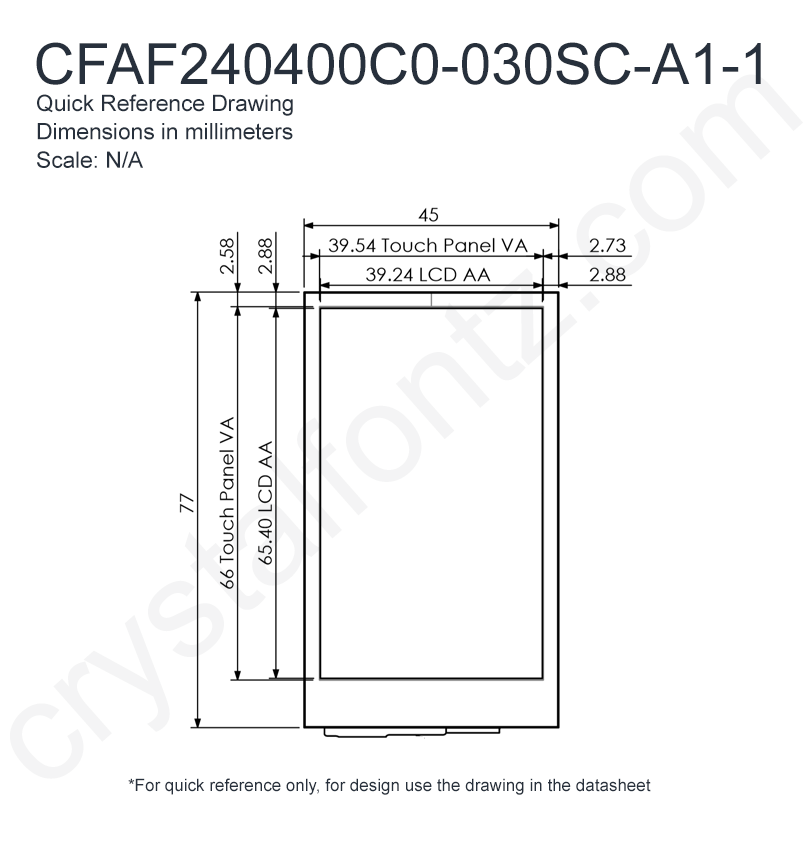

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 7.3

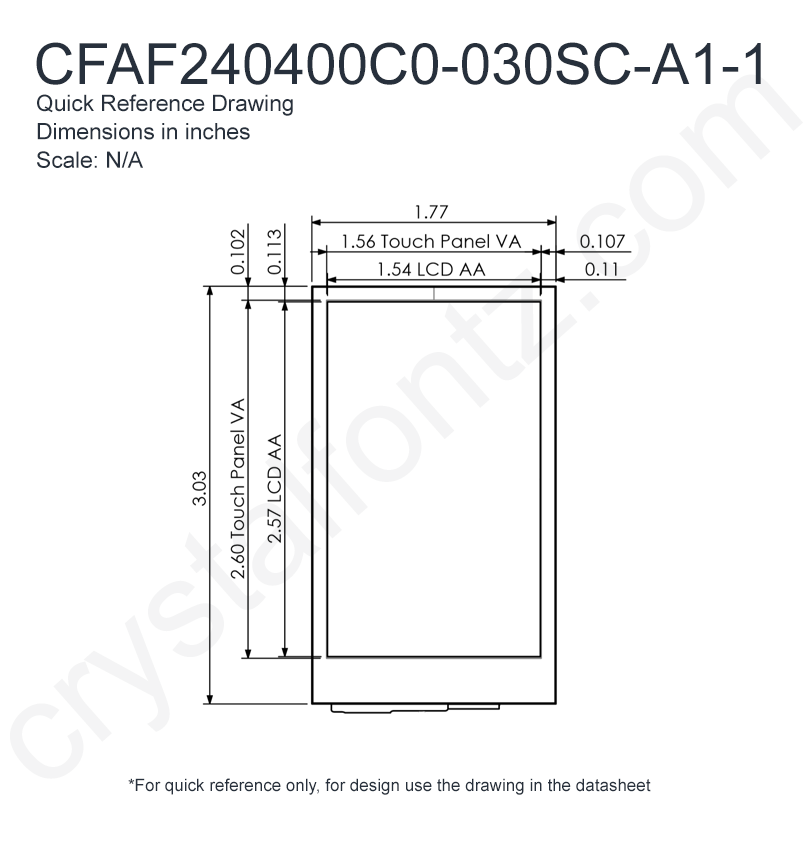

inches 1.773 3.031 0.287
Diagonal Dimension 3."
Optional Connectors CS050Y30TB0
Weight 33.5g

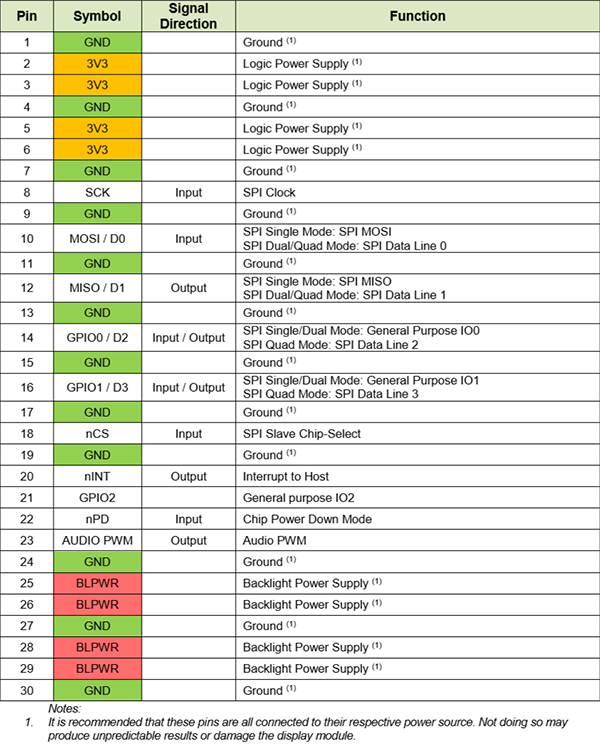

Pin Count 30

Optical Characteristics

Polarizer Transmissive
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electronics

Interface SPI

Miscellaneous

Touch Screen Capacitive

Additional Options

Buy this EVE Display in a complete development kit to help get up and running quickly.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400C0-030SC-A1-1 or RSS RSS feed for changes to CFAF240400C0-030SC-A1-1

End-Of-Life #11130: End-Of-Life Notification

Products Affected: CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2, CFAF240400E0-030TN-A1-2, CFAF240400E0-030TN-A1-1
Date Issued: June 9, 2022
Summary: End-Of-Life Notification
Description: Some modifications are being made to the PCB design to improve reliability and manufacturability. The board cutout for the capacitive touch screen is being moved and the reset line to the EVE chip is being routed to the reset pin for the helper processor onboard.

The parts are being replaced as follows:
CFAF240400C0-030SC-A1-1 -> EOL and replace with CFA240400E0-030TC
CFAF240400C0-030SC-A1-2 -> EOL and replace with CFA240400E0-030TC-KIT
CFAF240400E0-030TN-A1-1 -> EOL and replace with CFA240400E0-030TN
CFAF240400E0-030TN-A1-2 -> EOL and replace with CFA240400E0-030TN-KIT
Reason: The current PCB design requires the capacitive touch screen FPC tail to be stretched and needs to be given more slack.

The reset line is not brought out to the helper processor on the current PCB revision so a reset toggle does not truly reset the whole system.

Current PCB revision: 10097 h0v3
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11080: Firmware Change

Products Affected: CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2, CFAF240400E0-030TN-A1-2, CFAF240400E0-030TN-A1-1
Date Issued: March 15, 2021
Summary: Firmware Change
Description: The firmware is being updated to better manage the power down sequence.
Reason: If the power down was very short, it could cause the microcontroller to go into a weird state resulting in abnormal display operation.
Availability: Will be available in the next couple of weeks. We will release a notice when the cutover occurs.

Part Change Notice #11051: The controller chip used on the CFAF240400C0-030SC has been discontinued. The parts will be replaced by a CFAF240400C1-030SC

Products Affected: CFAF240400C0-030SC, CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2
Date Issued: September 18, 2019
Summary: The controller chip used on the CFAF240400C0-030SC has been discontinued. The parts will be replaced by a CFAF240400C1-030SC
Impact: Physically, this will be a drop-in replacement. Changes will have to be made to initialization code.
Recommendation: Sample code for the CFAF240400C1-030SC will be available in the fourth quarter of 2019. Sample CFAF240400C1-030SC parts will be available for purchase at that time

The CFAF240400C0-030SC is not recommended for new designs
Availability: The CFAF240400C1-030SC will be available when current stocks of the CFAF240400C0-030SC are depleted
Price Change: TBD
For reference only. For design purposes, please use the specifications in the datasheet.
