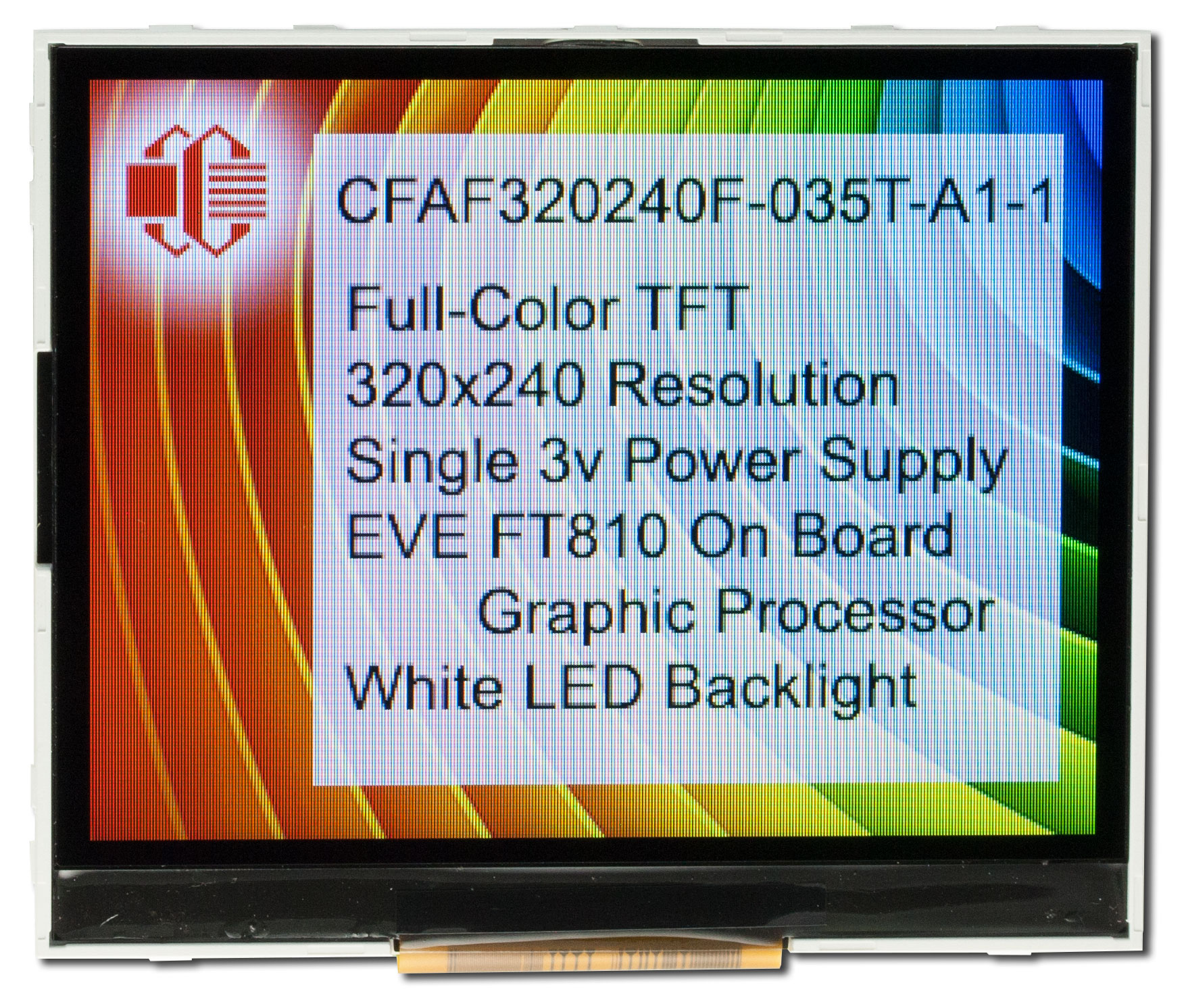

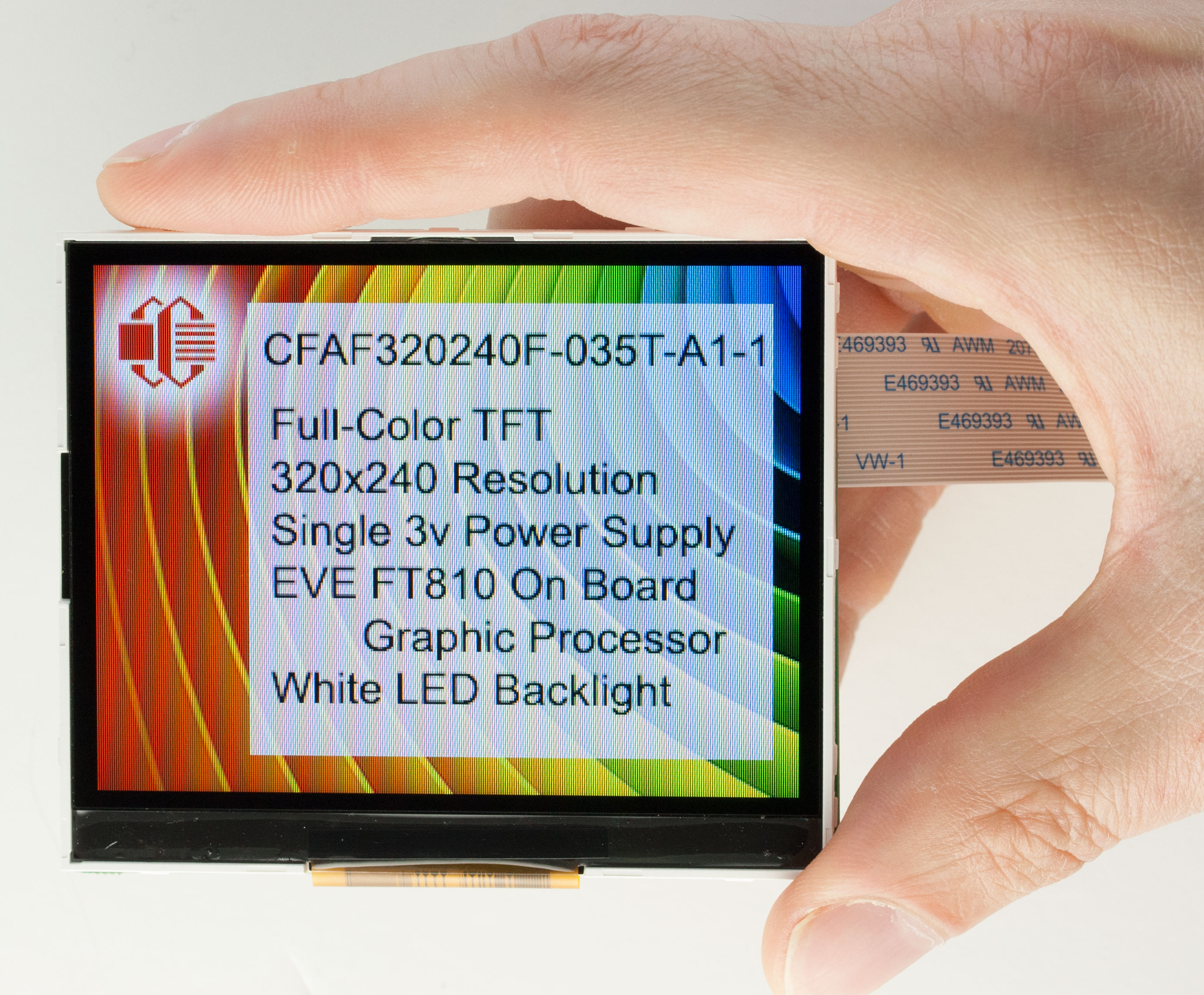

320x240 TFT with EVE Accelerator

Part Number: CFAF320240F-035T-A1-1

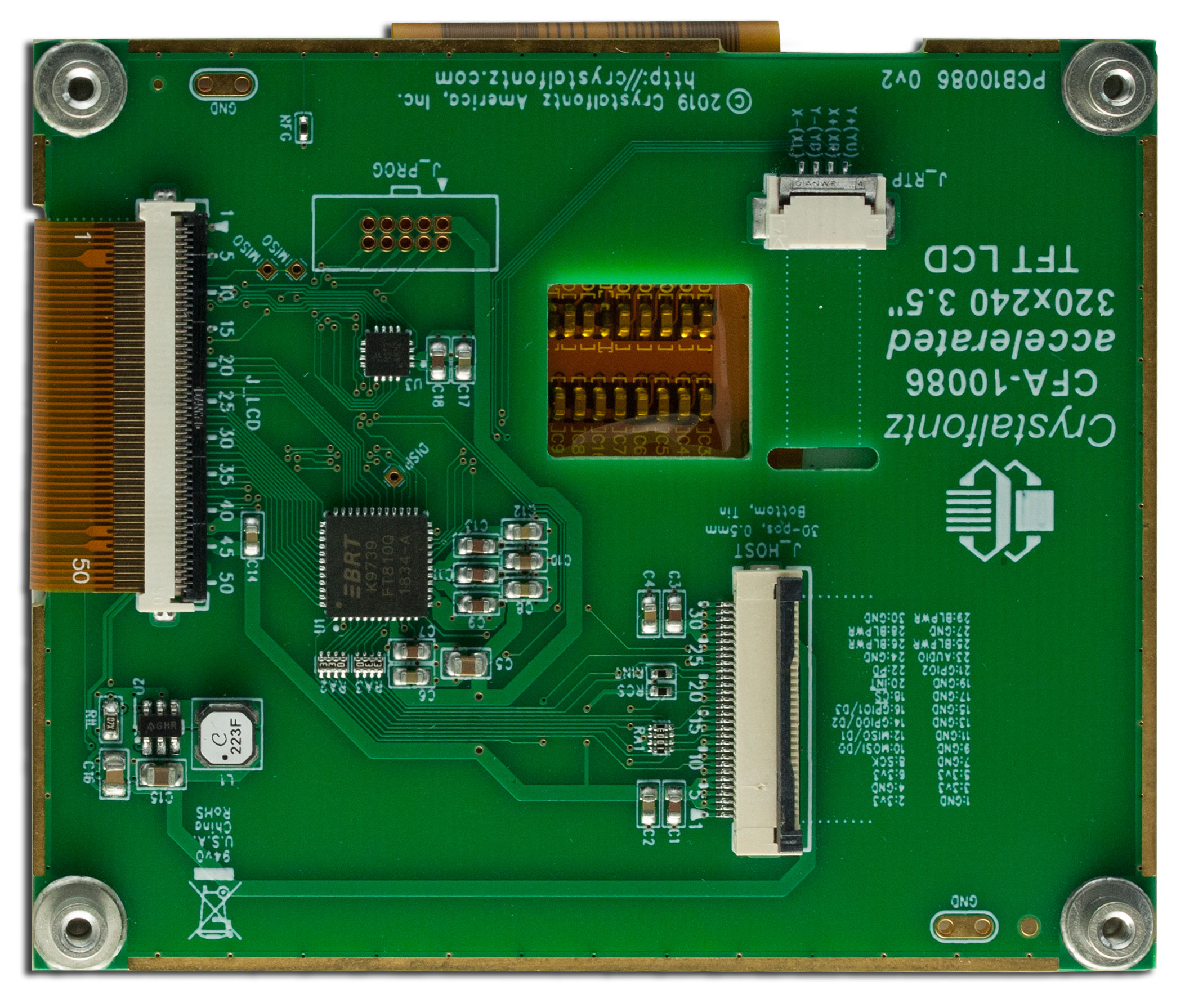

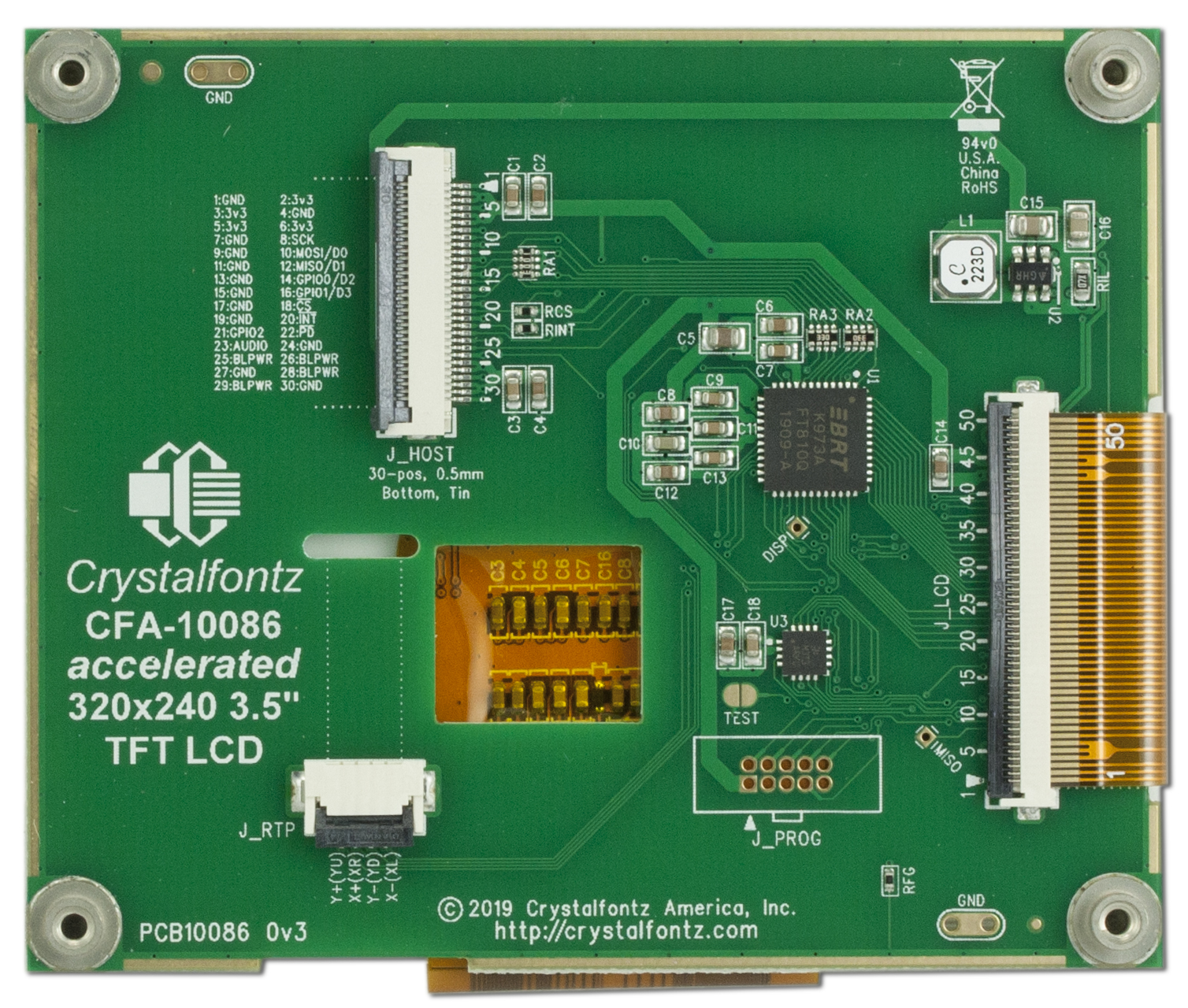

This TFT LCD display module is perfect for the designer who's looking to have a graphic and audio processor already embedded in the display unit. Powered by an FTDI/BridgeTek FT810 Embedded Video Engine (EVE) graphics accelerator chip, simply send over a few commands via SPI or I2C and the EVE will put your stored image up on the display. Need to draw a line, create dials/knobs/buttons, or rotate an image? Send a handful of bytes and the EVE will take care of it.

For more information on the 3.5" TFT used in this kit, see the 320x240 3.5" Full Color TFT LCD (CFAF320240F-035T) product page.

For detailed information on the Embedded Video Engine and all of the supported features, please see the FTDI FT81x Datasheet.

Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm or on our GitHub repository.

Currently Shipping: HW Version 0v2, Firmware Version: 0v0

Product Variants

CFAF320240F-035T-A1-1320x240 TFT with EVE Accelerator
CFAF320240F-035T-TS-A1-1320x240 EVE Accelerated SPI TFT
320x240 TFT with EVE Accelerator (CFAF320240F-035T-A1-1)
Qty:
Quantity Price
1 $91.38
5 $85.32
10 $83.08
20 $80.27
50 $77.46
100 $76.34
200 * $75.77
300 * $75.22
500 * $74.66
1000 * $74.09
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.61 ea.
4665 Assorted Imperial Screws
Add mounting screws $3.08 ea.

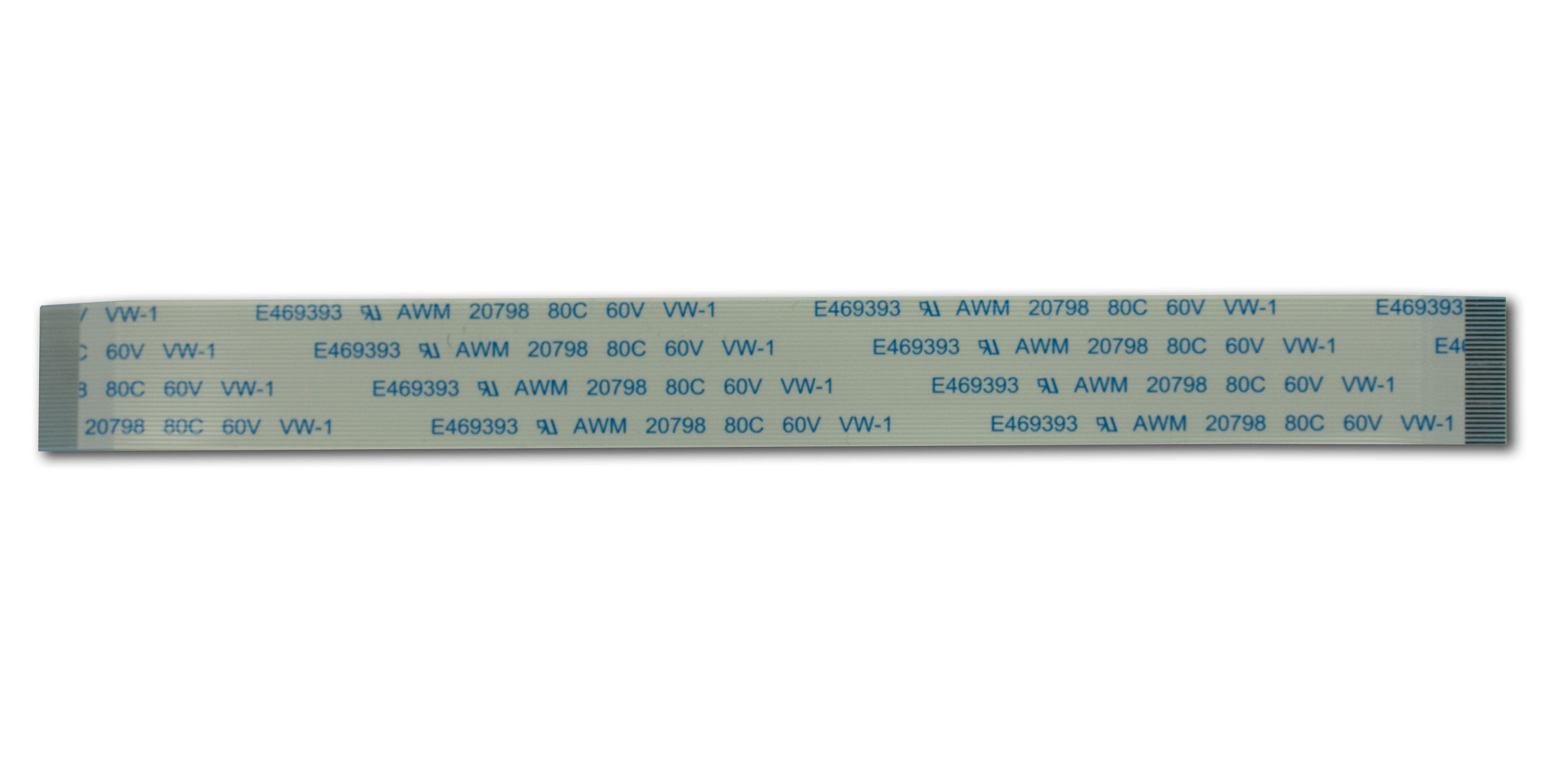

4606 6-inch 30-pin FFC Cable
Add a ribbon cable $2.30 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320240F-035T-A1-1 or RSS RSS feed for changes to CFAF320240F-035T-A1-1 for CFAF320240F-035T-A1-1

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 320 x 240

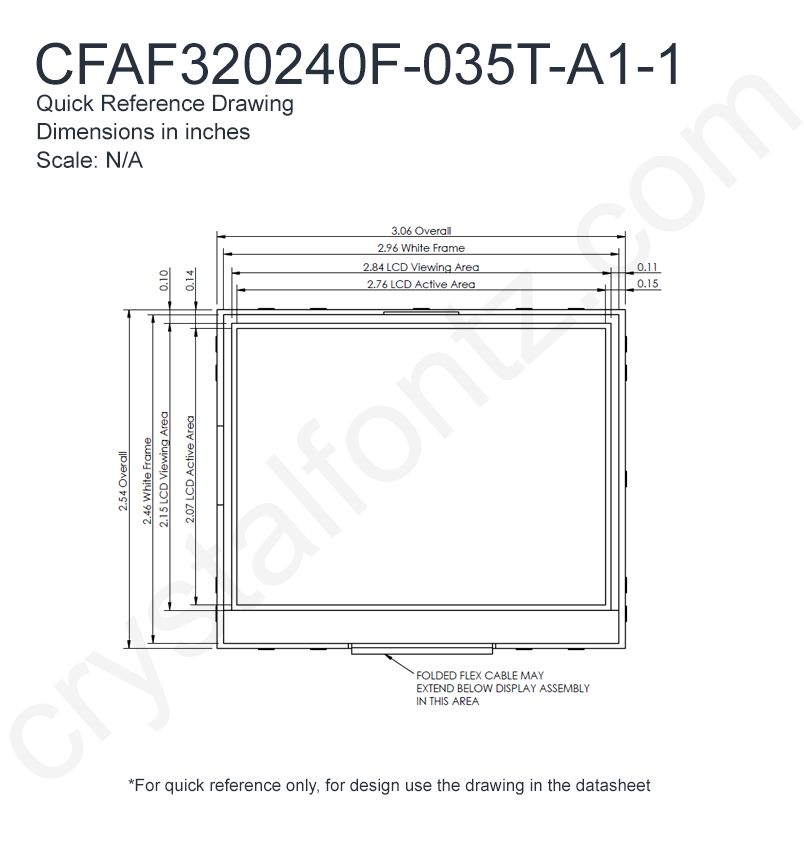

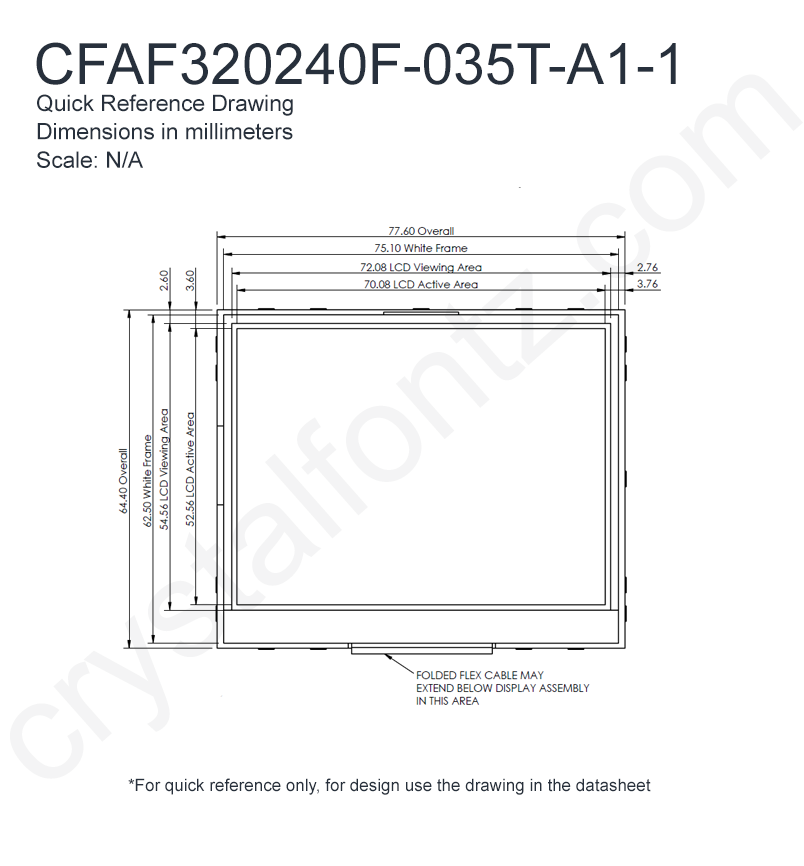

Module Overall width height depth
millimeters 77.6 64.4 7.95
inches 3.055 2.535 0.313
*width / height does not include Foldable Tab
Diagonal Dimension 3.45"
Viewing Area width height
millimeters 72.08 54.56
inches 2.838 2.148
Active Area width height
millimeters 70.08 52.56
inches 2.759 2.069
Dot Pitch width height
millimeters 0.219 0.219
inches 0.0086 0.0086
Optional Connectors CS050Y30TB0
Weight 52.3g

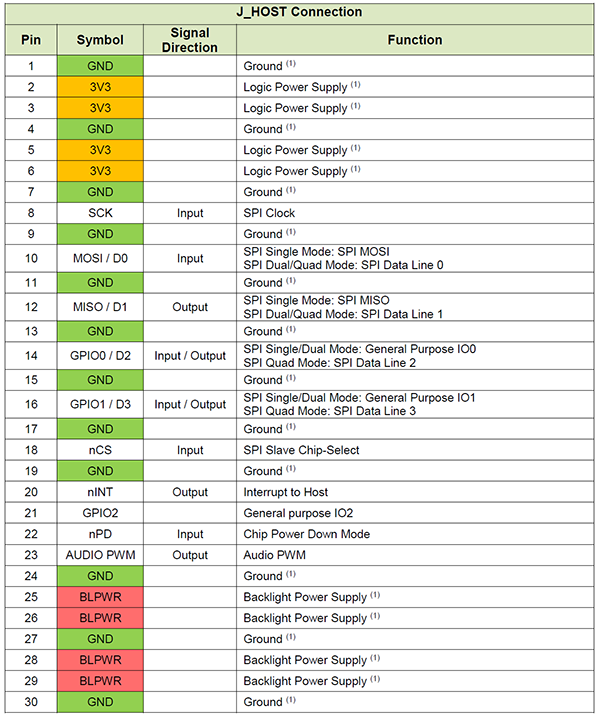

Pin Count 30

Optical Characteristics

Polarizer Transmissive
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 133V
Supply Current Typical 120mA

Backlight Electrical Specifications

Forward Voltage Minimum 2.7V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 3.3V
Forward Current Maximum 132mA
Forward Current Typical 120mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Get this with a Seeeduino and a breakout board for a complete development kit.

3.5" 320x240 EVE Development Kit
Part Number: CFAF320240F-035T-A1-2

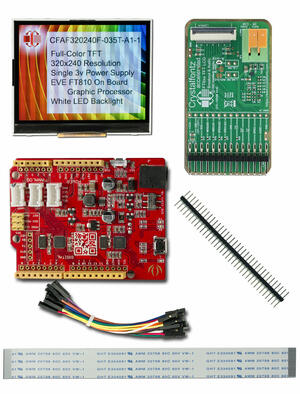

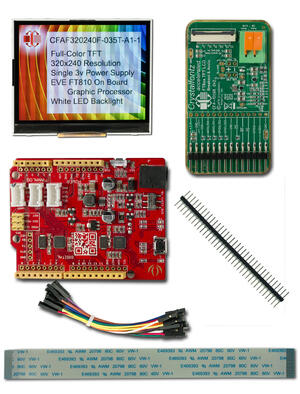

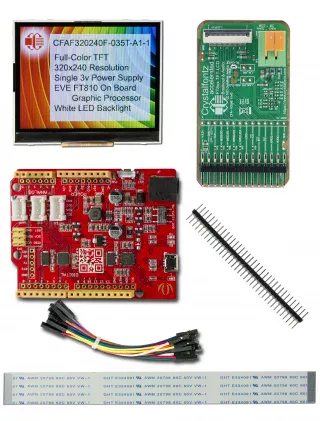

This development kit includes everything needed to get started with the 3.5" EVE module: a 320x240 display mounted on an EVE2 graphically accelerated PCBA, a Seeeduino, an EVE breakout board, jumper wires, USB cable and a ribbon cable. We even assemble this kit and pre-load some demonstration software so that you can have a functioning module in your hands within seconds.

Because the display module includes an EVE (embedded video engine) chip, it's a perfect choice for an HMI. EVE is a graphics controller solution that can control both display and audio operations. Additionally, Bridgetek/FTDI supports the EVE chip with graphical design toolchains to aid in development.

If you're looking for a display with a touchscreen, check out the 3.5" resistive touch EVE development kit, or the rest of Crystalfontz's EVE lineup.

See the webpage for the 3.5" EVE module for the demonstration code, datasheet, 3D models, and more.

Details
Quantity 1
Price $112.47
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
