320x240 EVE Accelerated SPI TFT

Part Number: CFAF320240F-035T-TS-A1-1

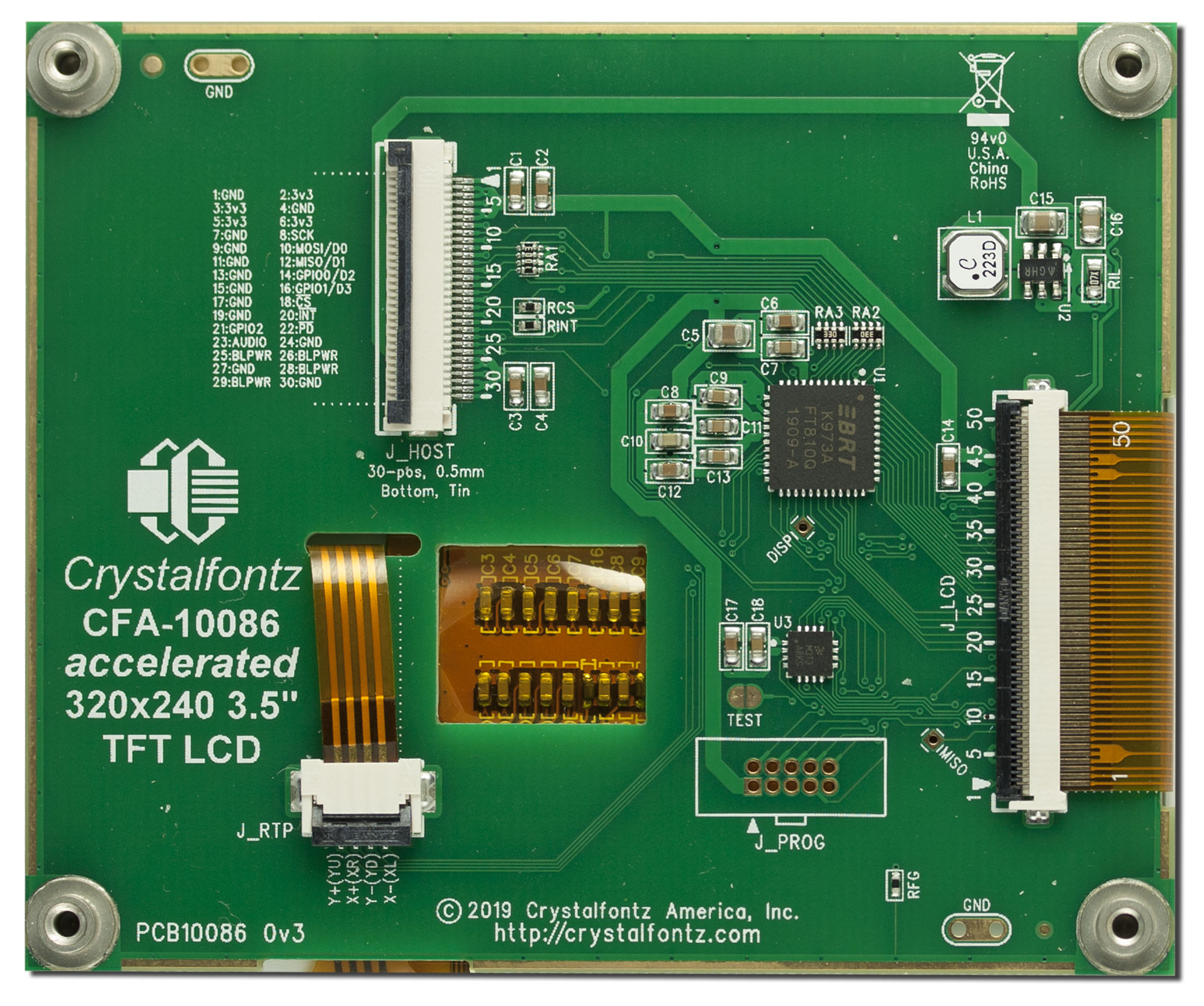

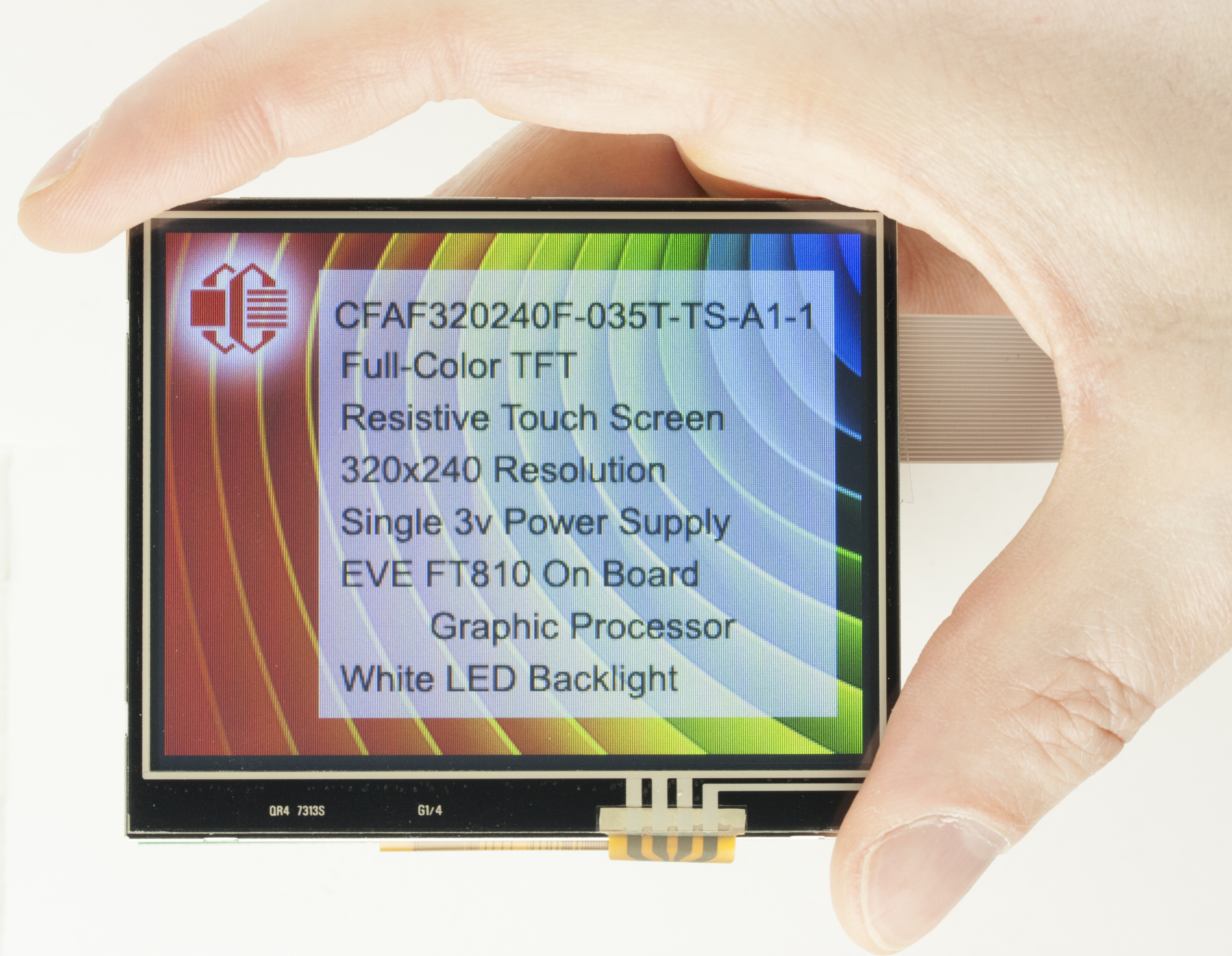

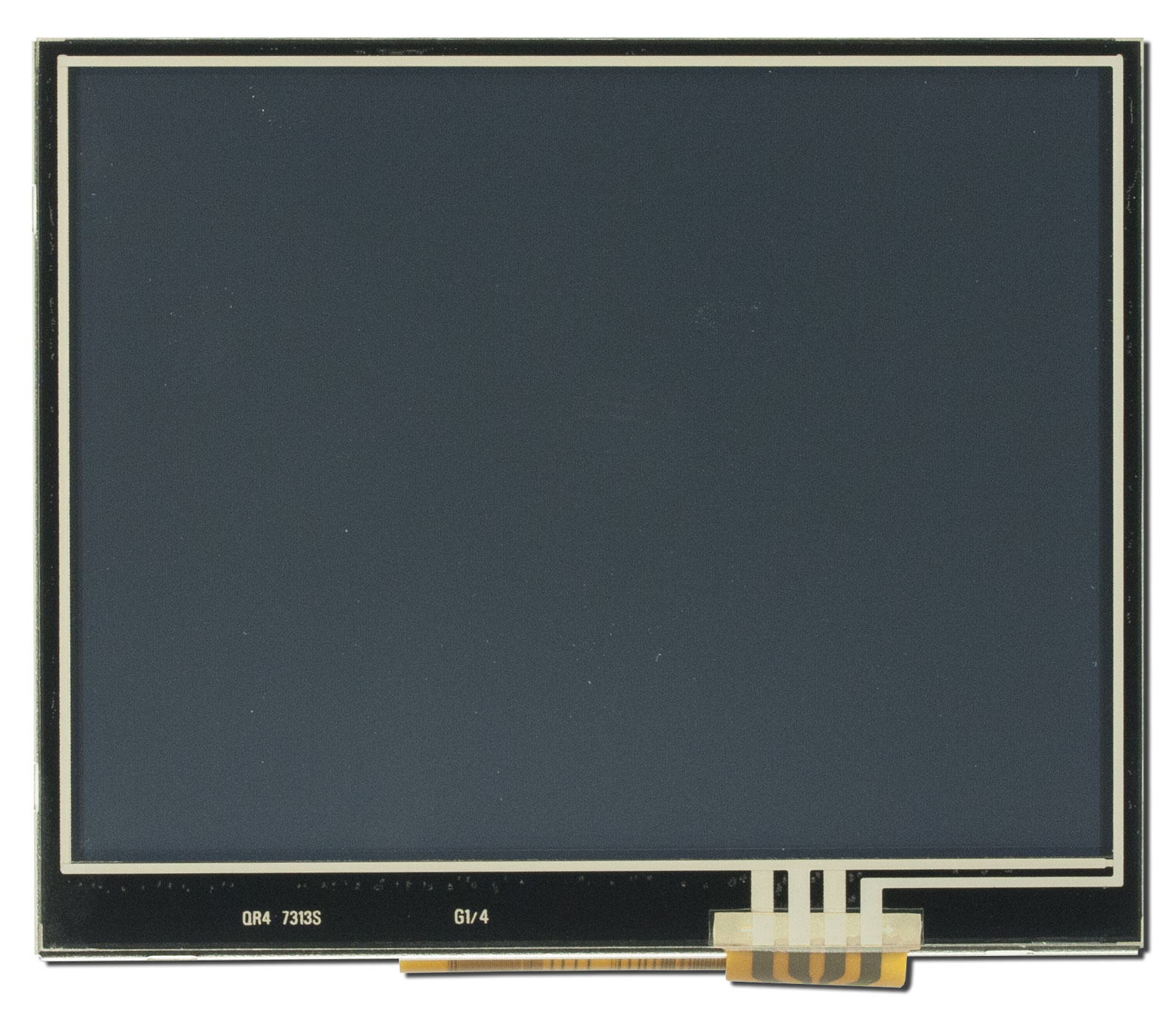

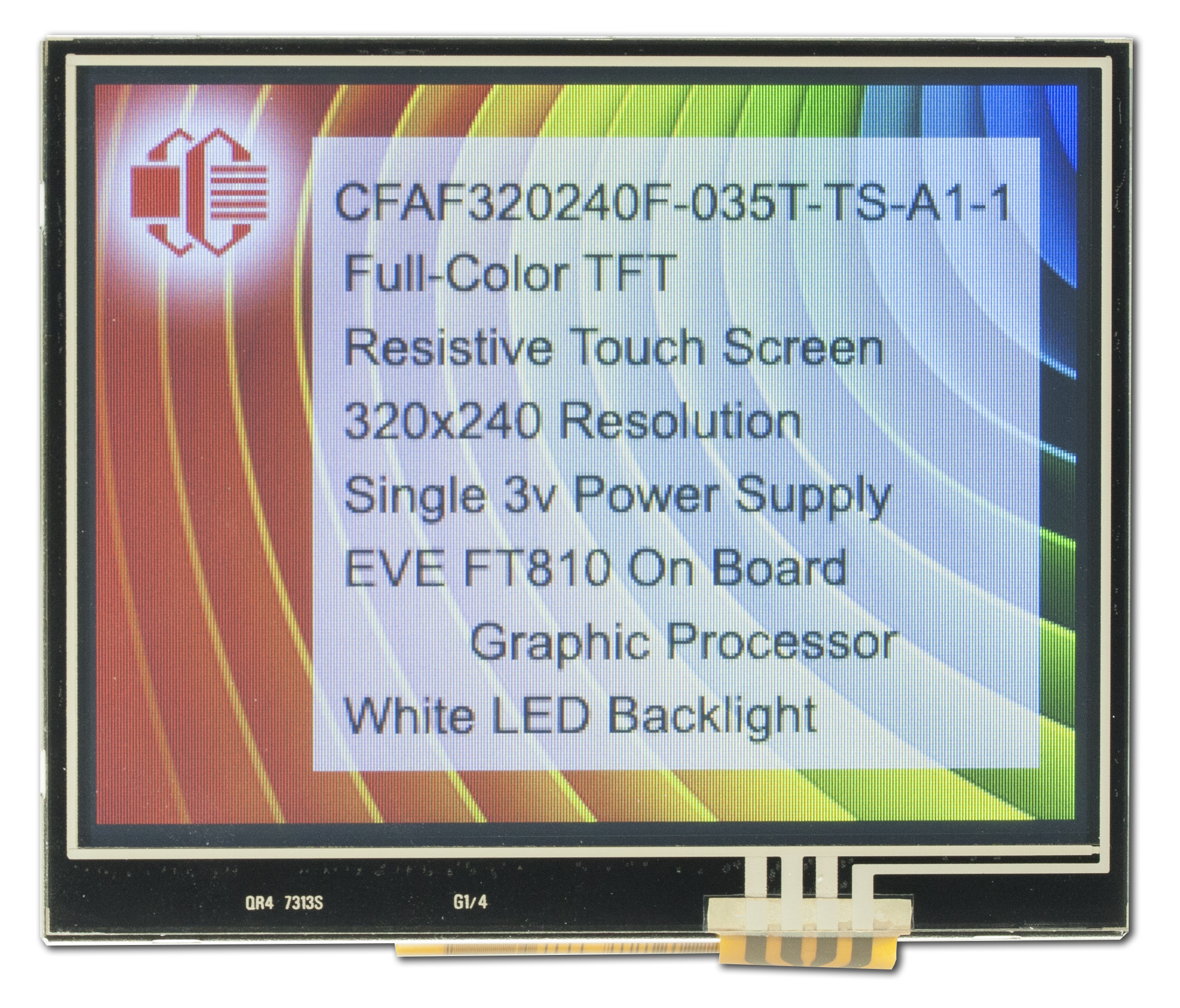

This 320x240 TFT bundle consists of a 3.5" display mounted on an EVE2 graphically accelerated PCA

The display includes a resistive touch screen, full color, and a 6 o'clock viewing angle. For more information about the display, including its detailed datasheet, check out the 320x240 3.5" Touch Screen Color TFT page.

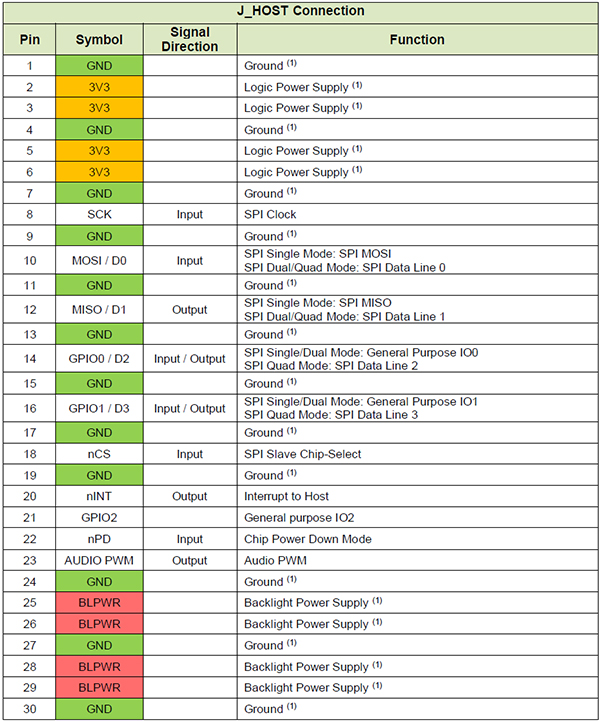

The EVE board really makes the display shine. EVE (embedded video engine) is a cool technology from FTDI/Bridgetek that simplifies the process of displaying videos and text. All display, touch sensing, backlight, and audio features are controlled by the FTDI FT810 EVE which appears to host the MCU as a memory-mapped SPI device. The host MCU sends commands and data over the SPI serial protocol. The module can support both SPI and Quad-SPI. You can connect to the EVE board via a 30-pin FPC / ZIF connector.

If you're looking for an even simpler way to check out this display, look into the Eve 3.5" TFT Development Kit which includes everything you need to get started.

Need a breakout board? The EVE Breakout Board breaks out the zif connector to 0.1" headers for easy development.

Don't forget you'll need a cable to connect the display to the EVE Breakout Board. For that we have a 6-inch 30-pin FPC Cable and a 12-inch 30-pin FPC.

Currently Shipping: HW Version 0v2, Firmware Version: 0v0

Qty:
Quantity Price
1 $83.94
5 $78.37
10 $76.31
20 $73.73
50 $71.15
100 $70.13
200 $69.61
300 $69.09
500 * $68.57
1000 * $68.06
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.61 ea.
4665 Assorted Imperial Screws
Add mounting screws $3.08 ea.
4606 6-inch 30-pin FFC Cable
Add a ribbon cable $2.30 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFAF320240F-035T-TS-A1-1 Datasheet
(Datasheet V 2020-01-08)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320240F-035T-TS-A1-1 or RSS RSS feed for changes to CFAF320240F-035T-TS-A1-1 for CFAF320240F-035T-TS-A1-1

TECHNICAL SPECS

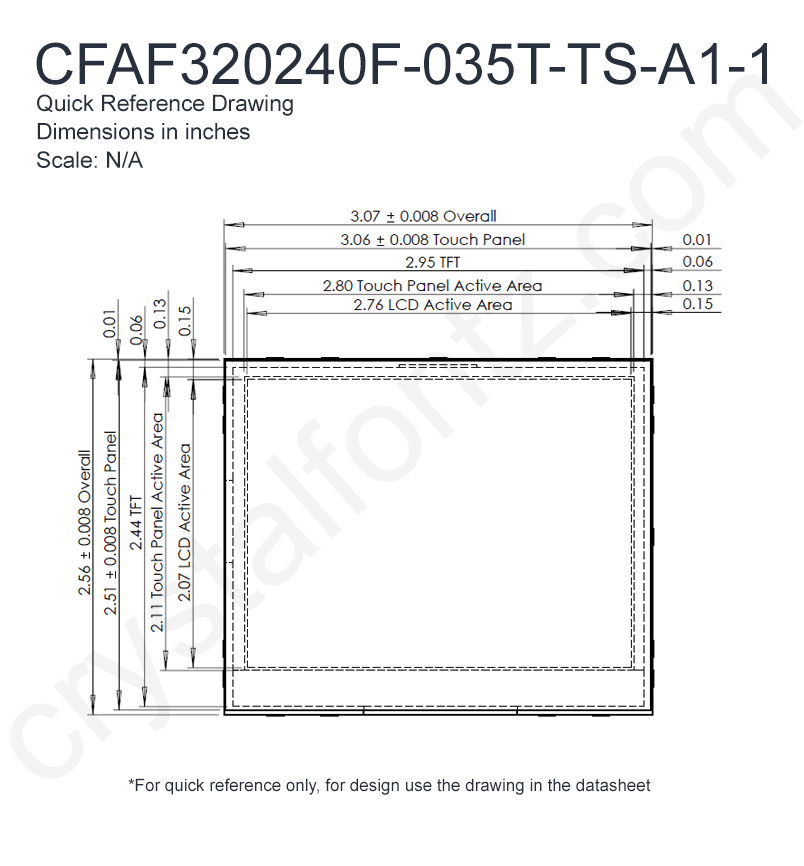

Physical Characteristics

Column Dots x Row Dots 320 x 240
Module Overall width height depth
millimeters 78.1 64.9 9.4
inches 3.075 2.555 0.370
*width / height does not include Foldable Tab
Diagonal Dimension 3.45"
Viewing Area width height
millimeters 72.08 54.56
inches 2.838 2.148
Active Area width height
millimeters 70.08 52.56
inches 2.759 2.069
Dot Pitch width height
millimeters 0.219 0.219
inches 0.0086 0.0086
Optional Connectors CS050Y30TB0
Weight 52.3g
Pin Count 30

Optical Characteristics

Polarizer Transmissive
View Direction 0.25 o'clock
Backlight Color White
Backlight Type LED
Foreground Color RGB

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Current Typical 70mA

Backlight Electrical Specifications

Forward Voltage Typical 9.6V
Forward Current Minimum 30mA
Forward Current Typical 40mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Touch Screen Resistive

Additional Options

Purchase this EVE TFT Display in a development kit to quickly demonstrate its robust features.

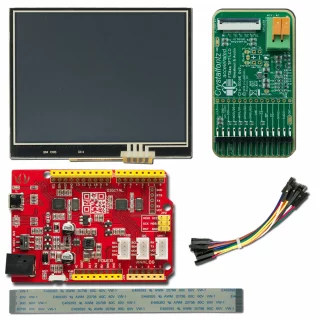

EVE 3.5 Inch TFT Development Kit
Part Number: CFAF320240F-035T-TS-A1-2

This 3.5" EVE TFT bundle has everything you need to get started with this powerful display. The development kit consists of a 3.5" display mounted on an EVE2 graphically accelerated PCA, a Seeeduino, an EVE breakout board, jumper wires, USB cable and 6-inch ribbon cable.

With a resistive touch screen, full color, and a 6 o'clock viewing angle the display is a great way to offer a full user experience. For more information about the display, including its detailed datasheet, check out the 320x240 3.5" Touch Screen Color TFT page.

The EVE chip really makes this TFT module really shine. EVE (embedded video engine) is a cool new technology from FTDI/Bridgetek that simplifies the process of displaying videos and text in an embedded project. All display, touch sensing, backlight, and audio features are controlled by the FTDI FT810 EVE which appears to host the MCU as a memory-mapped SPI device. The host MCU sends commands and data over the SPI protocol. The module can support both SPI and Quad-SPI.

Check out the 320x240 3.5 Inch EVE Display Kit for just the display and the EVE PCA.

Details
Quantity 1
Price $138.78
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
