CFAF320240F-035T-TS TFT With Carrier Board
Part Number: CFAF320240F-035T-TS-CB
Pricing
| Quantity | Price |
|---|---|
| 1 | $76.30 |
| 10 | $67.32 |
| 20 | $65.93 |
| 50 | $64.45 |
| 100 | $63.46 |
| 200 | $61.97 |
| 500 | $47.19 |
| 1000 * | $42.73 |
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Description

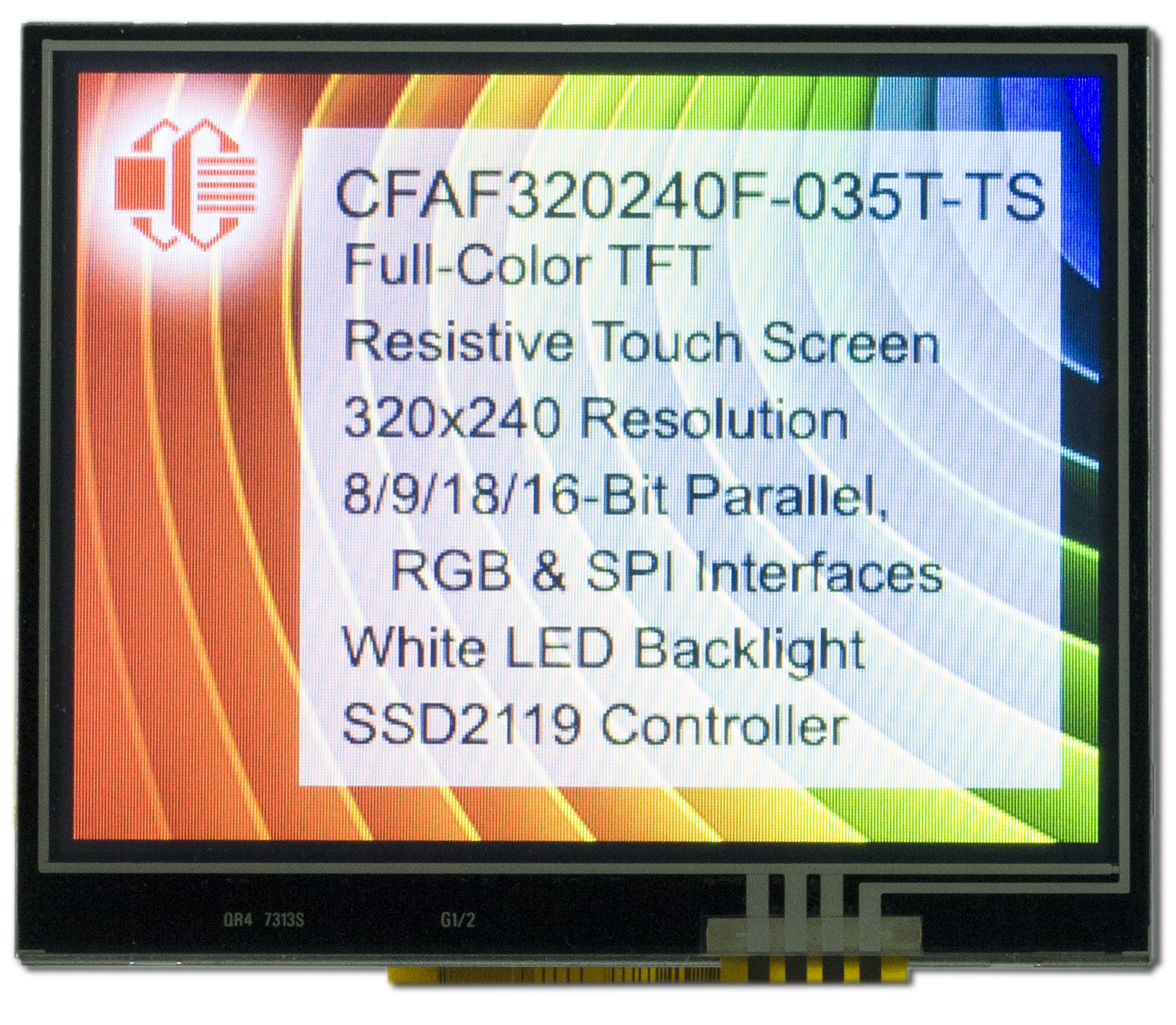

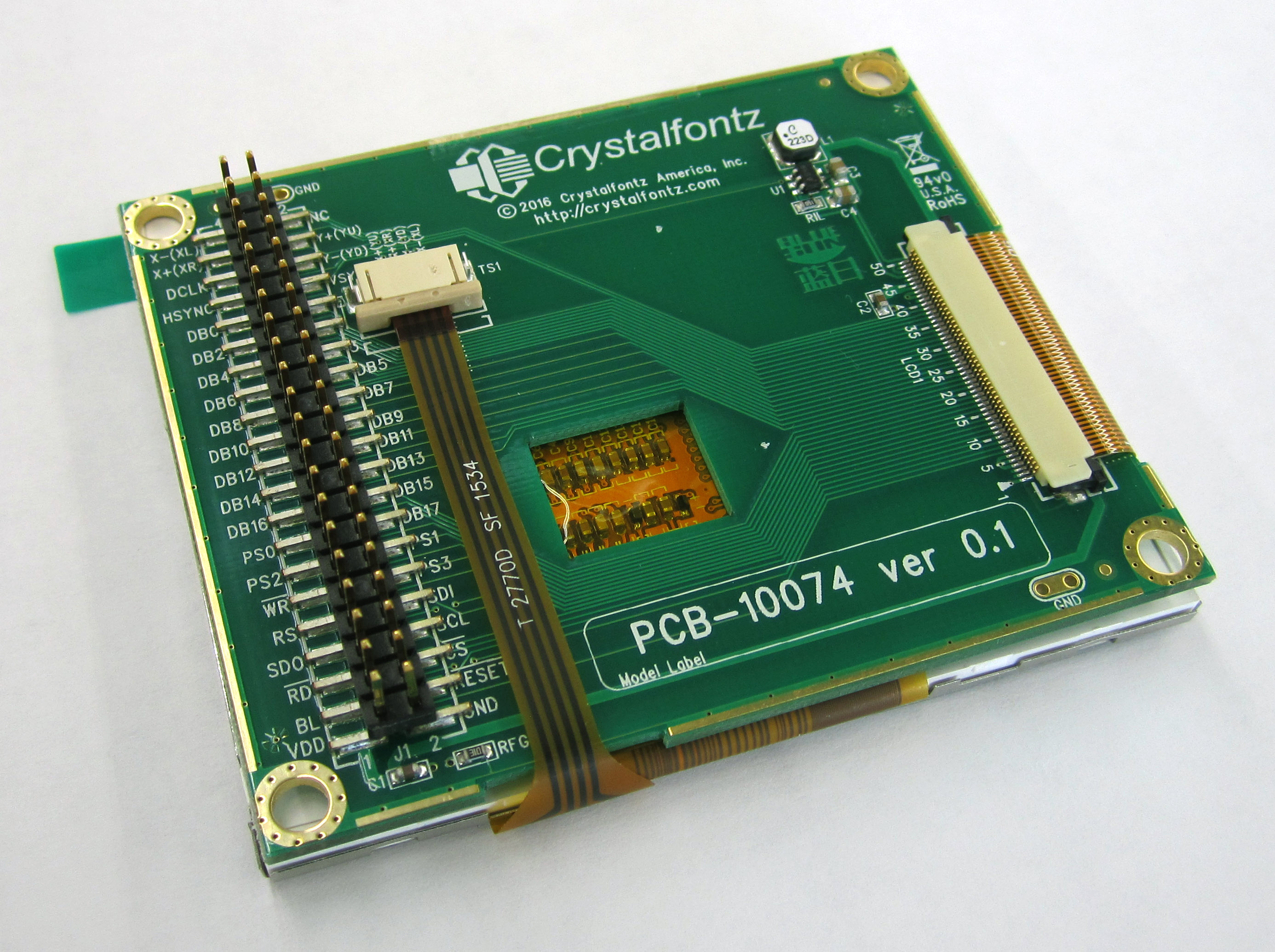

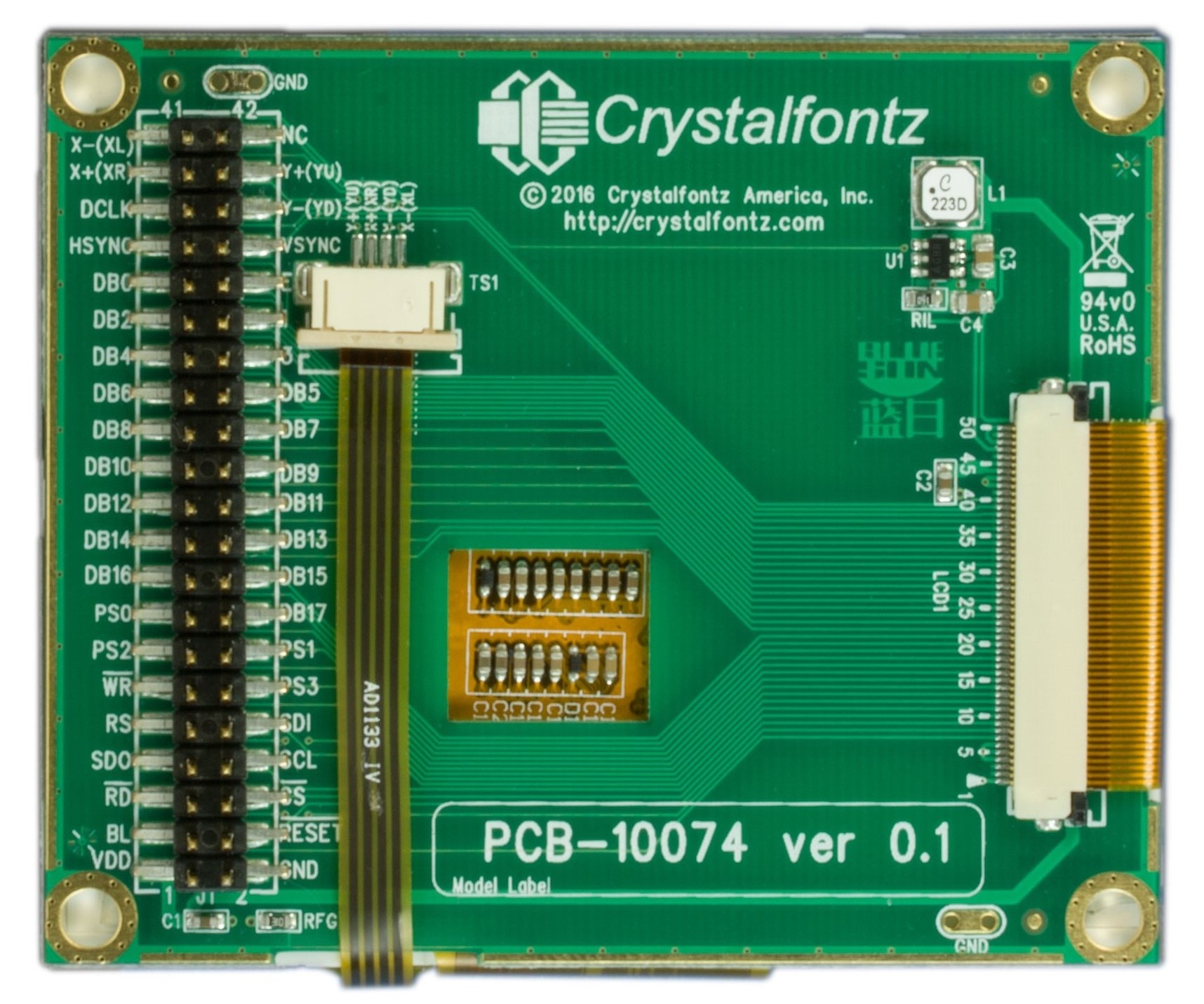

This kit consists of a CFAF320240F-035T-TS TFT LCD module mounted on a carrier board (CFA-10074). The carrier board supports a current driver for the LED backlight of the display. It is available under Additional Options on the website page for CFAF320240F-035T-TS.
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots | 320 x 240 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 77.6 | 64.4 | 4.5 |
| inches | 3.055 | 2.535 | 0.177 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 3.500" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 71.7 | 55.65 |
| inches | 2.823 | 2.191 |
| Active Area | width | height |
|---|---|---|
| millimeters | 70.08 | 52.56 |
| inches | 2.759 | 2.069 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.06 | 0.21 |
| inches | 0.002 | 0.008 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.22 | 0.22 |
| inches | 0.009 | 0.009 |
| Weight | 125g |
Optical Characteristics
| Glass Type/Glass Color | TFT/Black |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Module Connector Pitch | 0.5mm |
| Touchscreen Connector Pitch | 1 mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Solomon Systech SSD2119 SSD2119 320 RGB x 240 TFT LCD Driver Integrated Power Circuit, Source and Gate Driver and RAM |
| Interface | 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI |
Miscellaneous
| Foldable Tab | Yes |
| Touch Screen | Yes |
*Suggest a Correction
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Part Change Notice #10423: BOM change for LED backlight effective 2012/05/29
| Products Affected: | CFAF320240F-035T, CFAF320240F-035T-TS, CFAF320240F-035T-CB, CFAF320240F-035T-TS-CB |
| Date Issued: | June 15, 2012 |
| Summary: | BOM change for LED backlight effective 2012/05/29 |
| Description: | The LEDs used in the backlight for the CFAF320240F-035 family of TFT LCD modules and any assemblies using the CFAF320240F-035 family of TFT LCD modules produced from 2011-03 to 2011-11 is no longer available. To avoid any interruption in supply for our customers, we have gone back to using the LEDs which were in the backlight assembly prior to that point. The LEDs now used are more toward the blue end of the spectrum, whereas the LEDs used for the March-November 2011 period were toward the red end of the spectrum. There may be a difference in light output, but still in the specified range from our datasheet. |
| Reason: | Component end of life. |
| Impact: | Low. The specifications for the LEDs used in the backlight still meet the specifications stated in our datasheets. |
| Availability: | Current stock. |
| Price Change: | N/A |
Part Change Notice #10403: Glass characteristics change requiring single command initialization change for optimal contrast.
| Products Affected: | CFAF320240F-035T, CFAF320240F-035T-TS, CFAF320240F-035T-CB, CFAF320240F-035T-TS-CB |
| Date Issued: | February 24, 2012 |
| Summary: | Glass characteristics change requiring single command initialization change for optimal contrast. |
| Description: | PCN for CFAF320240F family of products due to a change in panel vendors. |
| Reason: | In order to maintain uninterrupted supply of this module, we changed vendors for the LCD panel so that lead times would not be affected. |
| Impact: | Because of the slightly different characteristics of the panel, a single command in the initialization of the module should be changed so that optimal contrast can be achieved. No other changes are necessary. |
| Recommendation: | Change the following registers from: write_command(0x001E); // Power Control 5 write_data(0x00B7); // Page 53 of SSD2119 datasheet to write_command(0x001E); // Power Control 5 write_data(0x00BE); // Page 53 of SSD2119 datasheet and contrast should be optimal for the display. |
| Availability: | Immediately for non-touchscreen modules, with a cut-in for the modules with a touchscreen over the next several months. |
| Price Change: | Pricing is not affected by this change. |
Product Update #10360: New Product in TFT LCD Modules: CFAF320240F-035T-TS-CB
| New Product: | CFAF320240F-035T-TS-CB |
| Date Issued: | August 11, 2011 |
| Summary: | New Product in TFT LCD Modules: CFAF320240F-035T-TS-CB |
| Description: | Carrier board for CFAF320240F TFT LCD module with Touch Screen. Includes current driver for the LED backlight present on the TFT LCD module. |
