CFAF320240F-035T TFT With Carrier Board

Part Number: CFAF320240F-035T-CB

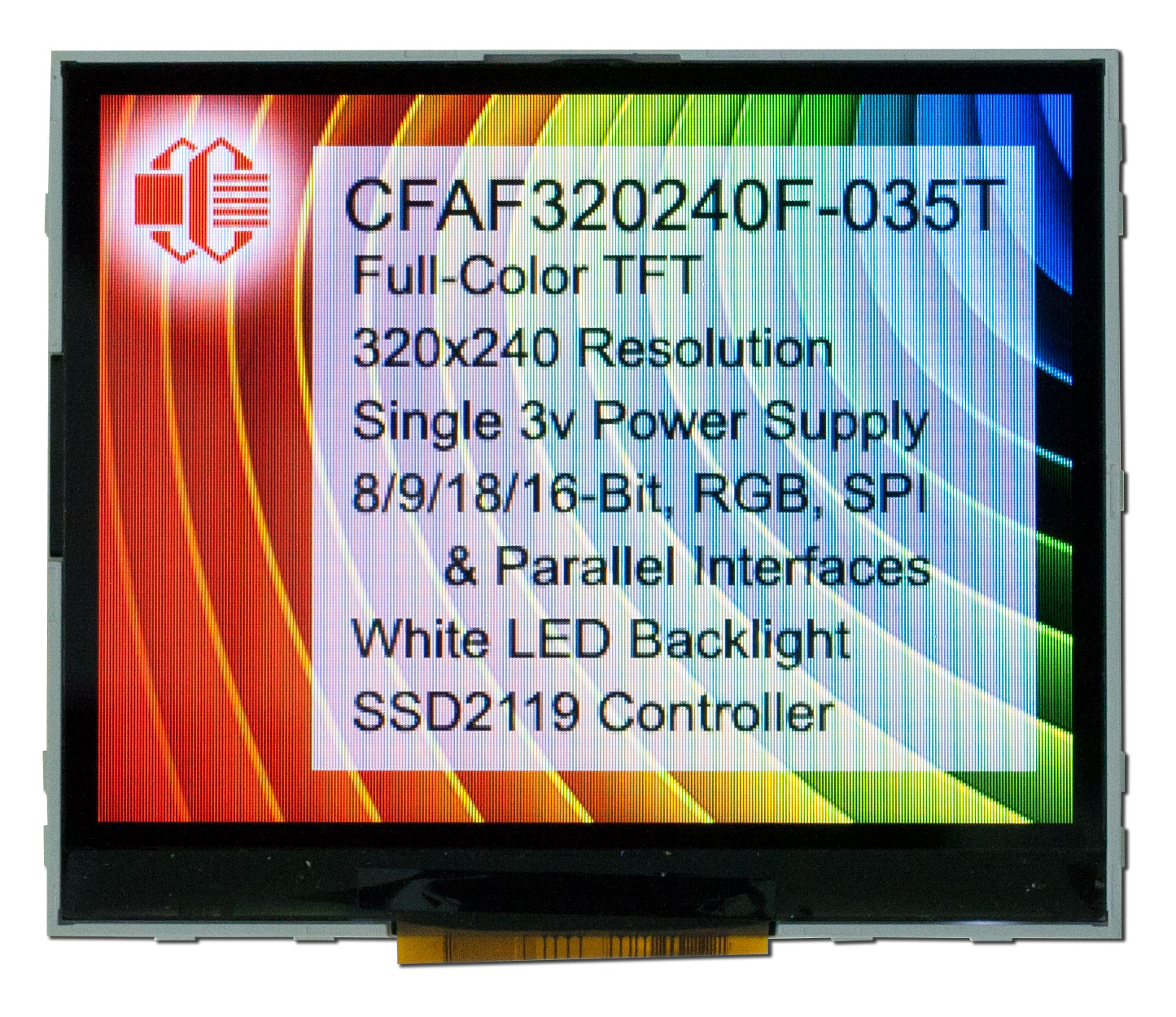

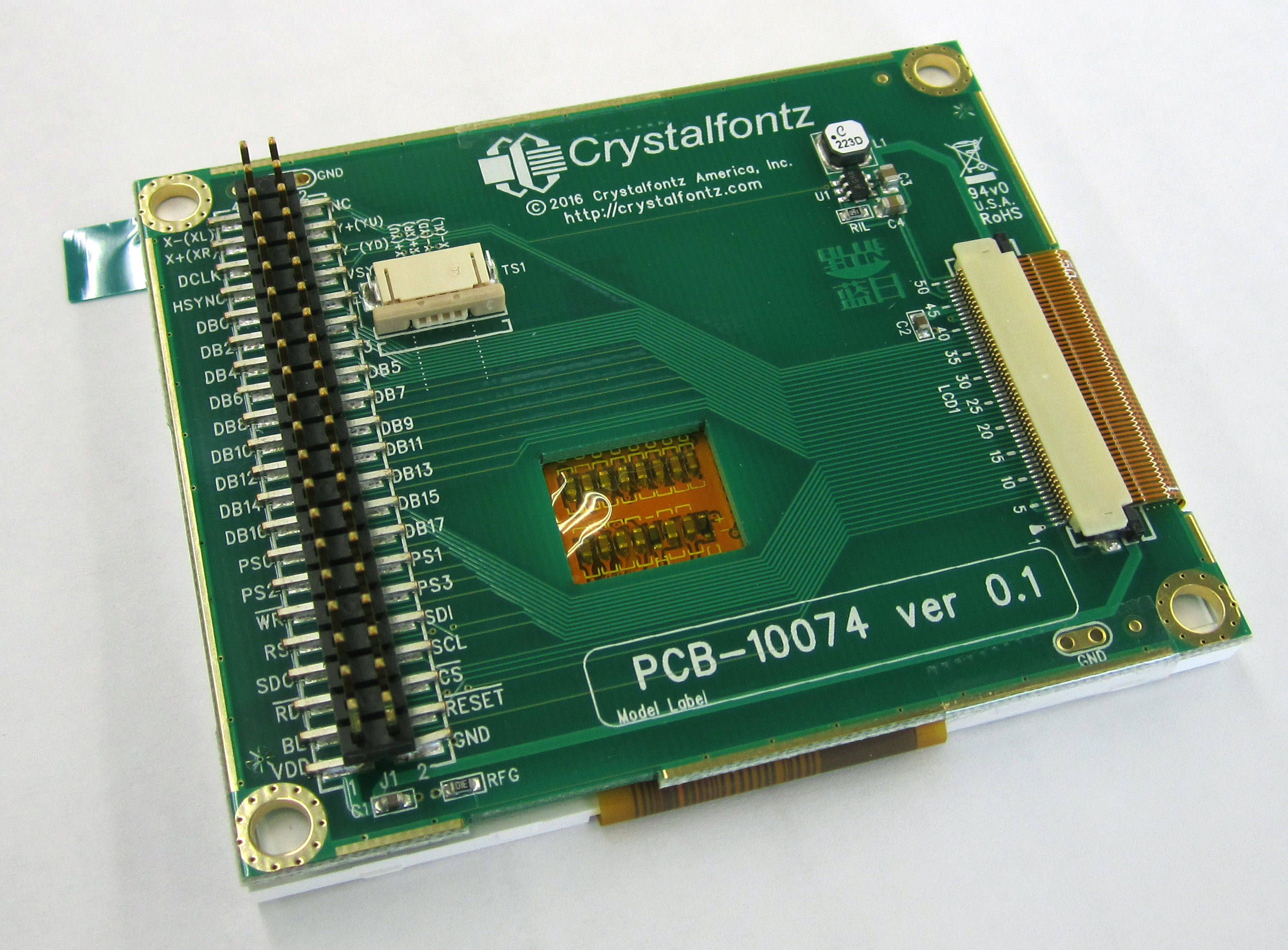

This kit consists of a CFAF320240F-035T a 320x240 3.5" Full Color TFT LCD module mounted on a carrier board (CFA-10074). The carrier board supports a current driver for the LED backlight of the display.

We also have this same module and carrier board with a touchscreen.

Product Variants

DetailsCFAF320240F-035T-TS TFT With Carrier BoardCFAF320240F-035T-TS TFT With Carrier Board
16-bit Parallel,18-bit Parallel,8-bit Parallel,9-bit Parallel,DOT-CLK interface / Generic RGB,SPI, Full-Color
  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 320 x 240
    Module Overall width height depth
    millimeters 77.6 64.4 3.1
    inches 3.055 2.535 0.122
    *width / height does not include Foldable Tab
    Diagonal Dimension 3.45"
    Viewing Area Width Height
    millimeters 69.92 52.55
    inches 2.753 2.069
    Active Area Width Height
    millimeters 70.08 52.56
    inches 2.759 2.069
    Dot Size Width Height
    millimeters 0.06 0.21
    inches 0.002 0.008
    Dot Pitch Width Height
    millimeters 0.22 0.22
    inches 0.009 0.009
    Weight 113g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color TFT/Black
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Module Connector Pitch 0.5mm
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Solomon Systech SSD2119
    SSD2119 320 RGB x 240 TFT LCD Driver
    Integrated Power Circuit, Source and Gate Driver and RAM
    Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $63.33
10 $57.58
20 $57.11
50 $56.65
100 $56.19
200 * $55.72
500 * $45.02
1000 * $39.17
* Pricing is subject to change. Contact us about potential lead times.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF320240F-035T-CB or RSS RSS feed for changes to CFAF320240F-035T-CB
  • text_snippet
    Part Change Notice #10423: BOM change for LED backlight effective 2012/05/29
    Products Affected: CFAF320240F-035T, CFAF320240F-035T-TS, CFAF320240F-035T-CB, CFAF320240F-035T-TS-CB
    Date Issued: June 15, 2012
    Summary: BOM change for LED backlight effective 2012/05/29
    Description: The LEDs used in the backlight for the CFAF320240F-035 family of TFT LCD modules and any assemblies using the CFAF320240F-035 family of TFT LCD modules produced from 2011-03 to 2011-11 is no longer available. To avoid any interruption in supply for our customers, we have gone back to using the LEDs which were in the backlight assembly prior to that point. The LEDs now used are more toward the blue end of the spectrum, whereas the LEDs used for the March-November 2011 period were toward the red end of the spectrum. There may be a difference in light output, but still in the specified range from our datasheet.
    Reason: Component end of life.
    Impact: Low. The specifications for the LEDs used in the backlight still meet the specifications stated in our datasheets.
    Availability: Current stock.
    Price Change: N/A
  • text_snippet
    Part Change Notice #10403: Glass characteristics change requiring single command initialization change for optimal contrast.
    Products Affected: CFAF320240F-035T, CFAF320240F-035T-TS, CFAF320240F-035T-CB, CFAF320240F-035T-TS-CB
    Date Issued: February 24, 2012
    Summary: Glass characteristics change requiring single command initialization change for optimal contrast.
    Description: PCN for CFAF320240F family of products due to a change in panel vendors.
    Reason: In order to maintain uninterrupted supply of this module, we changed vendors for the LCD panel so that lead times would not be affected.
    Impact: Because of the slightly different characteristics of the panel, a single command in the initialization of the module should be changed so that optimal contrast can be achieved.



    No other changes are necessary.
    Recommendation: Change the following registers from:




    write_command(0x001E); // Power Control 5

    write_data(0x00B7); // Page 53 of SSD2119 datasheet



    to


    write_command(0x001E); // Power Control 5

    write_data(0x00BE); // Page 53 of SSD2119 datasheet



    and contrast should be optimal for the display.
    Availability: Immediately for non-touchscreen modules, with a cut-in for the modules with a touchscreen over the next several months.
    Price Change: Pricing is not affected by this change.
  • text_snippet
    Product Update #10359: New Product in TFT LCD Modules: CFAF320240F-035T-CB
    New Product: CFAF320240F-035T-CB
    Date Issued: August 11, 2011
    Summary: New Product in TFT LCD Modules: CFAF320240F-035T-CB
    Description: Carrier board for CFAF320240 TFT LCD module. Includes current driver for the LED backlight present on the TFT LCD module.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320240F-035T-CB or RSS RSS feed for changes to CFAF320240F-035T-CB for CFAF320240F-035T-CB
