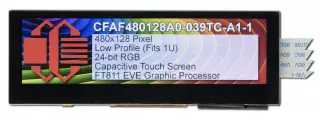

480x128 EVE Bar-Type TFT LCD

Part Number: CFAF480128A0-039TC-A1-1

Pricing

Quantity Price
1 $88.10
10 * $71.22
20 * $68.81
50 * $66.41
100 * $65.44
200 * $64.96
300 * $64.48
500 * $64.00
1000 * $63.52
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF480128A0-039TC-A1-1 or RSS RSS feed for changes to CFAF480128A0-039TC-A1-1 for CFAF480128A0-039TC-A1-1

Description

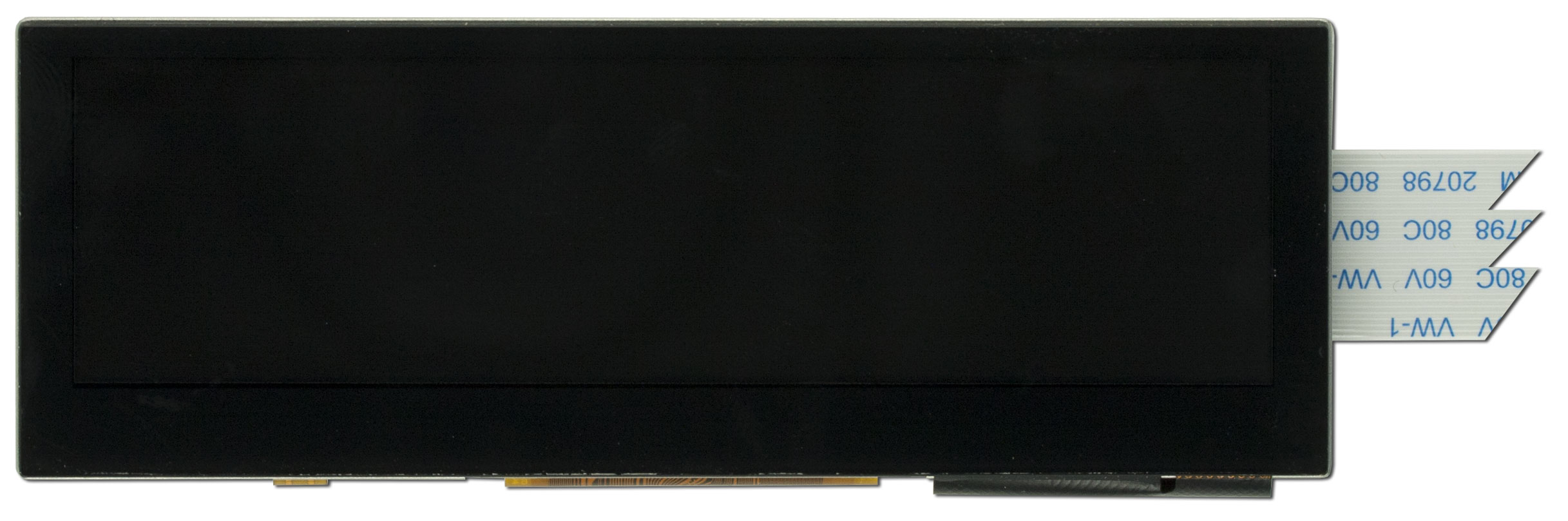

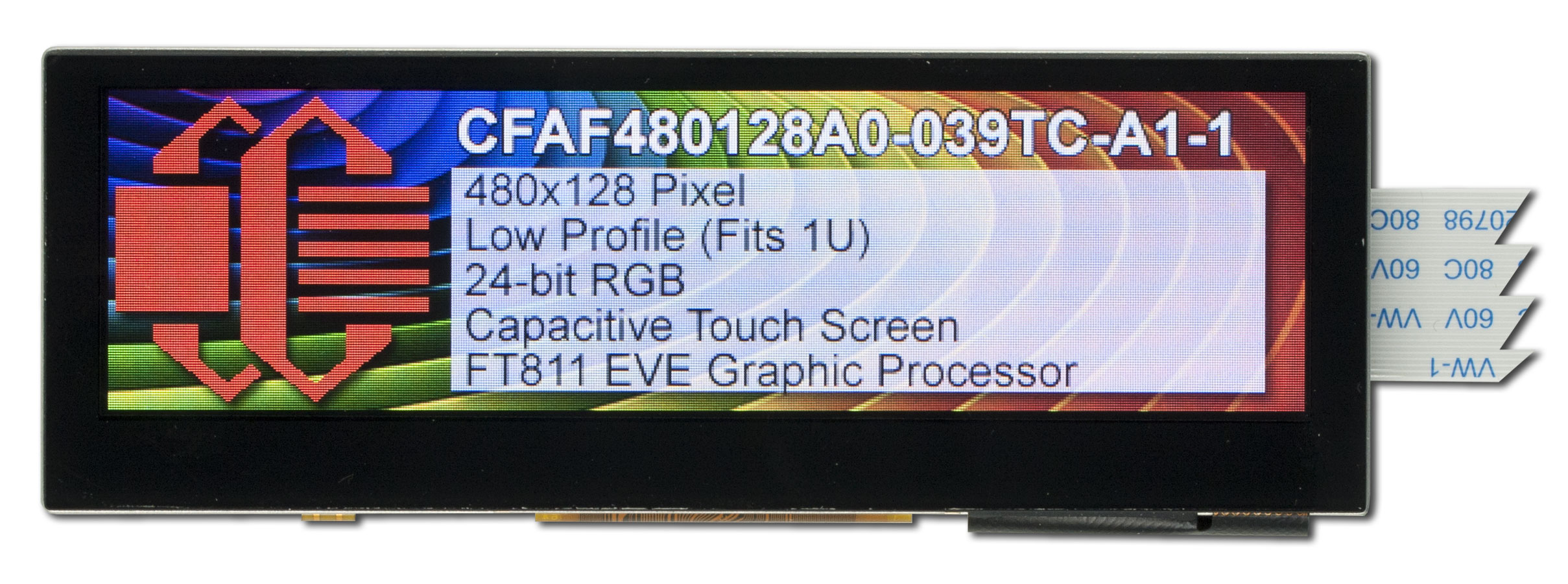

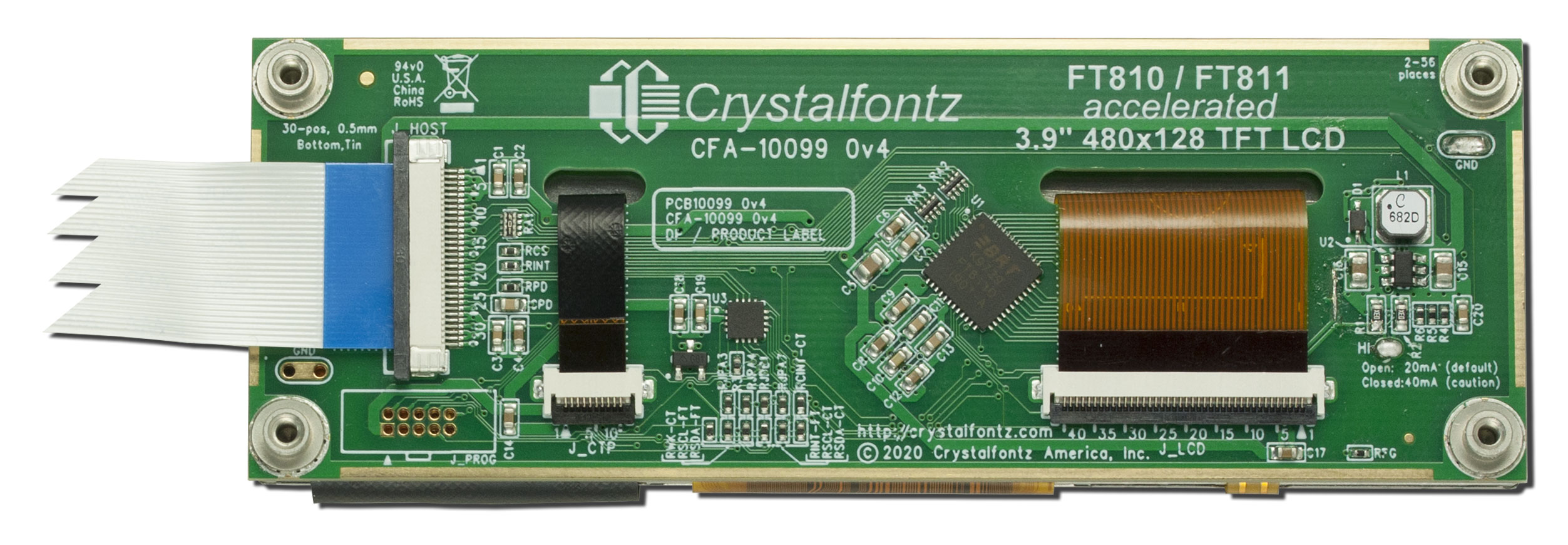

This display module is made up of a neat 3.9" display with a wide aspect ratio mounted to an accelerator board that includes and FTDI/BridgeTek Embedded Video Engine (EVE) chip. The accelerator board is specifically designed for the display, resulting in a nice fit, perfect to be used in any project.

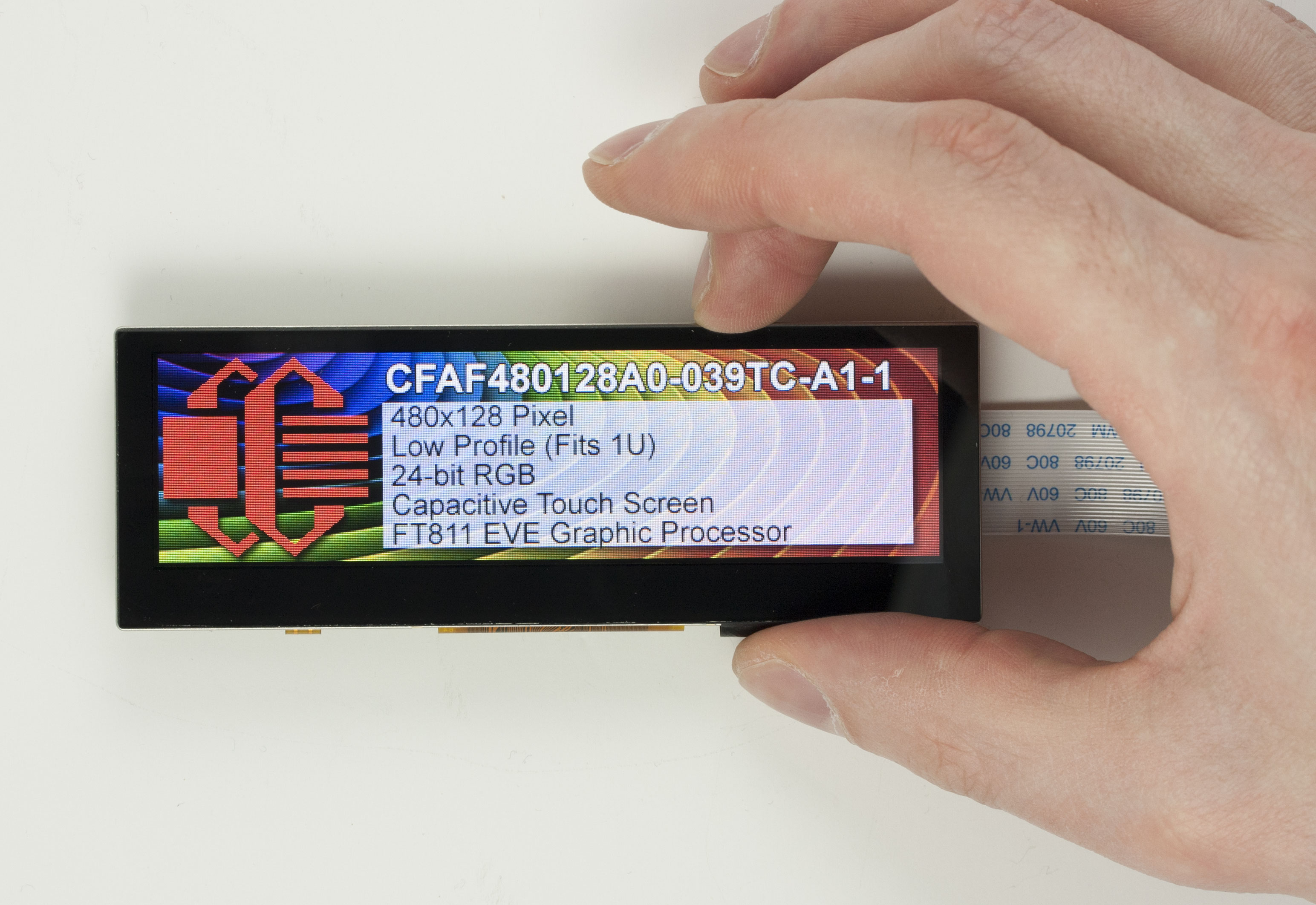

This bar-type display module is great for rack-mount applications and fits in a 1U rack. Its unusual shape lends itself to a wide variety of applications. This TFT module has rear-facing pem-nuts so it's easy to secure in an enclosure.

Features:
  • Great for rack-mount applications
  • Slim design with rear-facing pem-nuts for easy fastening to an enclosure
  • EVE2 accelerator
  • Capacitive touch
  • 30-pin FPC / ZIF Connection
For more information about the display, see the 3.9" bar-type display product page.

Why use EVE?
  • Simplified control of all touch handling, display, audio, and backlight
  • EVE UI design software for your PC simplifies the design process
  • Enhanced sketch processing
  • Supports playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control

For more information on EVE, see our FTDI/BridgeTek EVE benefits blog post.

Need a breakout board? The EVE Breakout Board breaks out the connections to the EVE module to 0.1" headers for easy development.

Don't forget you'll need a cable to connect the display to the EVE Breakout Board. For that we have a 6-inch 30-pin FPC Cable and a 12-inch 30-pin FPC.

Need a complete Seeeduino/Arduino development kit that includes this display module, the EVE breakout board, a Seeeduino, and the necessary connectors? Check out the 480x128 EVE bar-type development kit.

Video Demonstrations

480x128 EVE Bar-Type Touchscreen TFT

Quick demonstration of our EVE Bar-Type touchscreen display.


TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 480 x 128

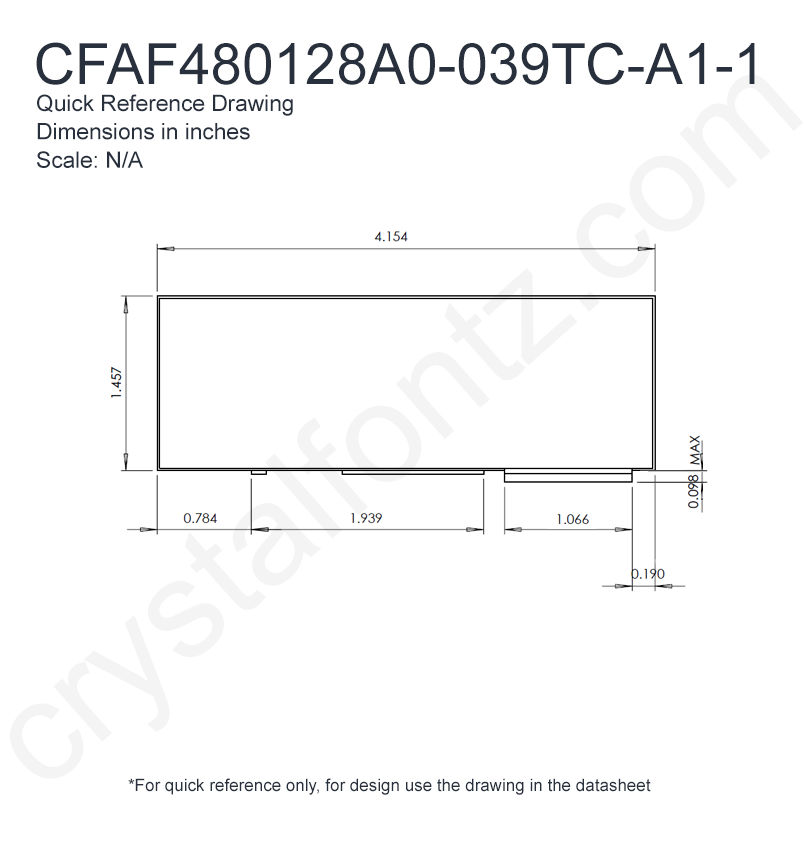

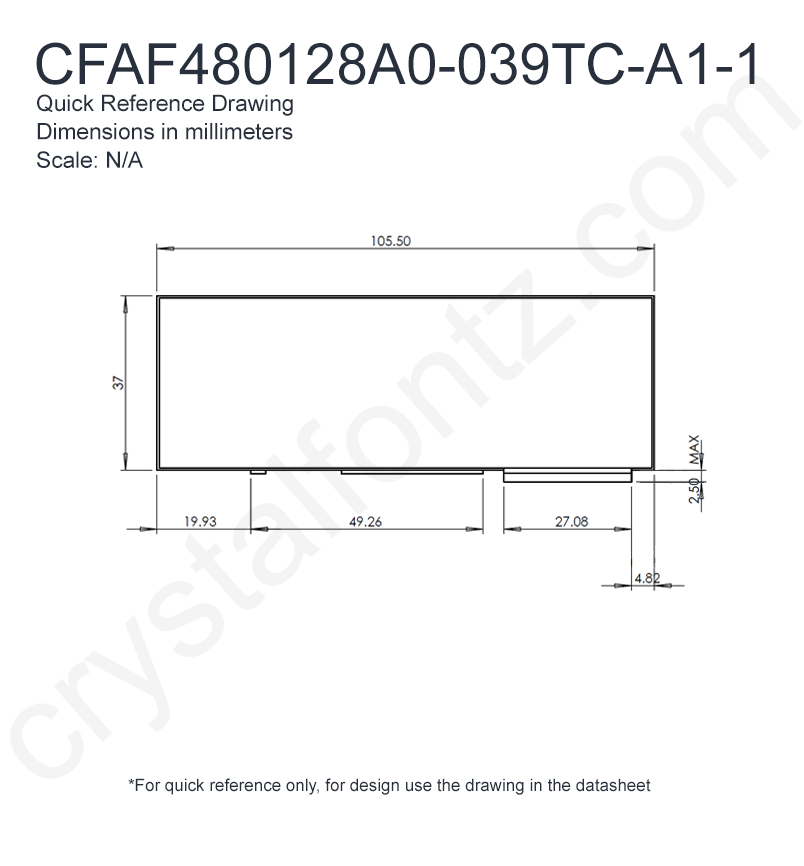

Module Overall width height
millimeters 105.5 37
inches 4.154 1.457
Optional Connectors CS050Y30TB0
Weight 59.6g

Optical Characteristics

Polarizer Transmissive
Backlight Color White
Backlight Type LED

Electronics

Interface SPI

Miscellaneous

Touch Screen Capacitive

Additional Options

Buy a complete development kit and save time!

EVE Bar-Type TFT Development Kit
Part Number: CFAF480128A0-039TC-A1-2

This bar-type TFT development kit includes everything you need to get started prototyping and building with the 480x128 accelerated display module . This development kit includes the bar-type display module with the accelerator board connected an EVE Breakout Board connected to a Seeeduino loaded with demo code. Once you receive the development kit, all you need to do to get the demo kit running is check the connections and plug in the included USB cable.

Features:

  • Great for rack-mount applications
  • Slim design with rear-facing pem-nuts for easy fastening to an enclosure
  • EVE2 accelerator
  • Cap touch
  • Adapter board has a jack to connect a speaker

Details
Quantity 1
Price $110.13
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF480128A0-039TC-A1-1 or RSS RSS feed for changes to CFAF480128A0-039TC-A1-1

Product Update #11065: Firmware update.

Products Affected: CFAF480128A0-039TC-A1-1, CFAF480128A0-039TC-A1-2
Date Issued: June 11, 2020
Summary: Firmware update.
Description: The change is firmware only and the only change is to turn the backlight off until after the initialization of the display.
Reason: If power is provided to the display the backlight is on until the initialization is sent. We have modified the firmware so the display stays off until the end-user has the ability to control the backlight.
Impact: Hardware Version: 0v4
Software Version: 0v0
For reference only. For design purposes, please use the specifications in the datasheet.
