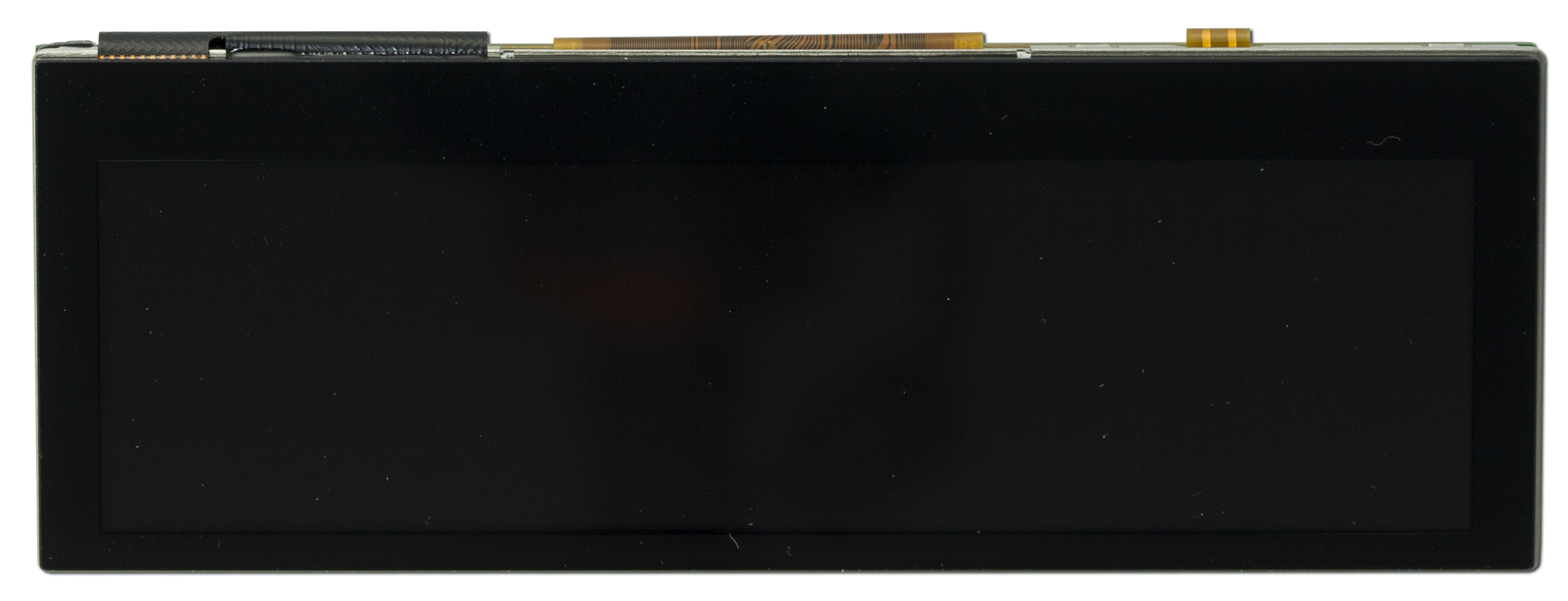

EVE Wide-Format TFT Display

Part Number: CFA480128E0-039TC

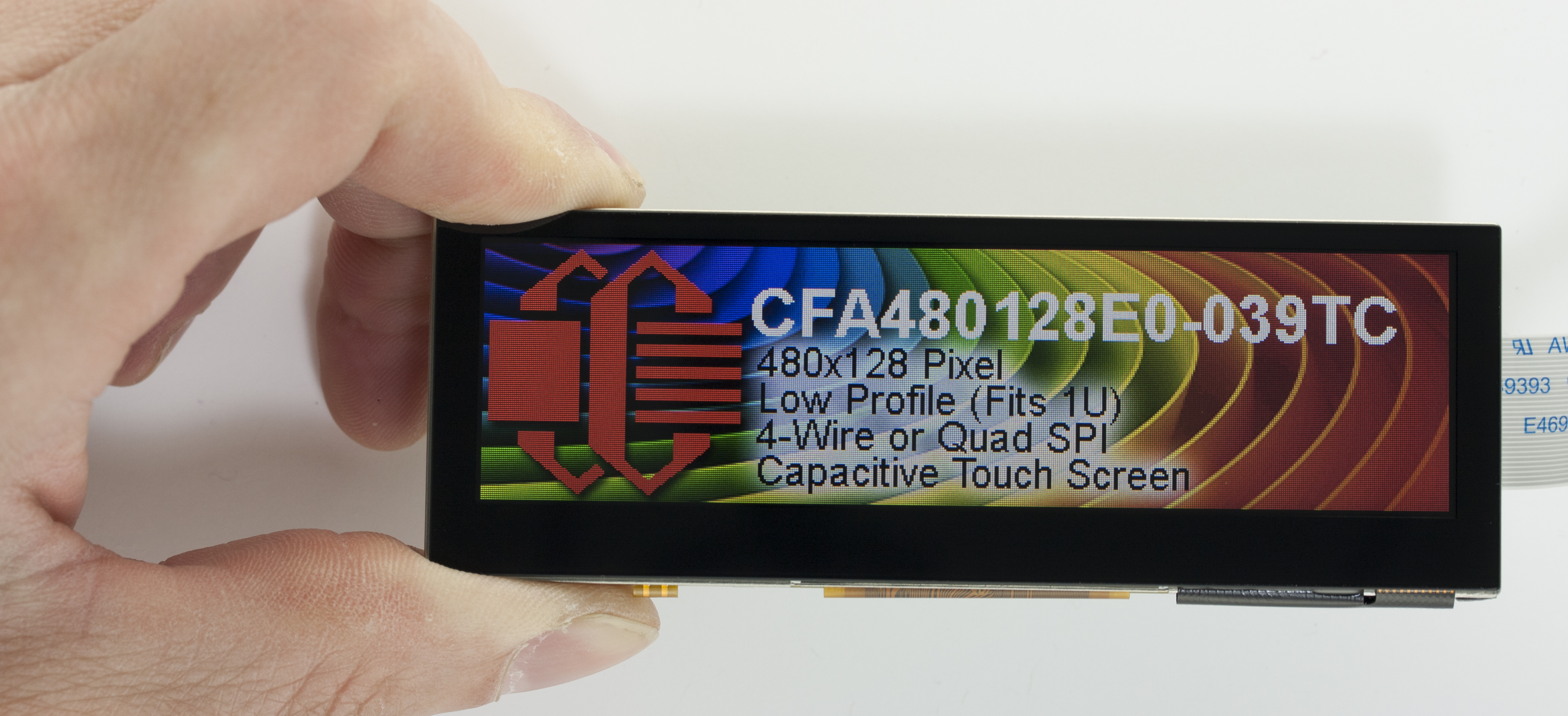

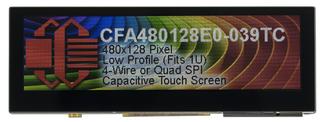

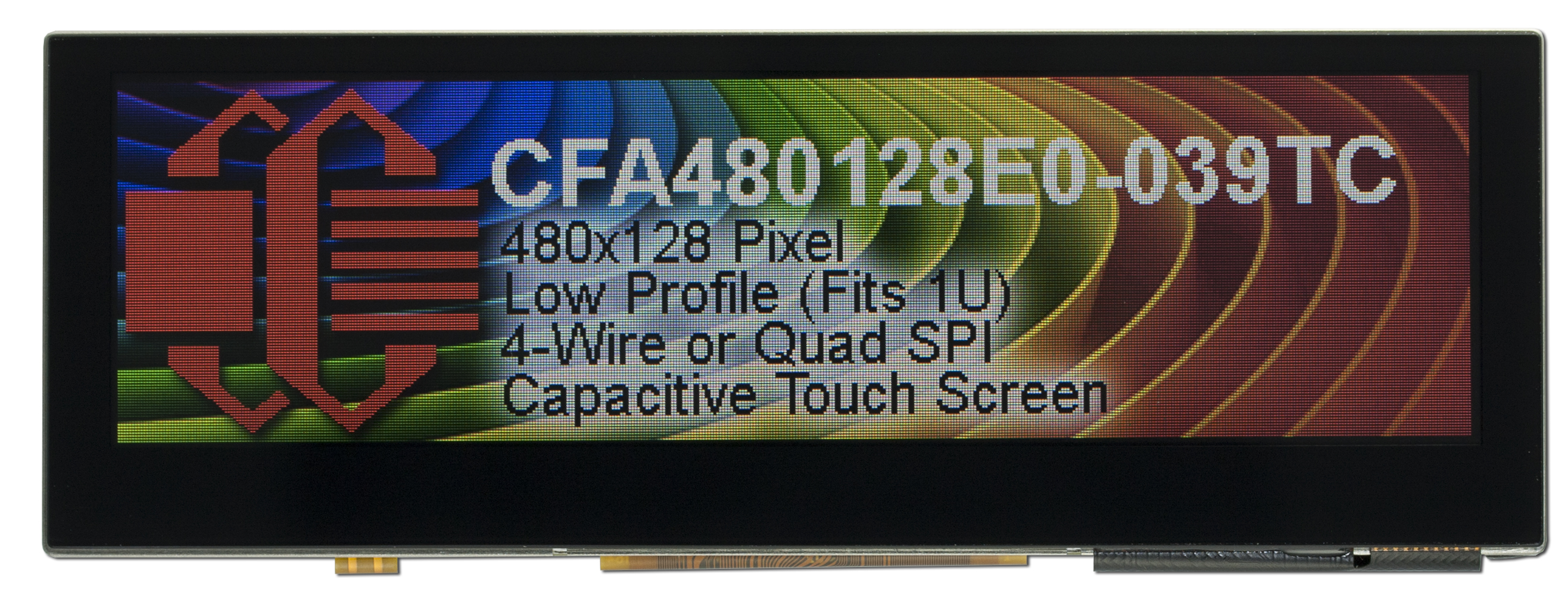

This 3.9" bar type TFT display module uses the FTDI/BridgeTek Embedded Video Engine (EVE) chip to simplify your display design-in. The EVE chip handles communication between the display (including touch, audio, graphics, and backlight) and the host. Plus, it communicates via SPI and uses a command structure, further easing development.

This display module has a wide aspect ratio mounted and the accelerator board is specifically designed for the display, resulting in a nice fit, perfect to be used in any project.

This bar type display module is great for rack-mount applications and fits in a 1U rack. Its unusual shape lends itself to a wide variety of applications, such as a display for a server, sound bar, amplifier, or dashboard. This TFT module has rear-facing mounting stand-offs so it is easy to secure in an enclosure.

Features:
  • Great for rack-mount applications
  • Slim design
  • Rear-facing mounting stand-offs for easy fastening to an enclosure

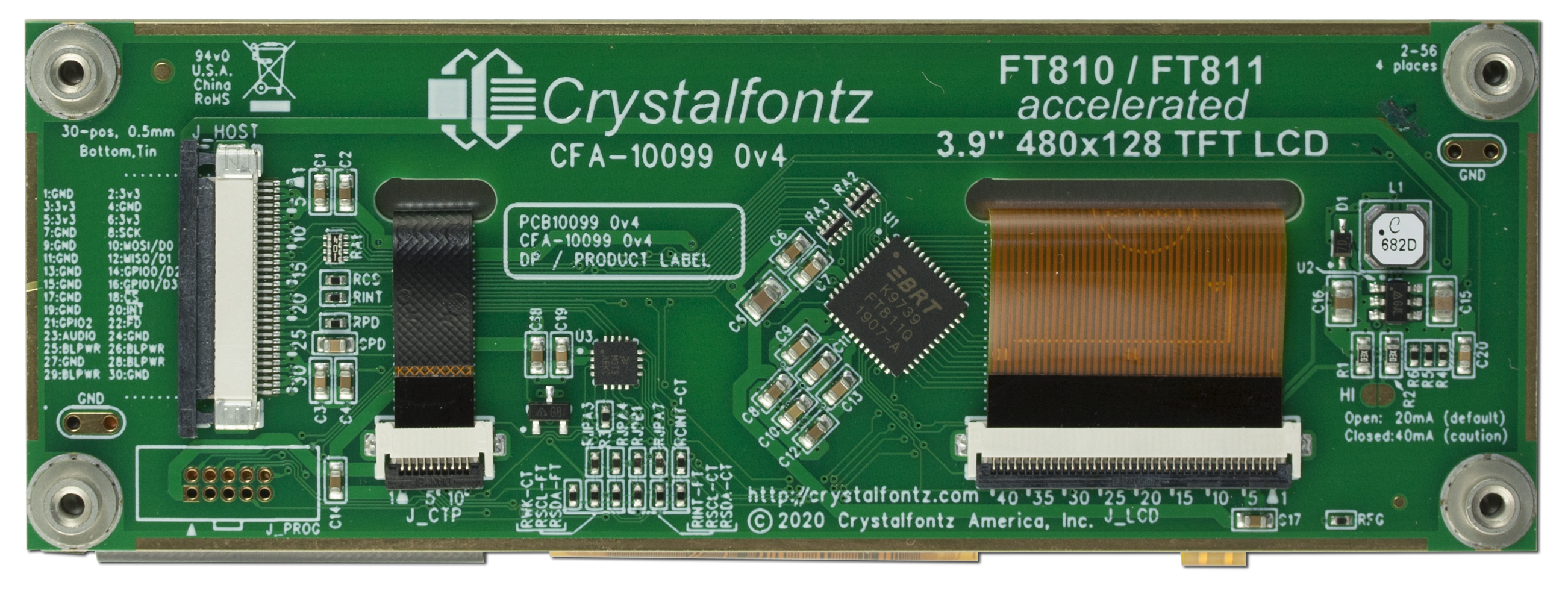

  • EVE2 accelerator
  • Capacitive touch
  • 30-pin FPC / ZIF Connection
For more information about the display, see the 3.9" bar-type display product page.

Why use EVE?
  • Simplified control of all touch handling, display, audio, and backlight
  • EVE UI design software for your PC simplifies the design process
  • Enhanced sketch processing
  • Supports playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
For more information on EVE, see our FTDI/BridgeTek EVE benefits blog post.

Need a breakout board? The EVE Breakout Board breaks out the connections to the EVE module to 0.1" headers for easy development.

Don't forget you'll need a cable to connect the display to the EVE Breakout Board. For that, we have a 6-inch 30-pin FPC Cable and a 12-inch 30-pin FPC.

Need a complete Seeeduino/Arduino development kit that includes this display module, the EVE breakout board, a Seeeduino, and the necessary connectors? Check out the 480x128 EVE bar-type development kit.

Interested in the EVE framework, but this isn't the display for you? Check out our other EVE TFTs.

Currently Shipping: HW Version 0v4, Firmware Version: 0v2

Qty:
Quantity Price
1 $107.89
5 $90.09
10 $87.72
20 $84.76
50 $81.80
100 * $80.60
200 * $80.02
300 * $79.42
500 * $78.83
1000 * $78.23
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering

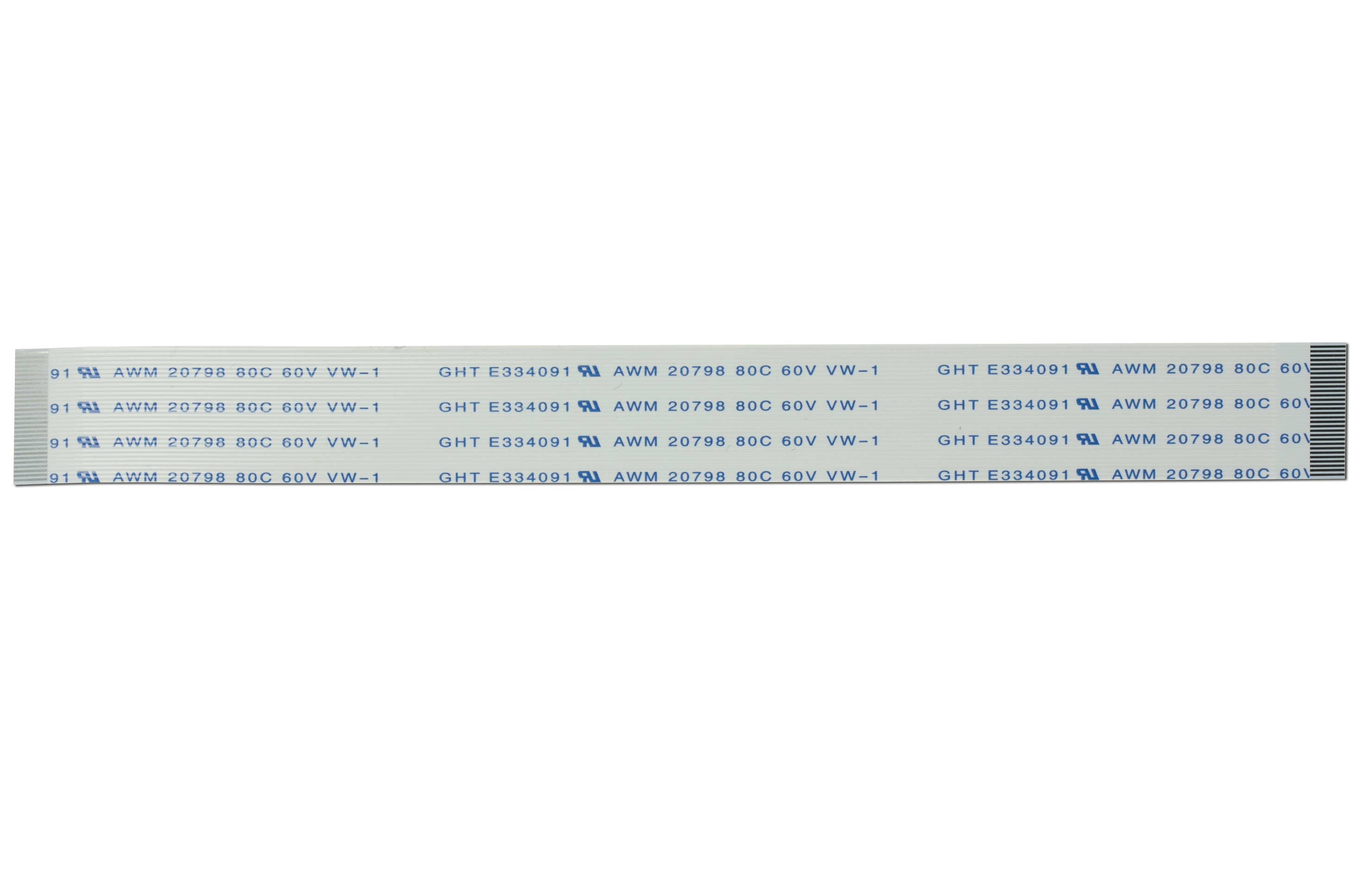

4606 6-inch 30-pin FFC Cable
Need a FFC Cable? $2.30 ea.

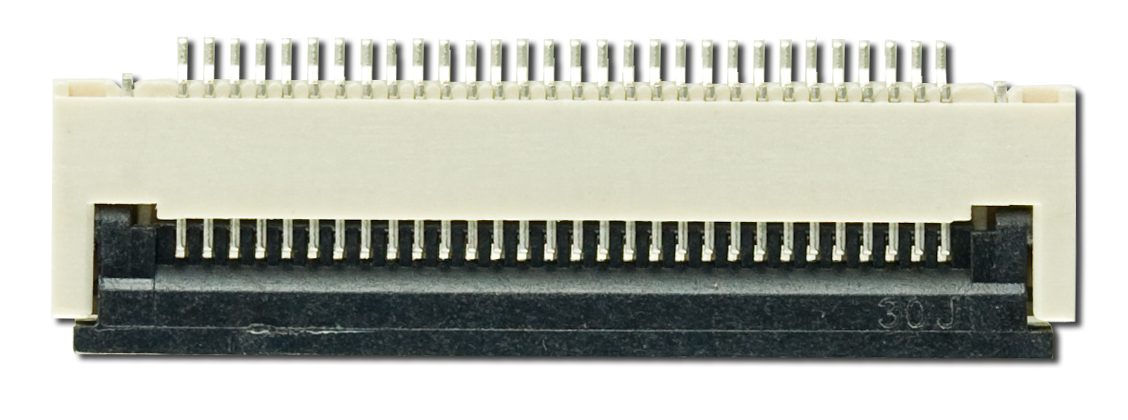

4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Need ZIF Connectors? $0.61 ea.

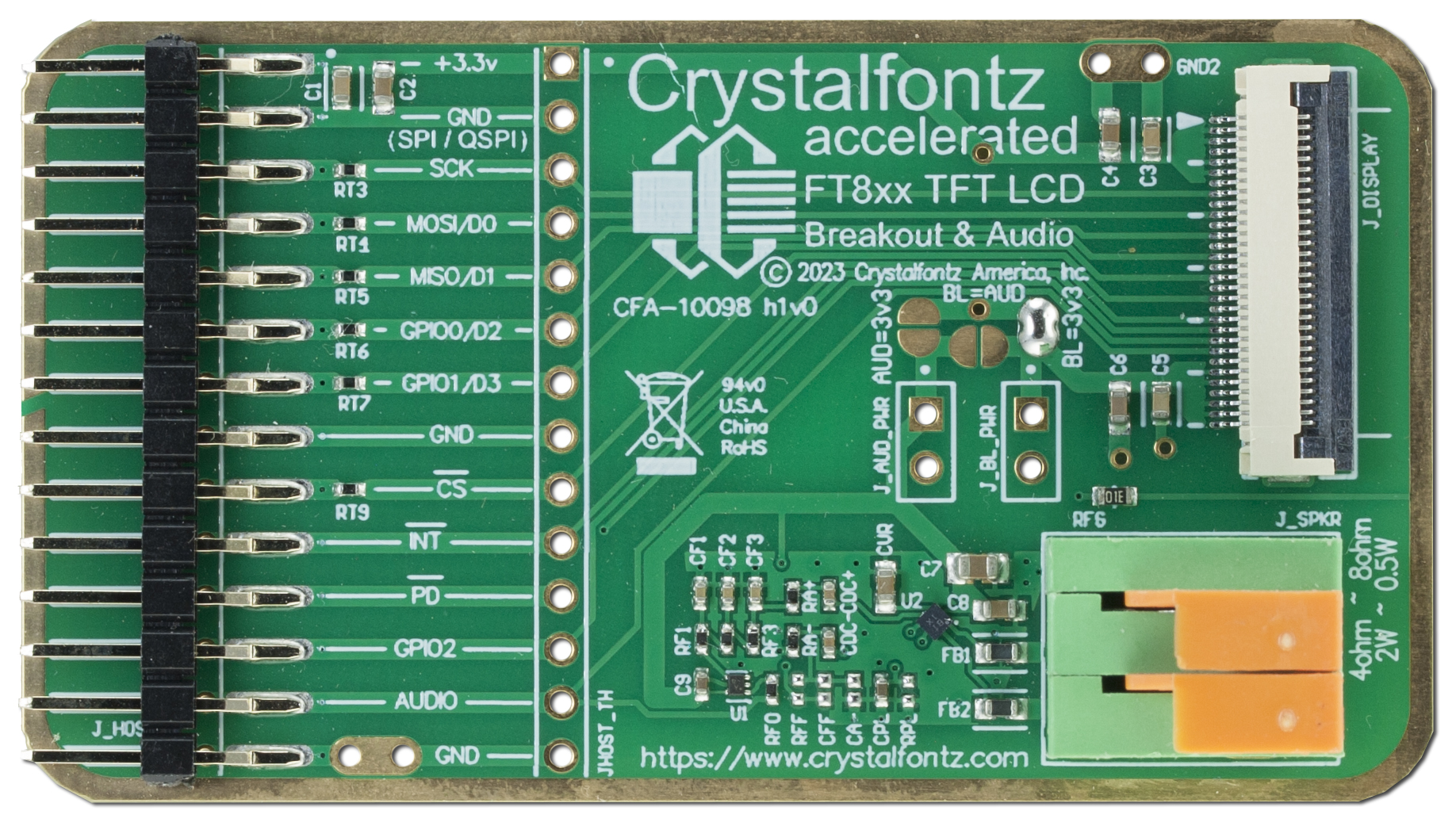

4595 EVE Breakout Board
Need an EVE Breakout Board? $24.63 ea.
4665 Assorted Imperial Screws
Add assorted mounting screws? $3.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA480128E0-039TC or RSS RSS feed for changes to CFA480128E0-039TC for CFA480128E0-039TC

Video Demonstrations

Watch a video demonstration of this display.

TECHNICAL SPECS

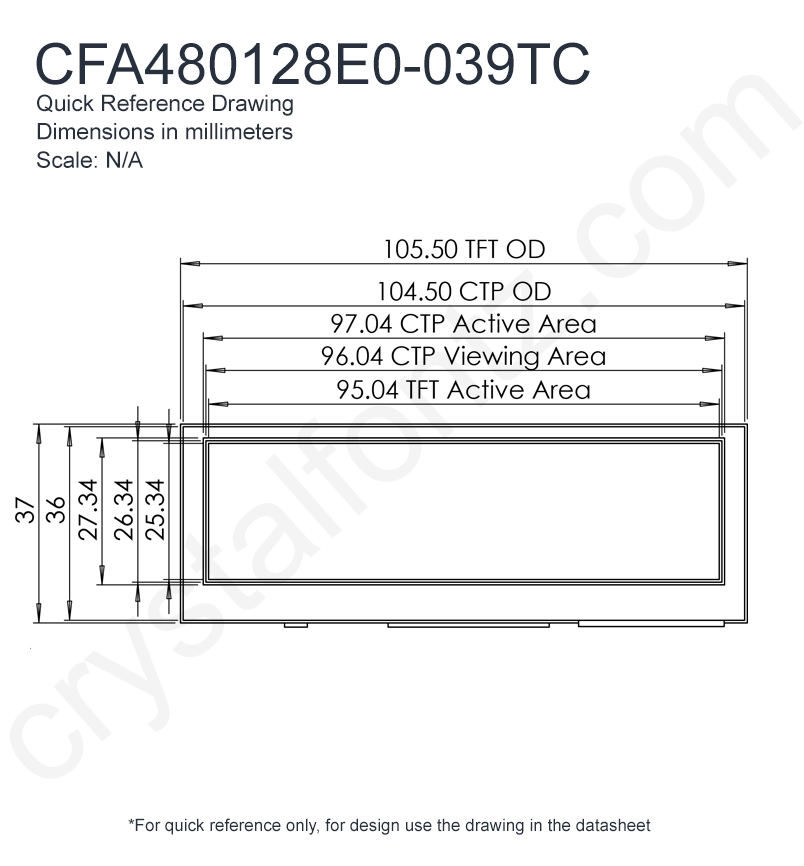

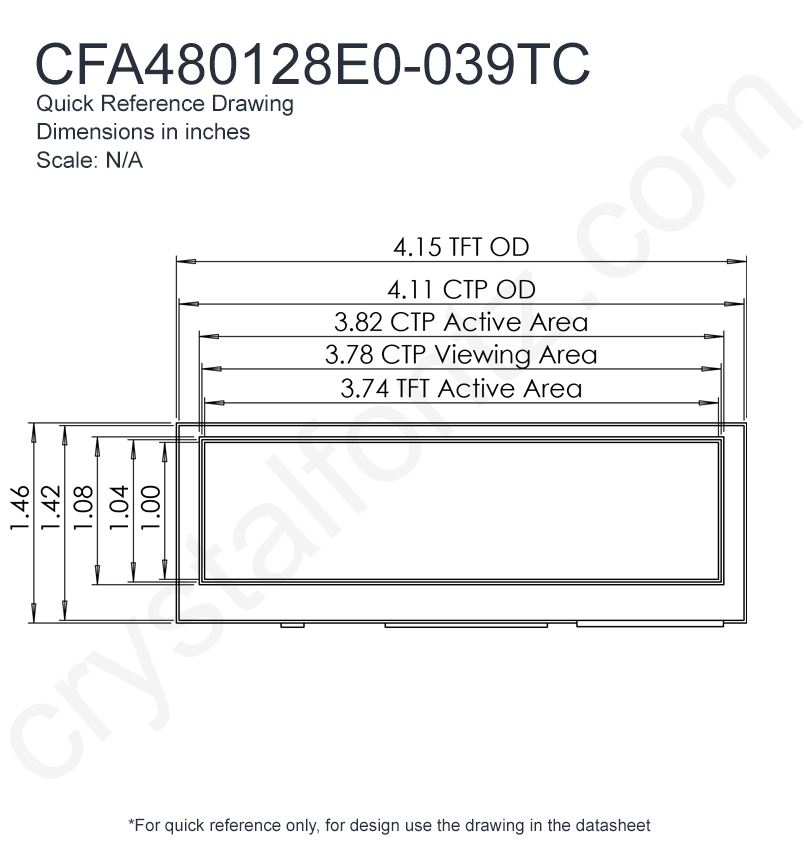

Physical Characteristics

Column Dots x Row Dots 480 x 128
Module Overall width height depth
millimeters 105.5 37 10.73
inches 4.154 1.457 0.422
Diagonal Dimension 3.9"
Viewing Area width height
millimeters 96.04 26.34
inches 3.781 1.037
Active Area width height
millimeters 95.04 25.34
inches 3.742 0.998
Dot Pitch width height
millimeters 0.066 0.066
inches 0.0026 0.0026
Weight 60g
Pin Count 30

Optical Characteristics

Glass Type/Glass Color TFT/Dark
Polarizer Transmissive
View Direction 6 o'clock
View Angle 65°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V

Backlight Electrical Specifications

Forward Voltage Minimum 3.3V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 5V

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Nits 400
Touch Screen Capacitive

Additional Options

Purchase in a development kit to speed up your prototyping.

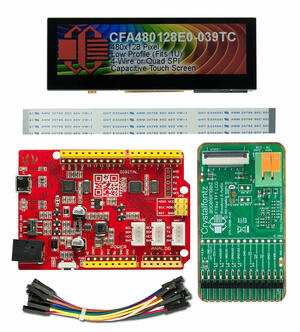

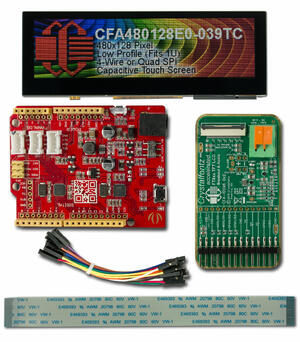

480x128 Wide-Format EVE TFT Development Kit
Part Number: CFA480128E0-039TC-KIT

This bar-type EVE TFT development kit includes everything to get started prototyping and building with the 480x128 accelerated display module. This development kit includes the bar-type display module with the accelerator board connected to an EVE Breakout Board connected to a Seeeduino loaded with demo code. Once you receive the development kit, all you need to do to get the demo kit running is check the connections and plug in the included USB cable.

Features:

  • Great for 1U rack-mount applications
  • Slim design with rear-facing 2-56 mounting stand-offs for easy fastening to an enclosure
  • EVE2 accelerator
  • Capacitive touchscreen
  • Adapter board has an audio output jack to connect a speaker

Details
Quantity 1
Price $132.30
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA480128E0-039TC or RSS RSS feed for changes to CFA480128E0-039TC

Product Update #11146: EVE Wide-Format TFT Display Now Available!

New Product: CFA480128E0-039TC
Date Issued: August 1, 2022
Summary: EVE Wide-Format TFT Display Now Available!
Description: CFA480128E0-039TC has been released on our website (https://www.crystalfontz.com/product/cfa480128e0039tc-eve-wide-format-tft-display) and is now available for sale. Orders can be placed directly from the website or by sending a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
