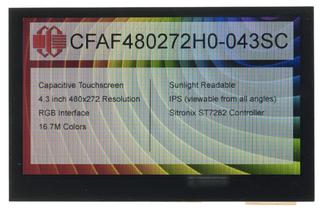

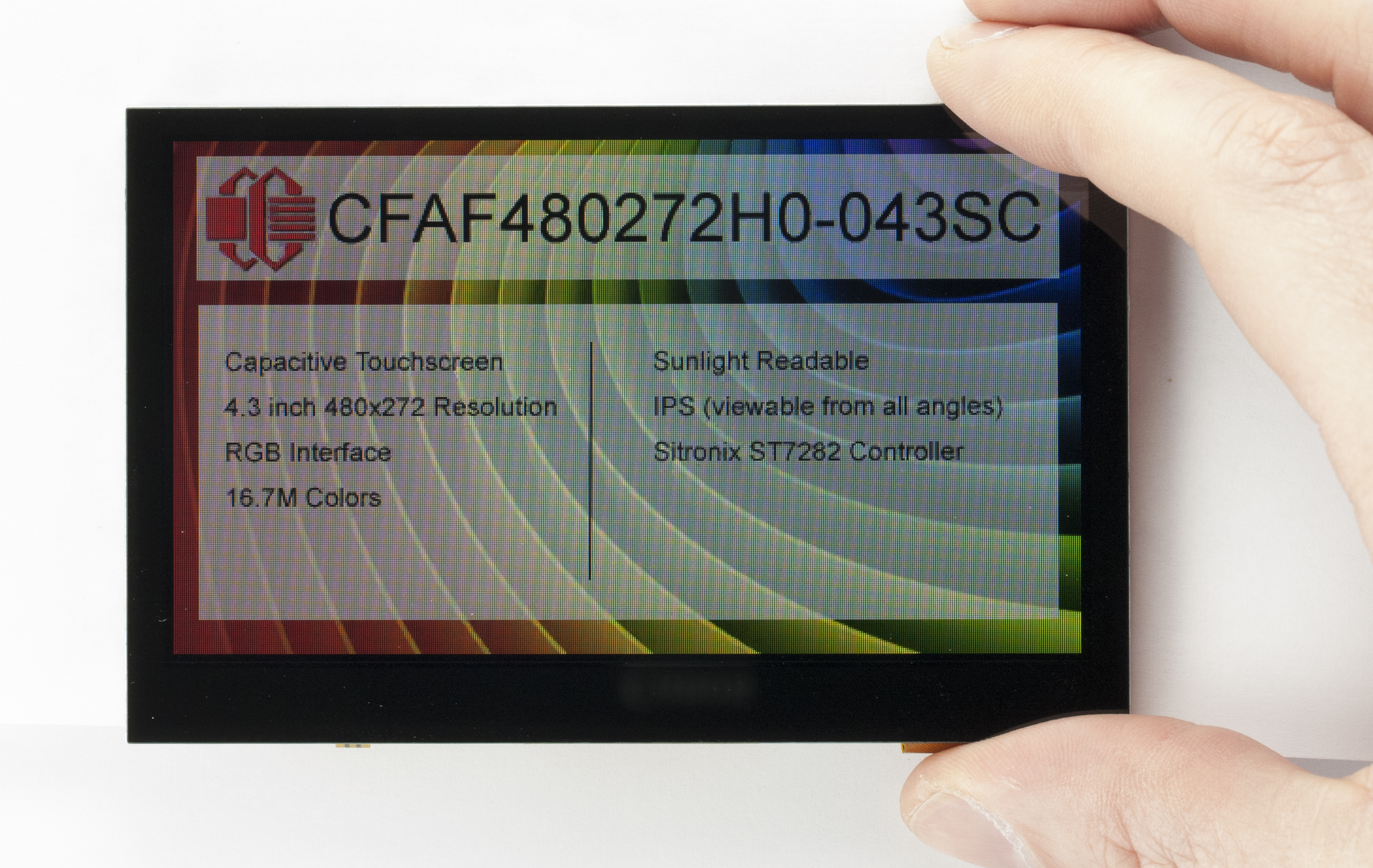

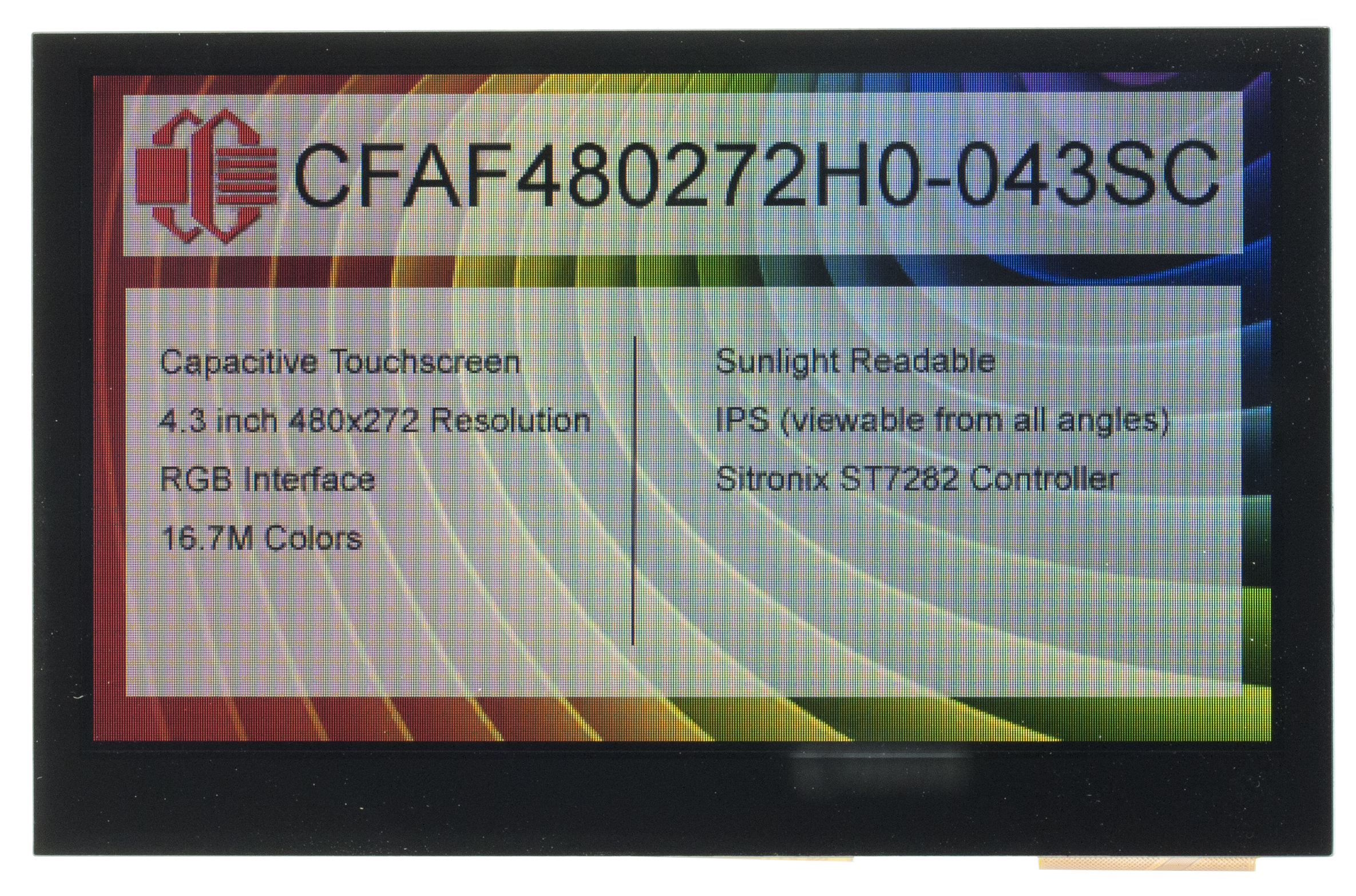

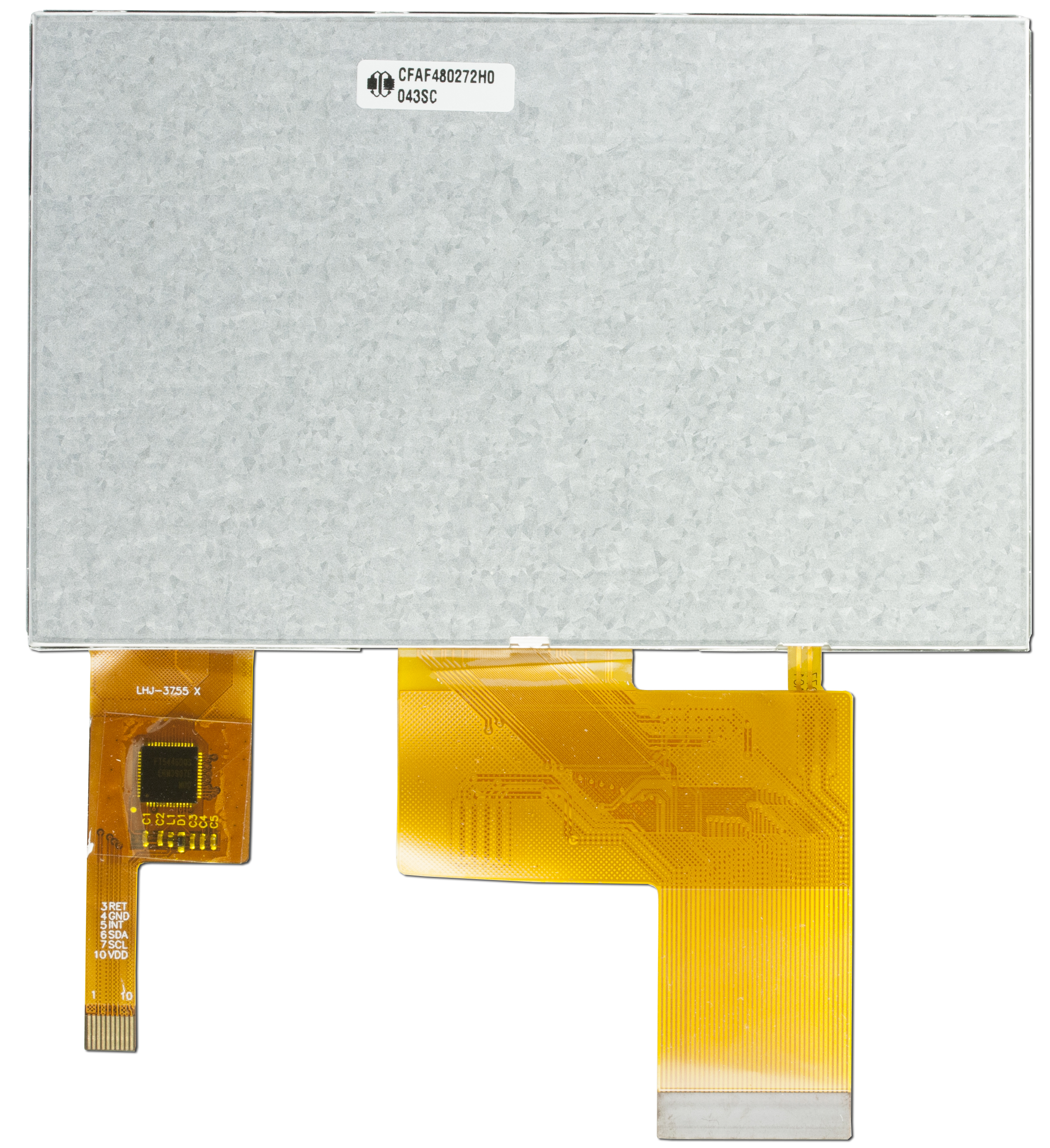

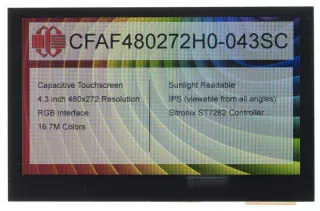

480x272 4.3" Capacitive Touchscreen TFT Display

Part Number: CFAF480272H0-043SC

This 4.3" TFT display with a capacitive touchscreen offers a great interface for a product. It has a very bright backlight (850 nits), a full-color display, and a capacitive touchscreen. Choose this display for a human-machine interface with modern feeling inputs - capacitive touchscreens support gestures like swipes, as well as multiple simultaneous touches.

This series of displays also includes a non-touchscreen and a resistive touchscreen version. Want help deciding between resistive and capacitive touch? You can read about resistive vs capacitive touch on our blog.

Part Number:
CFA - Crystalfontz America
F - TFT
480272 - 480x272 pixel resolution
H0 - Family and revision
043 - 4.3" diagonal dimension
S - Sunlight readable
C - Capacitive touchscreen

• grid_on Resolution

  Pixel Grid

  Column Dots	480 px
  Row Dots	272 px

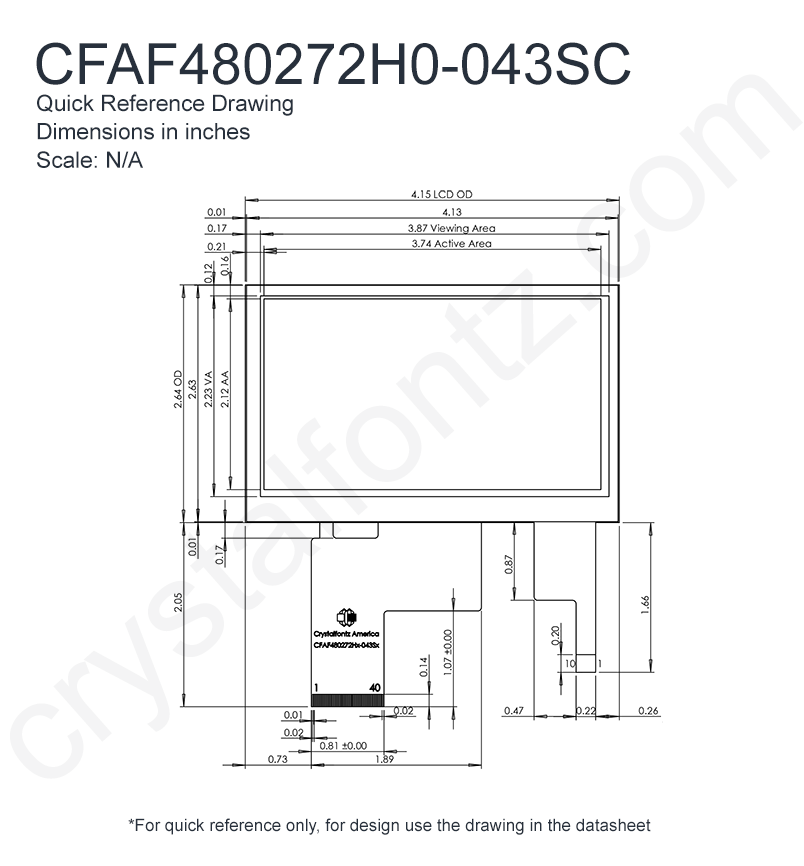

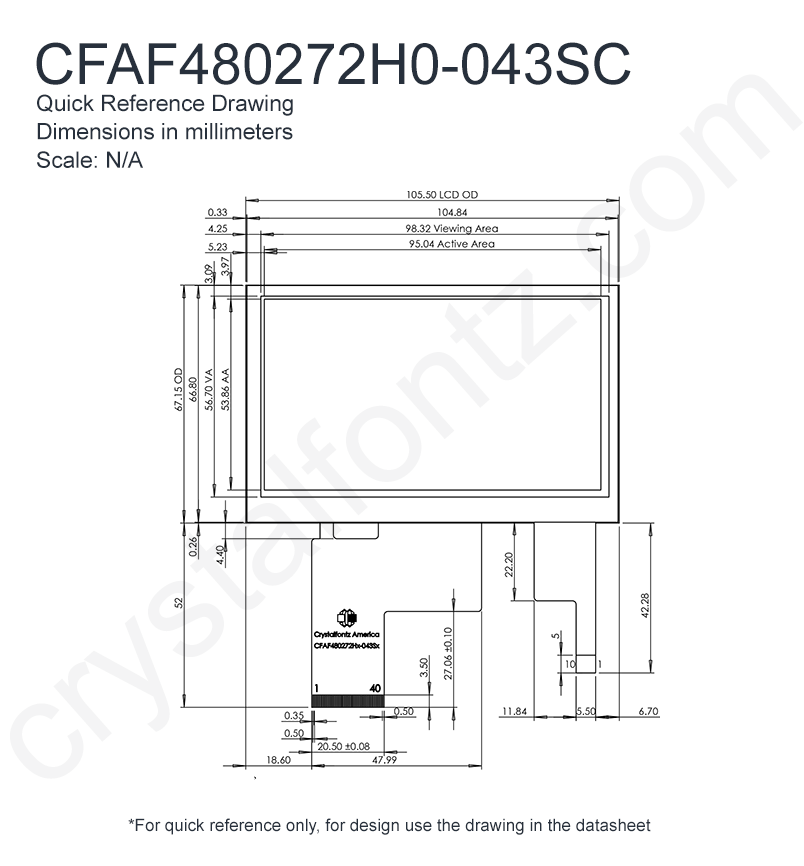

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	105.50 mm	4.154 in
  Overall Height	67.15 mm	2.644 in
  Overall Depth	4.80 mm	0.189 in
  Diagonal Dimension	4.3 in
  Weight	64.5 g
  Shape	Rectangle

  Display Area	Metric	Imperial
  Active Area Width	95.04 mm	3.742 in
  Active Area Height	53.86 mm	2.120 in

• build Mechanical

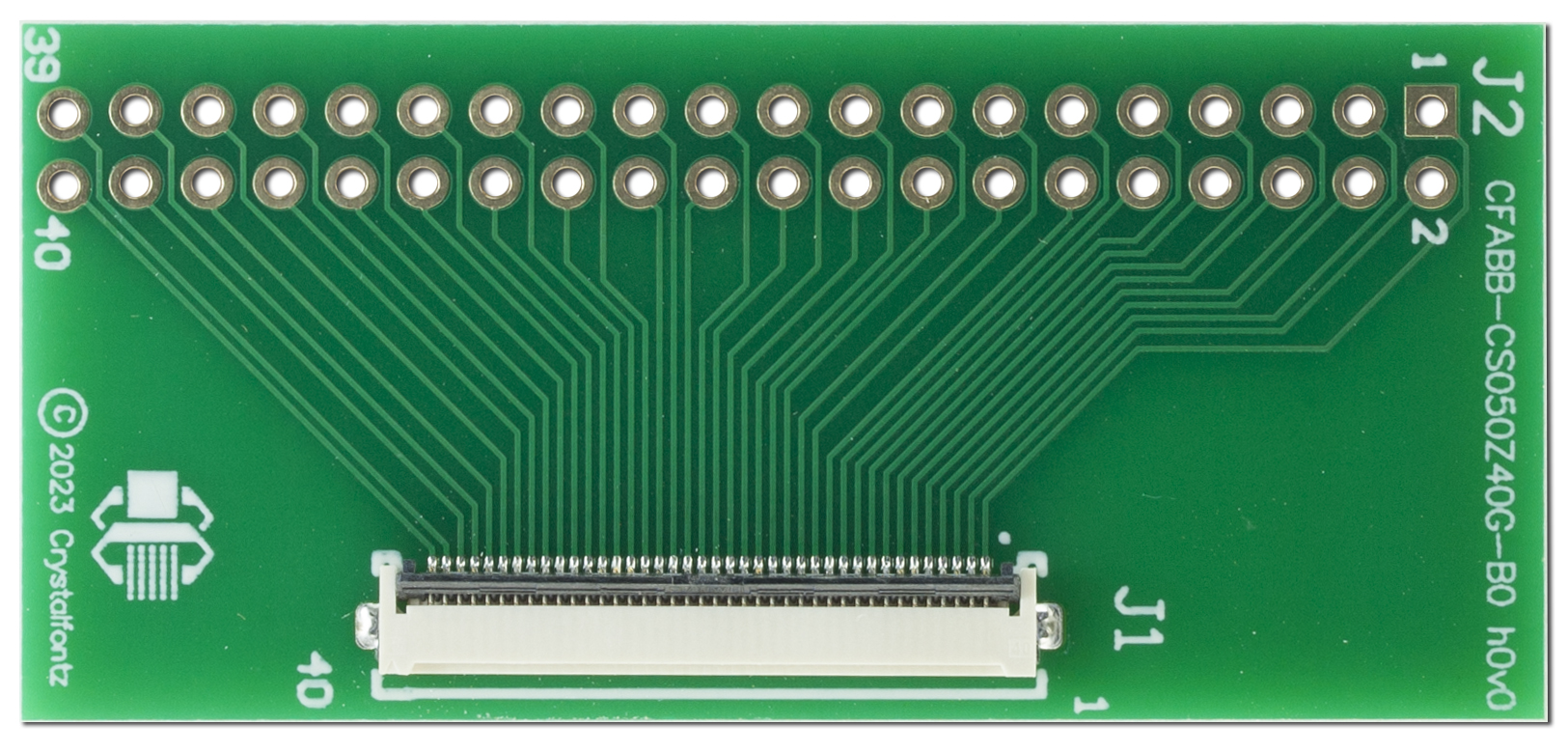

  Connectors

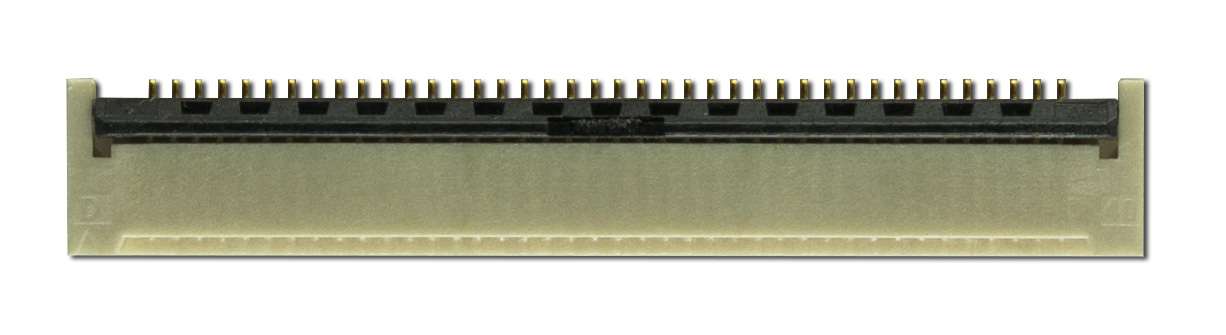

  Module Connector Type	ZIF
  Pin Count	40

• visibility Display Optics

  Technology

  Display Technology	TFT
  Glass Type	IPS Transmissive
  Polarizer	Transmissive

  Brightness

  Nits

  850 cd/m²

  Viewing

  View Angle	160°
  View Direction	6:00 o'clock
  Brightness Rating	Sunlight

• palette Color & Appearance

  Display Colors

  Foreground Color	RGB
  Background Color	Black

  Backlight

  Backlight Type	LED
  Backlight Color	White

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	3	3.3	3.6	V

  Backlight	Min	Typ	Max	Unit
  Voltage
  Forward Voltage	16.2	—	21	V
  Current
  Forward Current	—	40	—	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  DOT-CLK / Generic RGB

• touch_app Touch

  Capability

  Touch Screen

  Capacitive

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

• info Product Metadata

  Controller

  Built-in Controller

  Sitronix ST7282

• download Downloads
  Datasheets


  picture_as_pdf

  CFAF480272H0-043S Series Datasheet






  Documents & Files


  folder_zip Hardware Design - 3D Model


  link Demo Code Repository on Github





  Controller Documents:
  link Sitronix ST7282
