480x480 4" IPS TFT Display from Crystalfontz

Product

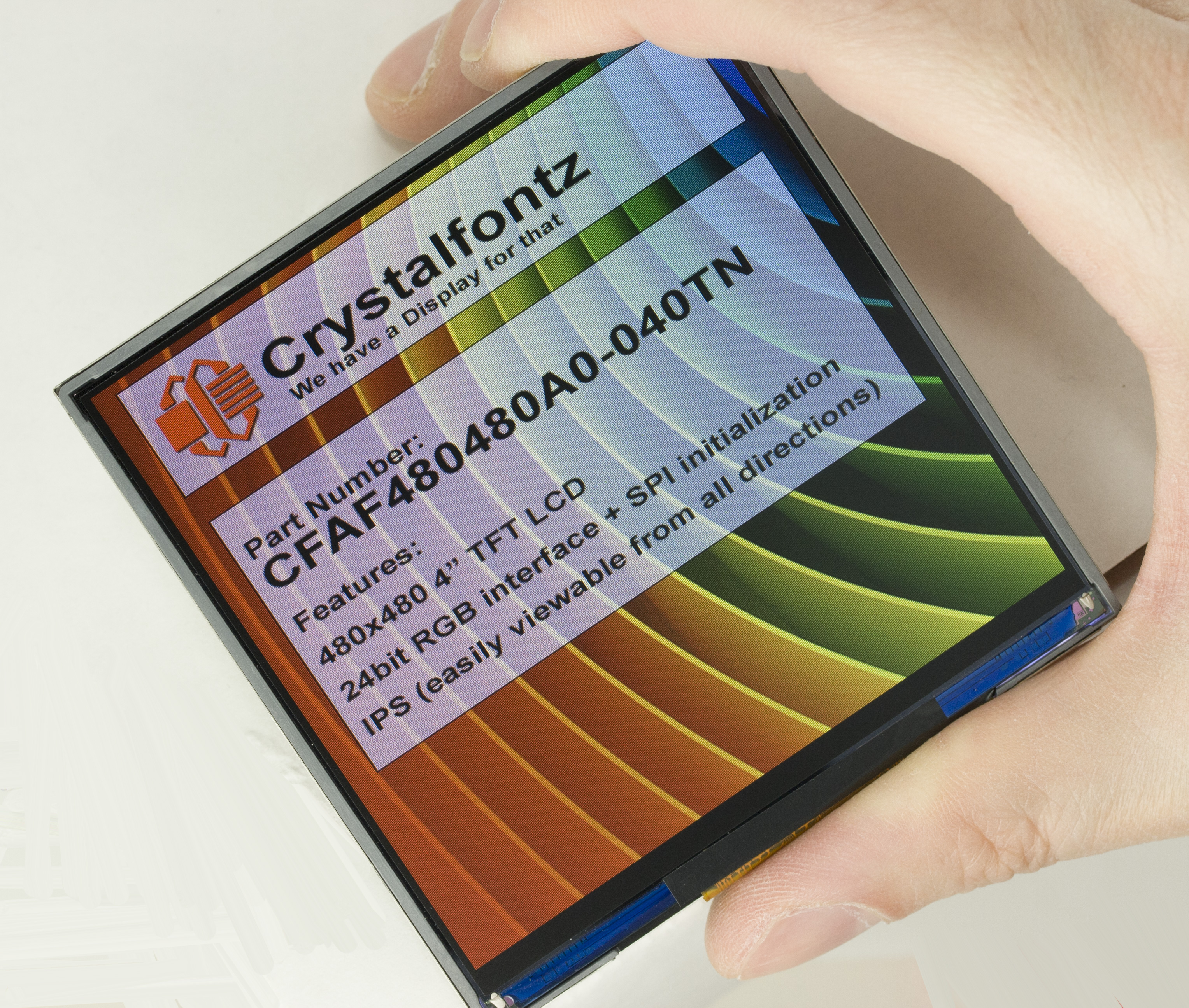

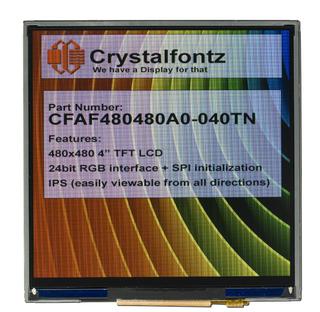

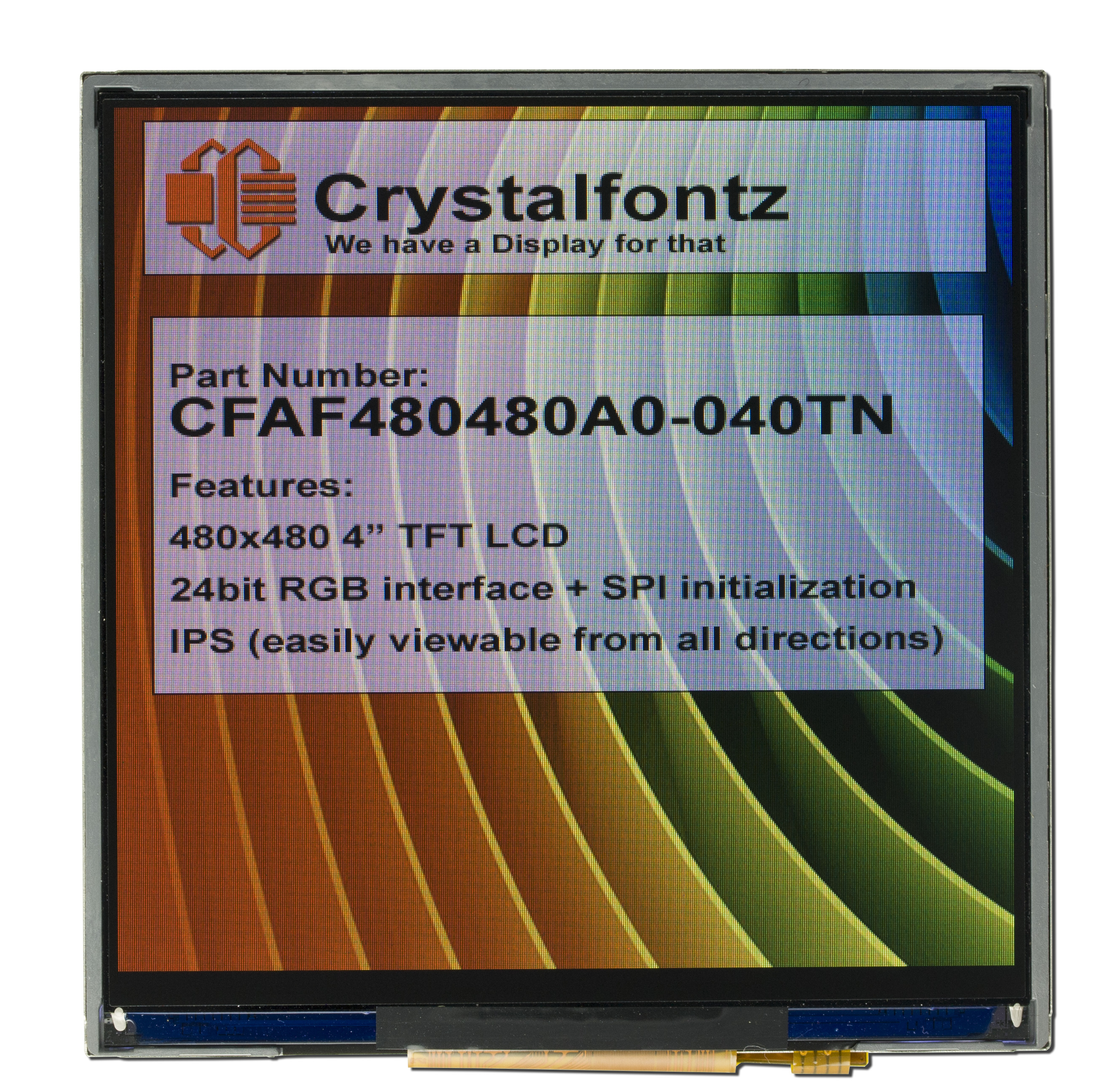

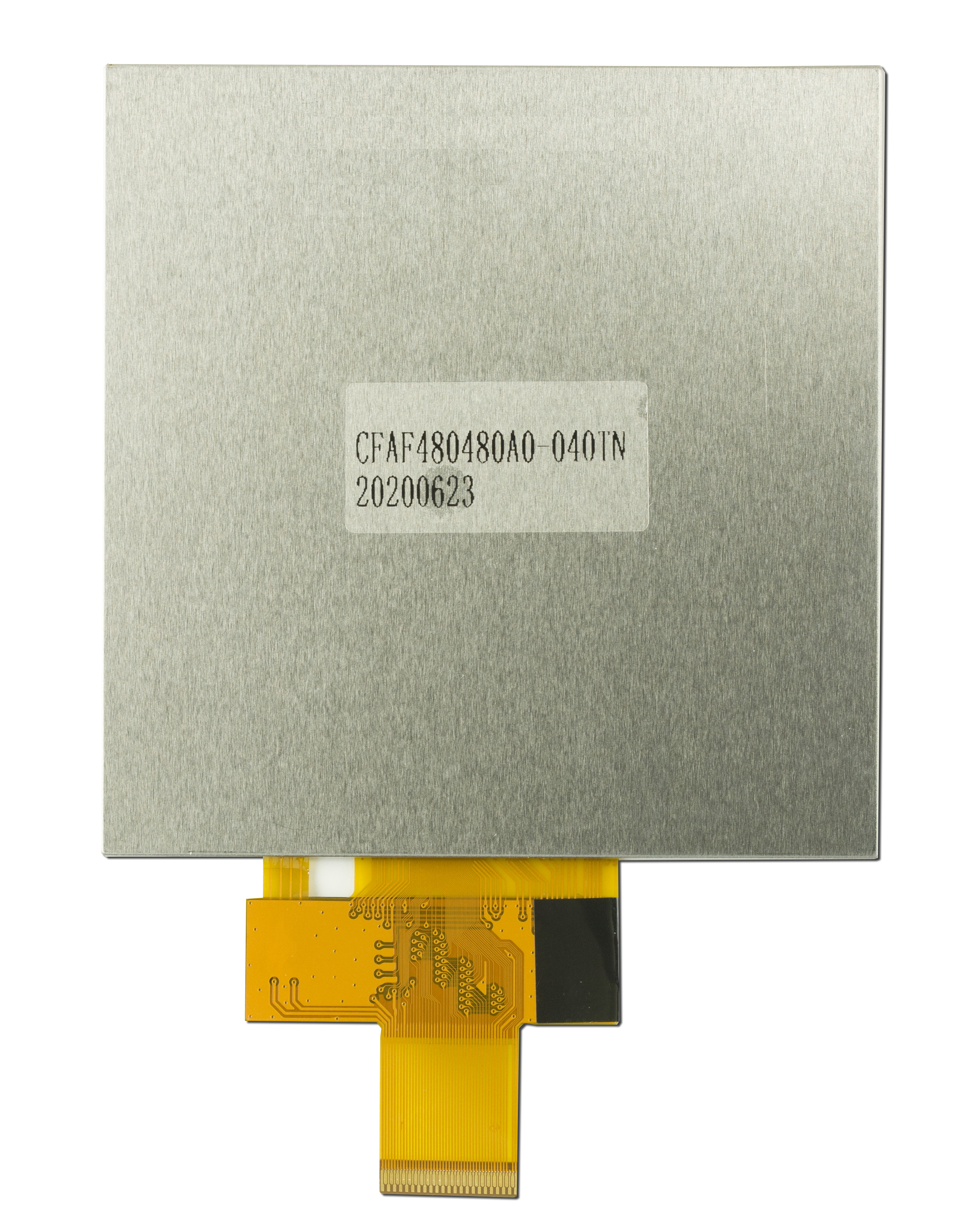

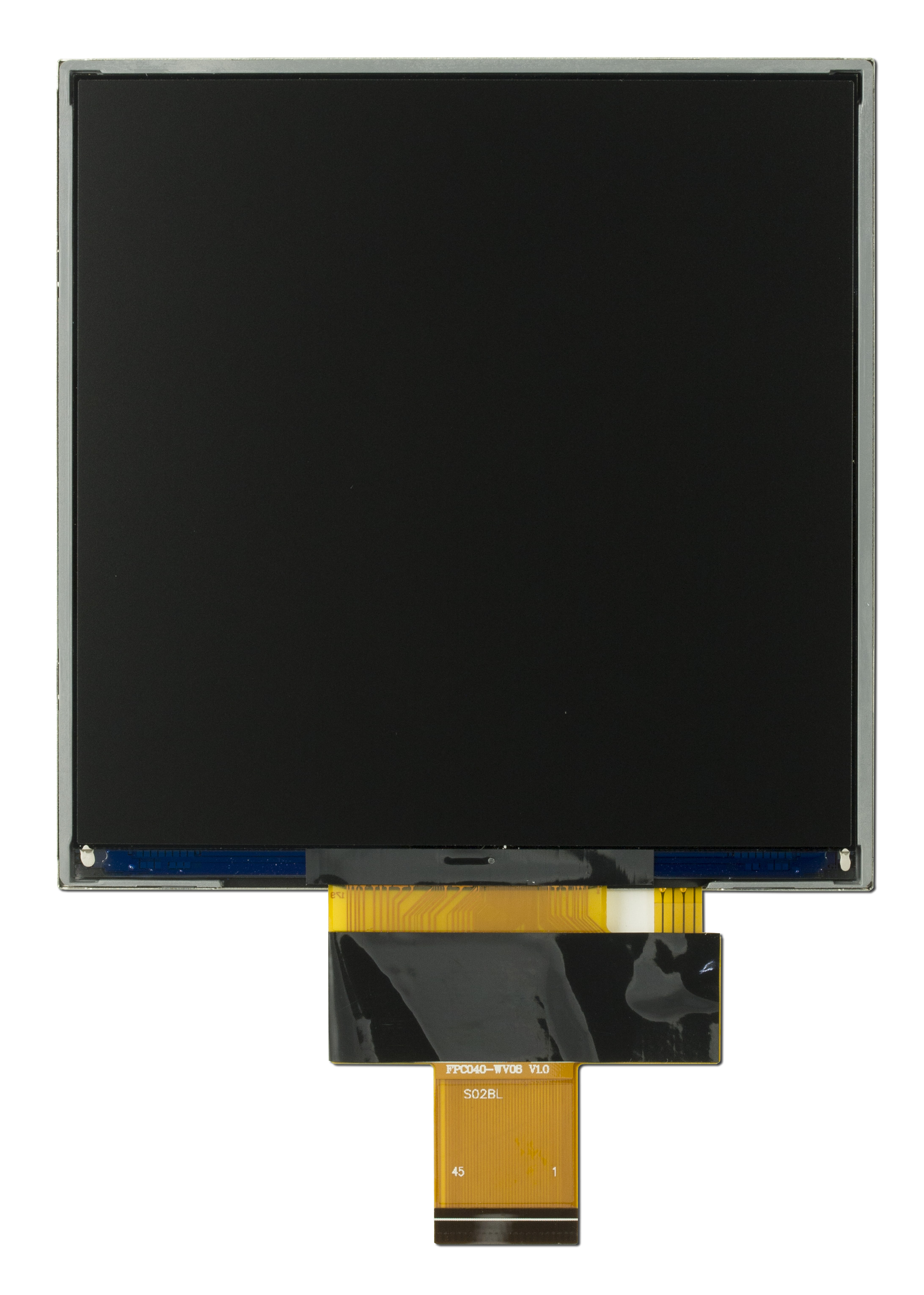

480x480 4" IPS TFT DisplayPart Number: CFAF480480A0-040TNThis square 4" IPS TFT is great for displaying information indoors. It would make an excellent display for an Internet of Things (IoT) application. The square form factor helps make the final product look modern and clean. Plus, with 16 million colors, this display supports vivid eye-catching graphics.
Add external touch inputs, or if you're looking for a similar display with a touchscreen, look at our 4" capacitive touch display.
Square form factor
4" diagonal
480x480 Resolution
45 pin 0.3mm pitch FPC
RGB + SPI interface
IPS (viewable from any direction)
Sitronix ST7701 controller
16-million colors
300 nits - perfect for indoor use
Power consumption at 600mW
Product VariationsTouchscreenNoneCapacitive

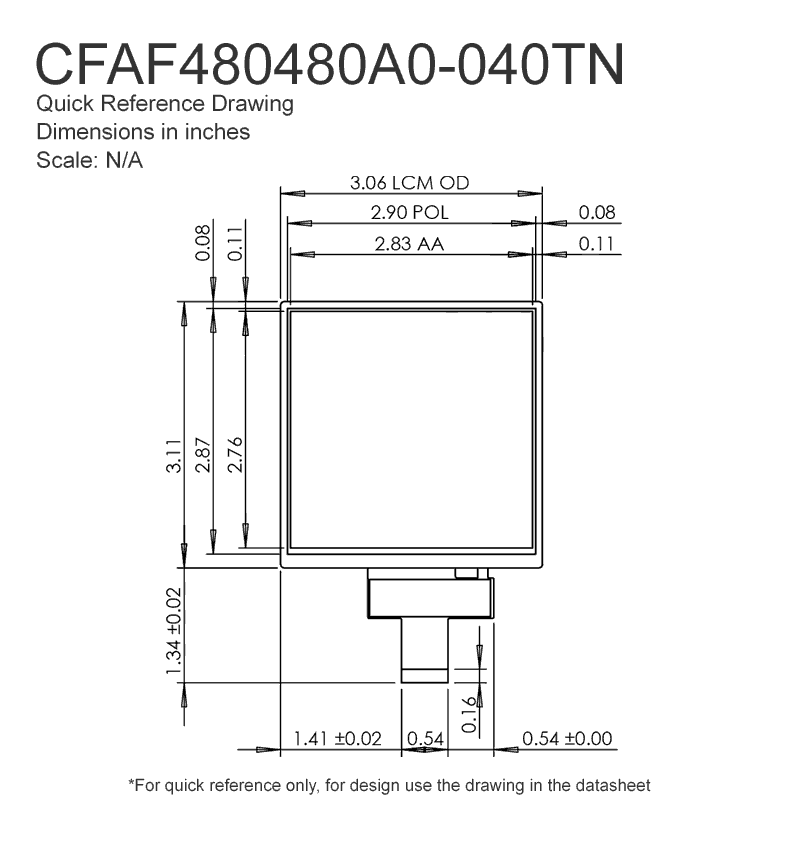

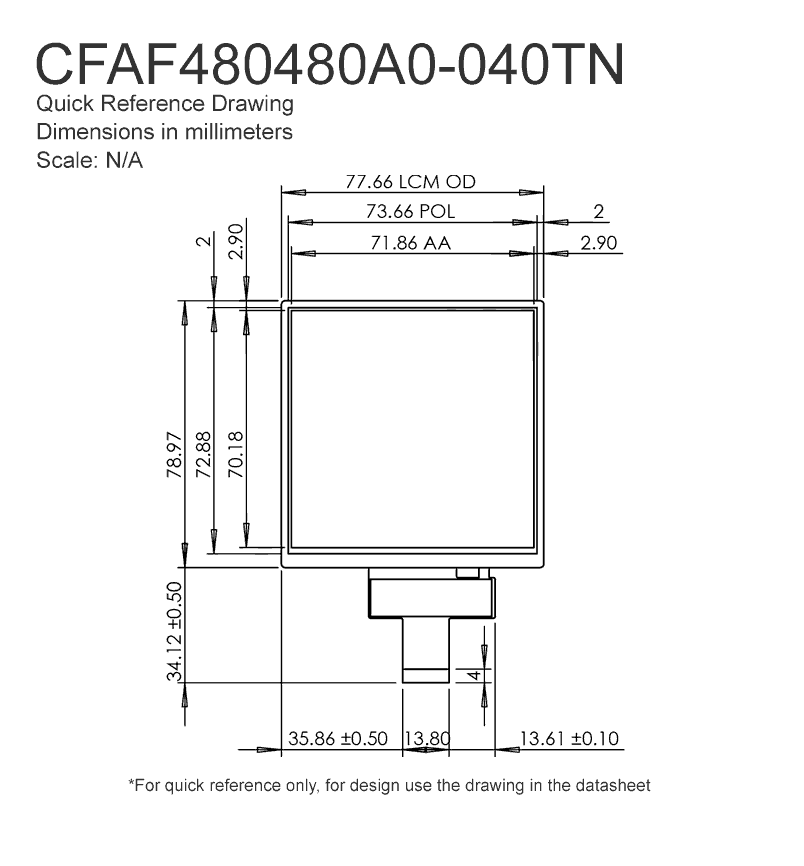

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 480


    Module Overall        width
        height
        depth


        millimeters
        77.66
        78.97
        2.3


        inches
        3.06
        3.11
        0.09

*width / height does not include Foldable Tab


    Active Area        Width
        Height


        millimeters
        71.86
        70.18


        inches
        2.83
        2.76



    Dot Pitch        Width
        Height


        millimeters
        0.149
        0.146


        inches
        0.0059
        0.0057



    Flexible Cable (FFC/FPC)        length


        millimeters
        32.1


        inches
        1.264



        Weight
            29.1g
Pin Count
            45

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            IPS
View Angle
            160°


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V


        Supply Voltage for Logic Typical
            3.3V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            13.8V
Forward Voltage Maximum
            16.2V


        Forward Voltage Typical
            15V
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7701
The ST7701, a 16.7M-color System-on-Chip (SOC) driver LSI designed for small and medium sizes of TFT

LCD display.
Interface
            DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF480480A0-040TN Datasheet

 download Files and Downloads
folder_zip Software Source - SPI Initialization Code
folder_zip Hardware Design - 3D Models
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $22.63

            10
            $21.68

            20
            $21.08

            50
            $20.32

            100
            $20.06

            200 *
            $19.89

            300 *
            $19.64

            500 *
            $19.55

            1000 *
            $19.38

189 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						45 position, .3mm pitch, Gold, Top and Bottom, FPC FCC ZIF Connector
Add ZIF Connectors? $1.04 ea.





Module Overall	width	height	depth
millimeters	77.66	78.97	2.3
inches	3.06	3.11	0.09
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	71.86	70.18
inches	2.83	2.76

Dot Pitch	Width	Height
millimeters	0.149	0.146
inches	0.0059	0.0057

Flexible Cable (FFC/FPC)	length
millimeters	32.1
inches	1.264

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$22.63
10	$21.68
20	$21.08
50	$20.32
100	$20.06
200 *	$19.89
300 *	$19.64
500 *	$19.55
1000 *	$19.38

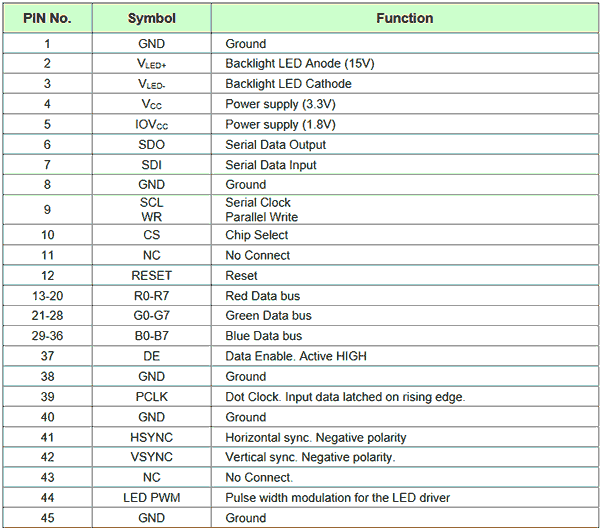

Pin Table
