EVE Development Kit with 4-inch TFT Display

Part Number: CFA480480E0-040TN-KIT

This kit makes getting starting with our 4" EVE TFT LCD display module a breeze! It comes connected and pre-programmed with a demonstration sketch.

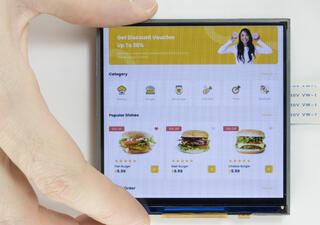

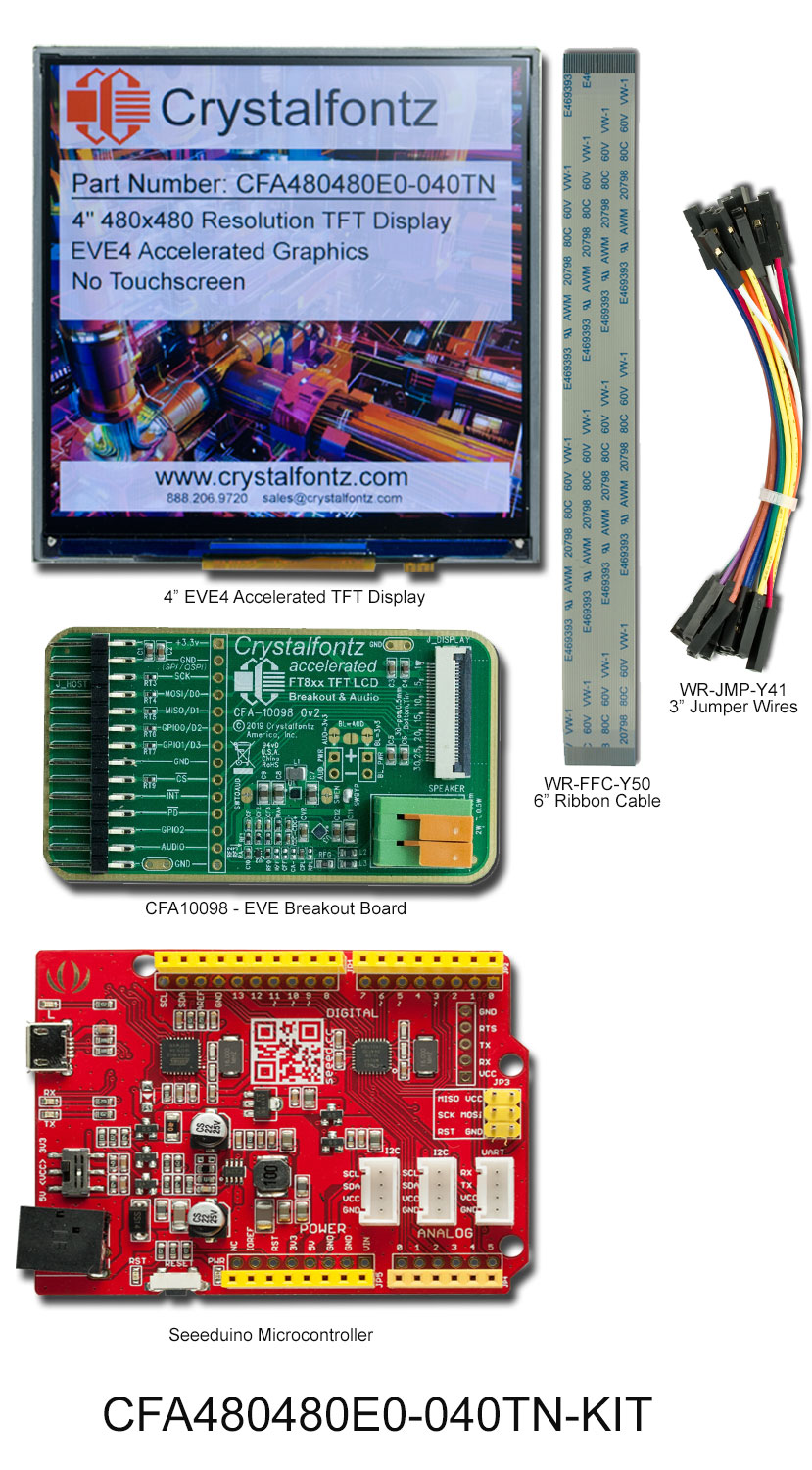

Included in the kit:

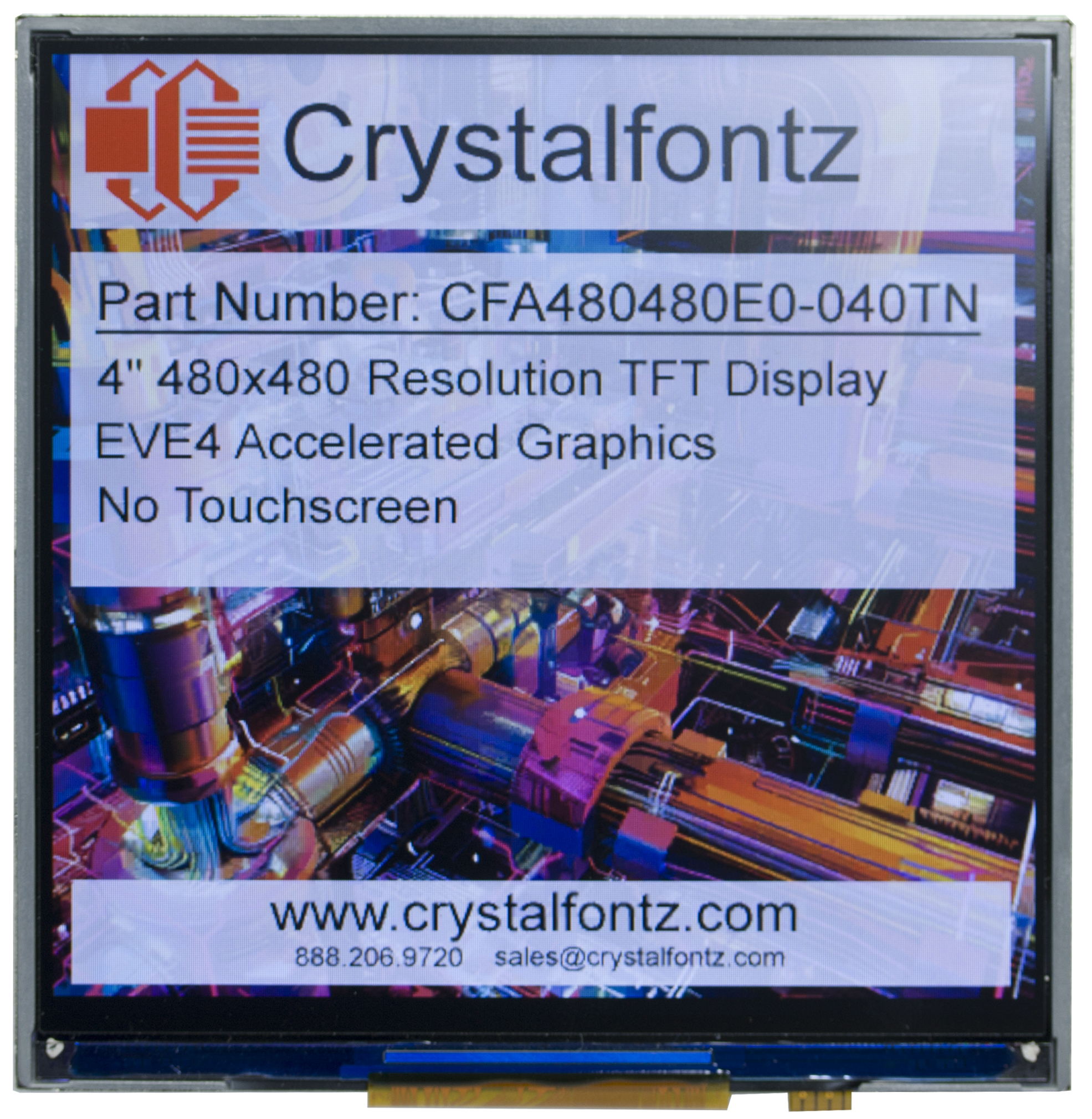

• 480x480 Non-Touch TFT LCD (CFA480480E0-040TN), mounted on an EVE powered PCB
• Seeeduino microcontroller programmed with our demonstration code
• EVE Breakout Board
• Headers, connectors, and flex cables needed

Part Number:
CFA - Crystalfontz America
480480 - 480x480 pixel resolution
E0 - An EVE-based display module
040 - 4" diagonal display
T - Standard brightness
N - No touchscreen
KIT - includes a breakout board and programmed seeeduino for easy testing

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  480 x 480

  Module Overall	width	height	depth
  millimeters	78.97	77.66	8.1
  inches	3.11	3.06	0.32

  Diagonal Dimension

  4"

  Active Area	Width	Height
  millimeters	71.86	70.18
  inches	2.83	2.76

  Dot Pitch	Width	Height
  millimeters	0.149	0.146
  inches	0.0059	0.0057

  Weight	98g
  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS Transmissive
  View Angle	160°

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Supply Current Typical	80mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	9V
  Forward Voltage Typical	5V

  Forward Current Minimum	165mA
  Forward Current Maximum	200mA
  Forward Current Typical	180mA

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFA480480E0-040Tx Datasheet





• Additional Options
• Change Notices

Additional Options

Alternatively purchase just the EVE powered display separately.

480x480 4" EVE Powered TFT Display
Part Number: CFA480480E0-040TN

This 4" square TFT LCD is backed by the powerful EVE graphics accelerator. This module simplifies full-color graphics, allowing simple commands to enable scalable, anti-aliased graphics and text. The onboard flash memory can store graphics to enable... Read More

Details

Quantity	1	10 *	20 *	50 *	100 *	200 *	300 *	500 *	1000 *
Unit Price	$85.63	$83.18	$80.73	$77.80	$76.82	$76.33	$75.35	$74.86	$74.37

Quantity: Add to Cart »
