                This graphic LCD module has been revised to the CFAG12232D1NYGVJ. Please contact support@crystalfontz.com with any questions.

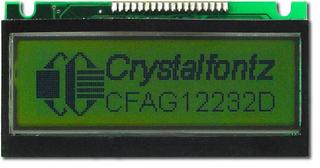

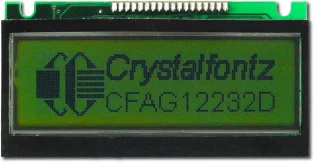

122x32 Reflective Graphic LCDPart Number: CFAG12232D-NYG-VA122x32 Graphic LCD, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator
Built-in Avant SBN1661G or compatible controller (SED1520 compatible)
8-bit parallel interface
Ultra thin ( < 6mm )
This graphic LCD display is compatible with this 16x2 Parallel Character LCD, they have the same pinout and dimensions.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        59
        29.3
        5.5


        inches
        2.32
        1.15
        0.22



    PCB Outline        width
        height
        depth


        millimeters
        59
        29.3
        5.5


        inches
        2.32
        1.15
        0.22



        Diagonal Dimension
            1.86"


    Viewing Area        Width
        Height


        millimeters
        52
        15


        inches
        2.05
        0.59



    Active Area        Width
        Height


        millimeters
        45.72
        11.97


        inches
        1.80
        0.47



    Dot Size        Width
        Height


        millimeters
        0.35
        0.35


        inches
        0.014
        0.014



    Dot Pitch        Width
        Height


        millimeters
        0.38
        0.38


        inches
        0.015
        0.015



        Weight
            10g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Maximum
            0.5mA
Supply Current Typical
            1.5mA
Module Connector Pitch
            0.05mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Avant SBN1661G
SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver

with 32-row x 80-column

Display Data Memory
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232DNYGVA Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12232D 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12232D 1 TO 1.PDF
















Module Overall	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

PCB Outline	width	height	depth
millimeters	59	29.3	5.5
inches	2.32	1.15	0.22

Viewing Area	Width	Height
millimeters	52	15
inches	2.05	0.59

Active Area	Width	Height
millimeters	45.72	11.97
inches	1.80	0.47

Dot Size	Width	Height
millimeters	0.35	0.35
inches	0.014	0.014

Dot Pitch	Width	Height
millimeters	0.38	0.38
inches	0.015	0.015

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11157: Avant SBN1661G End-Of-Life Notification

Products Affected:	CFAG12232J-TFH-TA, CFAG12232J-TMI-TA, CFAG12232J-YYH-TA, CFAG12232K-YYH-TA, CFAG12232A-YYH-TA, CFAG12232A-TMI-TA, CFAG12232D-NYG-VA, CFAG12232D-YYH-VA
Date Issued:	November 7, 2022
Summary:	Avant SBN1661G End-Of-Life Notification
Description:	The Avant SBN1661G (https://www.crystalfontz.com/controllers/Avant/SBN1661G) controller is no longer available. We will be providing replacement options that use the I-CORE AiP31520 controller. For more information on the replacement parts, contact support@crystalfontz.com.
Reason:	The Avant SBN1661G controller is no longer available.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
