128x128 White on Blue Graphic LCD

Part Number: CFAG128128I1-TMI-VZ

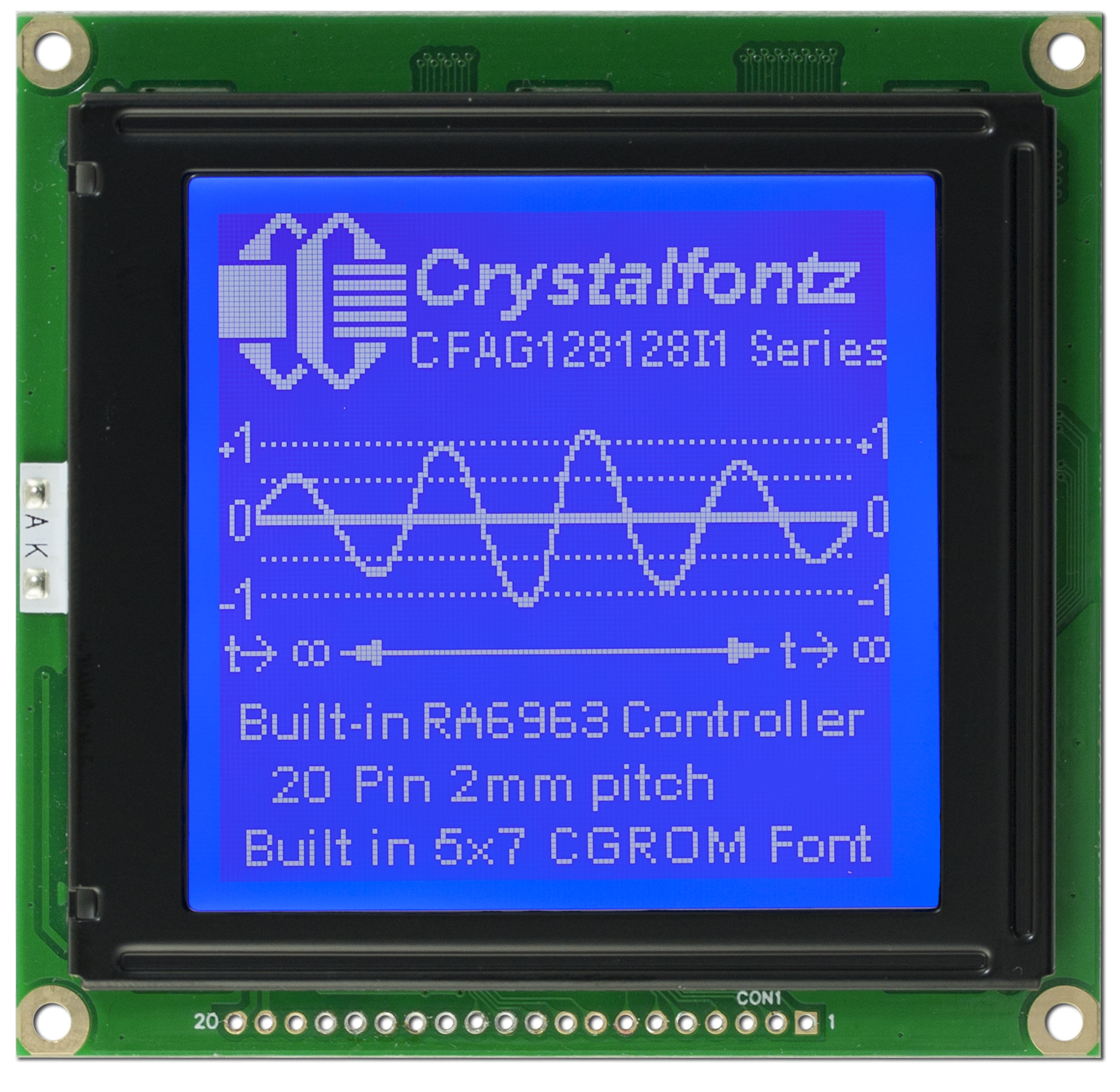

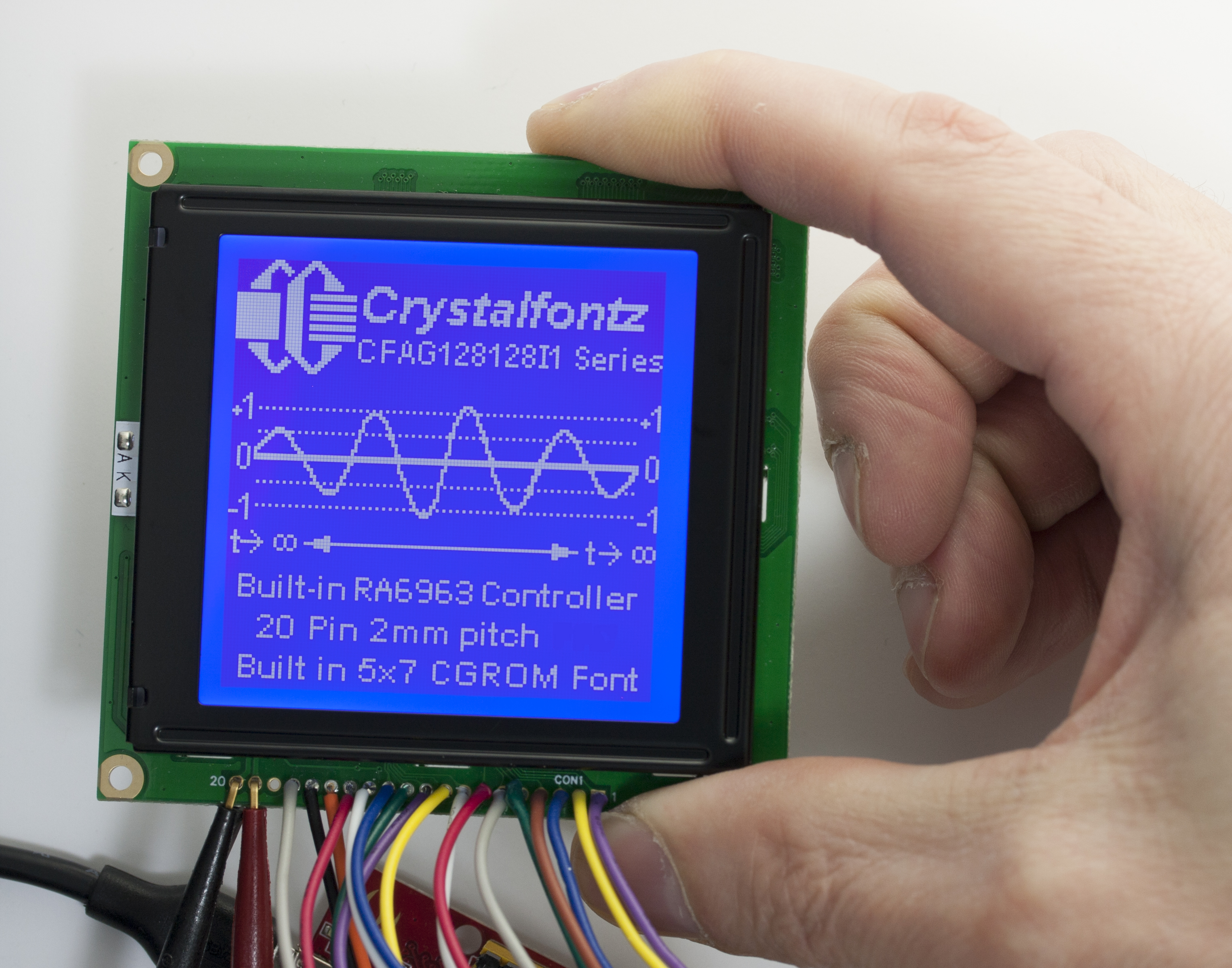

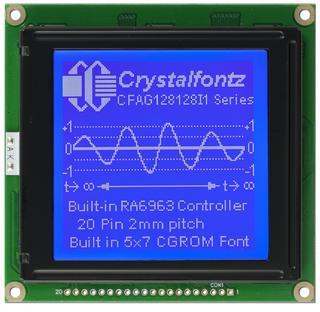

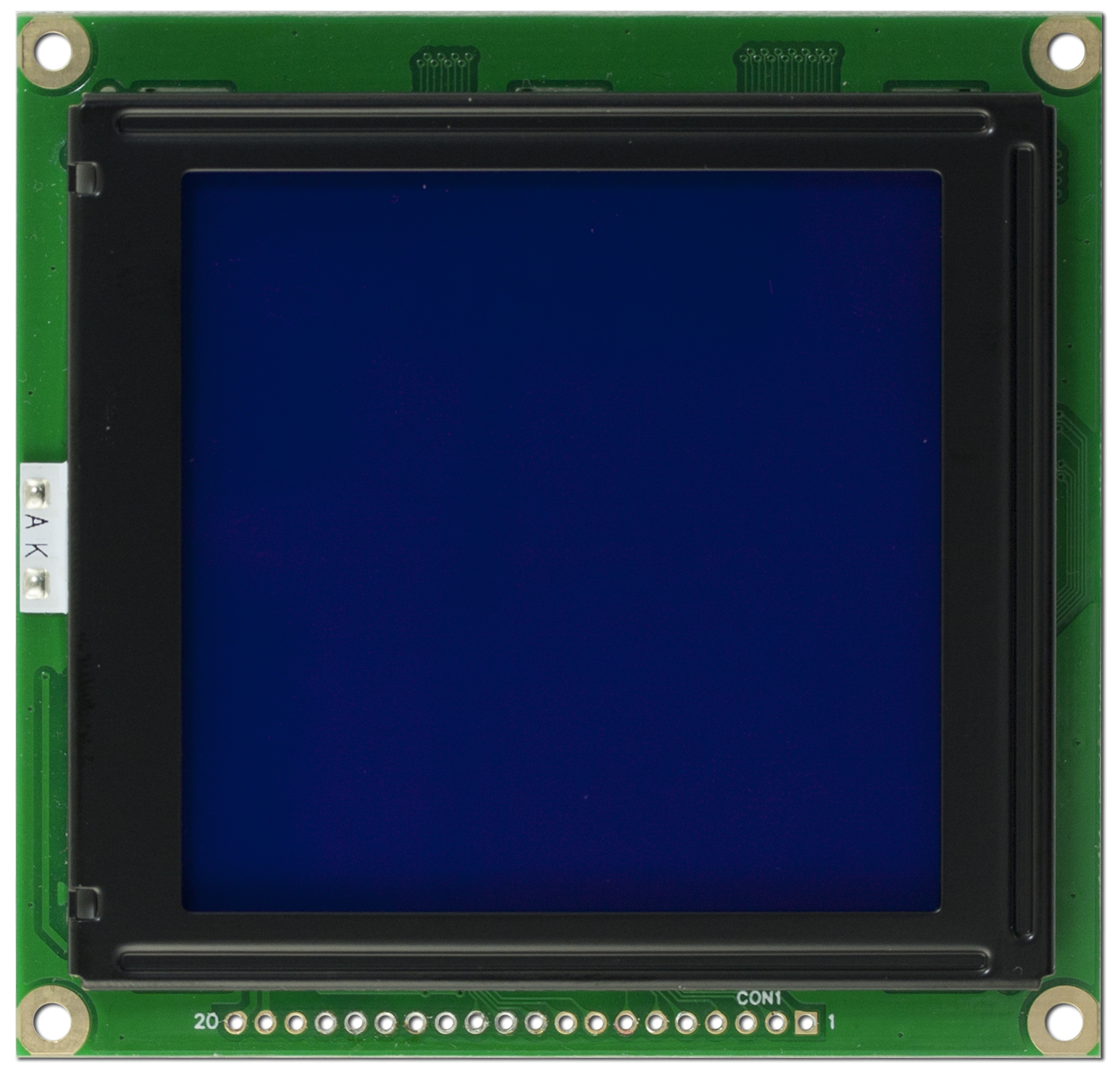

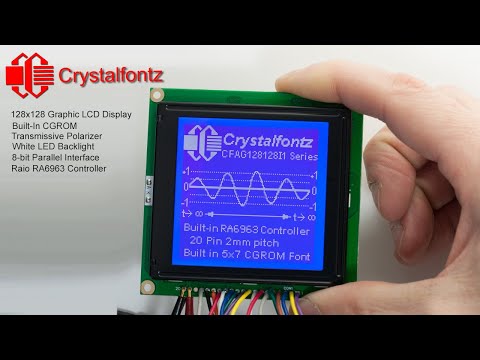

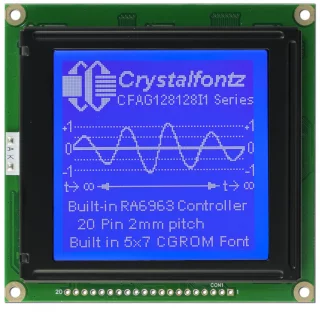

This square display is a white-on-blue graphic LCD with 128x128 pixels. It's about 2.5 inches on the diagonal, giving plenty of space for anything you need. In addition to graphic capabilities, this display includes a CGROM making displaying 5x7 fonts easy. The font table includes European characters.

Alternative colors (e.g., black on yellow, black on grey) may be available with a minimum order quantity (MOQ). Customers can contact our support team for more information
  • 128x128 graphic display
  • White pixels on blue background
  • White LED backlight
  • STN Blue Negative, Transmissive

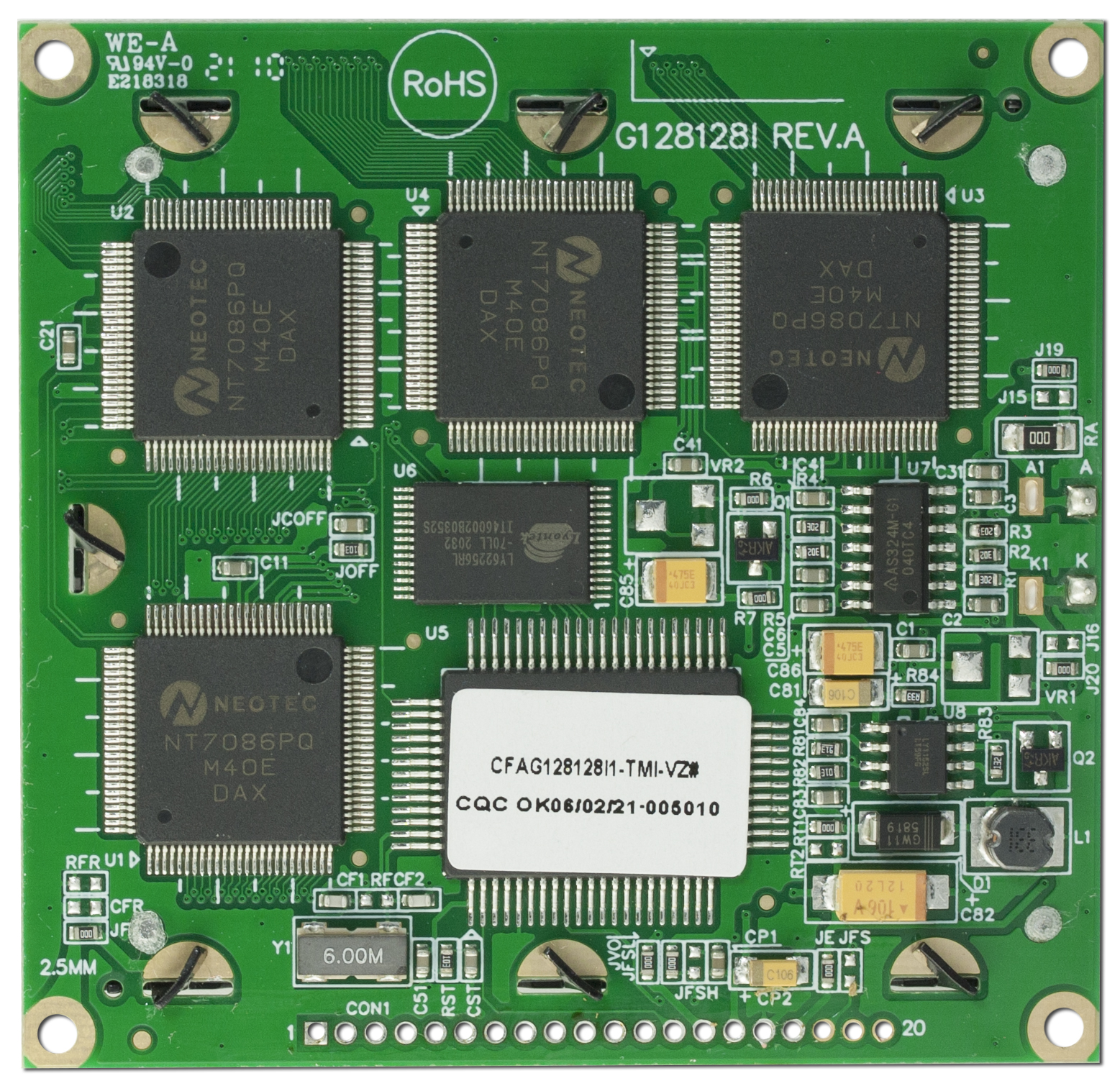

  • Built-in RAiO RA6963 controller and Neotec NT7086 segment drivers
  • Character Generator ROM (T6963C code 0101).
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Operating temperature range: -20°C to 70°C (-4°F to 158°F)
  • 6:00 viewing direction
  • Negative Voltage Generator
Our testing shows this is a drop-in replacement for the CFAG128128I-TMI-VZ. Of course, we recommend testing it in your own system.

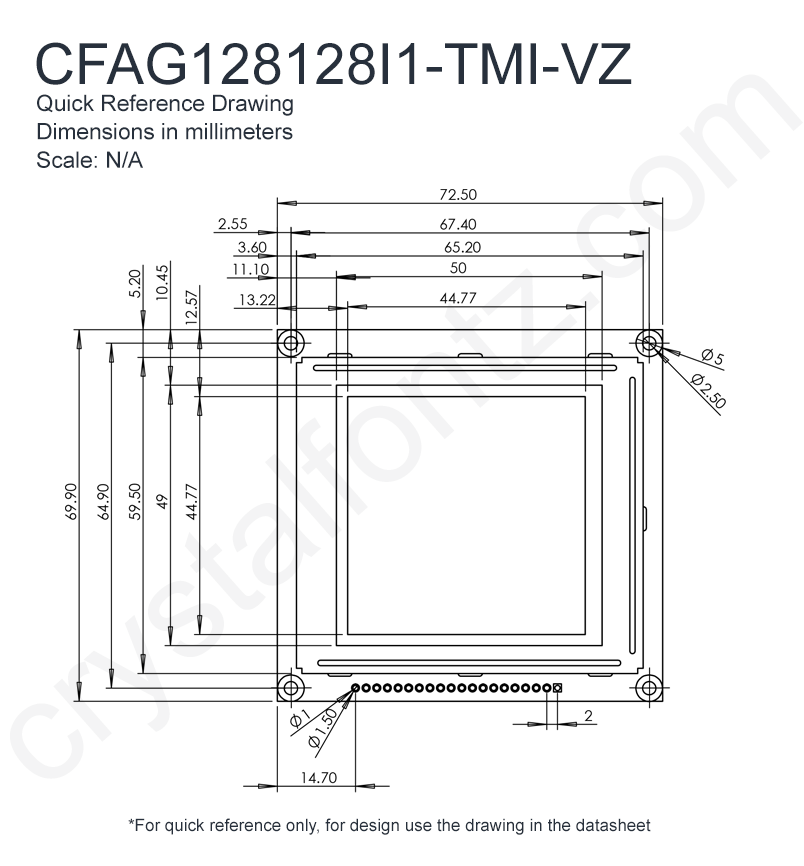

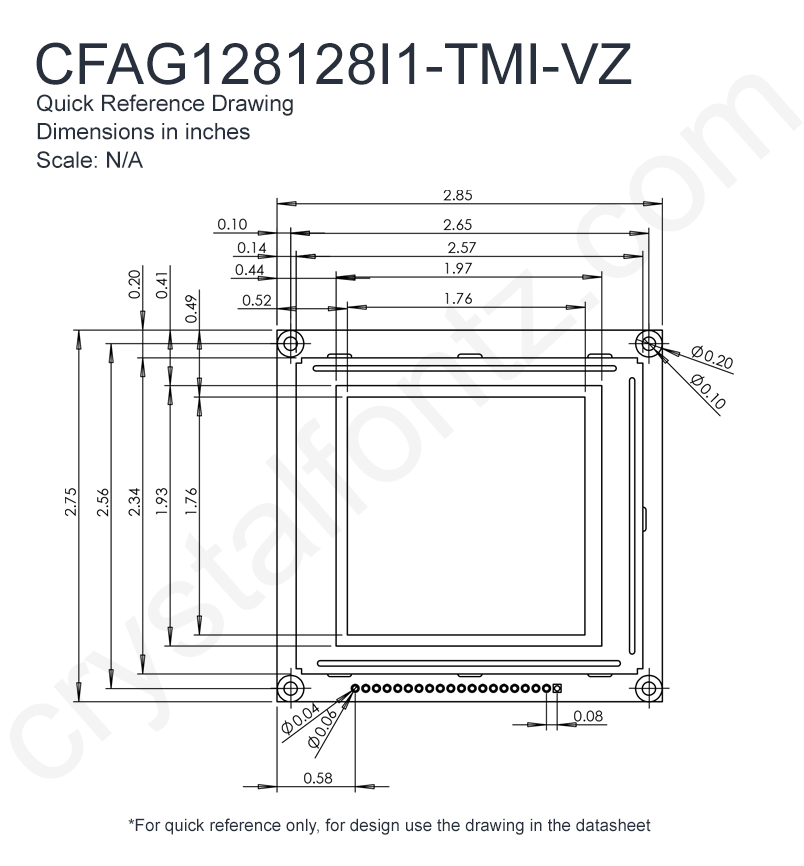

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 128
    Module Overall width height depth
    millimeters 72.5 69.9 10.2
    inches 2.85 2.75 0.40
    Diagonal Dimension 2.5"
    Viewing Area Width Height
    millimeters 50 49
    inches 1.97 1.93
    Active Area Width Height
    millimeters 44.77 44.77
    inches 1.76 1.76
    Dot Size Width Height
    millimeters 0.32 0.32
    inches 0.013 0.013
    Dot Pitch Width Height
    millimeters 0.35 0.35
    inches 0.014 0.014
    Weight 58.5g
    Pin Count 20
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color White
    Background Color Blue
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 15.8V
    Supply Voltage for Logic Maximum 16.8V
    Supply Voltage for Logic Typical 16.3V
    Supply Current Minimum 9mA
    Supply Current Maximum 38mA
    Supply Current Typical 19mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 3.4V
    Forward Voltage Maximum 3.6V
    Forward Voltage Typical 3.5V
    Forward Current Minimum 20mA
    Forward Current Maximum 80mA
    Forward Current Typical 64mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Raio Technology RA6963
    RA6963 Dot Matrix LCD Controller Specification

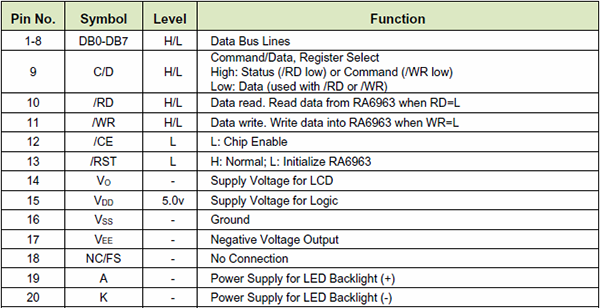

    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $56.96
5 $52.58
10 $46.31
20 * $44.95
50 * $43.31
100 * $42.77
200 * $42.49
300 * $40.10
500 * $39.84
1000 * $37.76
17 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
