                        This part is end-of-life and has been replaced by CFAG128128I1-TMI-VZ.

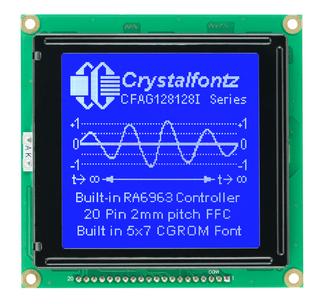

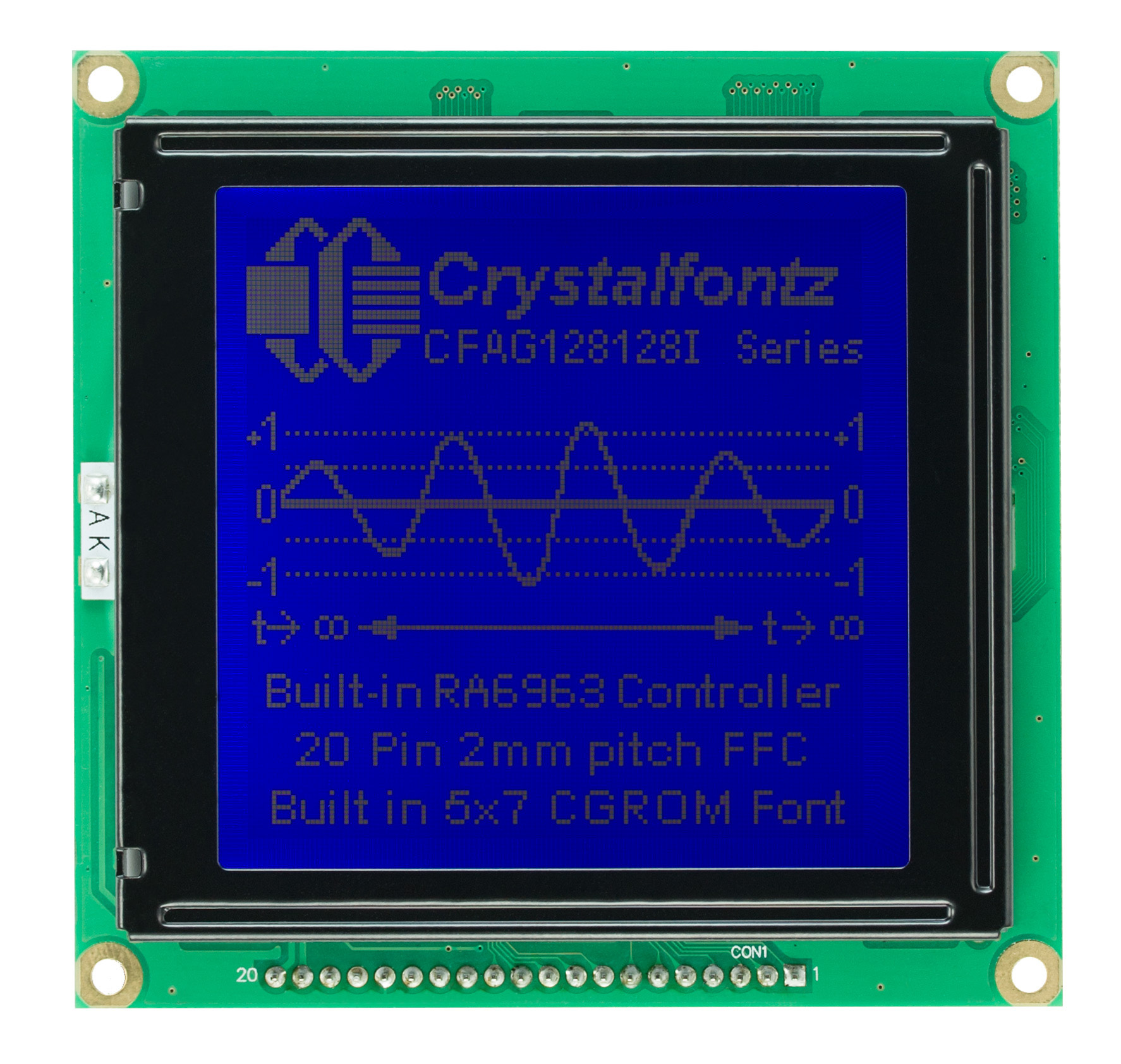

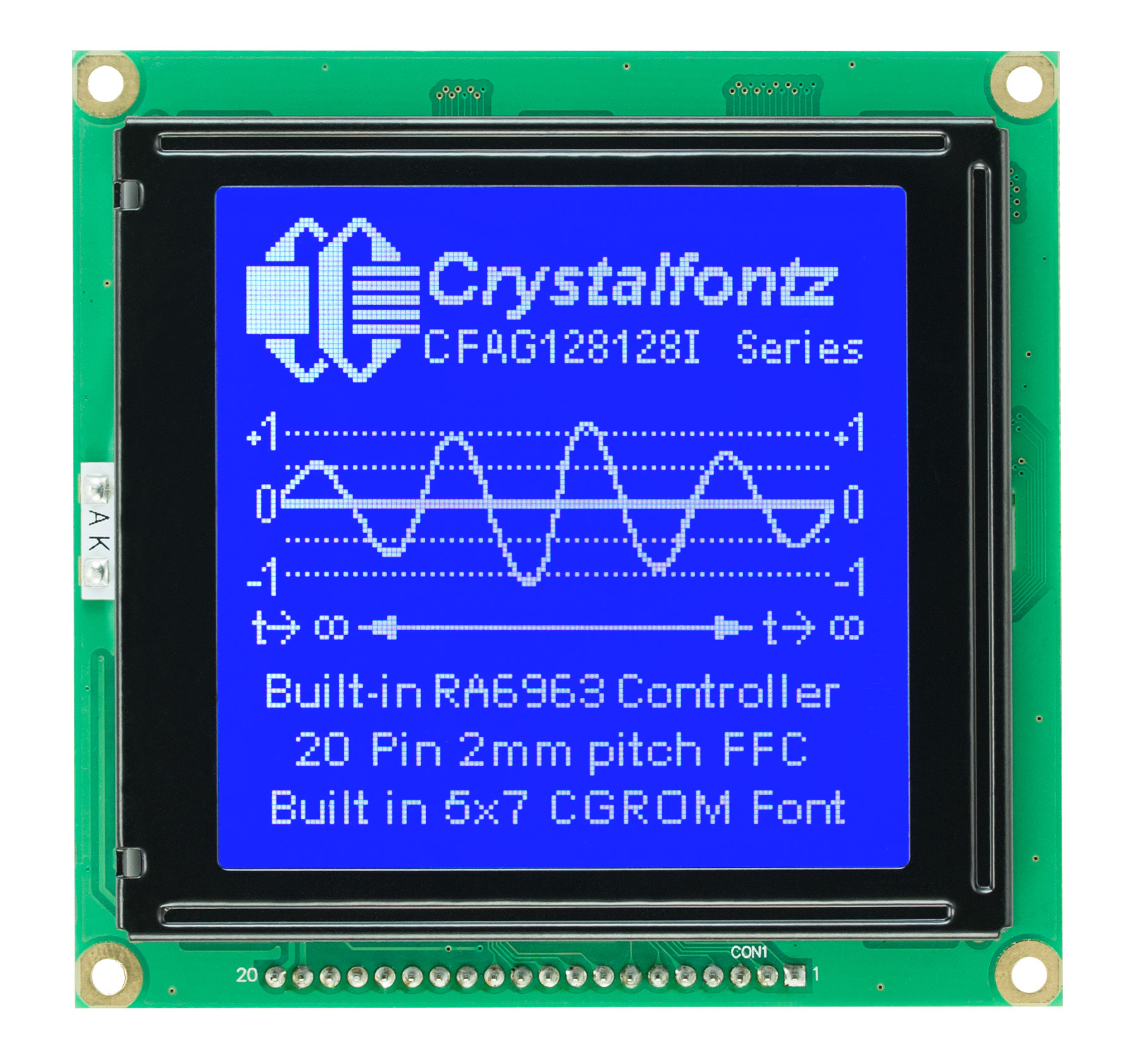

[EOL] Blue 128x128 Graphic LCDPart Number: CFAG128128I-TMI-VZ128x128 Graphic LCD, RoHS Compliant, RA6963 controller, White Edge LED Backlight, STN Blue Negative, Transmissive -20°C to +70°C 6:00 viewing direction, Negative Voltage Generator

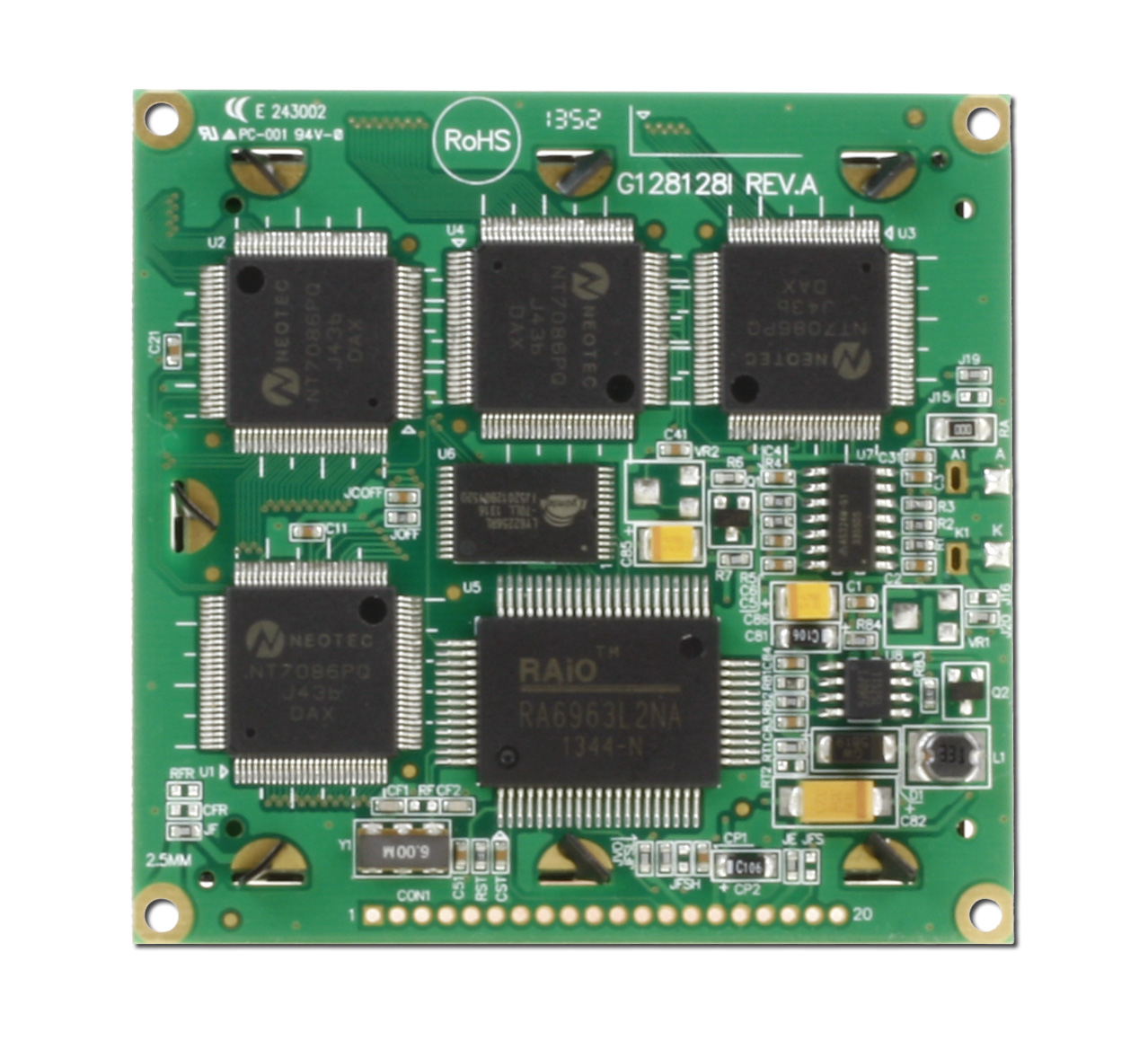

Built-in RAiO RA6963 controller and Neotec NT7086 segment driver
128x128 graphic mode,  Character Generator ROM (T6963C code 0101).
Available in several variations of backlight and polarizer  (minimum order may be required)
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128


    Module Overall        width
        height
        depth


        millimeters
        72.5
        69.9
        10.2


        inches
        2.85
        2.75
        0.40



    PCB Outline        width
        height
        depth


        millimeters
        72.5
        69.9
        10.2


        inches
        2.85
        2.75
        0.40



        Diagonal Dimension
            2.49"


    Viewing Area        Width
        Height


        millimeters
        50
        49


        inches
        1.97
        1.93



    Active Area        Width
        Height


        millimeters
        44.77
        44.77


        inches
        1.76
        1.76



    Dot Size        Width
        Height


        millimeters
        0.32
        0.32


        inches
        0.013
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.35
        0.35


        inches
        0.014
        0.014



        Weight
            58.6g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            16.3V


        Supply Current Minimum
            9mA
Supply Current Maximum
            38mA
Supply Current Typical
            19mA
Module Connector Pitch
            2mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            20mA
Forward Current Maximum
            80mA
Forward Current Typical
            64mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG128128ITMIVZ Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG128128I Datasheet























Module Overall	width	height	depth
millimeters	72.5	69.9	10.2
inches	2.85	2.75	0.40

PCB Outline	width	height	depth
millimeters	72.5	69.9	10.2
inches	2.85	2.75	0.40

Viewing Area	Width	Height
millimeters	50	49
inches	1.97	1.93

Active Area	Width	Height
millimeters	44.77	44.77
inches	1.76	1.76

Dot Size	Width	Height
millimeters	0.32	0.32
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.35	0.35
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

Physically compatible with the no longer available CFAG128128B series of graphic LCD modules, which used the no longer manufactured Sanyo LC7981 LCD controller.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.

Product Update #10603: (New Product) CFAG128128I-TMI-VZ

New Product:	CFAG128128I-TMI-VZ
Date Issued:	July 1, 2014
Summary:	(New Product) CFAG128128I-TMI-VZ
Description:	Standard Graphic Modules: 128x128 Graphic LCD, RoHS, White LED Backlight, Negative STN blue, Transmissive -20°C to +70°C 6:00, Neg Voltage
