In order to keep this display in production over the long term we are revising it to the CFAG12864T3-NFH. The dimensions are slightly smaller, please contact sales@crystalfontz.com with any questions.

EOL 128x64 Transflective Graphical LCD

Part Number: CFAG12864T2-NFH

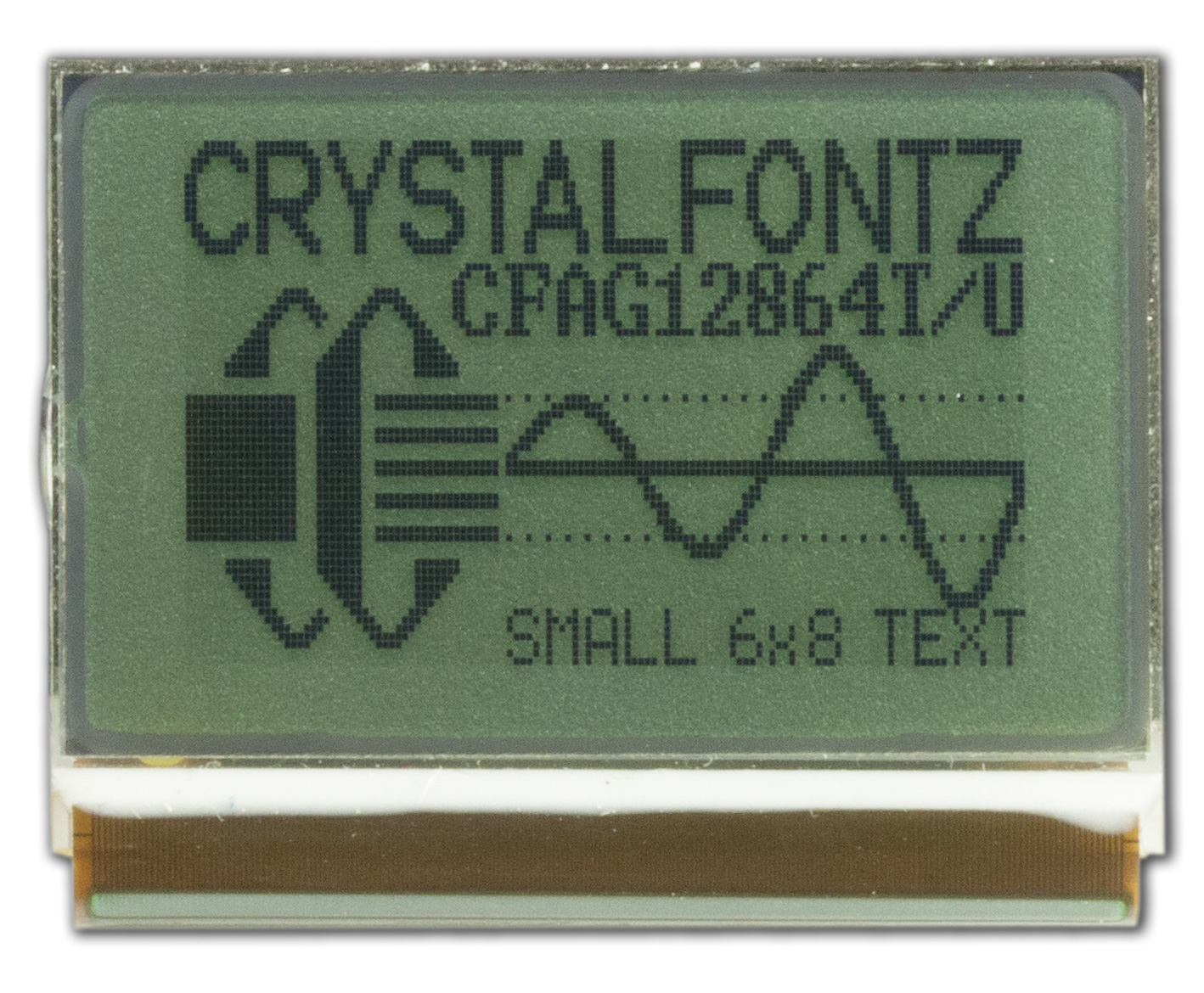

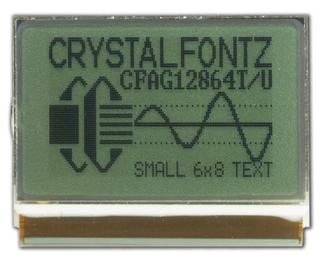

This 128x64 graphic LCD display module (CFAG12864T2-NFH) is a small, thin, and very low-power. This display is visible in most lighting situations, including normal office lighting up to bright sunlight. Since this LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.

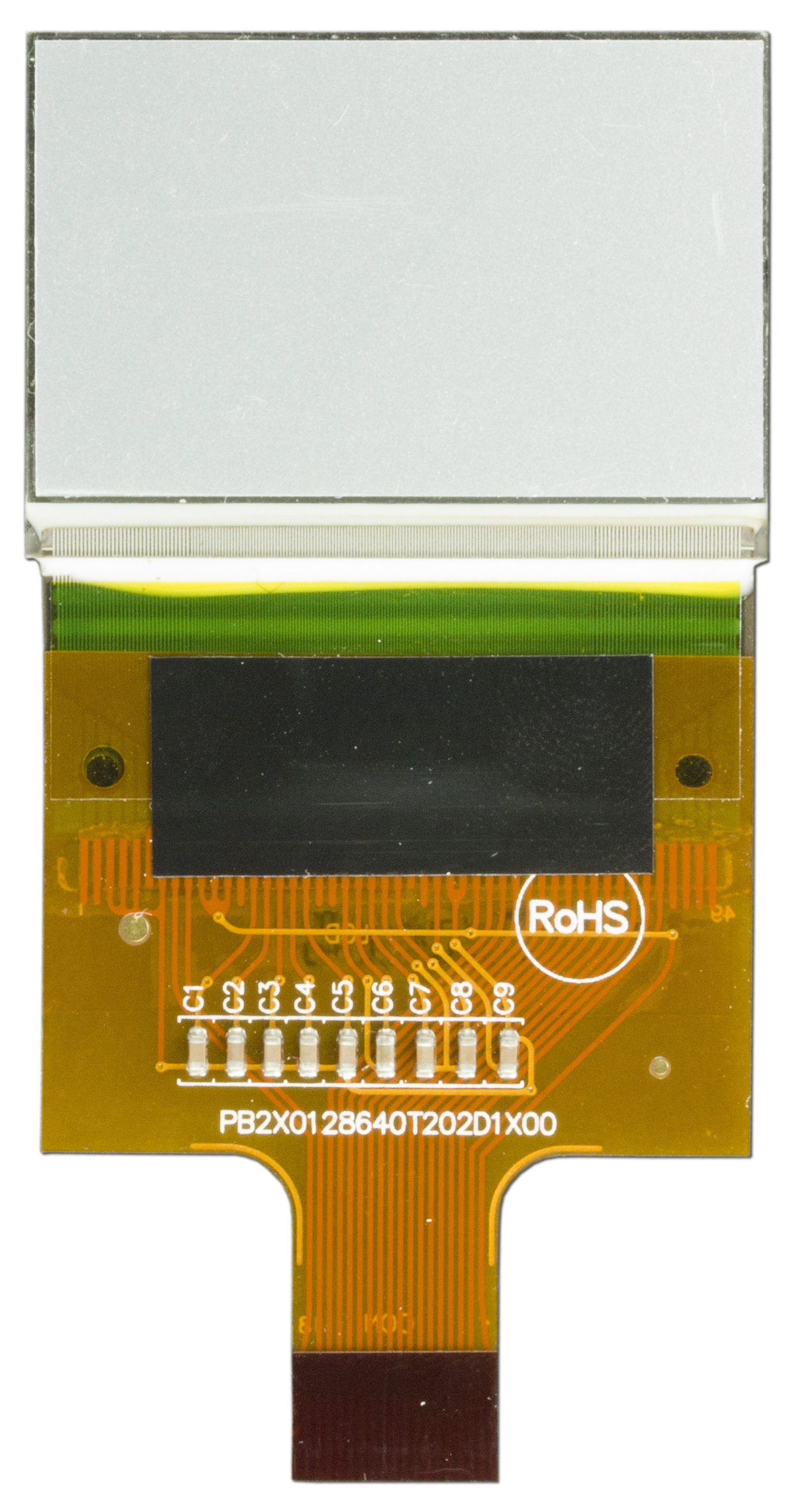

This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a standard ZIF connector: 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector.

This display is also available in a white LED backlit version (CFAG12864T2-TFH).

  • Very thin and light TAB construction
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Sitronix ST7565P controller
  • Low power consumption
  • Great for handheld, battery operated devices
  • 4-wire, 8-bit SPI or 8-bit parallel interface

Is this tiny display just a little too small? We have the CFAG12864U2-NFH, which is a similar display, but larger physical dimensions.

This display is a direct replacement for the CFAX12864T-NFH and CFAX12864T1-NFH which are no longer in production.

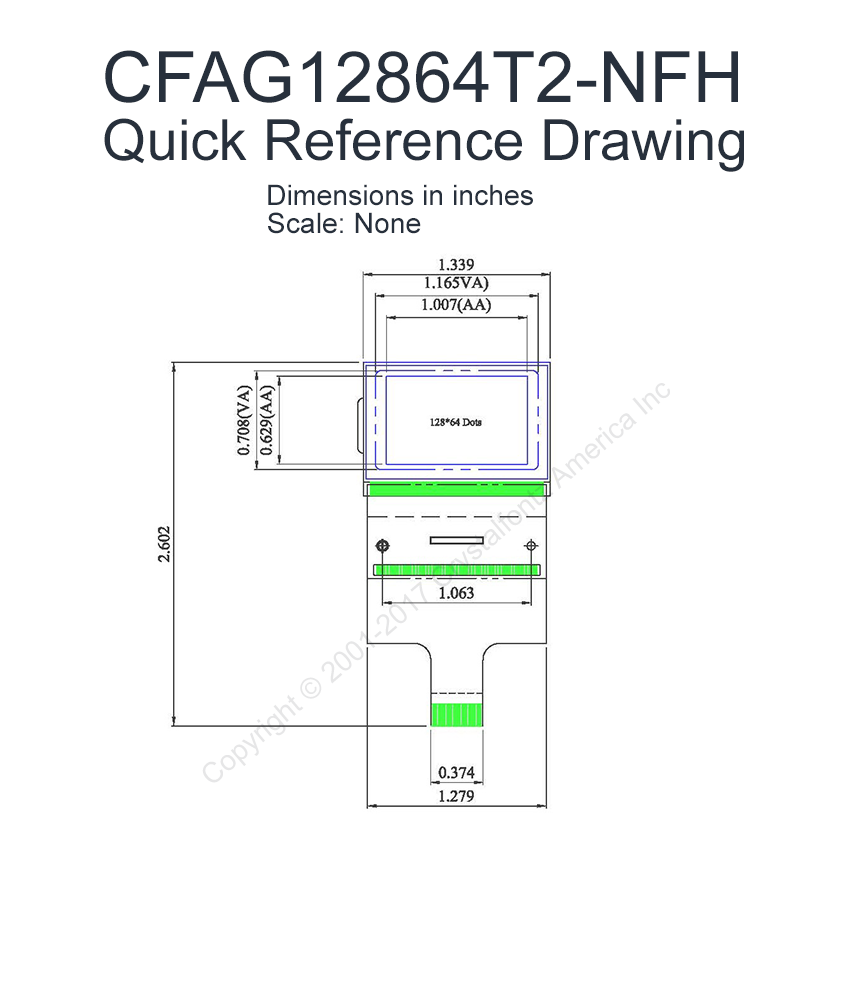

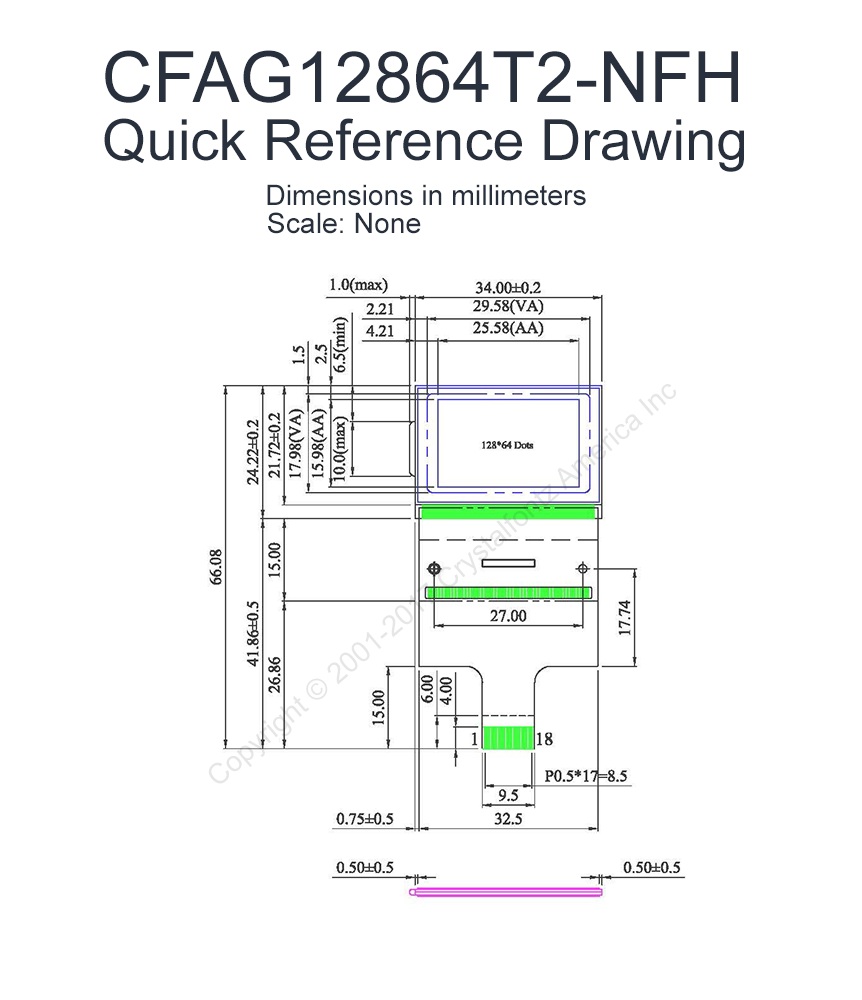

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64
    Module Overall width height depth
    millimeters 34 22.42 1.75
    inches 1.339 0.883 0.069
    *width / height does not include Foldable Tab
    Diagonal Dimension 1.19"
    Viewing Area Width Height
    millimeters 29.58 17.98
    inches 1.165 0.708
    Active Area Width Height
    millimeters 25.58 15.98
    inches 1.007 0.629
    Dot Size Width Height
    millimeters 0.23 0.18
    inches 0.009 0.007
    Dot Pitch Width Height
    millimeters 0.25 0.2
    inches 0.010 0.008
    Optional Connectors CS050Z34GB0
    Flexible Cable (FFC/FPC) length
    millimeters 41.86
    inches 1.648
    Weight 3.1g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Light-Gray
    Polarizer Transflective
    View Direction 6 o'clock
    View Angle 60°
    Sunlight Readable Yes
    Backlight Type LED
    Mode Positive
    Foreground Color Dark
    Background Color Light Gray
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 9V
    Supply Current Maximum 0.5mA
    Supply Current Typical 0.28mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7565P
    ST7565P
    65 x 132 Dot Matrix LCD Controller/Driver
    Sitronix ST7565P
    ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
    Interface 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG12864T2-NFH or RSS RSS feed for changes to CFAG12864T2-NFH
  • text_snippet
    Part Change Notice #11033: The parts listed are being set to End of Life Status
    Products Affected: CFAG12864T2-NFH, CFAG12864T2-TFH, CFAG12864U2-NFH, CFAG12864U2-TFH
    Date Issued: January 23, 2019
    Summary: The parts listed are being set to End of Life Status
    Reason: The controller chip used on these parts is a TAB (Tape-Automated-Bonding) chip. The manufacturer of that chip has discontinued the chip.
    Impact: The parts will not be available after Q1 2019. The last time buy is available, but the orders must be placed no later than January 28, 2019.

    Recommendation: Drop-in replacements for the parts listed will be available. The replacement parts will use the same controller chip mounted on the glass. The replacements part numbers will be:

    CFAG12864U3-TFH
    CFAG12864T3-TFH
    CFAG12864U3-NFH
    CFAG12864T3-NFH

    The CFAG12864U3-TFH and CFAG12864U3-NFH will be drop-in replacements. All dimensions and function will not change.

    The CFAGF12864T3-TFH and CFAG12864T3-NFH will have the same overall dimensions and function, but the Active area height will decrease by 1.84mm.
    Availability: The current parts may not be available after the deadline for the last time buy. The replacement parts should be available by Q2 2019
    Response: Customers should take advantage of the last time buy offer to ensure that they will have sufficient stock through Q1 2019.
  • text_snippet
    Product Update #11005: The tape carrier of the LCD controller chip has changed from the previous series of parts. This changes the areas where bends in the assembly are allowed.
    Products Affected: CFAG12864T2-NFH, CFAG12864T2-TFH
    Date Issued: September 13, 2018
    Summary: The tape carrier of the LCD controller chip has changed from the previous series of parts. This changes the areas where bends in the assembly are allowed.
    Reason: The LCD controller chip for the CFAX12864T/CFAX12864U family was discontinued by the chip manufacturer.

    Crystalfontz created the CFAG12864T2/CFAG12864U2 family as replacements.

    The new LCD controller chip used in the CFAG12864T2/CFAG12864U2 is mechanically different compared to the original controller.

    This difference changes the areas where bends in the assembly are allowed.

    The bendable area of the tail is marked by 3 green lines. On the old parts, the controller chip was mounted 5.5mm from the third green line. On the new tail, the controller chip is mounted 2.5mm from the third green line.
    Impact: For many applications, this change will not affect production. Please ensure that your application does not put undue force on the connection between the flex and the LCD glass. Please ensure that there is not undue bending or force on the flex in the area of the hard, inflexible chip.
    Recommendation: If your application does not put undue force on the connection or chip, then no change is needed.
    Availability: N/A
    Price Change: N/A
    Attachment: CFAG12864T2_Tail_Bend_Areas.pdf (354KB)
  • text_snippet
    Product Update #10906: (New Product) CFAG12864T2-NFH
    New Product: CFAG12864T2-NFH
    Date Issued: December 8, 2017
    Summary: (New Product) CFAG12864T2-NFH
    Description: TFT LCD Modules: Super low power 128x64 graphic display module, No backlight, 8080/6800 or SPI interfaces, Standard 0.5 mm ZIF.
