Small Transflective Graphic LCD

Part Number: CFAG12864T3-NFH

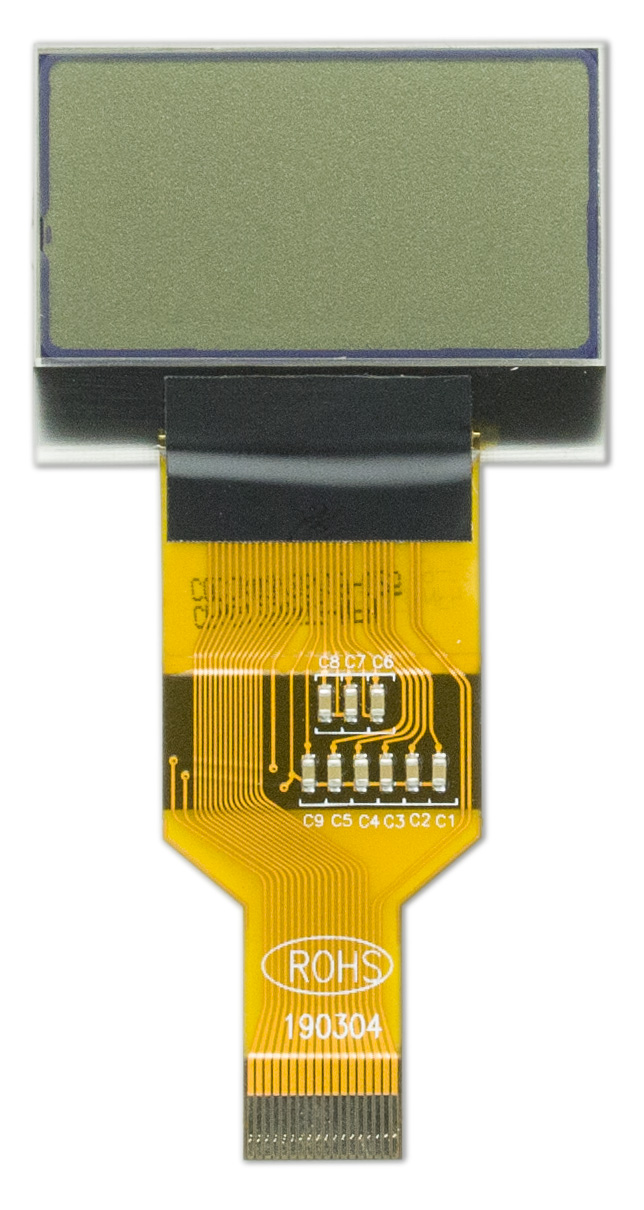

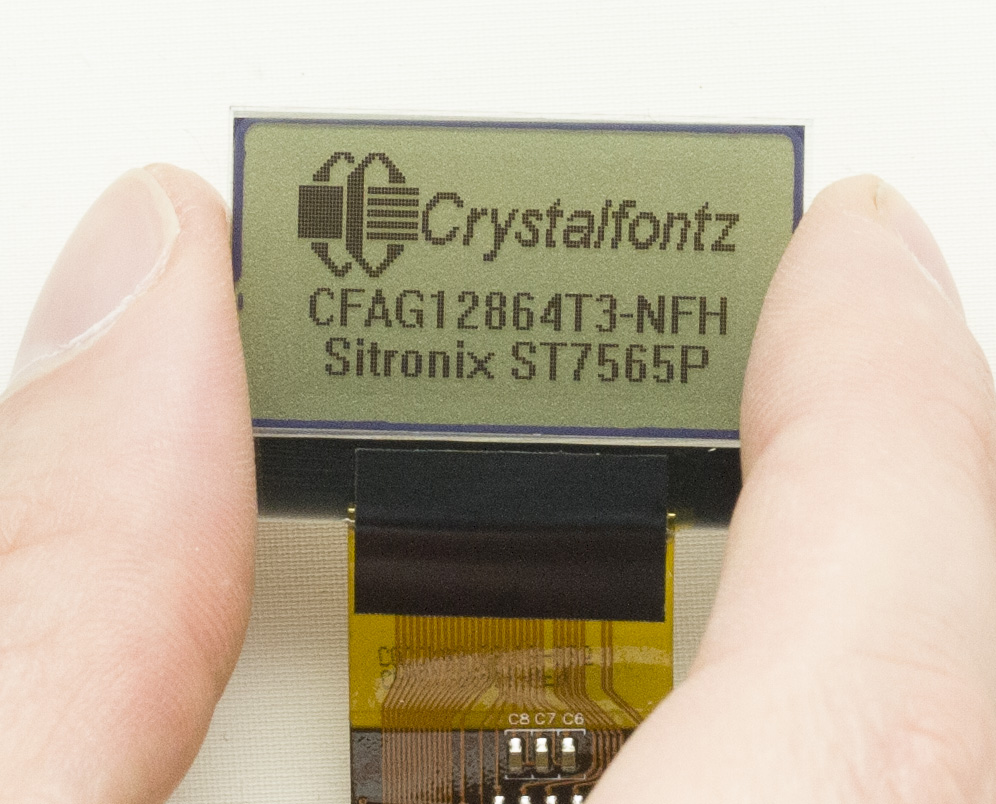

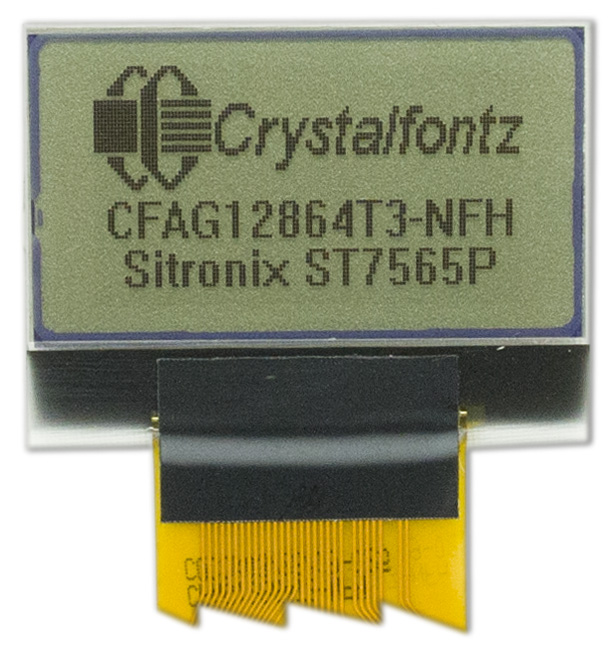

This 128x64 graphic LCD display module (CFAG12864T3-NFH) is a small, thin, and very low-power. This display is visible in most lighting situations, including normal office lighting up to bright sunlight.

Since this LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.

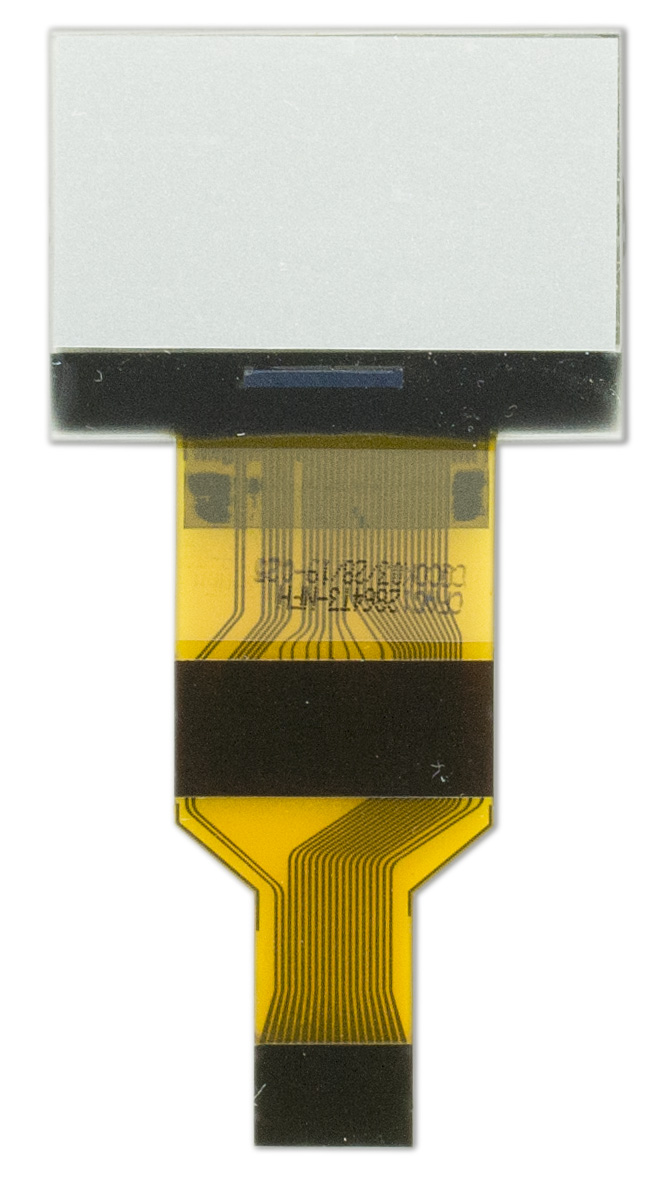

This LCD display has an integrated controller and voltage generating components mounted on the flexible tail. The tail connects to a ZIF connector, found here: standard 18-conductor 0.5mm pitch ZIF connector.

This display is also available in a white LED backlit version (CFAG12864T3-TFH).

  • Very thin and light TAB construction
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Sitronix ST7565P controller
  • Low power consumption
  • Great for handheld, battery operated devices
  • 4-wire, 8-bit SPI or 8-bit parallel interface

This display is a suggested replacement for the CFAG12864T2-NFH which are no longer in production.

Product Variants

CFAG12864T3-TFHSmall Backlit Sunlight Readable LCD
CFAG12864T3-NFHSmall Transflective Graphic LCD
Small Transflective Graphic LCD (CFAG12864T3-NFH)
Qty:
Quantity Price
1 $8.35
5 $7.68
10 $6.80
20 $6.57
50 $6.34
100 $6.24
200 $6.20
300 * $5.88
500 * $6.56
1000 * $5.37
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4633 18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.79 ea.

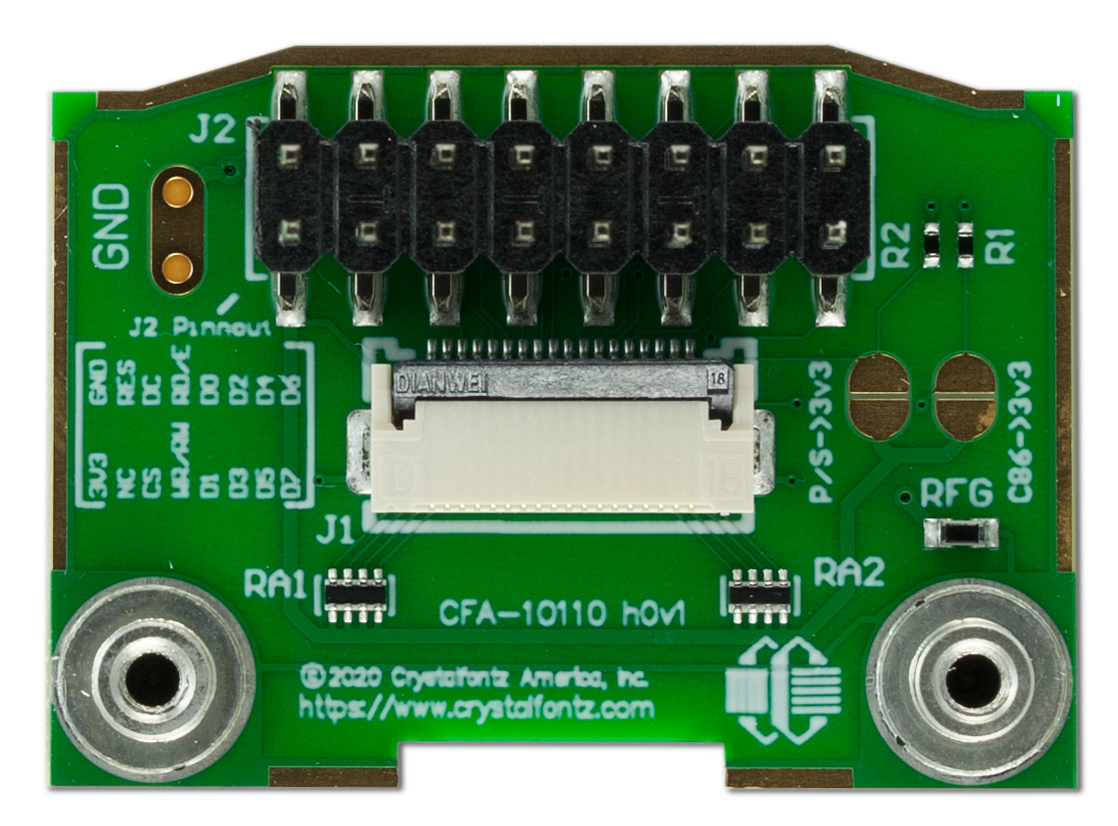

4690 LCD Breakout Board
Add a Breakout Board? $8.60 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG12864T3-NFH or RSS RSS feed for changes to CFAG12864T3-NFH for CFAG12864T3-NFH

Compliance Documents

Video Demonstrations

Low Power Transflective LCD

Watch as we show you the functionality of this series of small sunlight readable displays.


TECHNICAL SPECS

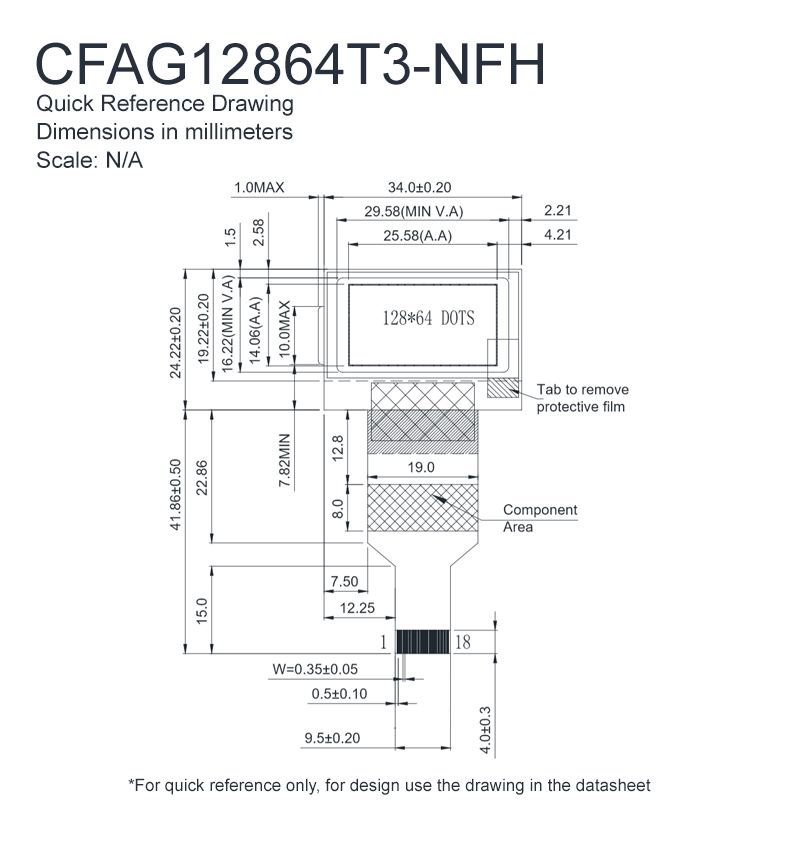

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 34 24.22 1.75
inches 1.339 0.954 0.069
*width / height does not include Foldable Tab
Diagonal Dimension 1.15"
Viewing Area width height
millimeters 29.58 16.22
inches 1.165 0.639
Active Area width height
millimeters 25.58 14.06
inches 1.007 0.554
Dot Pitch width height
millimeters 0.2 0.22
inches 0.008 0.009
Optional Connectors CS050Z18GA0
Flexible Cable (FFC/FPC) length
millimeters 41.86
inches 1.648
Weight 2.9g

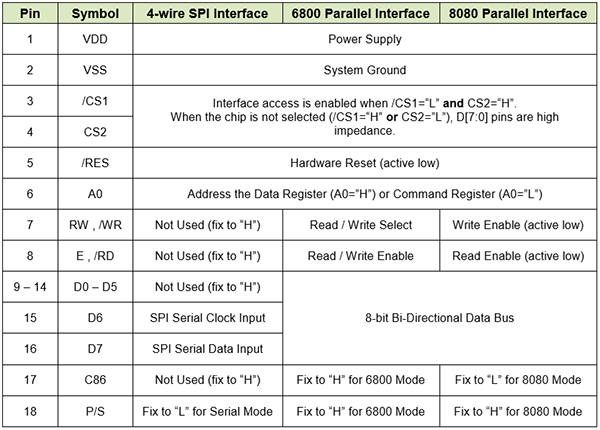

Pin Count 18

Optical Characteristics

Glass Type/Glass Color FSTN/Light-Gray
Polarizer Transflective
View Direction 6 o'clock
View Angle 60°
Sunlight Readable Yes
Mode Positive
Foreground Color Dark
Background Color Light Gray

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.3V
Supply Current Typical 2mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7565P
ST7565P
65 x 132 Dot Matrix LCD Controller/Driver
Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Want to speed up your development time? Purchase this display in a development kit or with a breakout board.

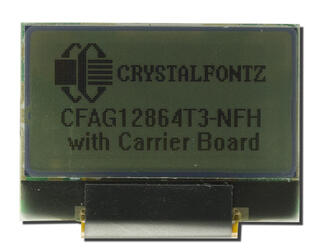

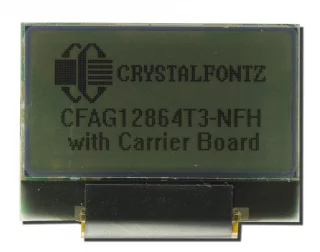

Low Power Transflective Graphic LCD Module
Part Number: CFAG12864T3-NFH-E1-1

This transflective LCD display module comprises the low power small graphic LCD on an adapter board. The CFAG12864T3-NFH is small (1.1" diagonal), thin, and low power. This display module does not have a backlight but is easily readable in direct sun due to it's transflective polarizer.

The adapter board simplifies integrating the display into a product or bringing up a demonstration of the display. The board breaks the ZIF tail out into a 10 position 0.1" header. This makes wiring the display simple and solder-free. The 2x2-56 threaded standoffs on the adapter board enable the entire assembly to be mounted into a final design.

Display Module Characteristics:

  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Utilizes the popular Sitronix ST7565P controller
  • Ultra-Low power consumption
  • Transflective & Monochrome for easy readability
  • Great for battery operated devices
  • 4-wire, 8-bit SPI or 8-bit parallel interface
Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1 10 20 50 * 100 * 200 * 300 * 500 * 1000 *
Price $18.15 $14.28 $13.82 $13.36 $13.17 $13.08 $12.98 $12.89 $12.80
Quantity:

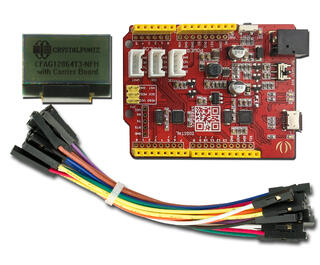

Low Power Transflective LCD Dev Kit
Part Number: CFAG12864T3-NFH-E1-2

This full Seeeduino LCD demo kit makes evaluating the CFAG12864T3-NFH a breeze. The kit includes the display connected to a breakout board and wired to a Seeeduino running demo code. To begin the demonstration, simply plug the Seeeduino in to power using the provided USB cable.

The CFAG12864T3-NFH is a small (1.1" diagonal), thin, low power display with no backlight.

Display Characteristics:

  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Built-in Sitronix ST7565P controller
  • Low power consumption
  • Monochrome
  • Great for handheld, battery operated devices
  • 4-wire, 8-bit SPI or 8-bit parallel interface
Kit Contents: Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1
Price $45.79
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
