Blue on white 144x32 Graphic LCD

Part Number: CFAG14432D-TMI-TT

Pricing

Quantity Price
1 $14.12
10 * $12.27
20 * $12.10
50 * $11.91
100 * $11.64
200 * $11.46
500 * $10.24
1000 * $9.55
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG14432D-TMI-TT or RSS RSS feed for changes to CFAG14432D-TMI-TT for CFAG14432D-TMI-TT

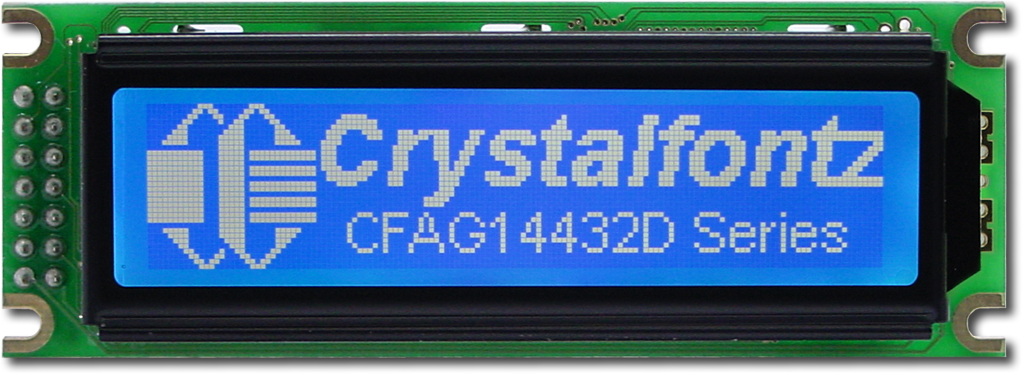

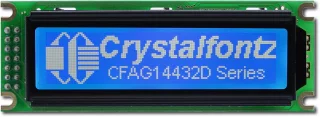

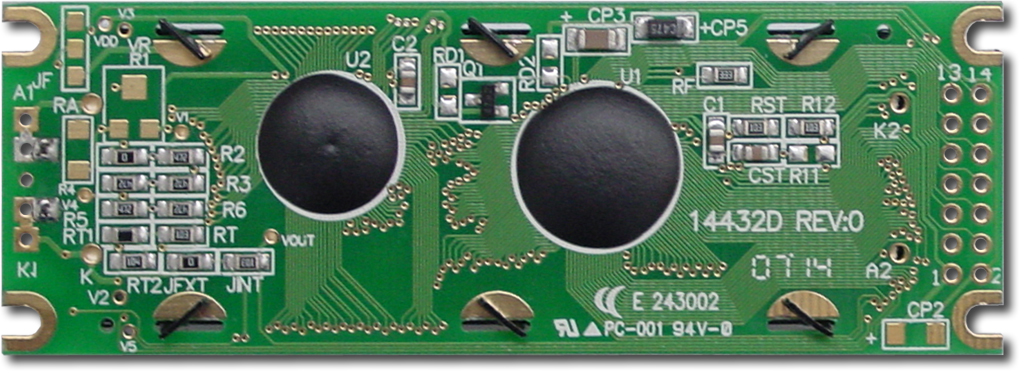

Blue on white 144x32 Graphic LCD (CFAG14432D-TMI-TT)
Blue on white 144x32 Graphic LCD
Close

Product Variants


4-bit Parallel / 8-bit Parallel

Description

144x32 White on blue graphic LCD with temperature compensation and negative voltage generator

  • Resolution: 144x32 pixels
  • Optics: 6:00 viewing direction
  • Backlight: White Edge LED
  • Glass: STN Negative, Transmissive
  • Controller: Sitronix ST7920 (Hitachi HD44780 Compatible)
  • Character Generator: Chinese and English
  • Operating Temp: -20°C to +70°C
  • Compliance: RoHS Compliant

Wondering how to wire this to your Arduino or Seeeduino? Check out or forum post that shows you how to wire this display to a Seeeduino

TECHNICAL SPECS

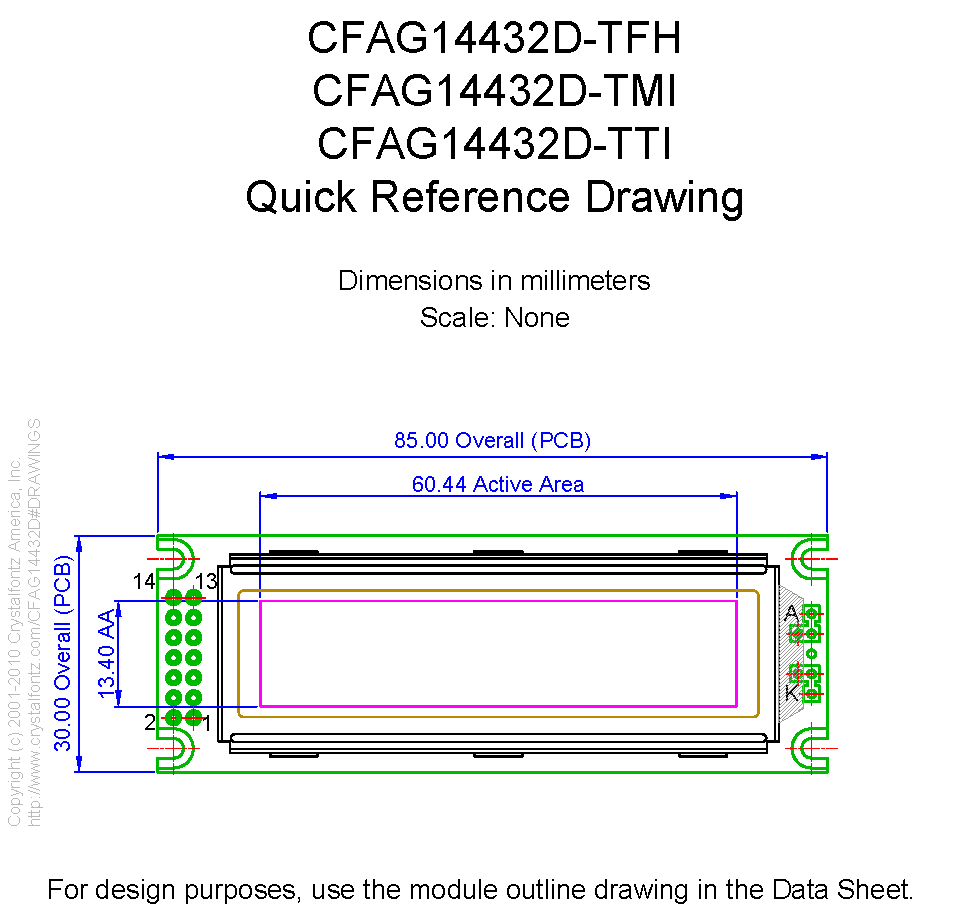

Physical Characteristics

Column Dots x Row Dots 144 x 32
Module Overall width height depth
millimeters 85 30 13.2
inches 3.346 1.181 0.520
PCB Outline width height depth
millimeters 85 30 13.2
inches 3.346 1.181 0.520
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 60.44 13.4
inches 2.380 0.528
Dot Size width height
millimeters 0.38 0.38
inches 0.015 0.015
Dot Pitch width height
millimeters 0.42 0.42
inches 0.017 0.017
Weight 32g

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7920
ST7920
Chinese Fonts built in LCD controller/driver
Interface 4-bit Parallel, 8-bit Parallel
For reference only. For design purposes, please use the specifications in the datasheet.
