Sunlight Readable 160x80 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

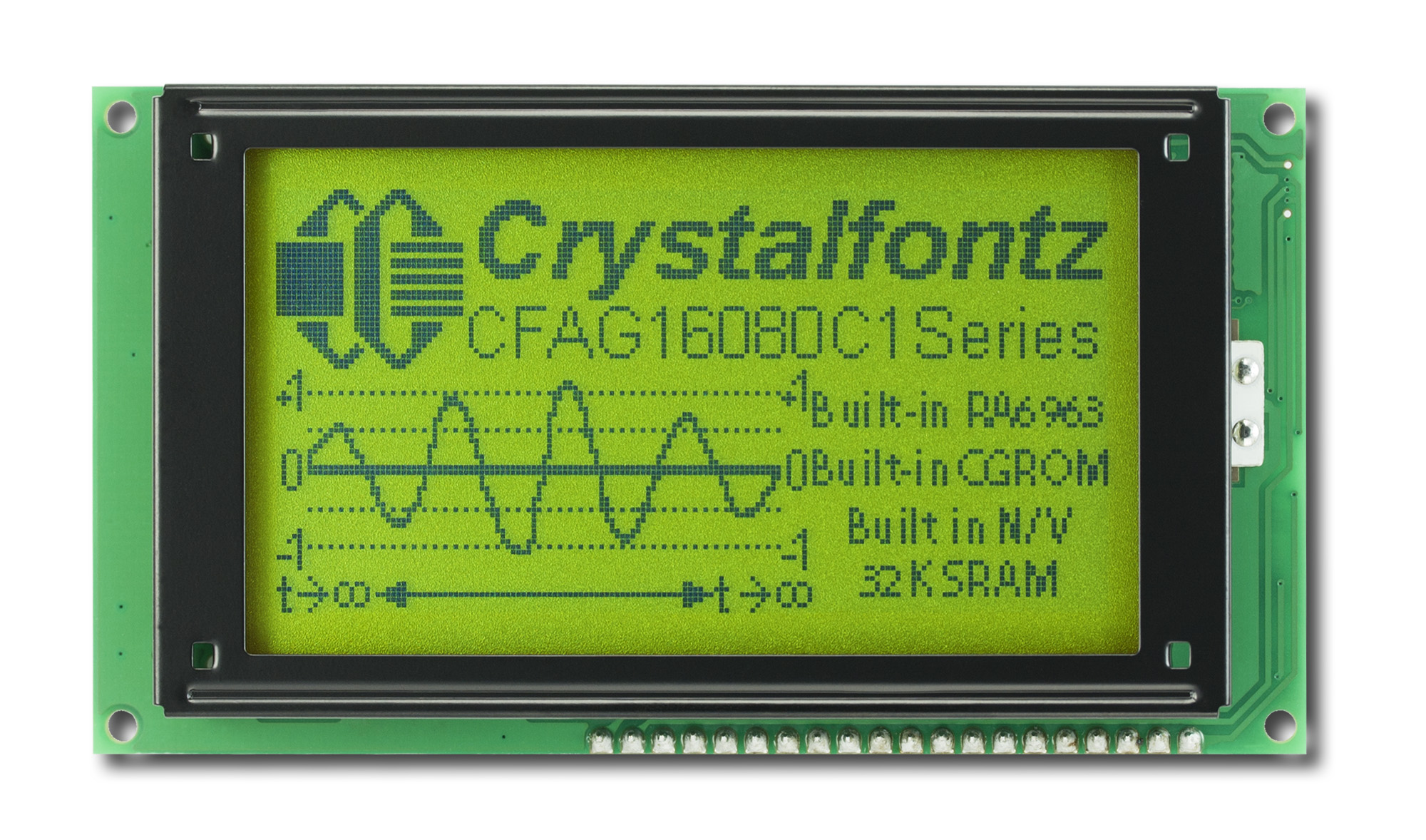

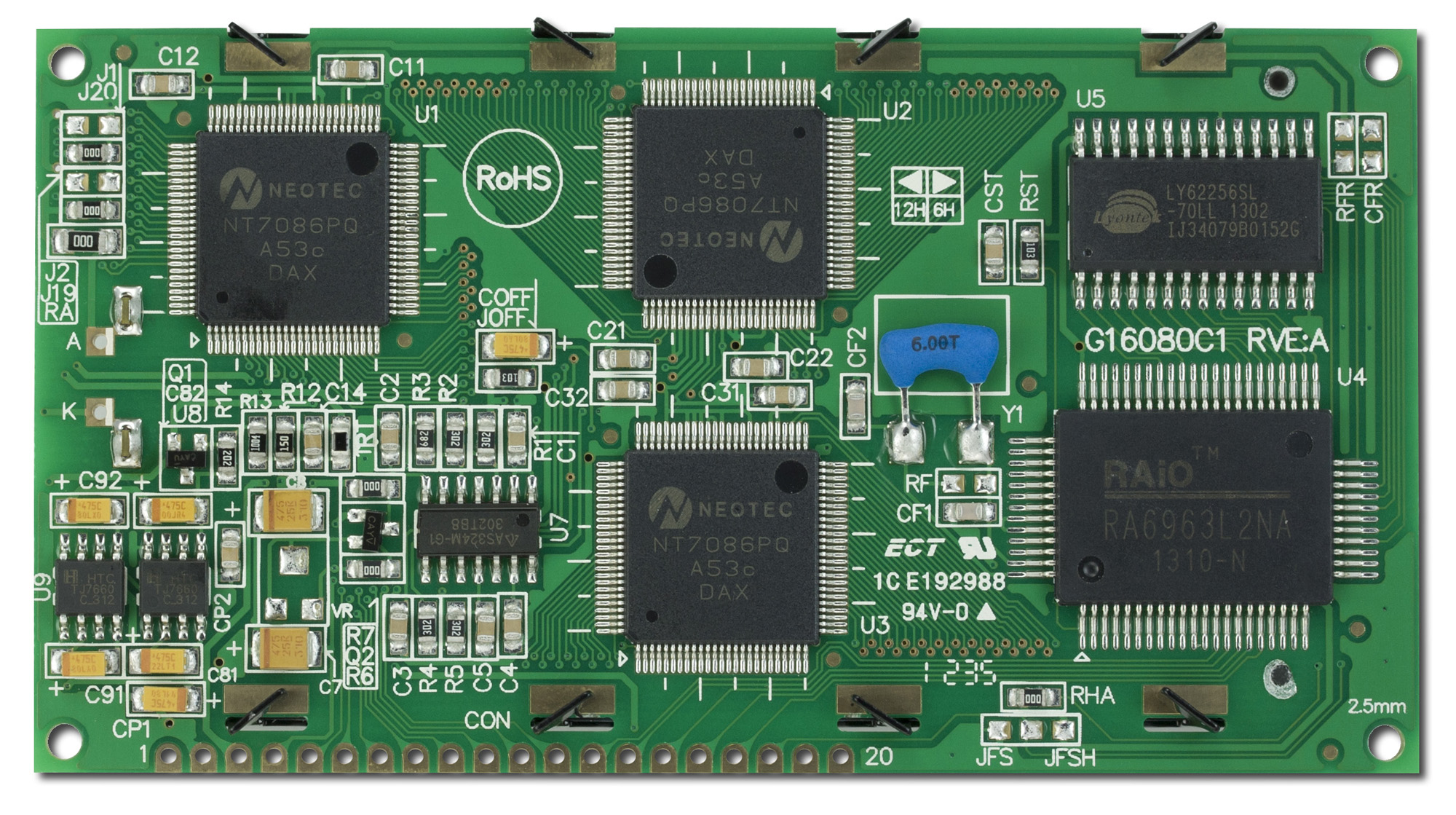

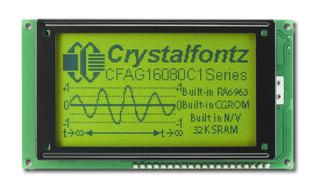

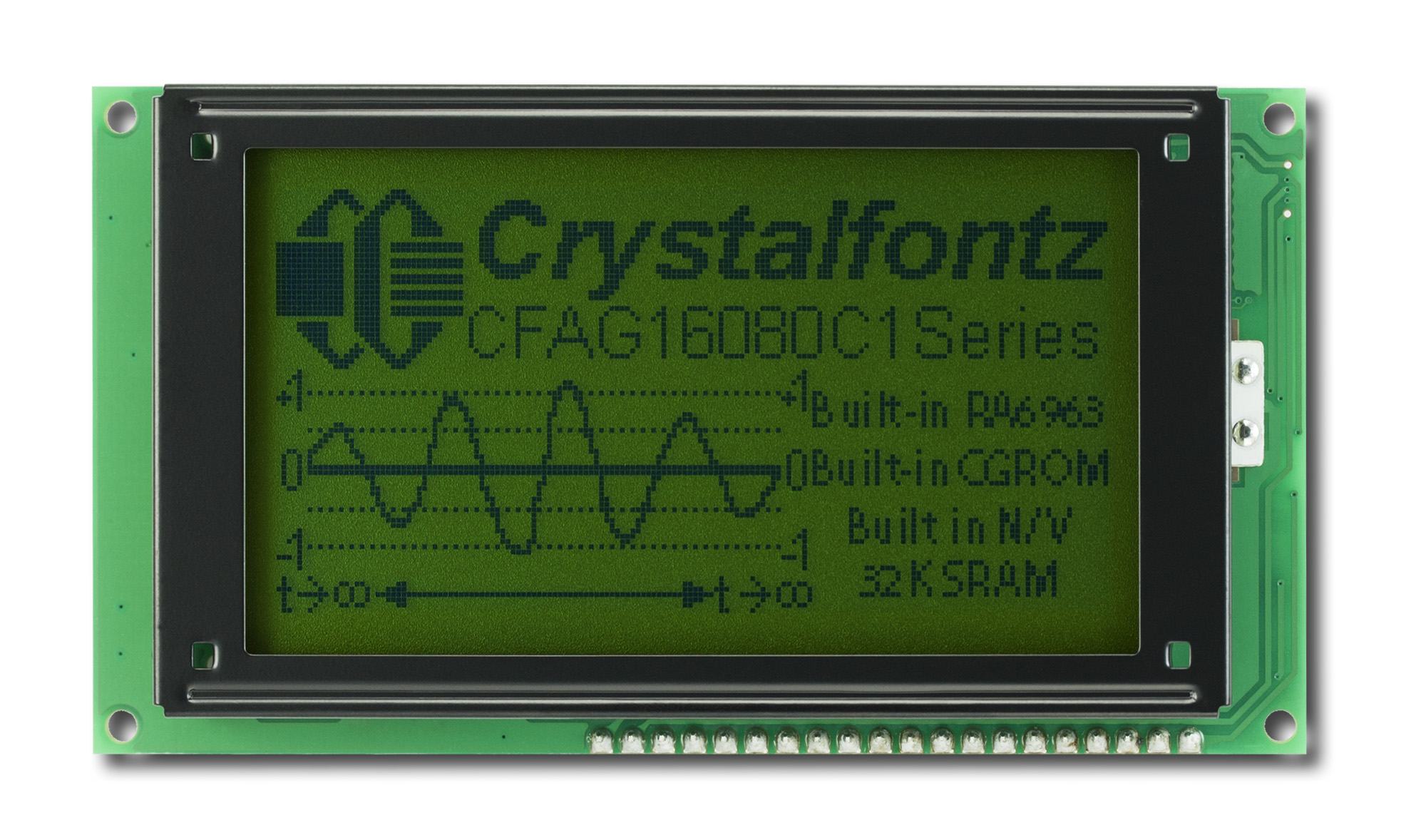

Sunlight Readable 160x80 Graphic LCDPart Number: CFAG16080C1-YYH-TZSunlight readable 160x80 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 160x80 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: RAiO RA6963 (T6963C Compatible)
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 80


    Module Overall        width
        height
        depth


        millimeters
        100
        54
        14.6


        inches
        3.94
        2.13
        0.58



    PCB Outline        width
        height
        depth


        millimeters
        100
        54
        14.6


        inches
        3.94
        2.13
        0.58



        Diagonal Dimension
            2.96"


    Viewing Area        Width
        Height


        millimeters
        72
        40


        inches
        2.84
        1.58



    Active Area        Width
        Height


        millimeters
        67.17
        33.57


        inches
        2.64
        1.32



    Dot Size        Width
        Height


        millimeters
        0.39
        0.39


        inches
        0.015
        0.015



    Dot Pitch        Width
        Height


        millimeters
        0.42
        0.42


        inches
        0.017
        0.017



        Weight
            74g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V
Supply Voltage for Driving Panel Typical
            11.5V


        Supply Current Minimum
            13.8mA
Supply Current Maximum
            16mA
Supply Current Typical
            14.2mA
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.9V
Forward Voltage Maximum
            4.3V
Forward Voltage Typical
            4.1V


        Forward Current Minimum
            297mA
Forward Current Maximum
            396mA
Forward Current Typical
            330mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG16080C1YYHTZ Datasheet

download Files and Downloads
folder_zip Software Source - ATMega2561 8-bit Demo code
folder_zip Hardware Design - 3D Model
link RA6963 Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

















Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $49.58

            10
            $43.76

            20 *
            $42.29

            50 *
            $40.80

            100 *
            $40.22

            200 *
            $39.92

            300 *
            $37.86

            500 *
            $37.58

            1000 *
            $34.73

14 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	100	54	14.6
inches	3.94	2.13	0.58

PCB Outline	width	height	depth
millimeters	100	54	14.6
inches	3.94	2.13	0.58

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	67.17	33.57
inches	2.64	1.32

Dot Size	Width	Height
millimeters	0.39	0.39
inches	0.015	0.015

Dot Pitch	Width	Height
millimeters	0.42	0.42
inches	0.017	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$49.58
10	$43.76
20 *	$42.29
50 *	$40.80
100 *	$40.22
200 *	$39.92
300 *	$37.86
500 *	$37.58
1000 *	$34.73

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10600: (New Product) CFAG16080C1-YYH-TZ

New Product:	CFAG16080C1-YYH-TZ
Date Issued:	July 1, 2014
Summary:	(New Product) CFAG16080C1-YYH-TZ
Description:	Standard Graphic Modules: 160x80 Graphic LCD, RoHS, White LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG16080C1-YYH-TZ
