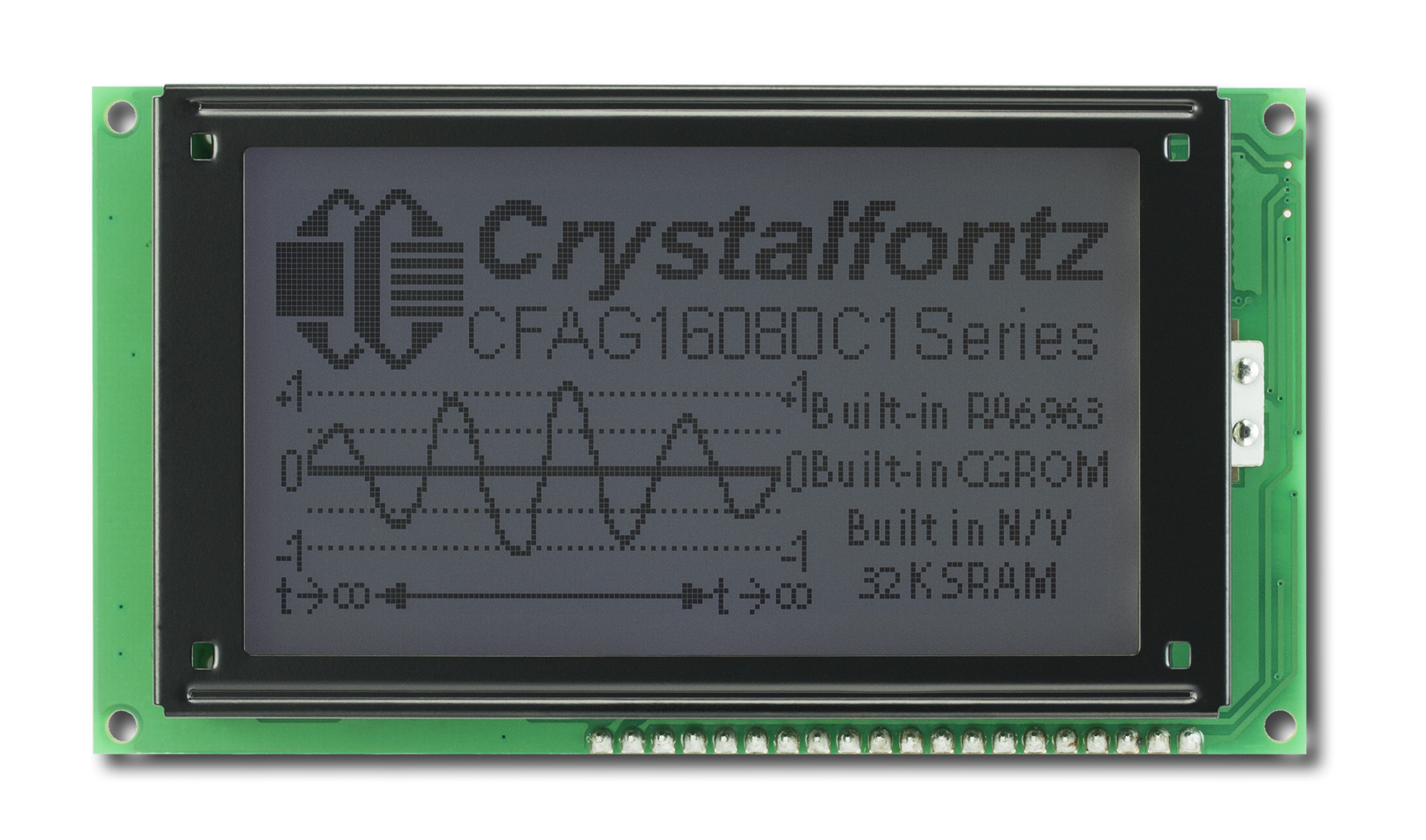

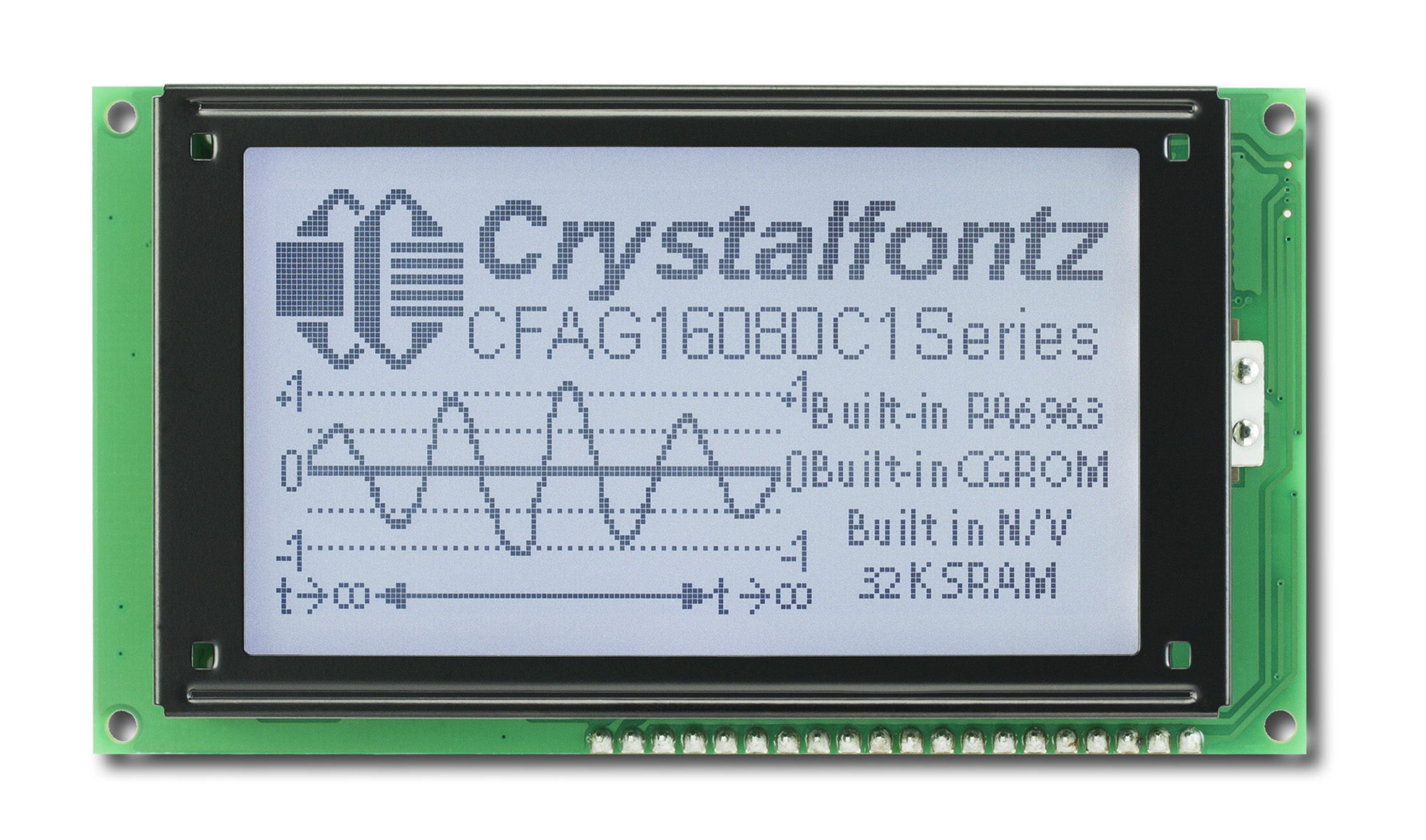

160x80 Transflective Graphic LCD
Part Number: CFAG16080C1-TFH-TZ
160x80 Graphic LCD, RoHS Compliant, RA6963 controller, White LED Backlight, FSTN Positive, Transflecive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation.
- 160x80 graphic LCD module

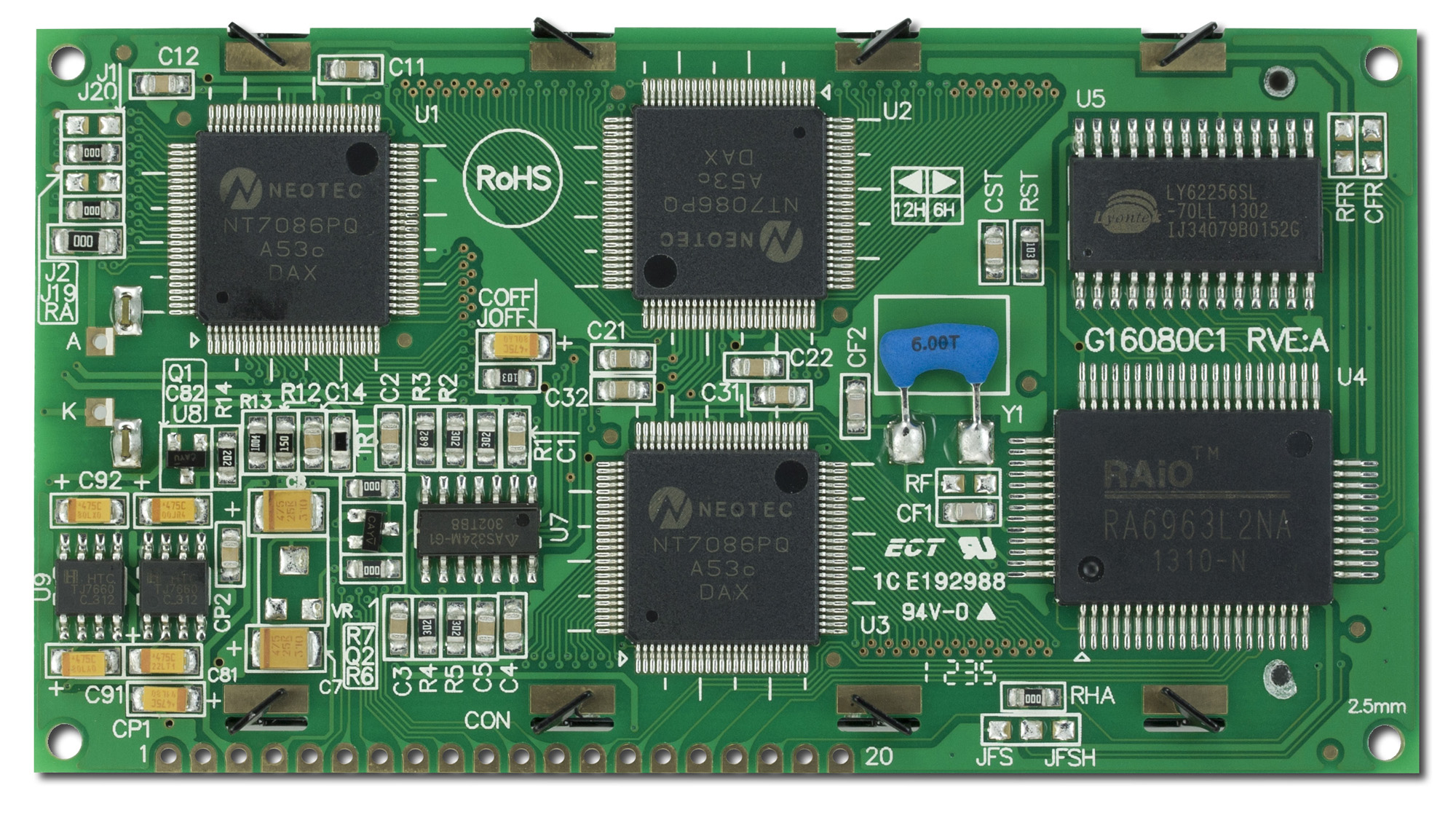

- Built-in RAiO RA6963 controller (T6963C Compatible) with Neotec NT7086 segment drivers
- 160x80 graphic mode, CGROM (T6963C code 0101)
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- RoHS Compliant
| Quantity | 1 | 10 * | 20 * | 50 * | 100 * | 200 * | 500 * | 1000 * |
|---|---|---|---|---|---|---|---|---|
| Price | $28.51 | $27.68 | $24.76 | $22.68 | $20.38 | $18.68 | $15.60 | $14.06 |
| Quantity | Price |
|---|---|
| 1 | $28.51 |
| 10 * | $27.68 |
| 20 * | $24.76 |
| 50 * | $22.68 |
| 100 * | $20.38 |
| 200 * | $18.68 |
| 500 * | $15.60 |
| 1000 * | $14.06 |
* Contact us about potential lead times.
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots | 160 x 80 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 100 | 54 | 14.6 |
| inches | 3.937 | 2.126 | 0.575 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 100 | 54 | 1.6 |
| inches | 3.937 | 2.126 | 0.063 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 72 | 40 |
| inches | 2.835 | 1.575 |
| Active Area | width | height |
|---|---|---|
| millimeters | 67.17 | 33.57 |
| inches | 2.644 | 1.322 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.39 | 0.39 |
| inches | 0.015 | 0.015 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.42 | 0.42 |
| inches | 0.017 | 0.017 |
| Weight | 81.9g |
Optical Characteristics
| Glass Type/Glass Color | FSTN/Light Gray |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Light Gray |
Electrical Specifications
| Supply Voltage for Logic Minimum | 3V |
| Supply Voltage for Logic Maximum | 5.5V |
| Supply Voltage for Logic Typical | 5V |
| Supply Voltage for Driving LCD Typical | 13.8V |
| Module Connector Pitch | 2.54mm |
Backlight Electrical Specifications
| Forward Voltage Minimum | 3.4V |
| Forward Voltage Maximum | 3.6V |
| Forward Voltage Typical | 3.5V |
| Forward Current Maximum | 80mA |
| Forward Current Typical | 64mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller | RAiO Technology RA6963 |
| Interface | 8-bit Parallel |
*Suggest a Correction
Datasheets
Files
RoHS/REACH COC - F-0058A RoHS CoC - Graphic Displays
Declaration of Conformity: EU Directive 2011/65 and 2015/863 for Restriction of Hazardous Substances
Declaration of Conformity: EU Directive 2011/65 and 2015/863 for Restriction of Hazardous Substances
RoHS/REACH COC - F-0058B CFA REACH DoC Graphic Displays
REACH EC/1097-2006 SVHC Annex 1 Declaration of Conformity to include ECHA List updated 2016-06-20 (169 Substances)
REACH EC/1097-2006 Annex XIV 'Authorisation List' Updated 2016-01-11 (31 substances)
REACH EC-1097-2006 Annex XVII Restricted Substances Directive 76/769/EEC, Updated 2016-03-17 (61 unique substances/entries)
REACH EC/1097-2006 SVHC Annex 1 Declaration of Conformity to include ECHA List updated 2016-06-20 (169 Substances)
REACH EC/1097-2006 Annex XIV 'Authorisation List' Updated 2016-01-11 (31 substances)
REACH EC-1097-2006 Annex XVII Restricted Substances Directive 76/769/EEC, Updated 2016-03-17 (61 unique substances/entries)
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #10602: (New Product) CFAG16080C1-TFH-TZ
| New Product: | CFAG16080C1-TFH-TZ |
| Date Issued: | July 1, 2014 |
| Summary: | (New Product) CFAG16080C1-TFH-TZ |
| Description: | Standard Graphic Modules: 160x80 Graphic LCD, RoHS, White LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00 |
