Dark Blue 240x128 Graphic LCDPart Number: CFAG240128B-TTI-TZ

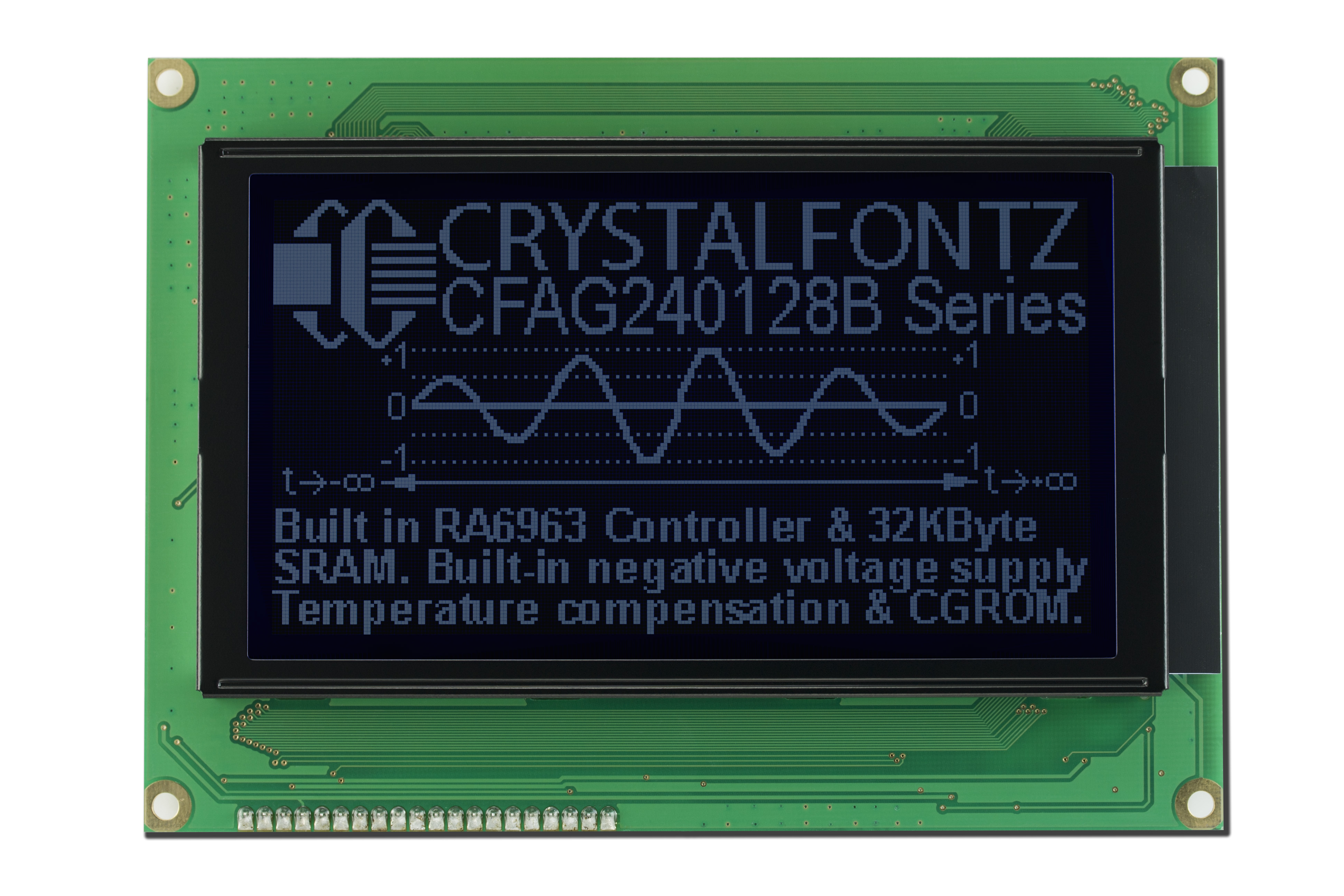

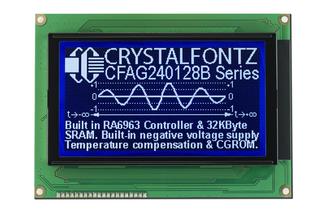

                        White on black 240x128 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 240x128 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible) Controller
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Dark
White LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

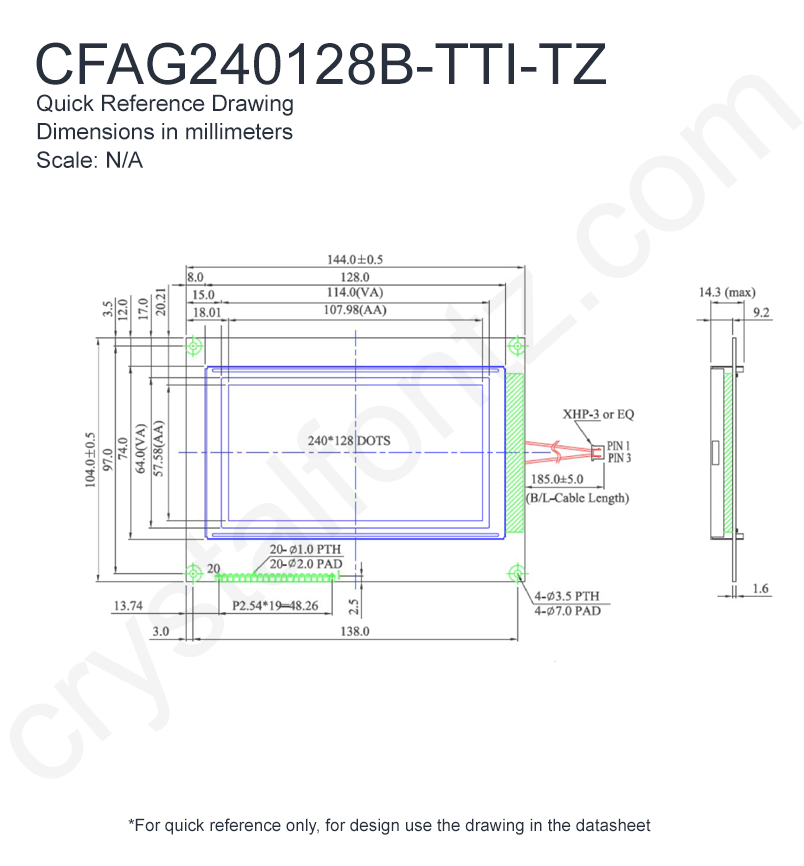

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 128


    Module Overall        width
        height
        depth


        millimeters
        144
        104
        14.3


        inches
        5.67
        4.09
        0.56



    PCB Outline        width
        height
        depth


        millimeters
        144
        104
        1.6


        inches
        5.67
        4.09
        0.06



        Diagonal Dimension
            4.82"


    Viewing Area        Width
        Height


        millimeters
        114
        64


        inches
        4.49
        2.52



    Active Area        Width
        Height


        millimeters
        107.98
        57.58


        inches
        4.25
        2.27



    Dot Size        Width
        Height


        millimeters
        0.43
        0.43


        inches
        0.017
        0.017



    Dot Pitch        Width
        Height


        millimeters
        0.45
        0.45


        inches
        0.018
        0.018



        Weight
            202.1g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            5.5V


        Supply Voltage for Driving Panel Typical
            19.5V
Module Connector Pitch
            2.54mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            45mA
Forward Current Maximum
            85mA
Forward Current Typical
            60mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


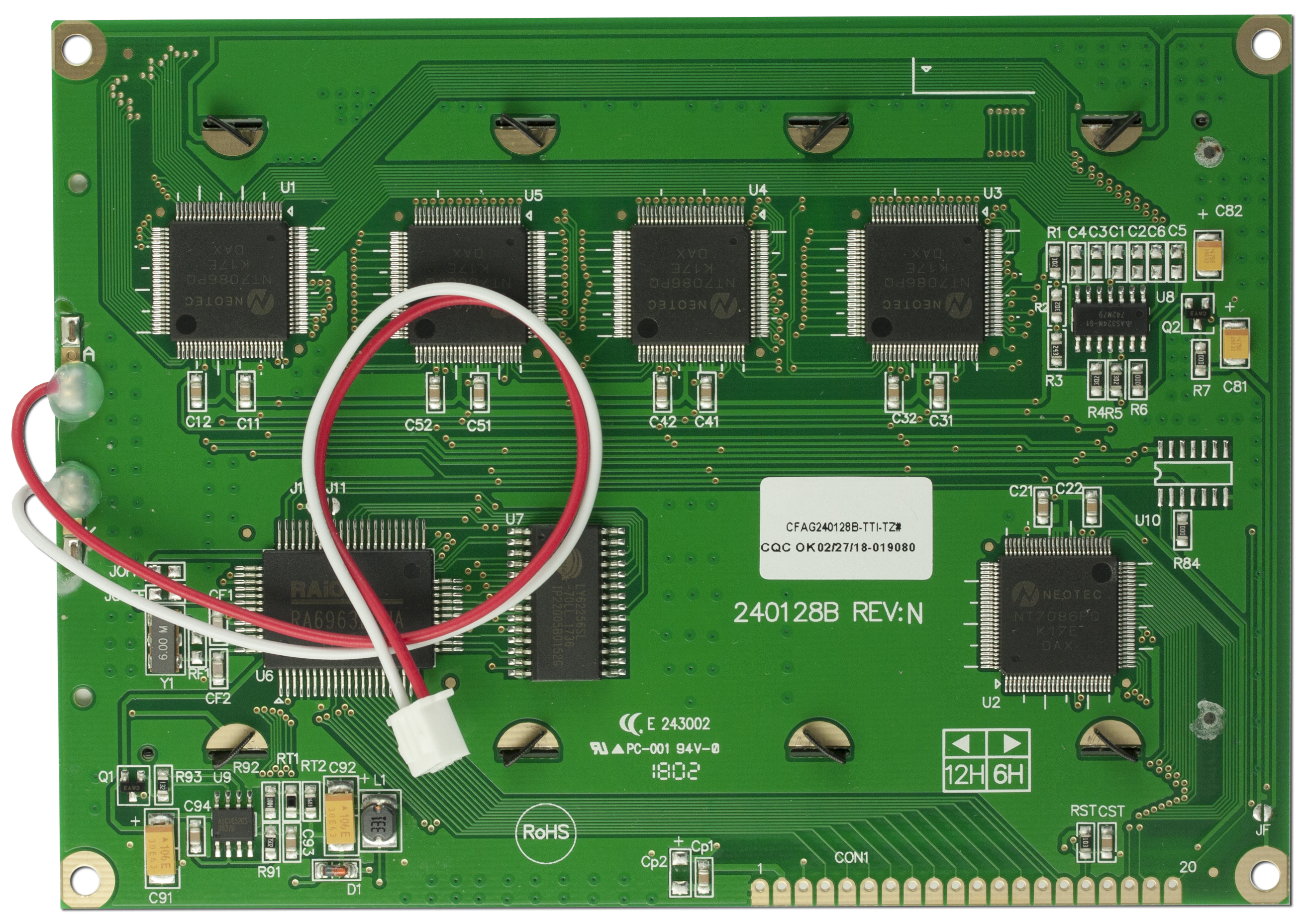

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG240128B Datasheet

download Files and Downloads
folder_zip Software Source - ATMega2561 Sample Code
link RA6963 Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH













Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $106.77

            10
            $94.25

            20 *
            $91.07

            50 *
            $87.88

            100 *
            $86.62

            200 *
            $85.97

            300 *
            $81.57

            500 *
            $80.96

            1000 *
            $76.65

10 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Dark White LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	144	104	14.3
inches	5.67	4.09	0.56

PCB Outline	width	height	depth
millimeters	144	104	1.6
inches	5.67	4.09	0.06

Viewing Area	Width	Height
millimeters	114	64
inches	4.49	2.52

Active Area	Width	Height
millimeters	107.98	57.58
inches	4.25	2.27

Dot Size	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Dot Pitch	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$106.77
10	$94.25
20 *	$91.07
50 *	$87.88
100 *	$86.62
200 *	$85.97
300 *	$81.57
500 *	$80.96
1000 *	$76.65

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10599: (New Product) CFAG240128B-TTI-TZ

New Product:	CFAG240128B-TTI-TZ
Date Issued:	June 27, 2014
Summary:	(New Product) CFAG240128B-TTI-TZ
Description:	Standard Graphic Modules: 240x128 Graphic LCD, RoHS, White LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00
