This product is discontinued and has been replaced by CFAG320240CX-TMI-T

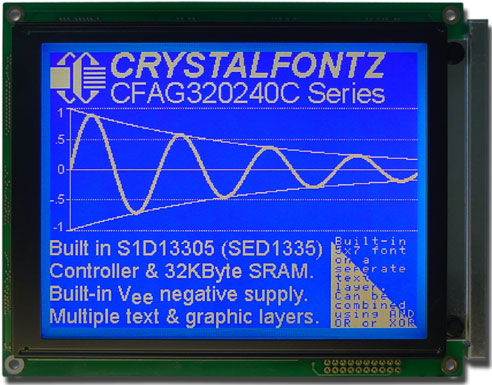

[EOL] Blue 320x240 Parallel Graphic LCD
Part Number: CFAG320240C0-FMI-TZ
320x240 Graphic LCD, White CCFL Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00, Negative Voltage Generator, Temperature Compensation
- 320x240 graphic LCD module

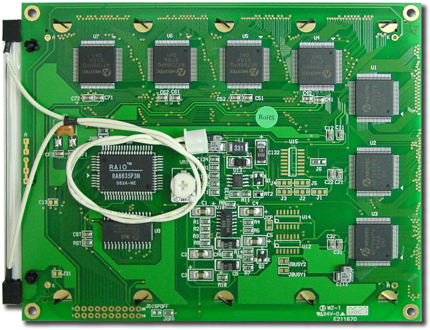

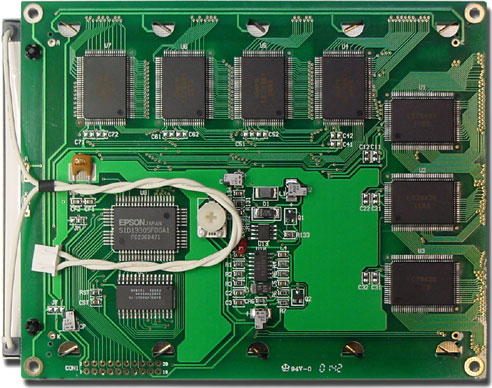

- Built-in RAiO RA8835 (SED1335/S1D3305 Compatible) controller and 32Kbyte SRAM
- Multiple text and graphic layers
- Available in several variations of backlight and polarizer (minimum order may be required)
- RoHS Compliant

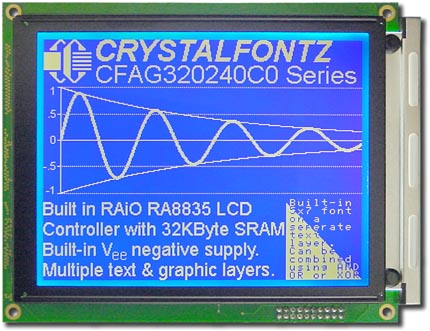

![[EOL] Blue 320x240 Parallel Graphic LCD (CFAG320240C0-FMI-TZ)](/images/products/CFAG320240C0FMITZ/CFAG320240C0_FMI_430.jpg)
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 320 x 240 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 154.79 | 120.24 | 15.6 |
| inches | 6.094 | 4.734 | 0.614 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 154.79 | 120.24 | 15.6 |
| inches | 6.094 | 4.734 | 0.614 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 120.14 | 92.14 |
| inches | 4.730 | 3.628 |
| Active Area | width | height |
|---|---|---|
| millimeters | 115.18 | 86.38 |
| inches | 4.535 | 3.401 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.34 | 0.34 |
| inches | 0.013 | 0.013 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.36 | 0.36 |
| inches | 0.014 | 0.014 |
Optical Characteristics
| Glass Type/Glass Color | STN/Blue |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | White |
| Backlight Type | CCFL |
| Mode | Negative |
| Foreground Color | White |
| Background Color | Blue |
Electrical Specifications
| Module Connector Pitch | 0.10mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Raio Technology RA8835-RA88335A RA8835 RA8835A Dot Matrix LCD Controller |
| Interface | 8-bit Parallel |
Also see the 5v input inverter:
