320x240 White on Blue Parallel Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

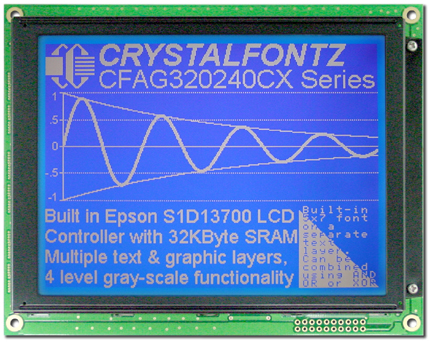

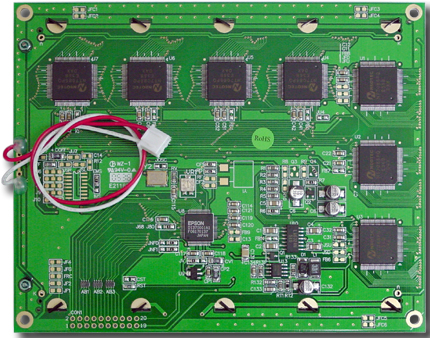

320x240 White on Blue Parallel Graphic LCDPart Number: CFAG320240CX-TMI-TWhite on blue 320x240 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 320x240 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Epson S1D13700
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant
An Arduino library can be found here: CFAG320240CX Arduino Library.
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on White
White LED Backlight

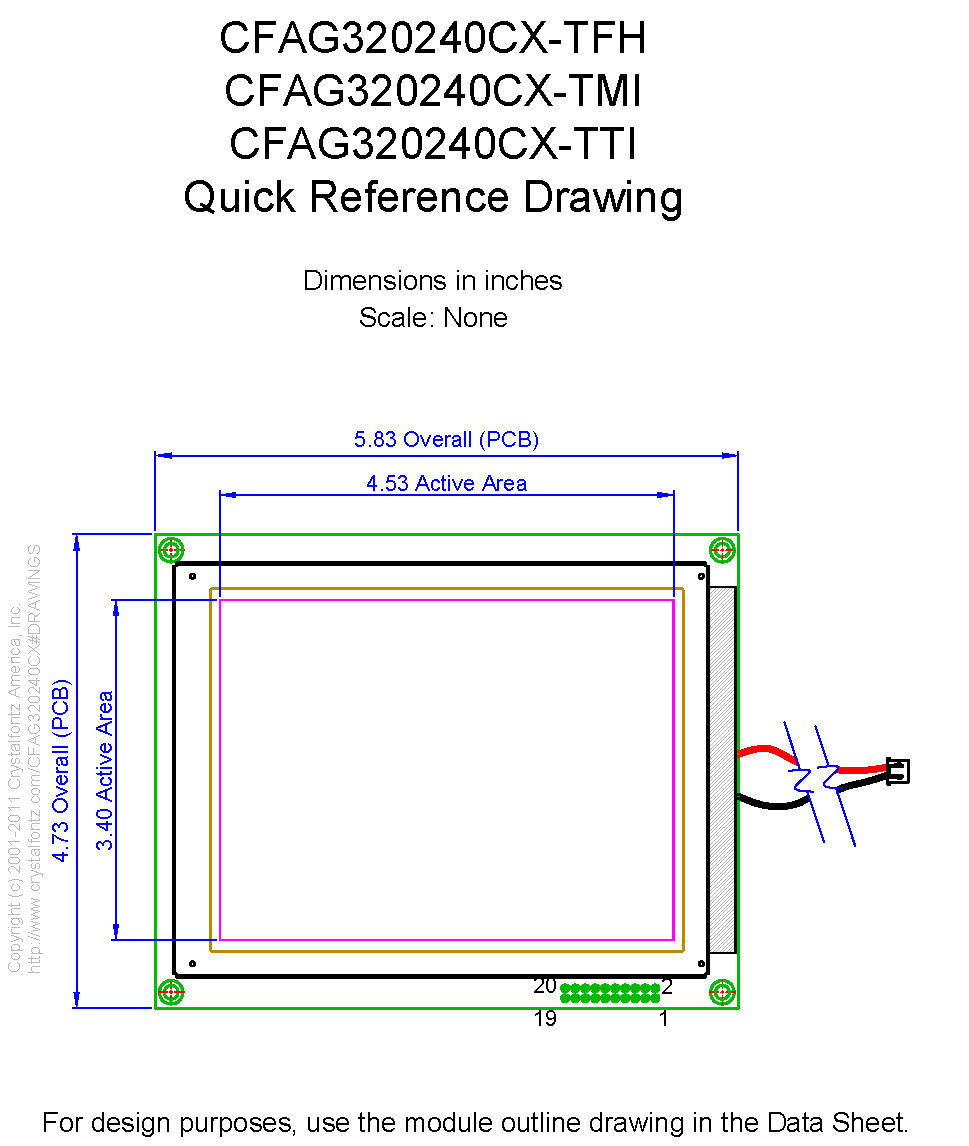

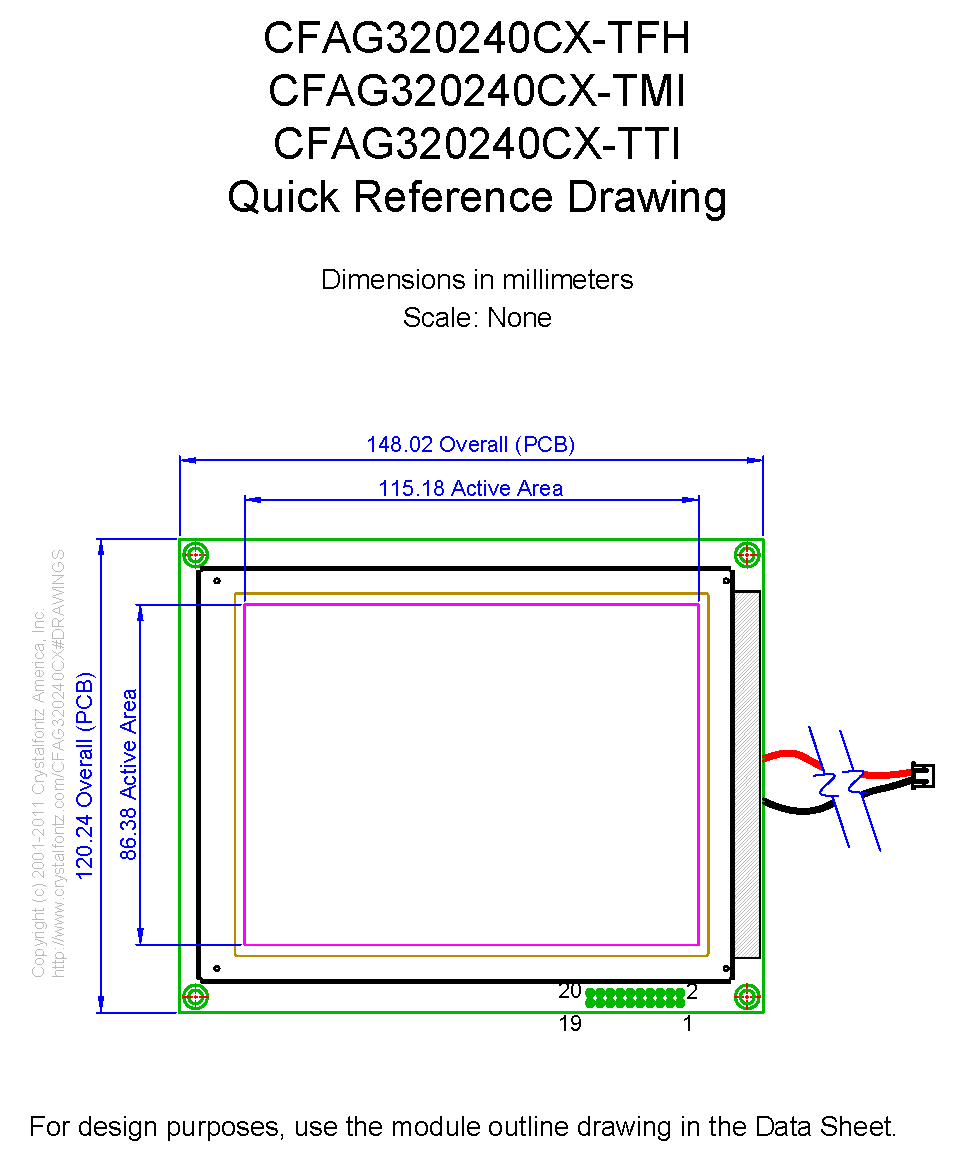

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240


    Module Overall        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



    PCB Outline        width
        height
        depth


        millimeters
        148.02
        120.24
        15.6


        inches
        5.83
        4.73
        0.61



        Diagonal Dimension
            5.67"


    Viewing Area        Width
        Height


        millimeters
        120.14
        92.14


        inches
        4.73
        3.63



    Active Area        Width
        Height


        millimeters
        115.18
        86.38


        inches
        4.54
        3.40



    Dot Size        Width
        Height


        millimeters
        0.34
        0.34


        inches
        0.013
        0.013



    Dot Pitch        Width
        Height


        millimeters
        0.36
        0.36


        inches
        0.014
        0.014



        Weight
            229g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification


Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG320240CXTMIT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG320240CX-TMI-T v1.0.pdf

 download Files and Downloads
folder_zip Software Source - 6800 ATMega2561
Demo Code
folder_zip Software Source - Arduino Demo Code
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAG320240CX-TFH-TMI-TTI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240CX-TFH-TMI-TTI 1 TO 1.PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH










Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $128.60

            10
            $127.16

            20 *
            $120.81

            50 *
            $118.98

            100 *
            $116.27

            200 *
            $114.45

            500 *
            $104.21

            1000 *
            $101.23

13 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.






						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on White White LED Backlight

Module Overall	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

PCB Outline	width	height	depth
millimeters	148.02	120.24	15.6
inches	5.83	4.73	0.61

Viewing Area	Width	Height
millimeters	120.14	92.14
inches	4.73	3.63

Active Area	Width	Height
millimeters	115.18	86.38
inches	4.54	3.40

Dot Size	Width	Height
millimeters	0.34	0.34
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.36	0.36
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$128.60
10	$127.16
20 *	$120.81
50 *	$118.98
100 *	$116.27
200 *	$114.45
500 *	$104.21
1000 *	$101.23

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11092: Glass Provider Change

Products Affected:	CFAG320240CX-TMI-T, CFAG320240CX-YYH-T
Date Issued:	July 16, 2021
Summary:	Glass Provider Change
Description:	This is a notification that the glass used on this display is being manufactured by a new supplier. Please contact sales@crystalfontz.com if samples are required.
Reason:	New glass supplier.

Part Change Notice #10897: Sunplus Controller Change

Products Affected:	CFAG320240CX-TFH-T, CFAG320240CX-TMI-T, CFAG320240CX-YYH-T
Date Issued:	November 14, 2017
Summary:	Sunplus Controller Change
Description:	The Sunplus controller used in the parts listed has been discontinued by the manufacturer. It is being replaced by a compatible controller. The new controller requires a revision to the PCB. The revised PCB with the new controller will be an exact replacement for the current parts using the Sunplus controller.
Reason:	The Sunplus controller is no longer available.
Impact:	The current part numbers will not change. The PCBs will be marked with a new board revision letter.
Recommendation:	No changes are required.
Availability:	The revised parts will be available as current stocks of the Sunplus controller are depleted.
Price Change:	To be determined.
Response:	None required.
