This product is discontinued and has been replaced by CFAH0802A-GGH-JT

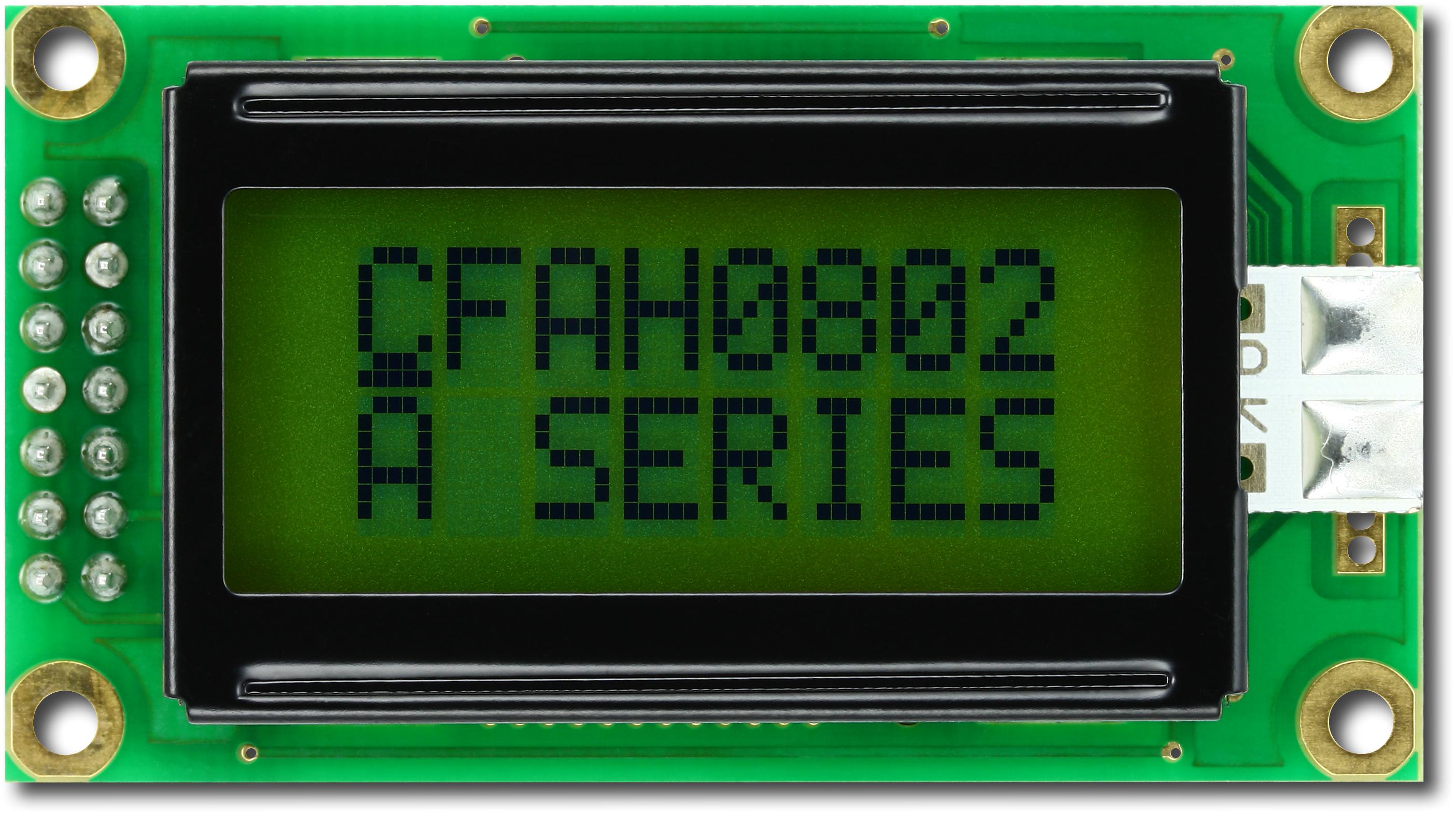

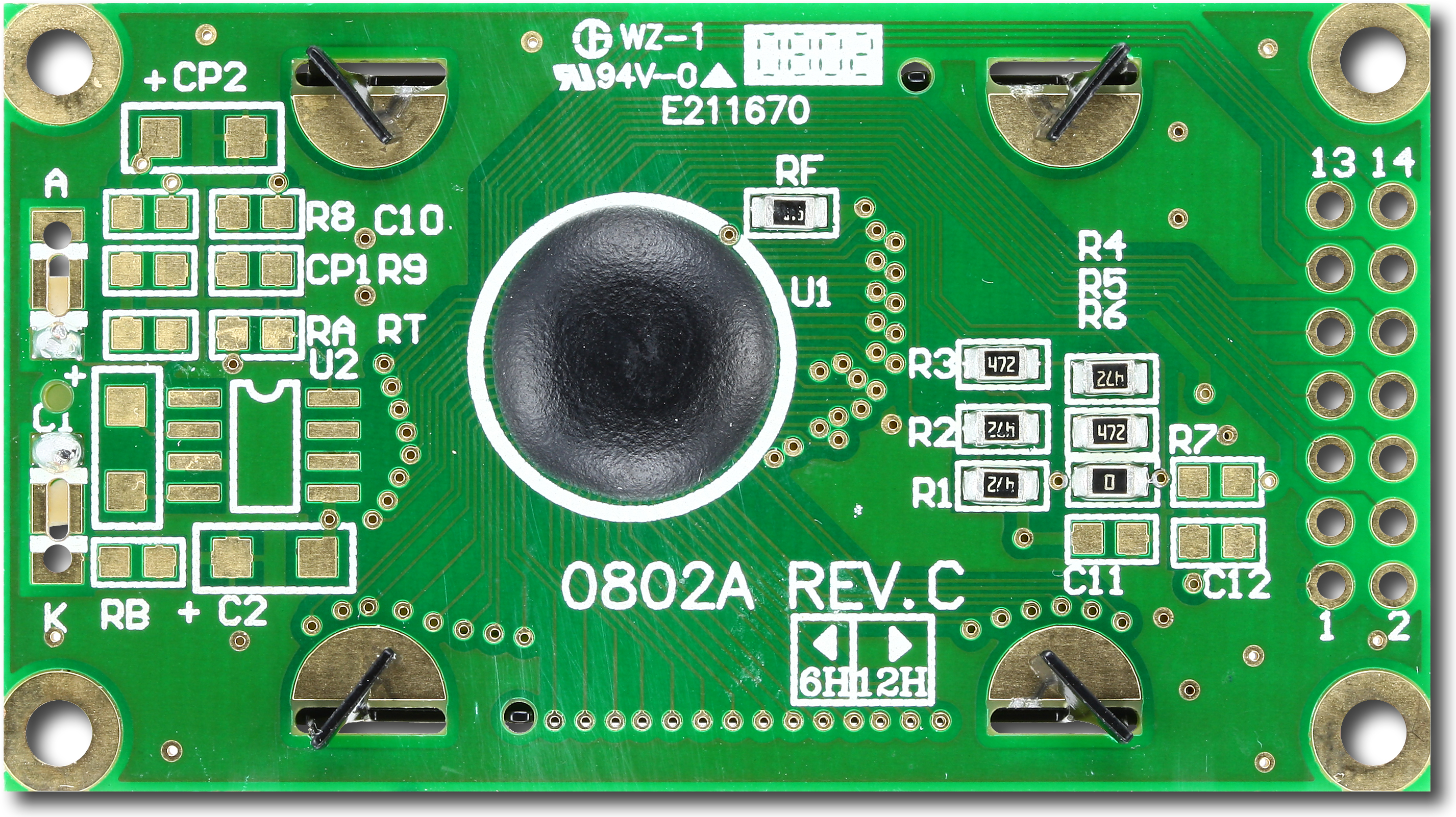

Standard 8x2 Character LCD (EOL)
Part Number: CFAH0802A-GYH-JT
Standard 8x2 Character display with a green LED Backlight, STN Positive glass, Yellow/Green characters, a transflective polarizer (Sunlight readable), -20°C to +70°C operating temperature and a 6:00 o'clock viewing direction. This standard character module uses a HD44780 compatible controller. Can use 8 or 4-bit parallel communications.
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 8 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 58 | 32 | 13.5 |
| inches | 2.283 | 1.260 | 0.531 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 58 | 32 | 13.5 |
| inches | 2.283 | 1.260 | 0.531 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 38 | 16 |
| inches | 1.496 | 0.630 |
| Active Area | width | height |
|---|---|---|
| millimeters | 27.81 | 11.5 |
| inches | 1.095 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 2.96 | 5.56 |
| inches | 0.117 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.55 | 5.94 |
| inches | 0.140 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.56 | 0.66 |
| inches | 0.022 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.6 | 0.7 |
| inches | 0.024 | 0.028 |
| Weight | 21g |
Optical Characteristics
| Glass Type/Glass Color | STN/Yellow-Green |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | Green |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Green |
Electrical Specifications
| Module Connector Pitch | 0.1mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sitronix ST7066U Dot Matrix LCD Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
For reference only. For design purposes, please use the specifications in the datasheet.
