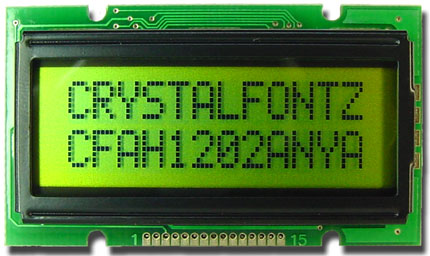

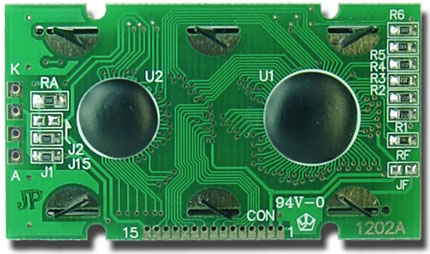

Yellow Green 12x2 Character LCD (EOL)

Part Number: CFAH1202A-NYG-JP

Parallel Character LCD 12x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 12 x 2
    Module Overall width height depth
    millimeters 55.7 32 9.7
    inches 2.19 1.26 0.38
    PCB Outline width height depth
    millimeters 55.7 32 9.7
    inches 2.19 1.26 0.38
    Viewing Area Width Height
    millimeters 46 14.5
    inches 1.81 0.57
    Active Area Width Height
    millimeters 37.85 11.7
    inches 1.49 0.46
    Character Size Width Height
    millimeters 2.65 5.55
    inches 0.104 0.219
    Character Pitch Width Height
    millimeters 3.2 6.2
    inches 0.126 0.244
    Dot Size Width Height
    millimeters 0.45 0.6
    inches 0.018 0.024
    Dot Pitch Width Height
    millimeters 0.55 0.7
    inches 0.022 0.028
    Weight 15g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Yellow-Green
    Polarizer Reflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Type None
    Mode Positive
    Foreground Color Dark
    Background Color Yellow-Green
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sunplus SPLC780D
    16COM/40SEG Controller/Driver
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
    picture_as_pdf
    CFAH1202ANYGJP.pdf
    (Datasheet V 2.0, Hardware E, Firmware 1.0)
