This product is discontinued and has been replaced by CFAH1601A-RGH-JT

16x1 Parallel Character LCD

Part Number: CFAH1601A-RGH-JP

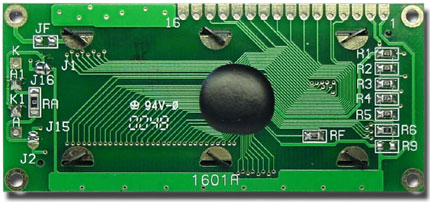

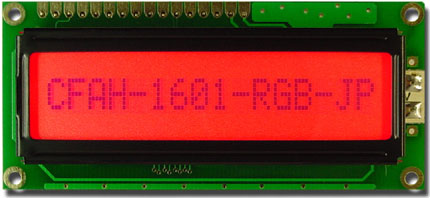

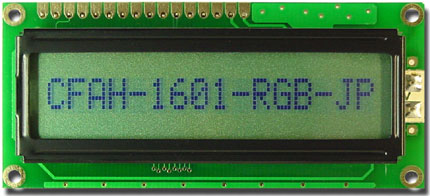

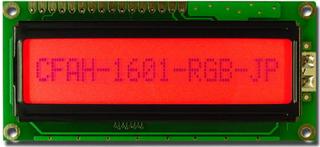

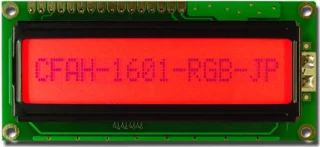

16x1  Parallel Character LCD (CFAH1601A-RGH-JP)

Description

Parallel Character LCD 16x1, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00

  • Fit and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1601A character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 1
Module Overall width height depth
millimeters 80 36 13.2
inches 3.150 1.417 0.520
PCB Outline width height depth
millimeters 80 36 13.2
inches 3.150 1.417 0.520
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 59.6 6.56
inches 2.346 0.258
Character Size width height
millimeters 3.07 6.56
inches 0.121 0.258
Character Pitch width
millimeters 3.77
inches 0.148
Dot Size width height
millimeters 0.55 0.75
inches 0.022 0.030
Dot Pitch width height
millimeters 0.63 0.83
inches 0.025 0.033
Weight 33g

Optical Characteristics

Glass Type/Glass Color STN/Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Red
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Red

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sunplus SPLC780D
Interface 4-bit Parallel, 8-bit Parallel

*Suggest a Correction
For reference only. For design purposes, please use the specifications in the datasheet.
