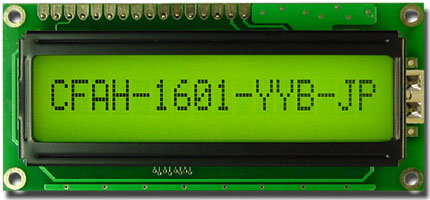

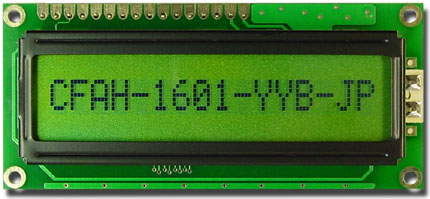

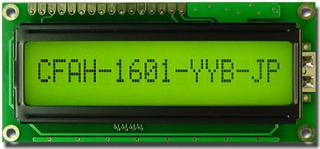

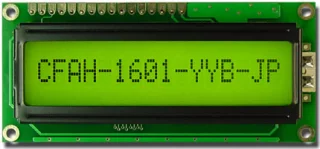

[EOL] 16x1 Parallel Character LCD

Part Number: CFAH1601A-YYH-JP

Parallel Character LCD 16x1, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00

  • Fit and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1601A character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 16 x 1
    Module Overall width height depth
    millimeters 80 36 13.2
    inches 3.15 1.42 0.52

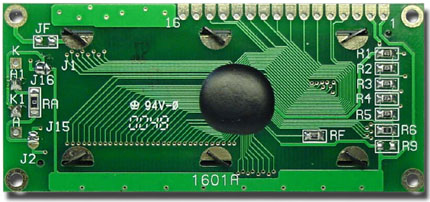

    PCB Outline width height depth
    millimeters 80 36 13.2
    inches 3.15 1.42 0.52
    Viewing Area Width Height
    millimeters 66 16
    inches 2.60 0.63
    Active Area Width Height
    millimeters 59.6 6.56
    inches 2.35 0.26
    Character Size Width Height
    millimeters 3.07 6.56
    inches 0.121 0.258
    Character Pitch Width
    millimeters 3.77
    inches 0.148
    Dot Size Width Height
    millimeters 0.55 0.75
    inches 0.022 0.030
    Dot Pitch Width Height
    millimeters 0.63 0.83
    inches 0.025 0.033
    Weight 33g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Yellow-Green
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Color Yellow-Green
    Backlight Type LED
    Mode Positive
    Foreground Color Dark
    Background Color Yellow-Green
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Sunplus SPLC780D
    16COM/40SEG Controller/Driver
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
    picture_as_pdf
    CFAH1601AYYHJP.pdf
    (Datasheet V 1.0, Hardware A)
