This product is discontinued please contact support to see if there is a replacement part available.

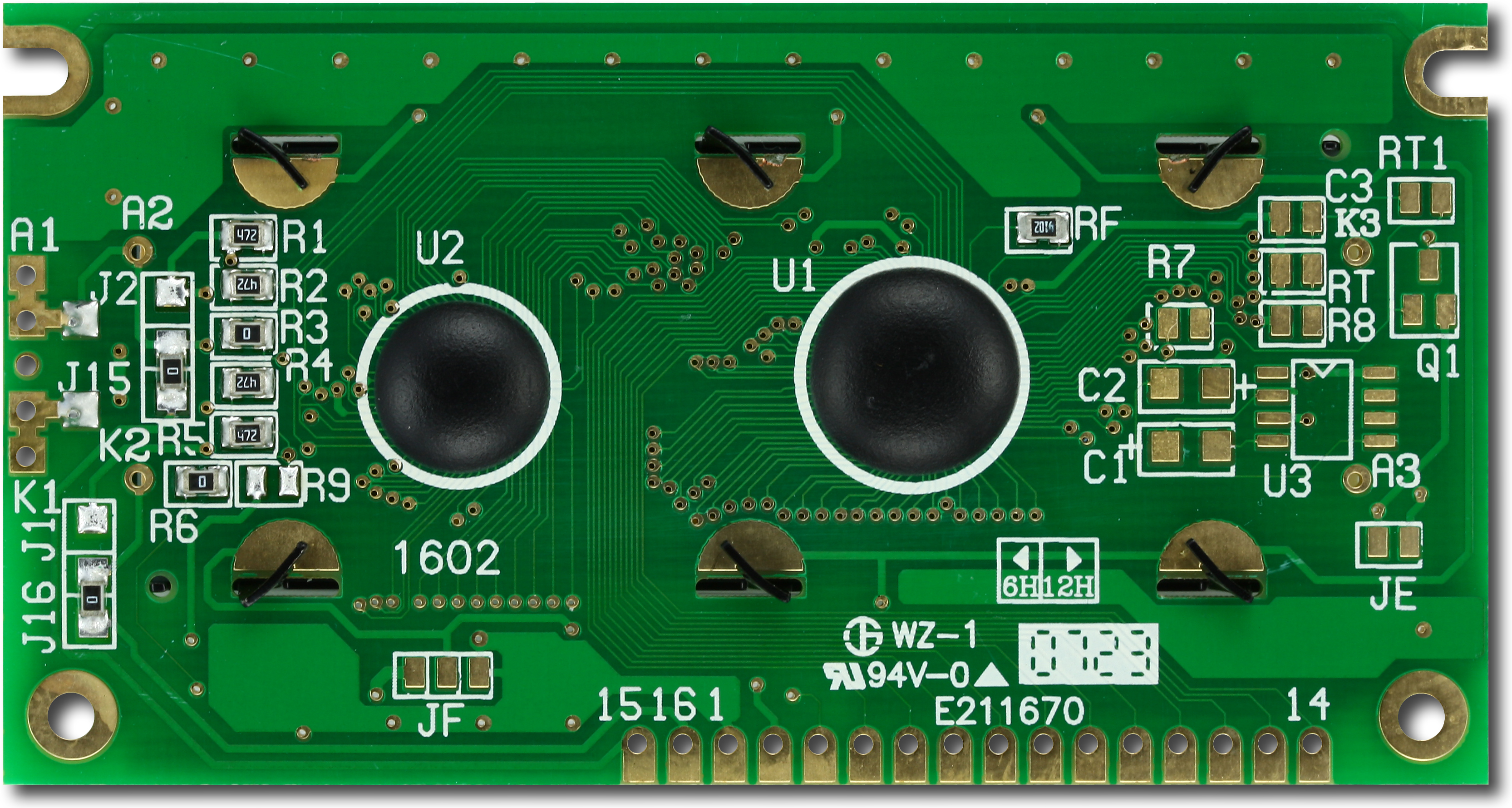

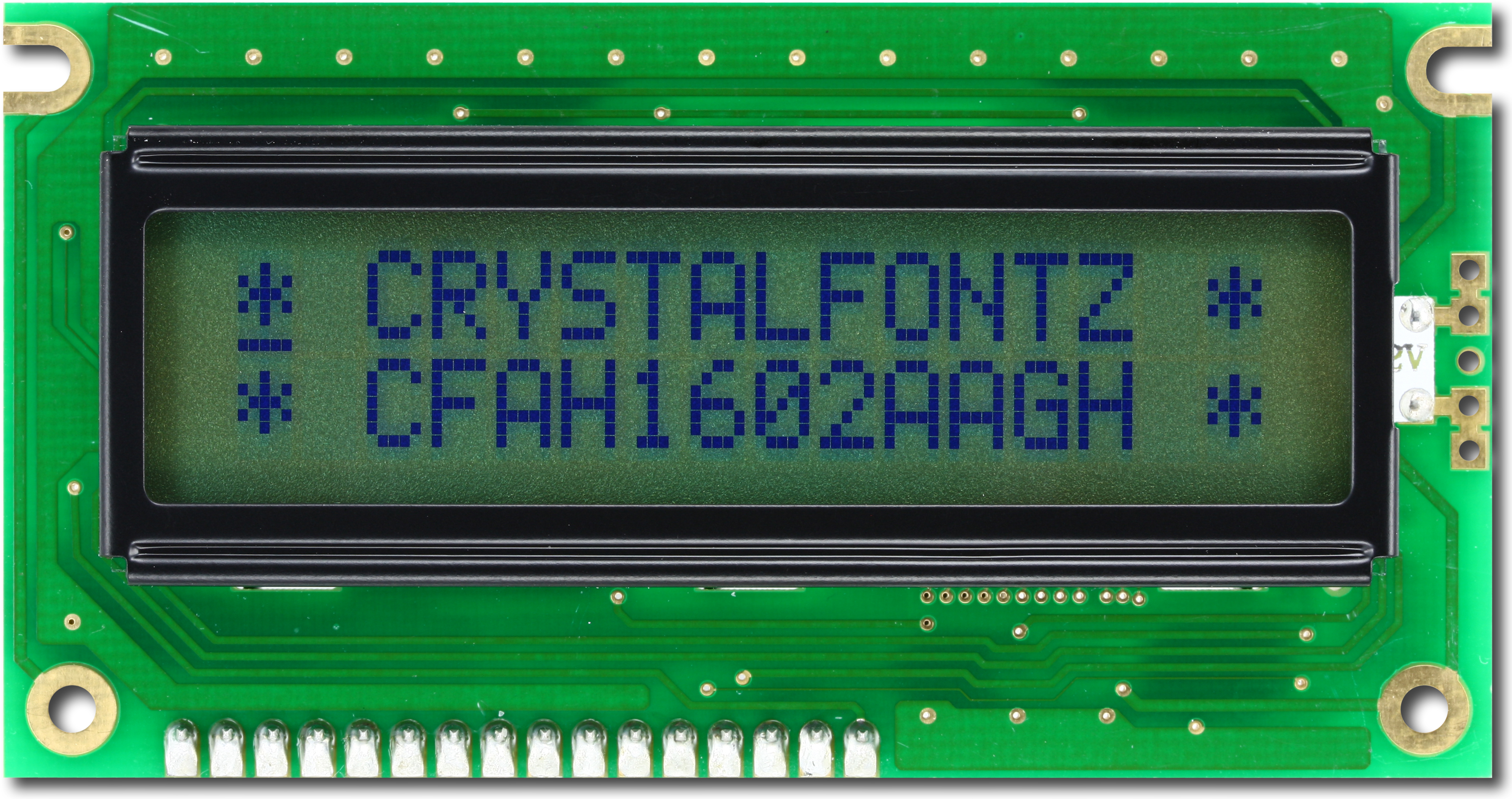

16x2 Parallel Character LCD

Part Number: CFAH1602A-AGH-JT

16x2  Parallel Character LCD (CFAH1602A-AGH-JT)

Description

Parallel Character LCD 16x2, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C, 6:00

  • Form compatible with the CFAG14432C Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG14432C, or, lower your costs by replacing the graphic with this character module
  • Form compatible with the CFAG12232A Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG12232A, or, lower your costs by replacing the graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 84 44 13.2
inches 3.307 1.732 0.520
PCB Outline width height depth
millimeters 84 44 13.2
inches 3.307 1.732 0.520
Viewing Area width height
millimeters 66 17
inches 2.598 0.669
Active Area width height
millimeters 56.2 11.5
inches 2.213 0.453
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.55 5.95
inches 0.140 0.234
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 36g

Optical Characteristics

Glass Type/Glass Color STN/Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes

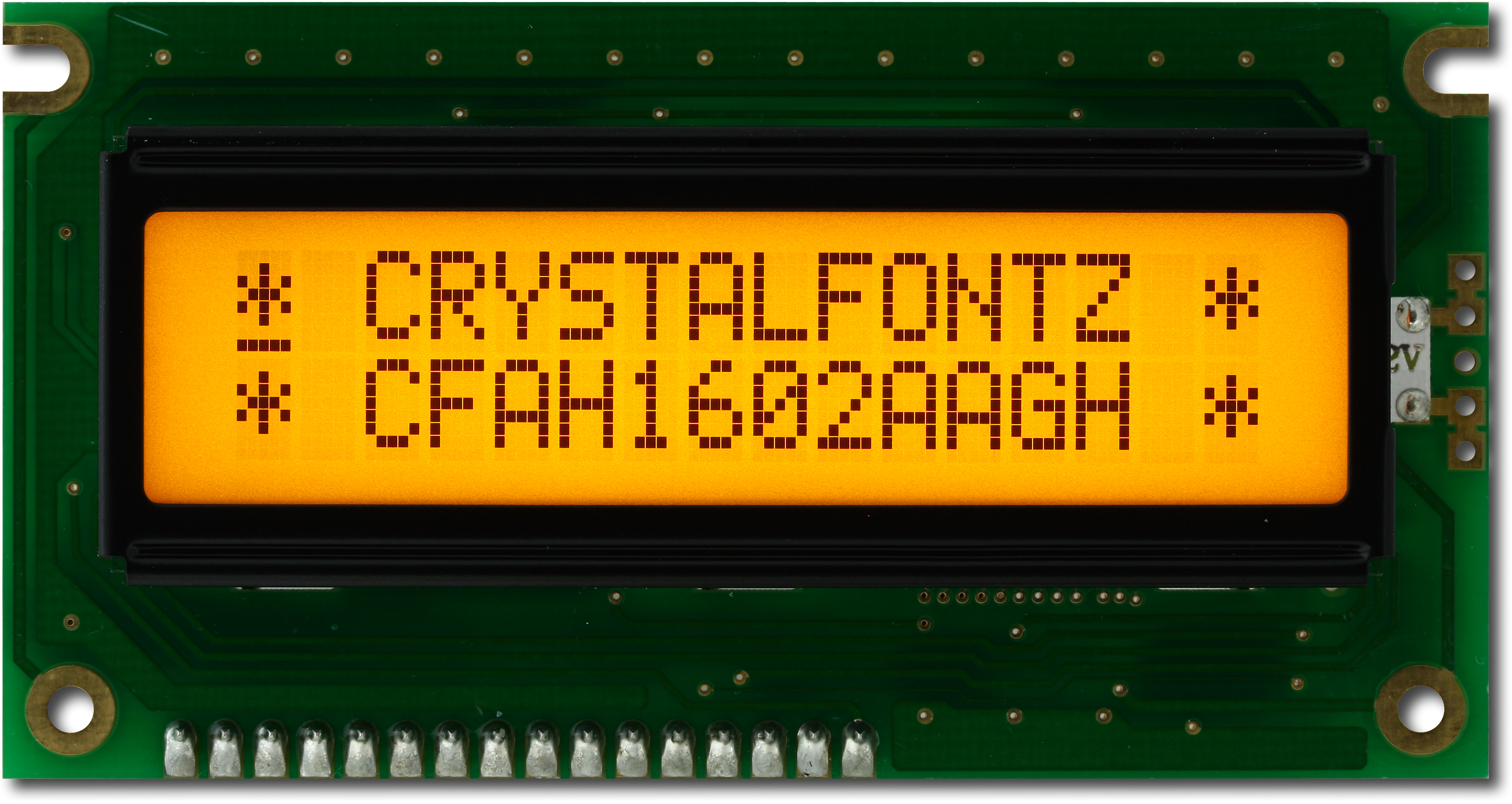

Backlight Color Amber
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Amber

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sitronix ST7066U
Interface 4-bit Parallel, 8-bit Parallel

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAH1602A-AGH-JT or RSS RSS feed for changes to CFAH1602A-AGH-JT

Product Update #10434: (New Product) CFAH1602A-AGH-JT

New Product: CFAH1602A-AGH-JT
Date Issued: October 9, 2012
Summary: (New Product) CFAH1602A-AGH-JT
Description: Under Standard Character Modules: Parallel Character LCD 16x2, RoHS Compliant, Amber LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C,
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

While we do not offer any direct replacements for this product, perhaps one of our other CFAH1602A displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
