This product has reached end of life

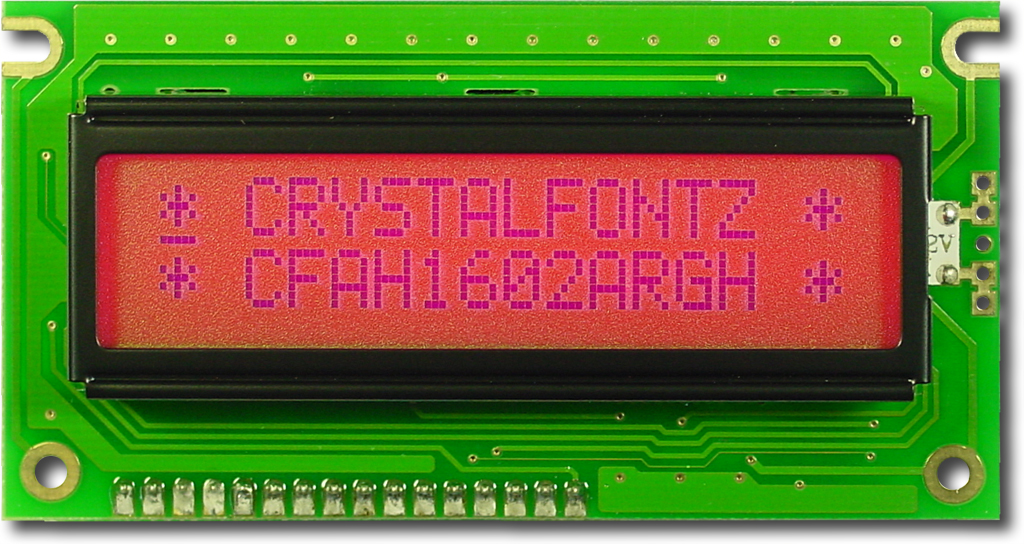

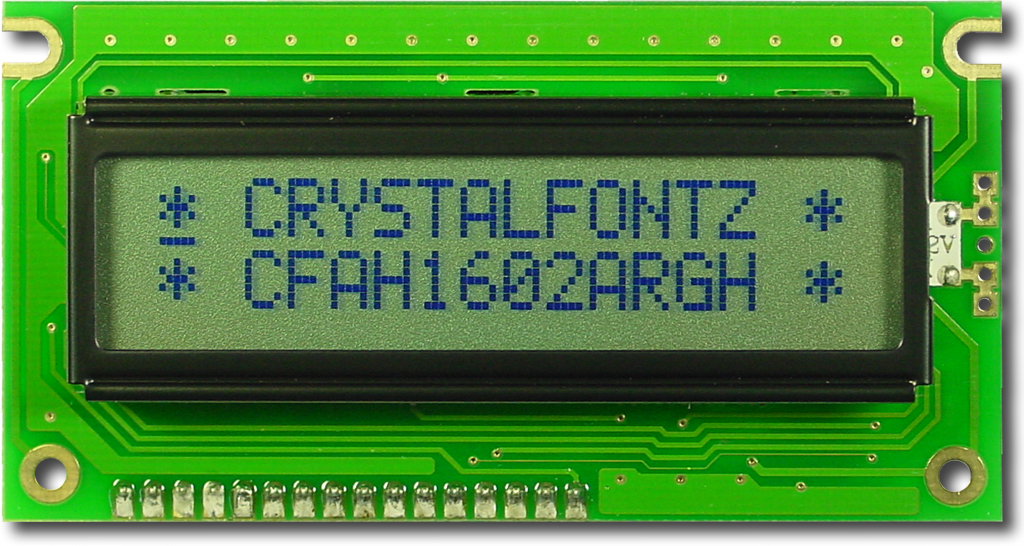

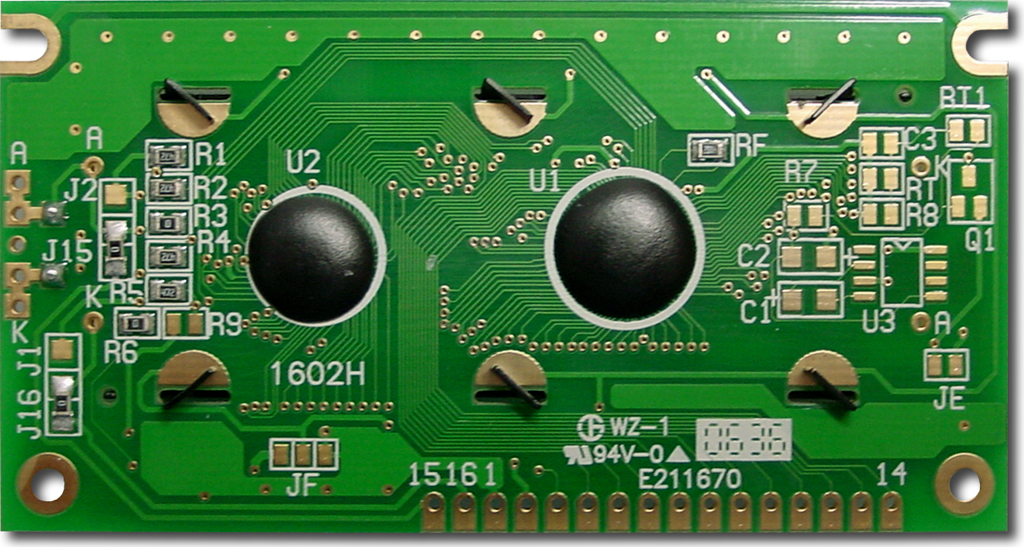

16x2 Red LCD (EOL)
Part Number: CFAH1602A-RGH-JP
Parallel Character LCD 16x2, RoHS Compliant, Red LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00
- Form compatible with the CFAG14432C Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG14432C, or, lower your costs by replacing the graphic with this character module
- Form compatible with the CFAG12232A Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602A character display by switching to a graphic CFAG12232A, or, lower your costs by replacing the graphic with this character module
- Available in several variations of backlight and polarizer (minimum order may be required)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 16 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 84 | 44 | 13.2 |
| inches | 3.307 | 1.732 | 0.520 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 84 | 44 | 13.2 |
| inches | 3.307 | 1.732 | 0.520 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 66 | 17 |
| inches | 2.598 | 0.669 |
| Active Area | width | height |
|---|---|---|
| millimeters | 56.2 | 11.5 |
| inches | 2.213 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 2.95 | 5.55 |
| inches | 0.116 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.55 | 5.95 |
| inches | 0.140 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.55 | 0.65 |
| inches | 0.022 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.6 | 0.7 |
| inches | 0.024 | 0.028 |
| Weight | 36g |
Optical Characteristics
| Glass Type/Glass Color | STN/Gray |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | Red |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Red |
Electrical Specifications
| Module Connector Pitch | 0.10mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
For reference only. For design purposes, please use the specifications in the datasheet.
