16x2 Parallel Character LCD

Part Number: CFAH1602B-YYH-JP

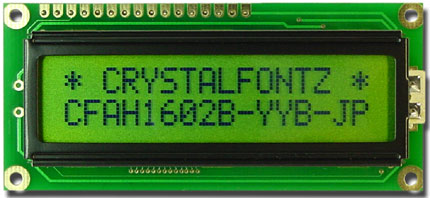

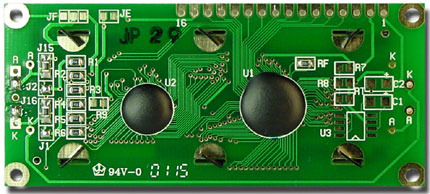

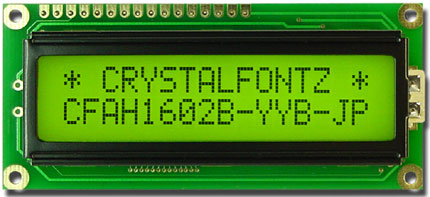

16x2  Parallel Character LCD (CFAH1602B-YYH-JP)

Description

Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00

  • Fit (except for JTV/JPV) and form compatible with the CFAG14432B Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602B character display by switching to the graphic CFAG14432B, or, lower your costs by replacing that graphic with this character module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 80 36 13.5
inches 3.150 1.417 0.531
PCB Outline width height depth
millimeters 80 36 13.5
inches 3.150 1.417 0.531
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.2 11.5
inches 2.213 0.453
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.55 5.95
inches 0.140 0.234
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 33g

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Sunplus SPLC780D
Interface 4-bit Parallel, 8-bit Parallel
