This product is discontinued and has been replaced by CFAH1602J-NYG-JT

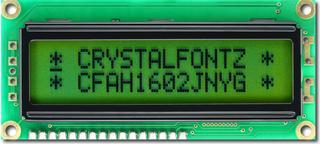

[EOL] STN Positive Green 16x2 Character LCD
Part Number: CFAH1602J-NYG-JP
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C to +70°C 6:00
- Form compatible with the CFAG14432E Series of Graphic LCD modules. Upgrade your product that uses this CFAH1602J character display by switching to the graphic CFAG14432E, or, lower your costs by replacing that graphic with this character module
- Alternate connector position from CFAH1602B series
- Available in several variations of backlight and polarizer (minimum order may be required)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller

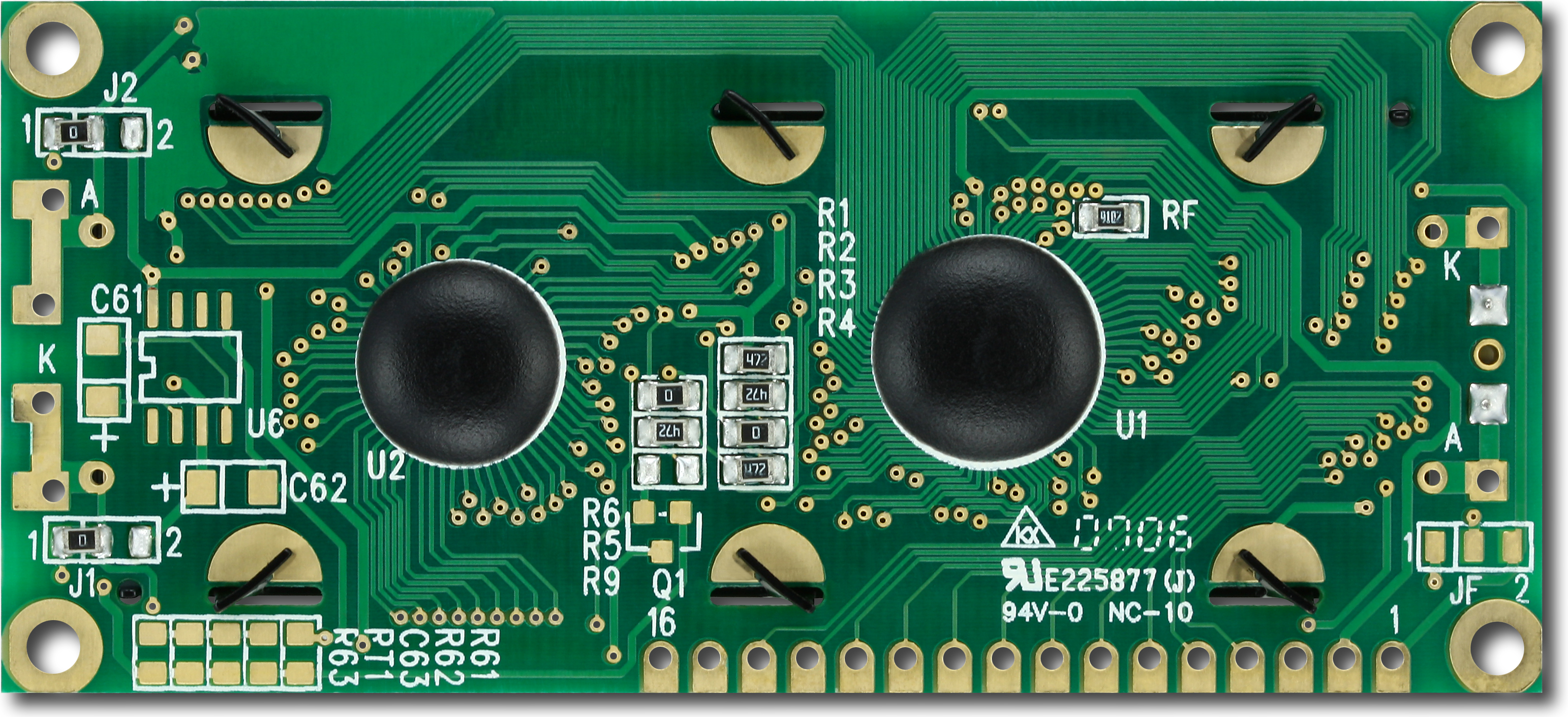

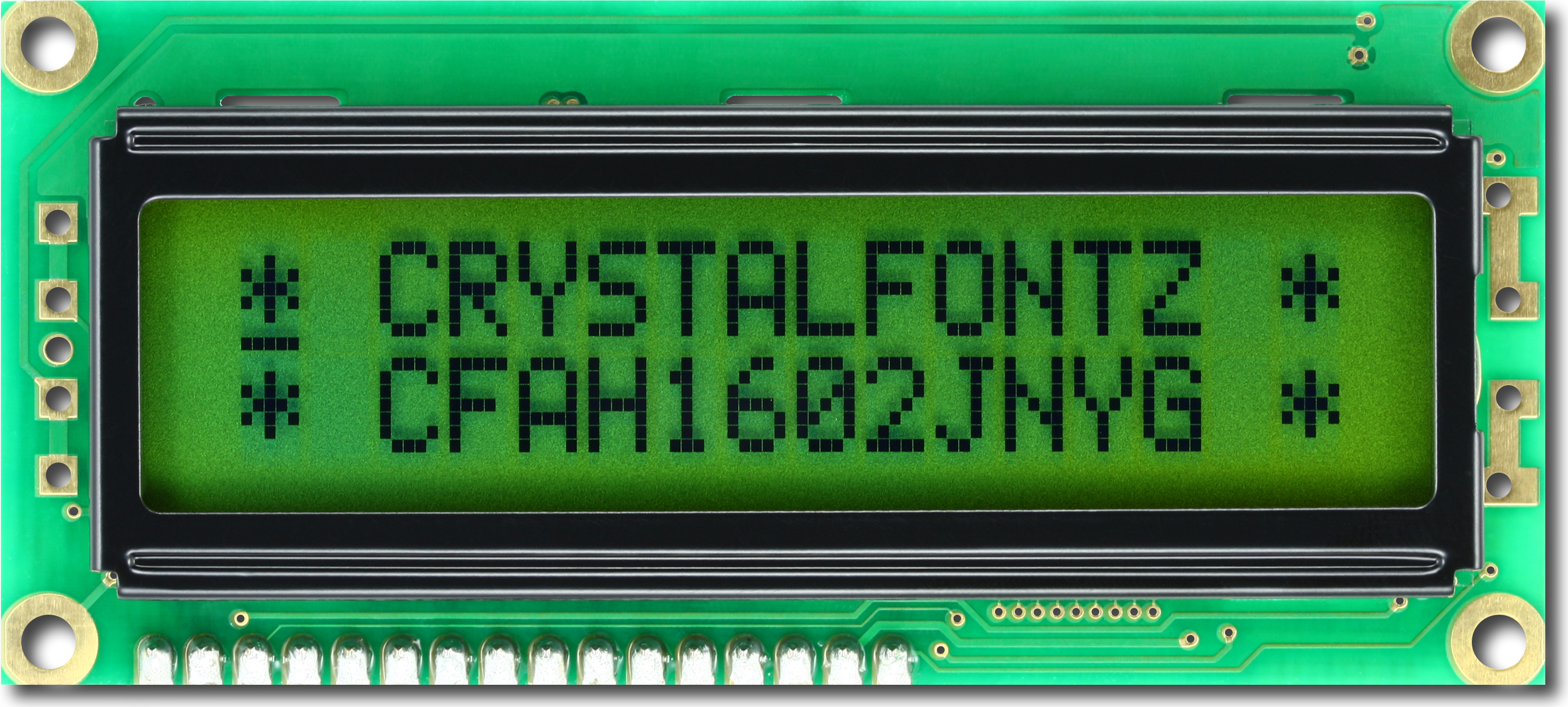

![[EOL] STN Positive Green 16x2 Character LCD (CFAH1602J-NYG-JP)](/images/products/CFAH1602JNYGJP/CFAH1602JNYG_large.jpg)
Datasheet
CFAH1602J-NYG-JP Data Sheet and Sunplus SPLC780C Controller/Driver Data Sheet
(Datasheet V 1, Hardware A)
(Datasheet V 1, Hardware A)
TECHNICAL SPECS

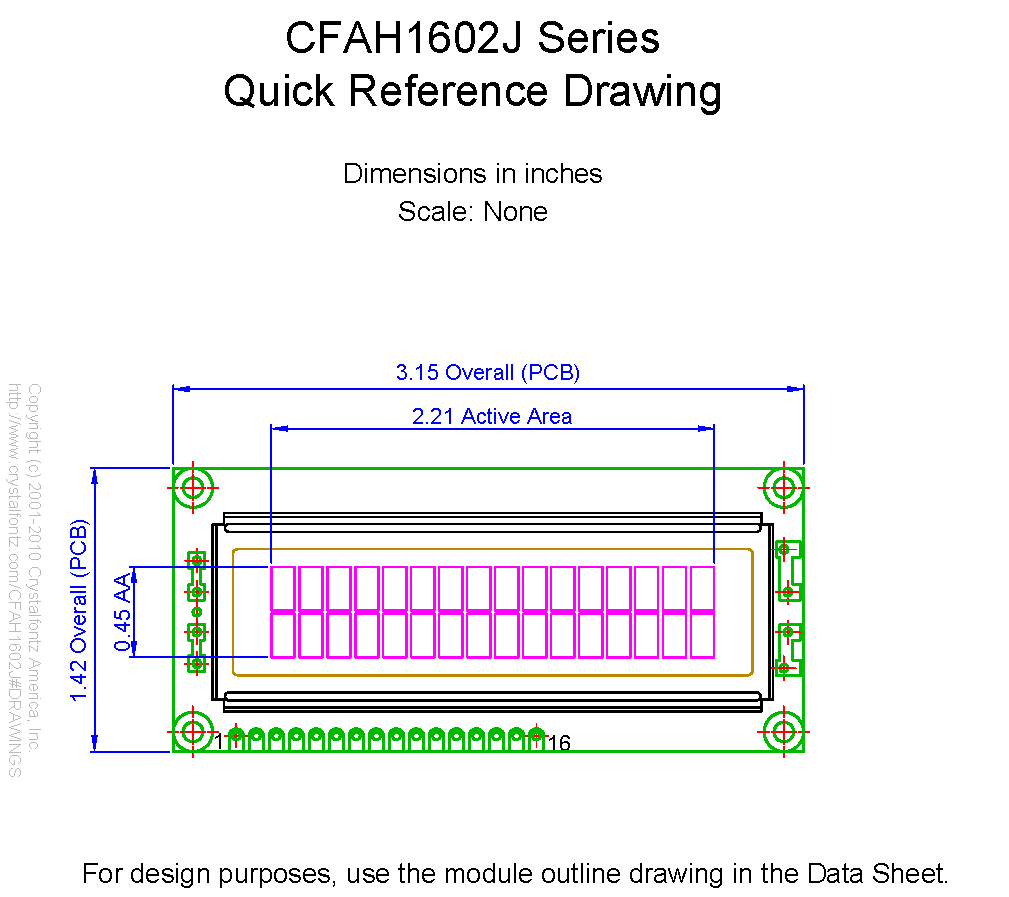

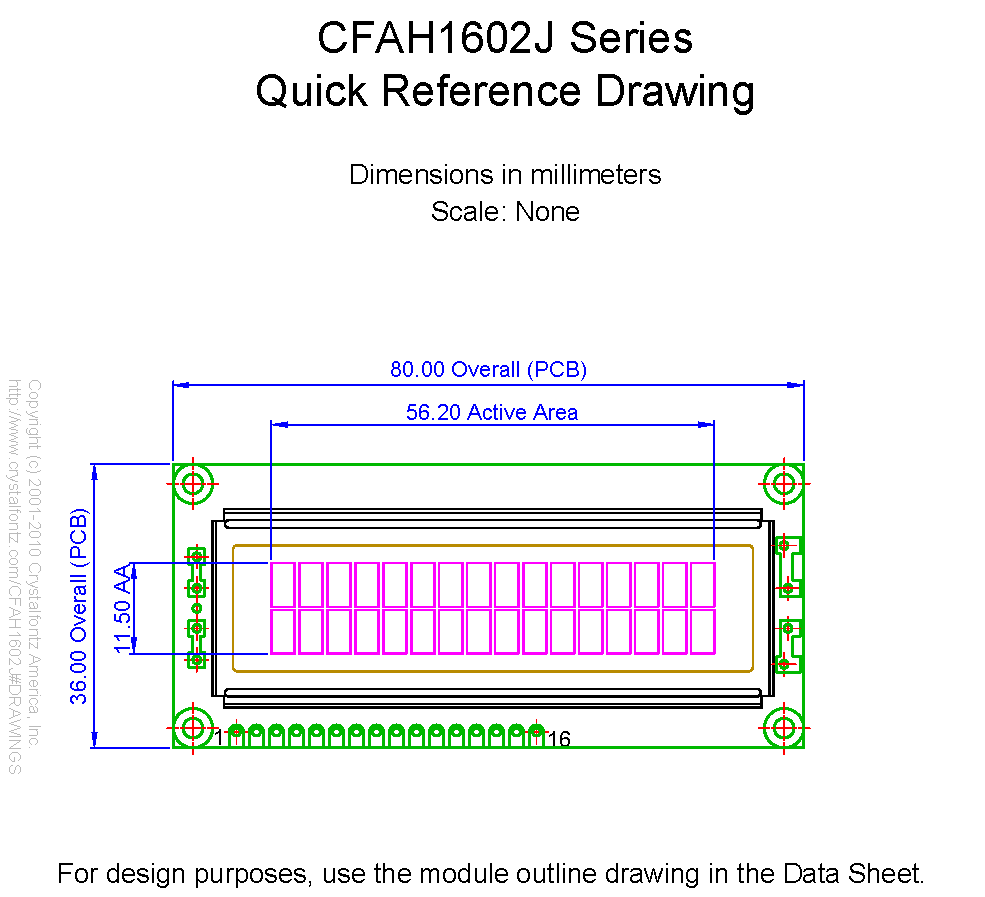

Physical Characteristics
| Characters x Lines | 16 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 80 | 36 | 9.4 |
| inches | 3.150 | 1.417 | 0.370 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 80 | 36 | 9.4 |
| inches | 3.150 | 1.417 | 0.370 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 66 | 16 |
| inches | 2.598 | 0.630 |
| Active Area | width | height |
|---|---|---|
| millimeters | 56.2 | 11.5 |
| inches | 2.213 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 2.95 | 5.55 |
| inches | 0.116 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.55 | 5.95 |
| inches | 0.140 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.55 | 0.65 |
| inches | 0.022 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.6 | 0.7 |
| inches | 0.024 | 0.028 |
| Weight | 25g |
Optical Characteristics
| Glass Type/Glass Color | STN/Yellow-Green |
| Polarizer | Reflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Type | None |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Yellow-Green |
Electrical Specifications
| Module Connector Pitch | 0.10mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
For reference only. For design purposes, please use the specifications in the datasheet.
