This product is discontinued and has been replaced by CFAH1602L-TGH-JT

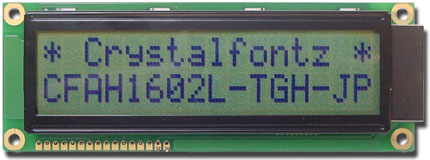

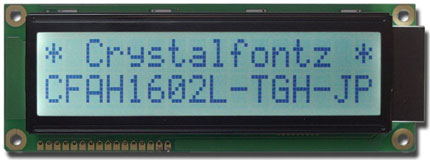

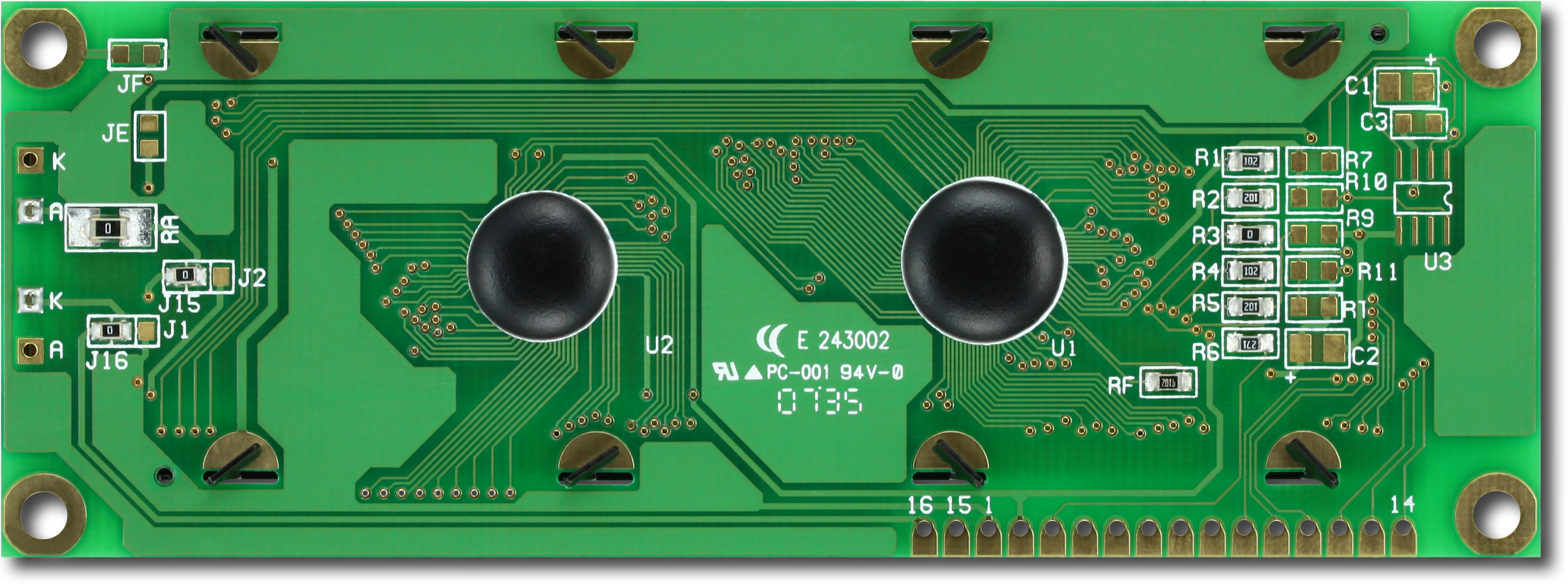

Gray 16x2 Character LCD (EOL)
Part Number: CFAH1602L-TGH-JP
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00
- Available in several variations of backlight and polarizer (minimum order may be required)
- Large Characters
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 16 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 122 | 44 | 13.6 |
| inches | 4.803 | 1.732 | 0.535 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 122 | 44 | 13.6 |
| inches | 4.803 | 1.732 | 0.535 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 99 | 24 |
| inches | 3.898 | 0.945 |
| Active Area | width | height |
|---|---|---|
| millimeters | 94.84 | 20 |
| inches | 3.734 | 0.787 |
| Character Size | width | height |
|---|---|---|
| millimeters | 4.84 | 8.06 |
| inches | 0.191 | 0.317 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 6 | 9.66 |
| inches | 0.236 | 0.380 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.92 | 1.1 |
| inches | 0.036 | 0.043 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.98 | 1.16 |
| inches | 0.039 | 0.046 |
| Weight | 68g |
Optical Characteristics
| Glass Type/Glass Color | STN/Gray |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | White |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
For reference only. For design purposes, please use the specifications in the datasheet.
